Fischer 503801 FIS W M10 K NV Wash basin fastener 85 mm 12 mm 1 Set
EAN:
Part number:
Item no:
Number
Total (€ 9.49 / piece)
€ 9.49
incl. VAT
Only 5 Set(s) available
Highlights & Details
Fischer injection washing table attachment FIS W M 10
- Also holds securely in pebble stone masonry.
- Complete set with threaded rod, anchor sleeve, collar sleeve and hexagonal nut.
- Matched components.
Technical specifications
- (Ø)
12 mm
- Product type
Wash basin fastener
- Length
85 mm
- Dim
(Ø x L) 12 mm x 85 mm
- Suitable for
Concrete
Cored bricks
Structural lightweight concrete hollow block
Hollow block
Solid brick
Foamed concrete wall
Prestressed concrete hollow boards
Pumice
Hollow pumice slabs
- Content
1 Set
- Outside Ø
12 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3065968 Fischer 503801 FIS W M10 K NV Wash basin fastener 85 mm 12 mm 1 Set
Description

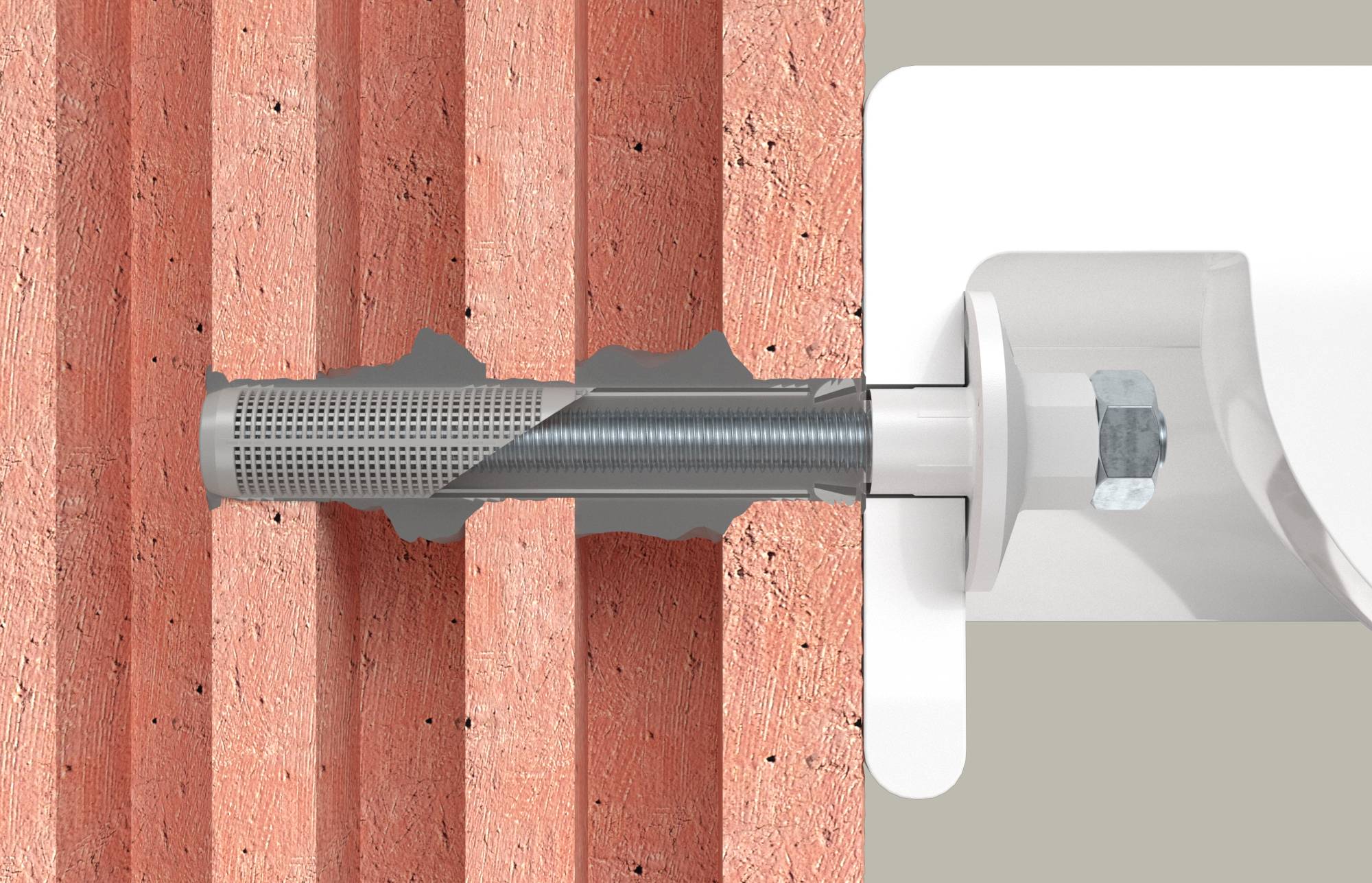

The Fischer FIS W injection wash stand is a complete set for fixing a washing table in a brick wall. Only the Fischer high-performance mortar FIS V is required for the assembly. For this purpose, the anchor sleeve is inserted into the drilled hole and filled with Fischer injection mortar from the bottom of the anchor sleeve. When the anchor rod is inserted, the mortar is pressed through the grid structure of the anchor sleeve and connects itself to the perforated stone in the form closure. This will route the load into the building material. This keeps the wash basin safely even in hollow stone.
This text is machine translated.
This text is machine translated.

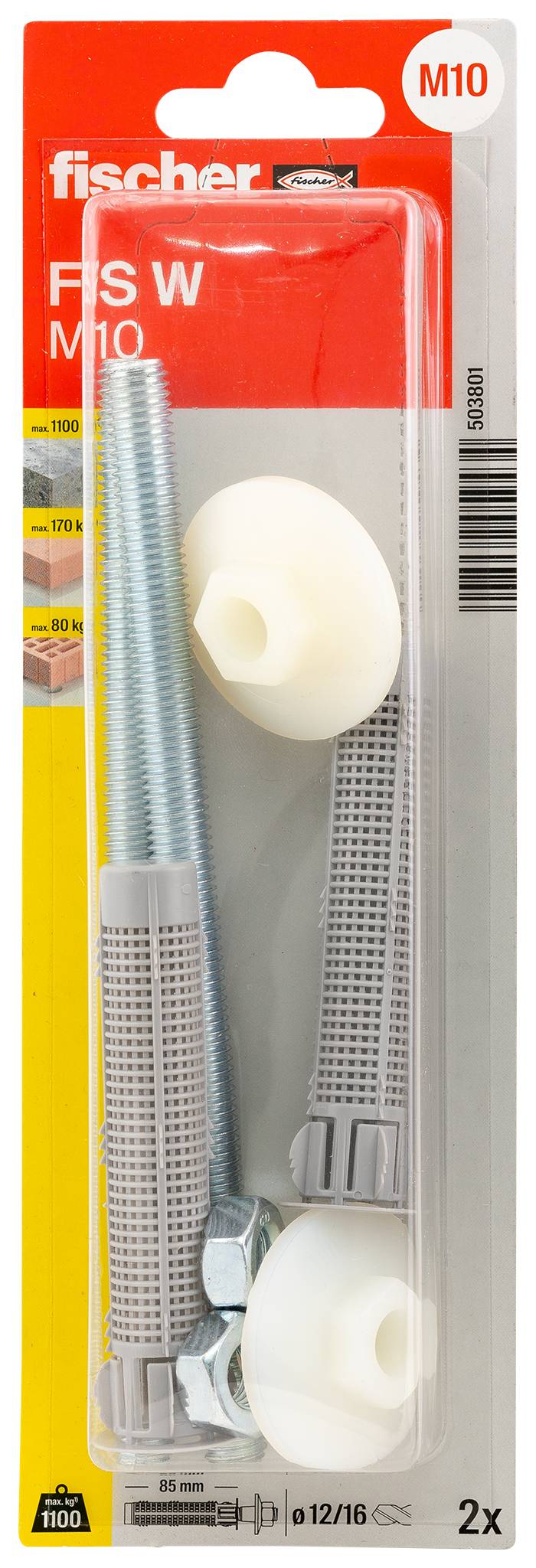

Scope of delivery

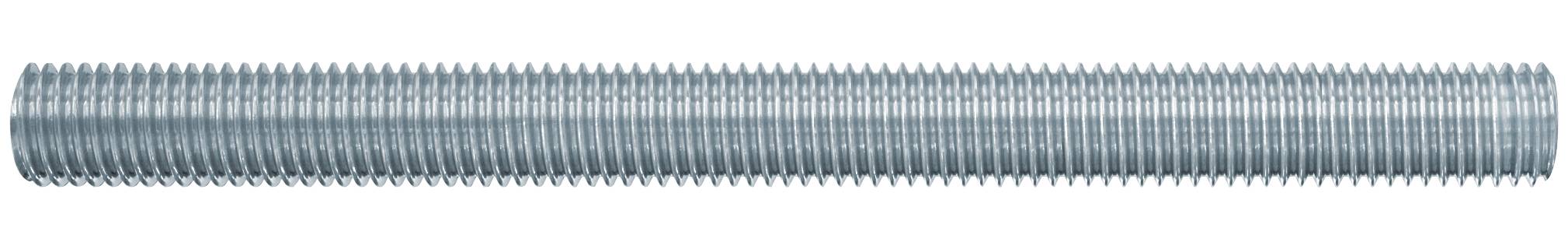

- 2 x threaded rod M 10 x 165
- 2 x plastic sieve sleeve FIS H 16 x 85 K
- 2 x collar sleeve BDH M 10, 2 x 6-kt nut
