Name: Fischer 537262 fischer DuoTec 10 K NV Dowel 50 mm 1 Set
Brand: Fischer
SKU: 3066070
Availability: InStock

Package of Fischer Duotec wall anchors, two white anchors with red toggle pieces on red-and-white retail backing<br>

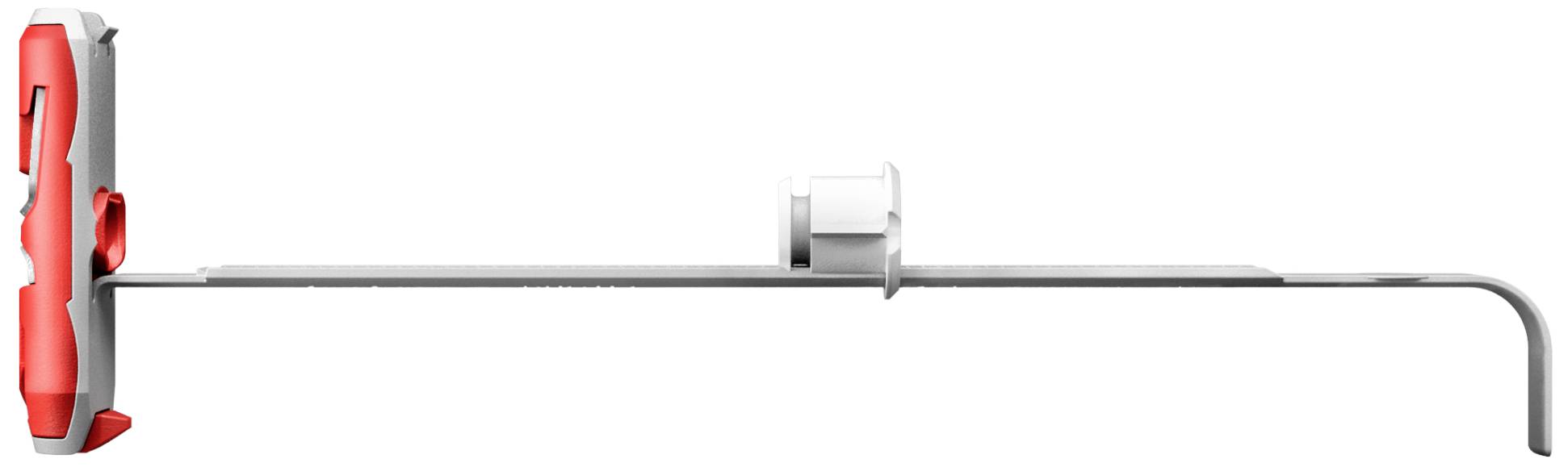

Red wall-mounted hook with a silver metal rail and a central clip, shown in side view.

Closed kitchen cabinet with neatly stacked dishes: peach bowls on top, white cups and plates, and peach mugs on lower shelves.

Shelves with several silver paint cans and a few small clear jars with green lids, arranged in rows against a light wall.

Advertising poster for the 'fischer DuoTec' toggle anchor for heavy loads with product photos and benefits list for precast concrete materials and cavities.

Infographic on applications and installation: suitable for cabinet systems, wardrobes, handrails, hanging flower baskets, shelves and lamps; surfaces concrete, wood, plasterboard, lightweight concrete, wood panels; installation in 8 steps.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

29 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 13.99 / piece)

€ 13.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer DuoTec 10

Combination of two material components for more performance.
Collapse sleeve strengthens the hole and enables significantly higher transverse loads.
Curved handle enables detecting obstacles before mounting.

Technical specifications

Product type: Dowel

Length: 50 mm

Suitable for: Plasterboard
Plasterboard
Timber boards
Timber board materials
PVC sheets

Content: 1 Set

Outside Ø: 10 mm

Documents & Downloads

Datasheet

Datasheet 3066070 Fischer 537262 fischer DuoTec 10 K NV Dowel 50 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3066070 Fischer 537262 fischer DuoTec 10 K NV Dowel 50 mm 1 Set

Information

Information 3066070 Fischer 537262 fischer DuoTec 10 K NV Dowel 50 mm 1 Set

Description

The nylon toggle bolt Fischer DuoTec for high tension and lateral loads thanks to 2 components. Simple mounting with a small bore hole diameter of 10 mm and short tilting element even in narrow and insulated cavities. Simple pre-mounting, the plug does not fall into the drilled hole even without a screw. No cutting and thus weakening of the gypsum board. The tipping element folds out automatically behind the plate and gives it its load capacity. The flexible screw mount is made of stainless steel and allows the toggle bolt to be used with wood and chipboard screws or with metric hook and threaded rods with locknut. In case of drill hole hits in solid construction materials, it works like a toggle bolt.
