Name: Fischer 539027 fischer DuoTec 10 S PH K NV Dowel set 50 mm 1 Set
Brand: Fischer
SKU: 3066082
Availability: InStock

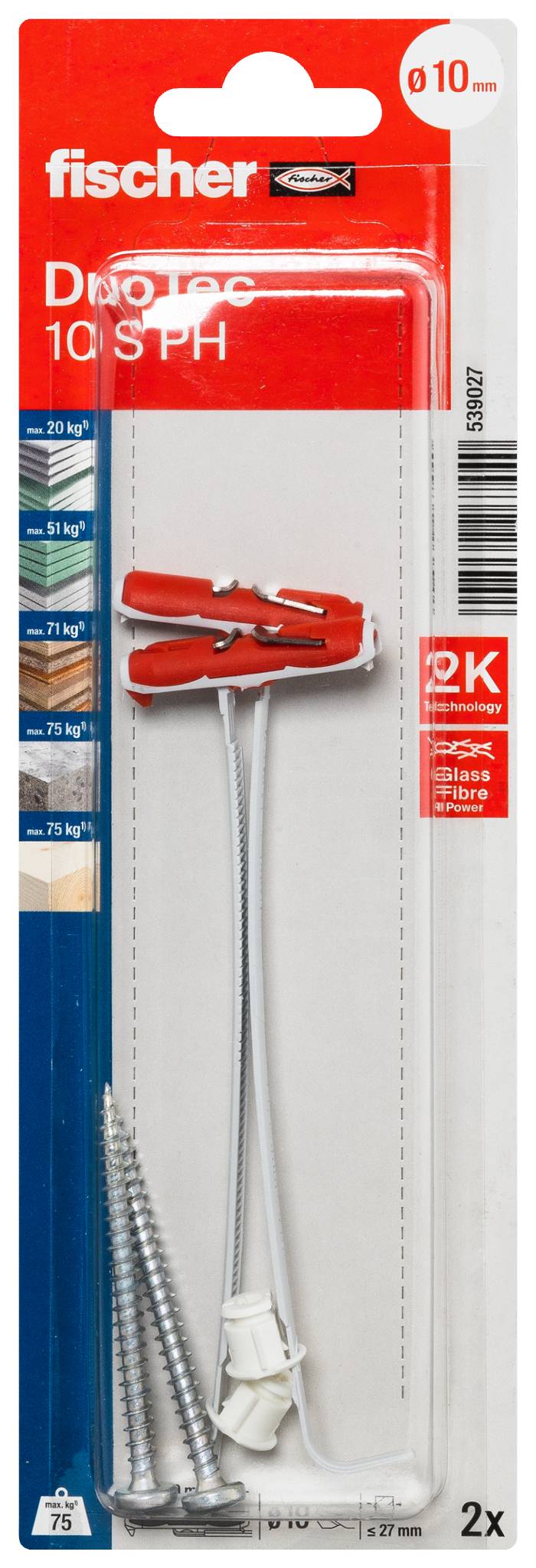

Package of Fischer DuoPower wall plugs with two screws, labeled for 10 mm holes and 2x quantity, shown on red-and-white retail packaging.

Steel siding clip and long screw fastener shown side by side on a white background.

Product packaging for fischer DuoTec wall plug, showing installation diagrams, size chart, and safety icons on a white box.

Glass-front kitchen cabinet with neatly stacked pink and white bowls, white plates, and matching mugs on three shelves

Shelves holding assorted metal paint cans and small glass jars, arranged like a storage or supply display.

Fischer 539027 fischer DuoTec 10 S PH K NV Dowel set 50 mm 1 Set-5

Assembly Instructions for 2K Technology: Application Examples, Suitable Substrates and Eight Assembly Steps for Prefabricated Building Materials.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

1 Set(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 2.79 / piece)

€ 2.79

incl. VAT

Only 1 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fischer DuoTec 10 S PH with Panhead screw

Combination of two material components for more performance.
Collapse sleeve strengthens the hole and enables significantly higher transverse loads.
Curved handle enables detecting obstacles before mounting.

Technical specifications

(Ø): 10 mm

Product type: Dowel set

Material: Nylon

Length: 50 mm

Dim: (Ø x L) 10 mm x 50 mm

Suitable for: Plasterboard

Content: 1 Set

Outside Ø: 10 mm

Features: incl. plywood screw

Material properties: rust-proof

Documents & Downloads

Datasheet

Datasheet 3066082 Fischer 539027 fischer DuoTec 10 S PH K NV Dowel set 50 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3066082 Fischer 539027 fischer DuoTec 10 S PH K NV Dowel set 50 mm 1 Set

Information

Information 3066082 Fischer 539027 fischer DuoTec 10 S PH K NV Dowel set 50 mm 1 Set

Description

The nylon toggle bolt Fischer DuoTec for high tension and lateral loads thanks to 2 components. Simple mounting with a small bore hole diameter of 10 mm and short tilting element even in narrow and insulated cavities. Simple pre-mounting, the plug does not fall into the drilled hole even without a screw. No cutting and thus weakening of the gypsum board. The tipping element folds out automatically behind the plate and gives it its load capacity. The flexible screw mount is made of stainless steel and allows the toggle bolt to be used with wood and chipboard screws or with metric hook and threaded rods with locknut. In case of drill hole hits in solid construction materials, it works like a toggle bolt. The supplied round hook is optimally tuned to the toggle bolt of Fischer DuoTec. This guarantees a perfect hold.

This text is machine translated.
