Name: Fischer 542590 DUOTEC 12 LD Cavity plug 10 pc(s)
Brand: Fischer
SKU: 1933063
Availability: InStock

Box of Fischer DuoTec 12 2K toggle fasteners, red and white packaging with a clear window showing included hardware, labeled 10x.<br>

Red-handled metal hanger or mounting rod with a central clamp and a long bent hook end on a white background.

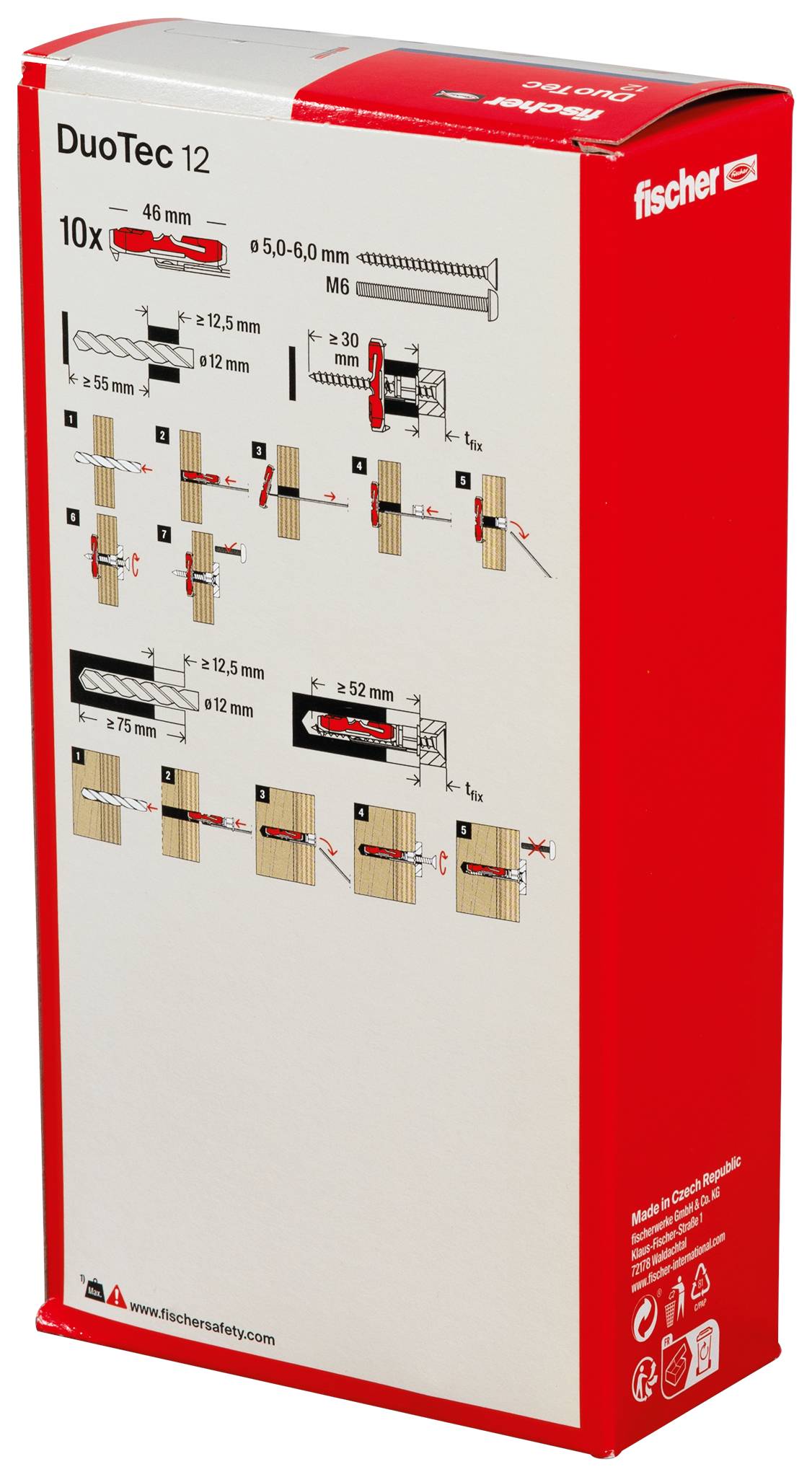

Red Fischer DuoTec 12 wall anchor box with installation diagrams and dimensions on the front.

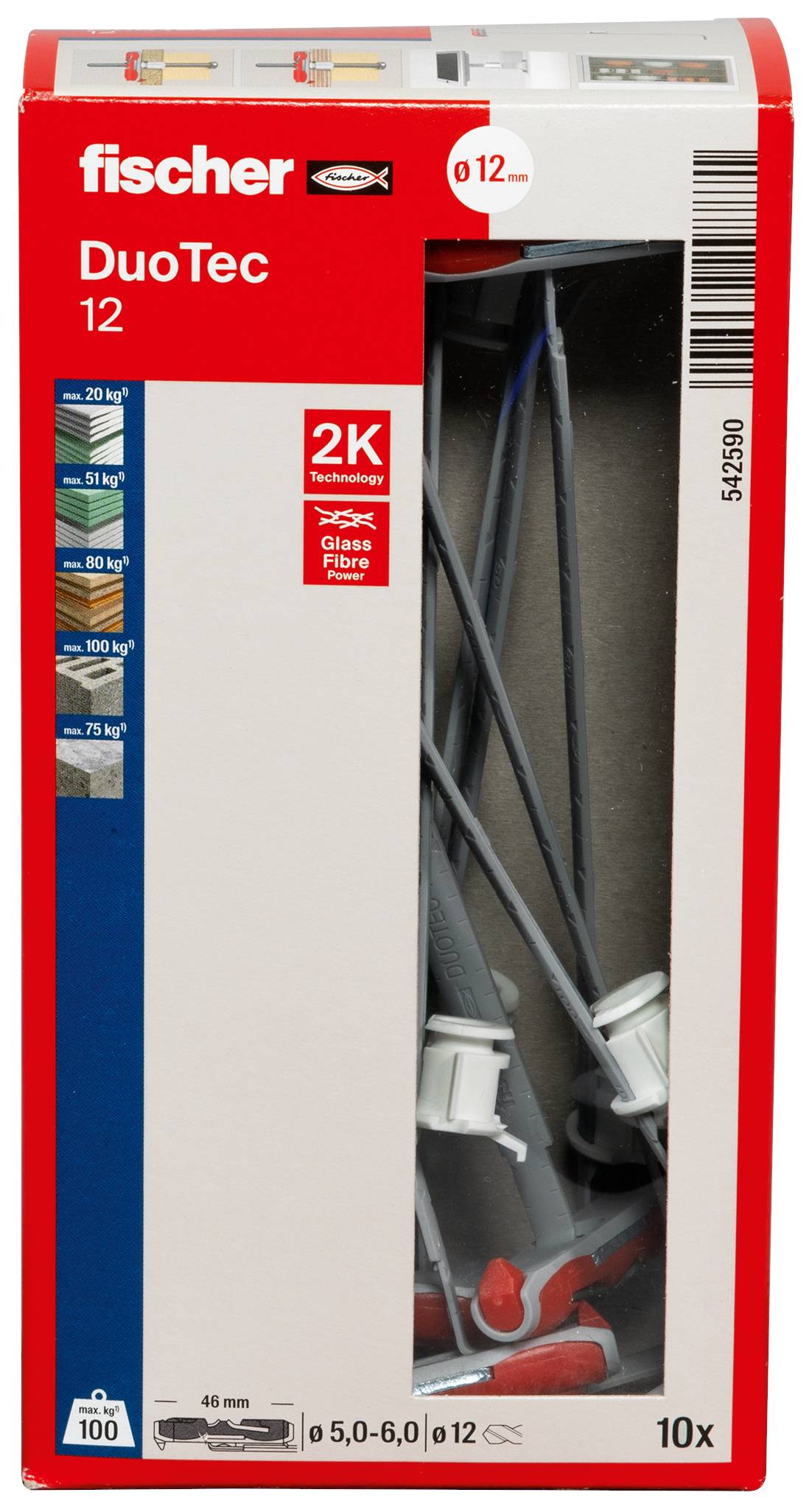

Package of fischer DuoTec 12 wall anchors, showing two white plastic anchors inside a red-and-white box with size and load icons.

Glass-front cabinet displaying neatly stacked pastel bowls, white plates, and mugs on three shelves.<br>

Shelf with assorted metal paint cans and three small glass jars, arranged on two blue shelves against a white background.

Advertising poster for the 'fischer DuoTec' toggle anchor for high loads with product images and benefits such as high load-bearing capacity and uniform load distribution.

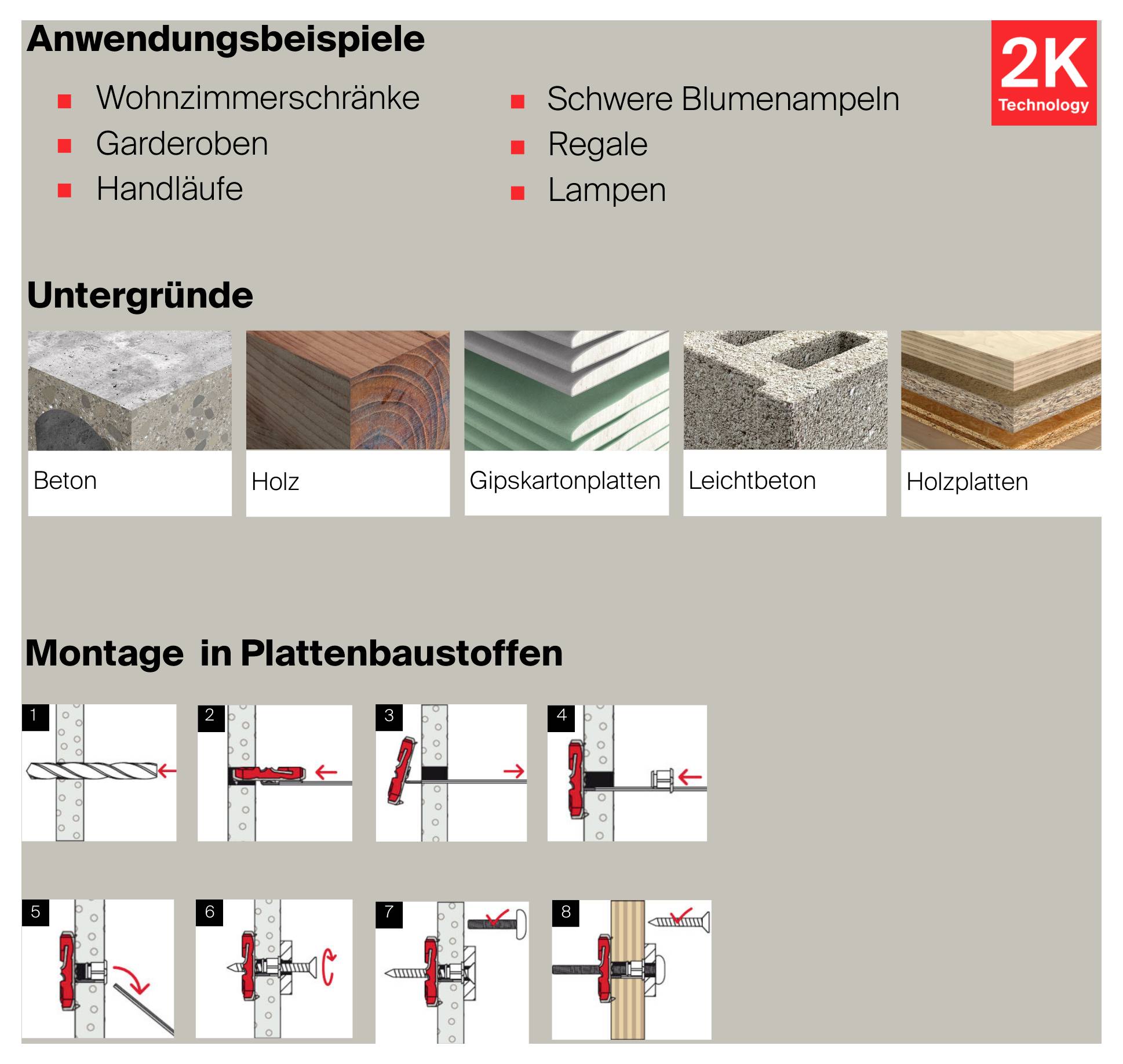

Assembly Instructions for 2K Technology: Applications, Suitable Substrates and 8 Installation Steps for Prefabricated Building Materials.

1/8

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

19 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 19.99 / piece)

€ 19.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer DUOTEC 12

Combination of two material components for more power
Federal sleeve strengthens the drill hole and enables significantly higher transverse loads
Curved handle allows before mounting the feel of obstacles

Technical specifications

Drill nominal diameter 12 mm
Min. Thickness of 12 mm
Max. plate thickness: 55 mm
Min. Cavity depth 50 mm
Screws diameter 5.0 - 6.0/M6 mm
Screw length ≥ DP + tfix +20 mm
Min. Drill hole depth ls-tfix + 10 mm
Min. Tfix screw length + 65 mm
Dowel length 60 mm.

Product type: Cavity plug

Suitable for: Plasterboard
Plasterboard
Timber boards
Chipboard
PVC sheets
Concrete

Content: 10 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1933063 Fischer 542590 DUOTEC 12 LD Cavity plug 10 pc(s)

Description

The unique function mode and the dowels geometry of the fischer DUOTEC allow for very high load input. Toggle bolt This reduces the number of attachments in case of multiple attachments and maximize safety. The fischer DUOTEC is a member of the duo-Line of two plastic components. The red and hard component of the anchor sleeve enables the uniform load distribution, the gray and soft prevent damage to the disk surface in the case of attachment and thus a load reduction. For applications in building materials, behind which a hollow space, the fischer DUOTEC as a toggle bolt. In solid substrates can also be used as a wedge anchor of the dowel.

This text is machine translated.
