Name: Fischer 557728 DuoSeal Dowel 48 mm 8 mm 25 pc(s)
Brand: Fischer
SKU: 2340325
Price: 23.99 EUR
Availability: InStock

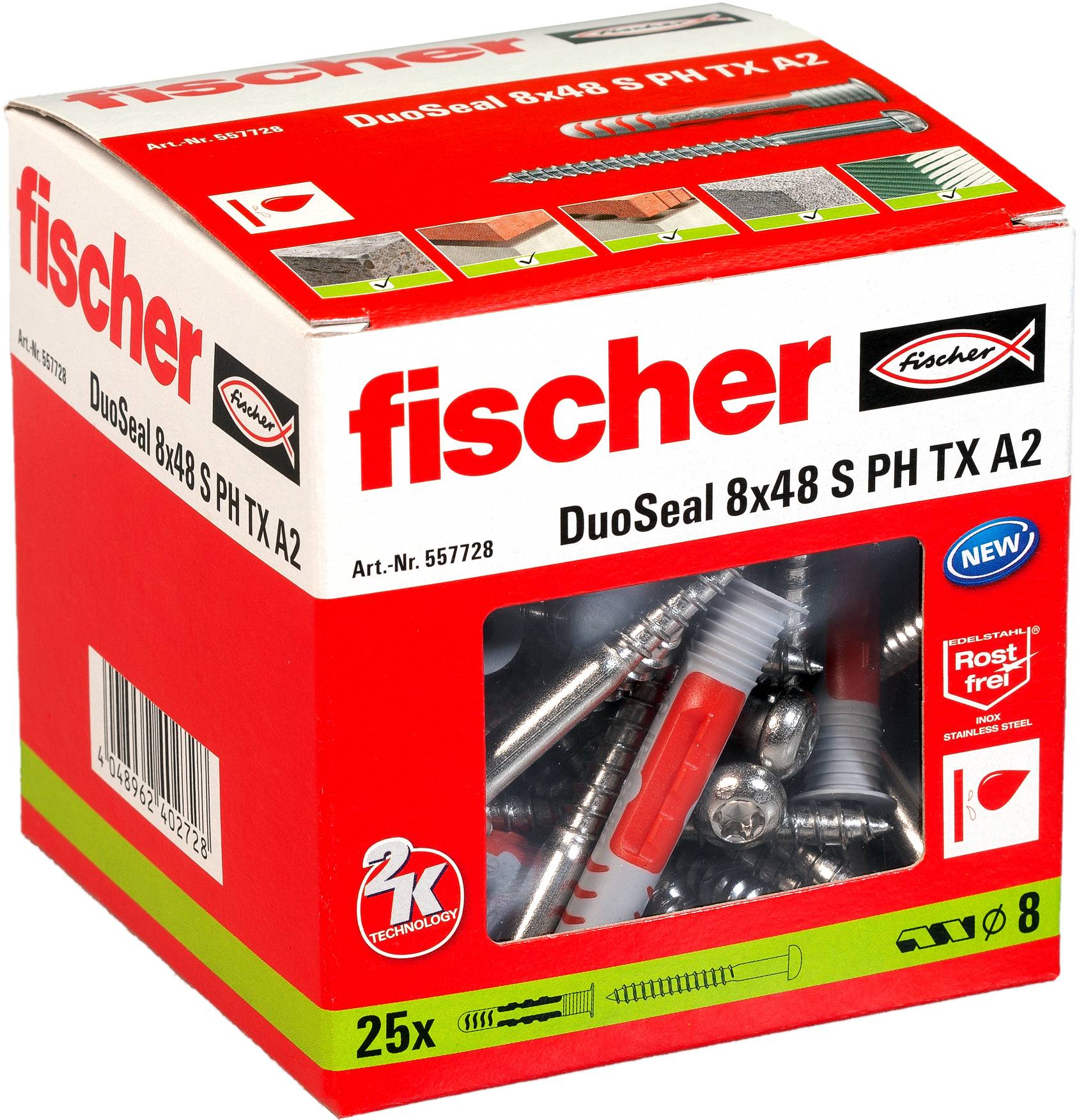

Red Fisher DuoSeal 8x48 S PH TX A2 anchor box with 25 pieces visible in a clear window.

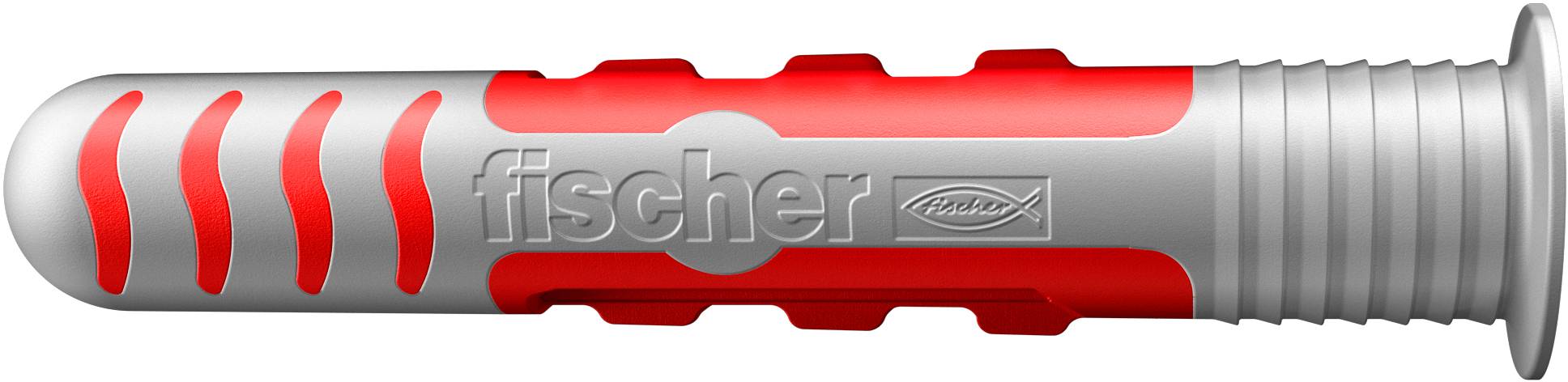

Red-and-silver Fischer wall plug anchor, a plastic expansion fastener with ridged tip for securing screws in masonry or drywall.

Two fastening components: a red-and-gray wall plug above and a metal screw below, shown side by side on a white background.

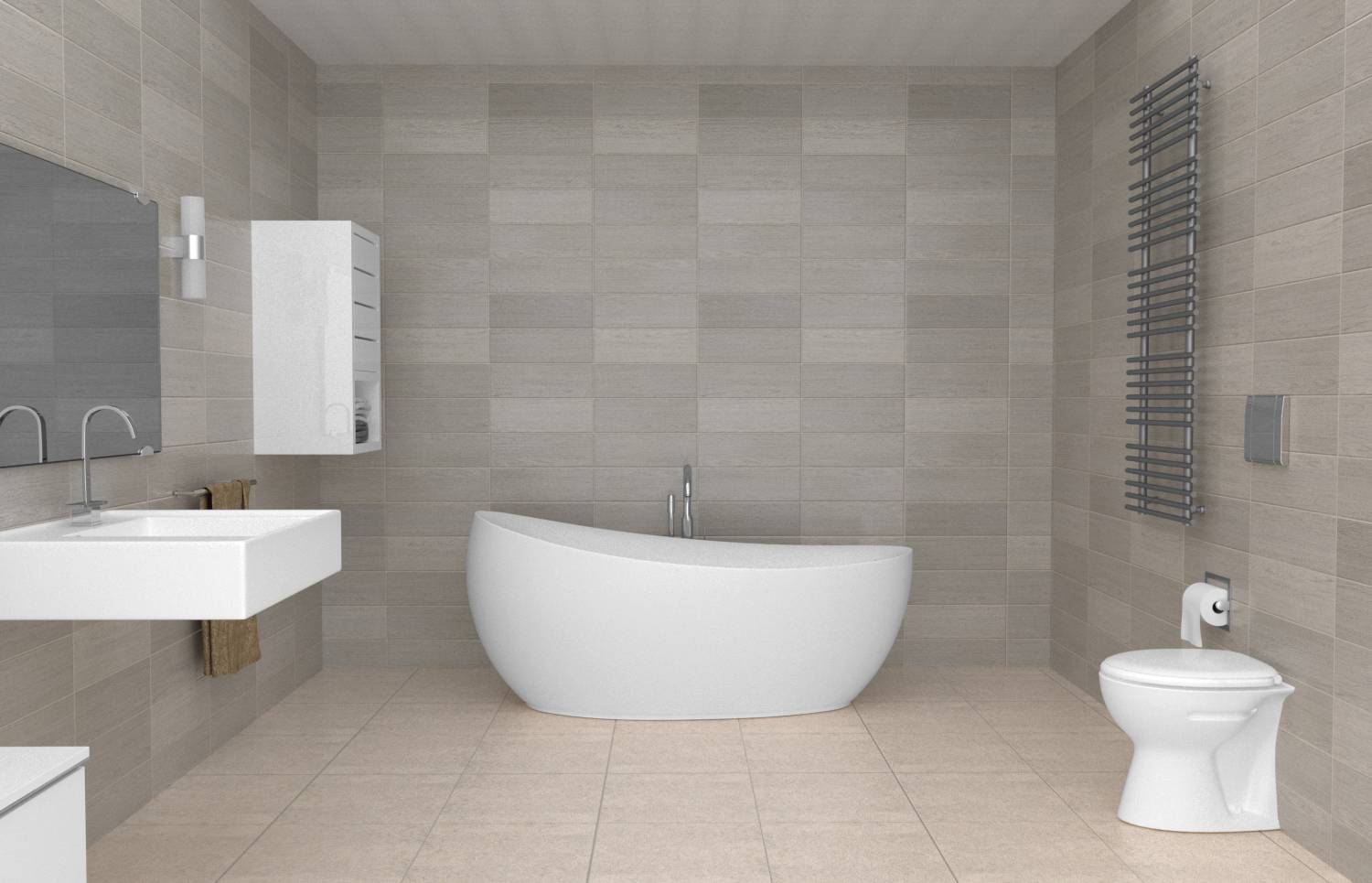

Modern beige-tiled bathroom with a freestanding tub centered, wall-mounted sink on the left, and toilet with towel radiator on the right.<br>

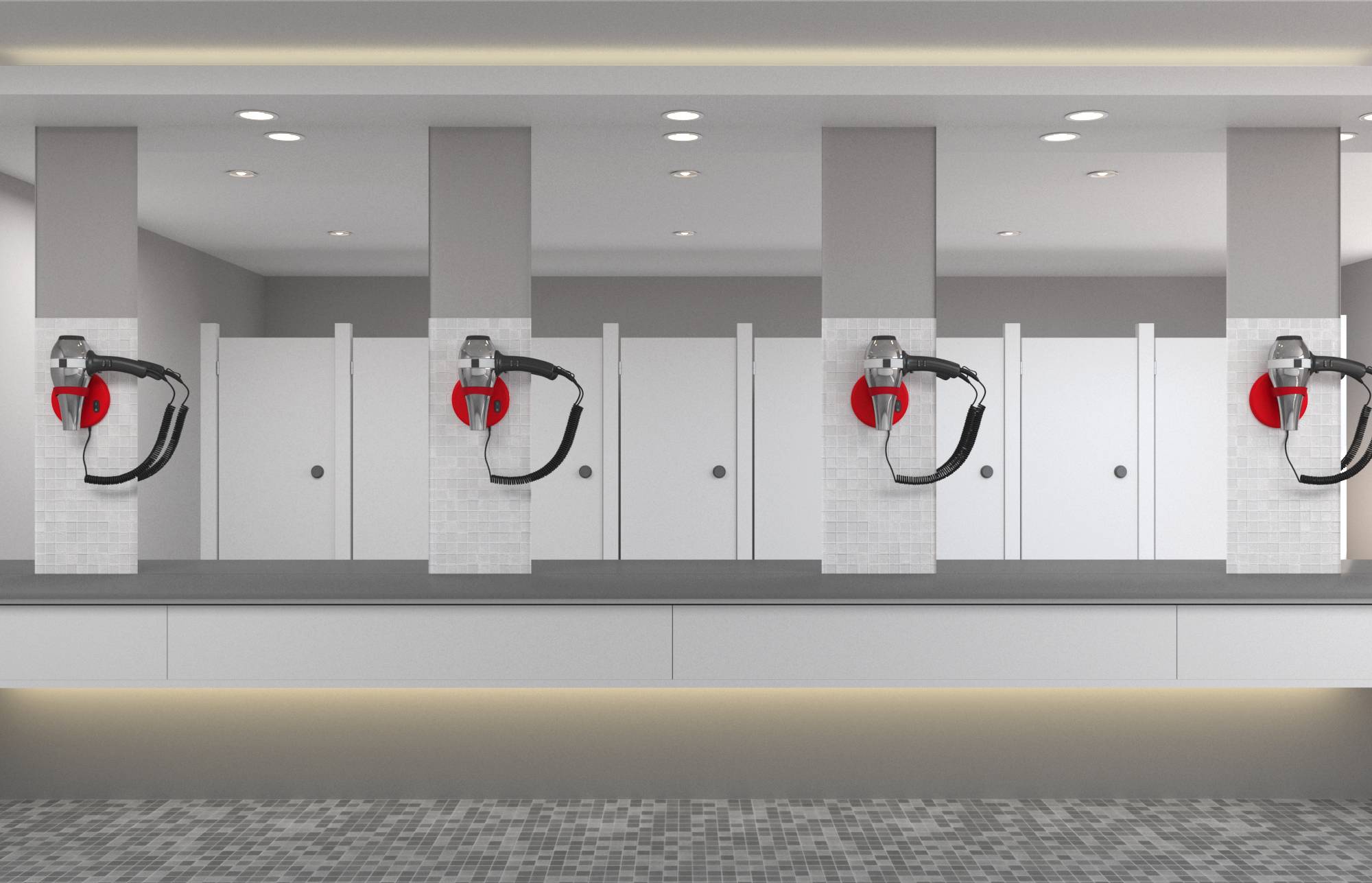

Public restroom sink area with multiple wall-mounted hand dryers between white stall doors and tiled partitions.

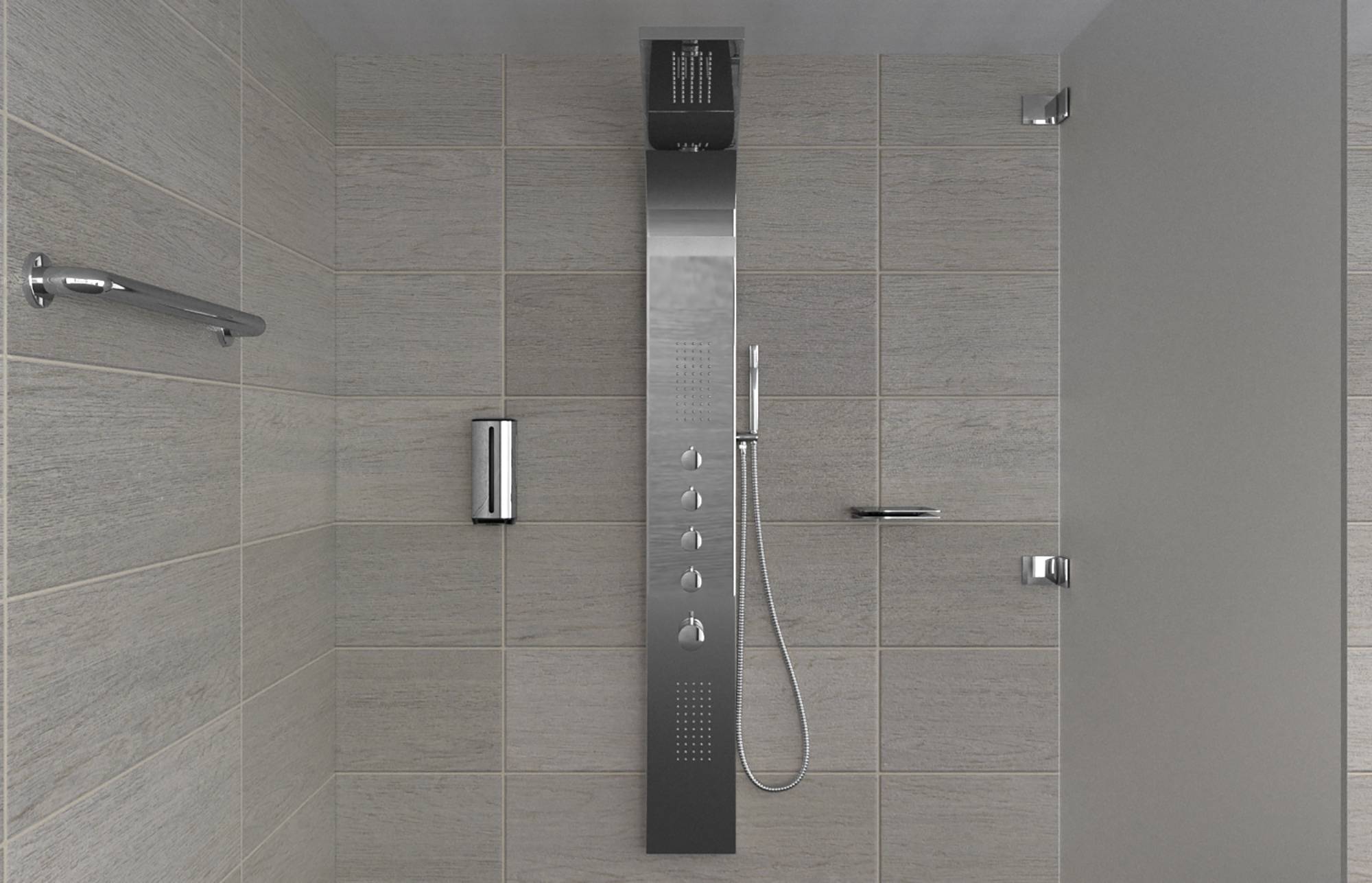

Modern tiled shower with a stainless steel rainfall shower panel, handheld sprayer, and wall-mounted grab bars, viewed from inside the stall.

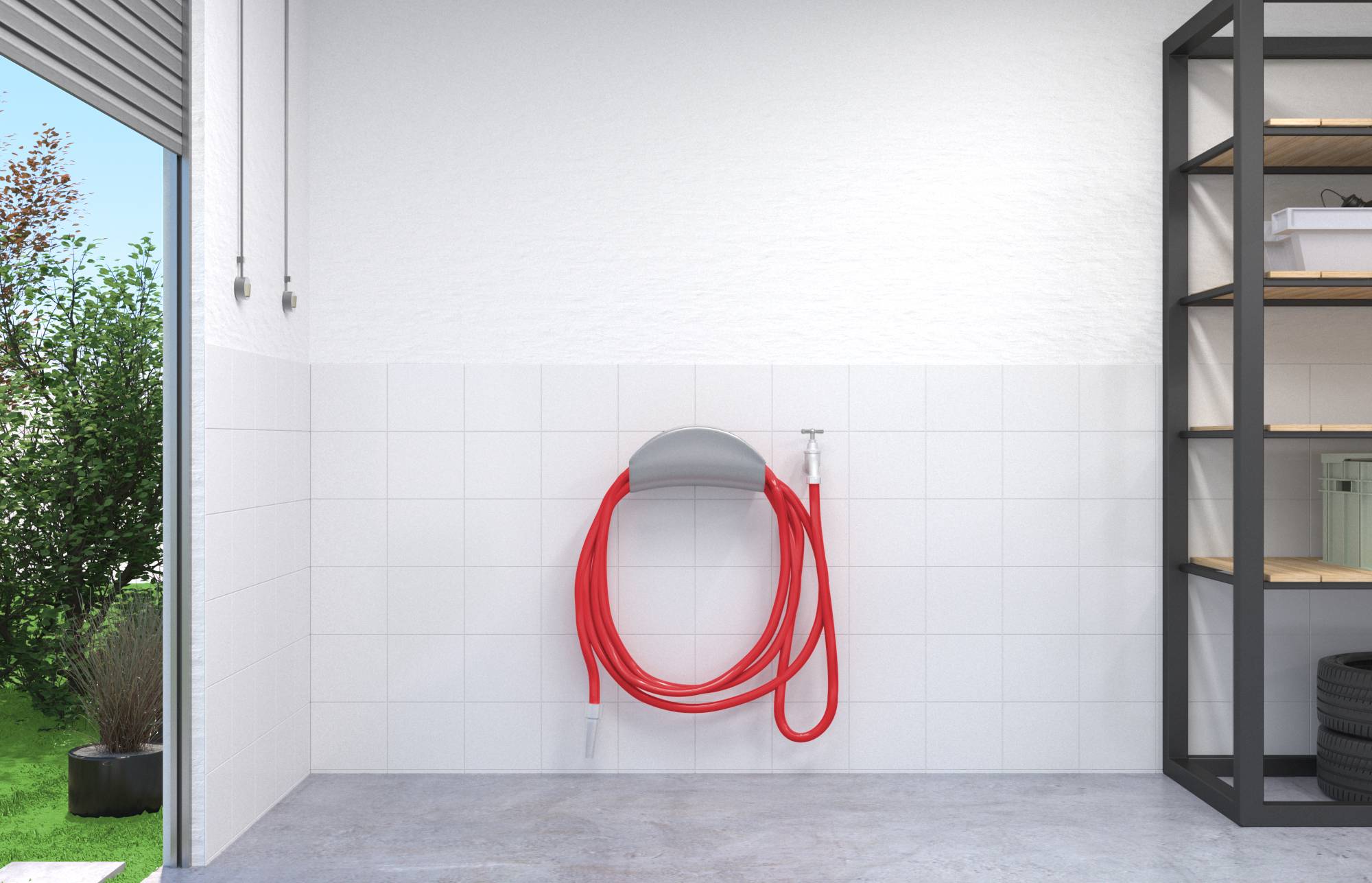

Empty utility room with a red hose hanging on a wall-mounted holder beside metal shelving and a window to the outside.

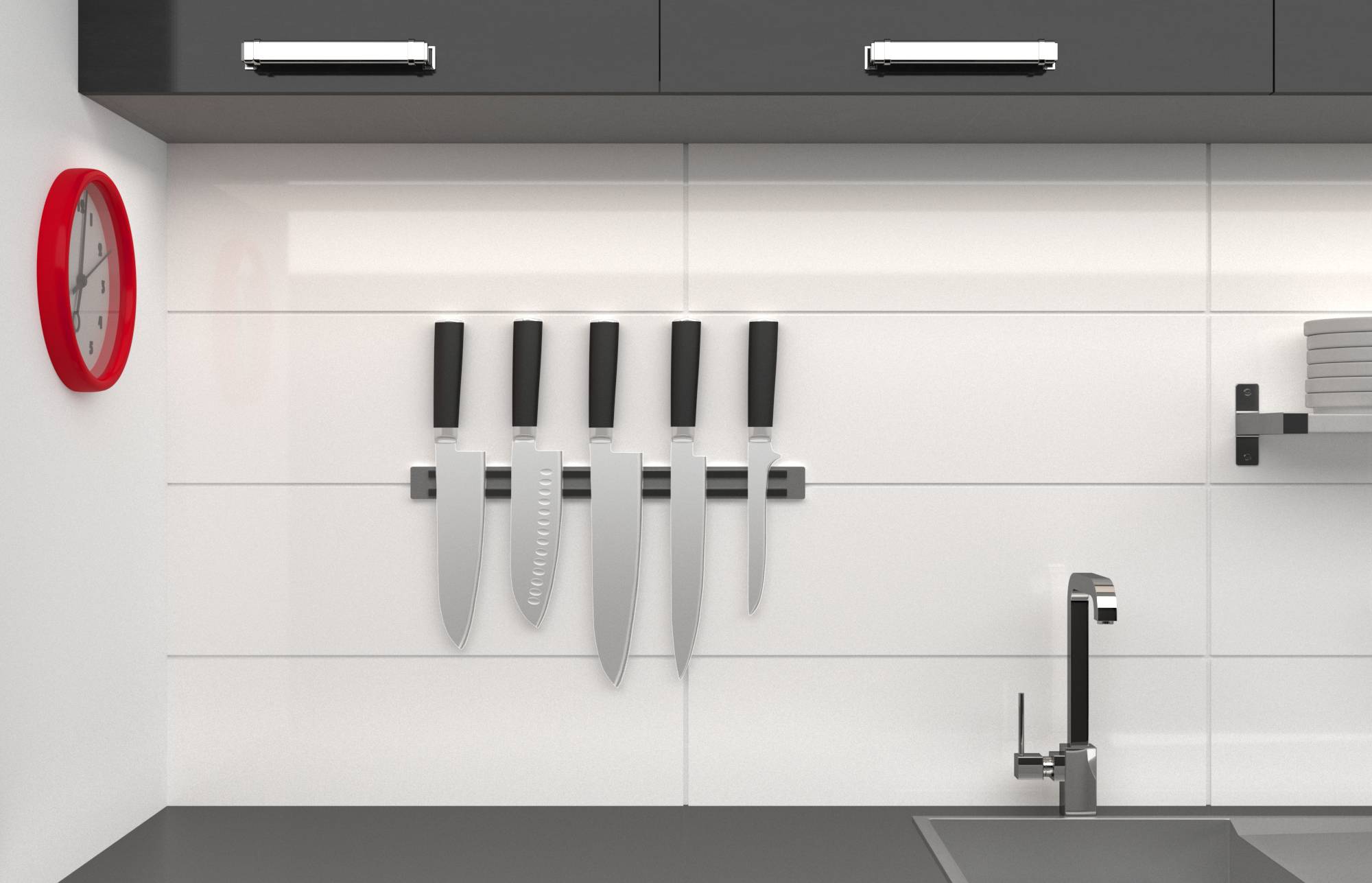

Modern kitchen wall with magnetic knife rack holding five knives, a red-rimmed clock on the left, and a sink faucet on the right.

Advertising poster for fischer DuoSeal: sealing dowel for wet areas with product image, application photos and advantages list for secure installation on tiled surfaces.

Shower Bracket Installation Overview: Applications, Suitable Substrates and Screw/Plug Mounting in Solid Construction Materials and Plate Construction Materials.

1/10

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

39 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DuoSeal 8 x 48 S PH TX A2

Perfect sealing of the drill hole without silicone
Tested for water tightness up to the water impact class W3-I according to DIN sealing standards 18534 and ETAG 022
Quick and easy mounting without hitting the dowel
Can be used universally in all building materials
High load values due to the 2K material components

Technical specifications

Dowel length 48 mm
Screw drive: TX 30

(Ø): 8 mm

Product type: Dowel

Material: Plastic
Steel

Length: 48 mm

Dim: (Ø x H) 8 mm x 90 mm

Suitable for: Concrete
Solid brick
Flintlime bricks
Structural lightweight concrete
Cored bricks
Flintlime hollow bricks
Foamed concrete wall
Plasterboard
Plasterboard
Chipboard
Plasterboard
Show more

Content: 25 pc(s)

Features: incl. screw

Width: 90 mm

Height: 90 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2340325 Fischer 557728 DuoSeal Dowel 48 mm 8 mm 25 pc(s)

Description

the fischer DuoSeal is a 2-component dowel that seals the drill hole completely in all wet areas without silicone. The plastic plug was fitted with the screw contained in the set by the testing and certification institute of the Acid Fliesner Association e. V. independantly tested. The water tightness is confirmed in accordance with ETAG 022 and DIN 18534 up to the water impact class W3-I. Taking into account the nationally and internationally applicable sealing standards in wet areas, the DuoSeal, in combination with the enclosed screw, is suitable for applications in commercial, private and public wet areas, which are very frequently exposed to water splashes and temporary water.

This text is machine translated.

Features

The DuoSeal completely seals holes in tiles without additional sealing compound and thus prevents damage to building materials due to moisture
the DuoSeal is ideally suited for tiled surfaces. Which are exposed to very frequent spray water and temporarily accumulating water
The universal dowel can be mounted without hammering tiles gently
its red component provides for a secure hold in all building materials. The DuoSeal thus achieves the same load values as conventional plastic dowels
the supplied screw made of non-rusting steel is ideal for wet areas and avoids rust
the soft plastic edge at the dowel shaft closes the drill hole perfectly and adapts to the shape of the attachment part.
