Name: Fischer 562206 DuoXpand Plug (long) 100 mm 10 mm 10 pc(s)
Brand: Fischer
SKU: 3835318
Availability: InStock

Red package of Fischer DuoXpand wall anchors with five silver anchors visible through the clear lower section.

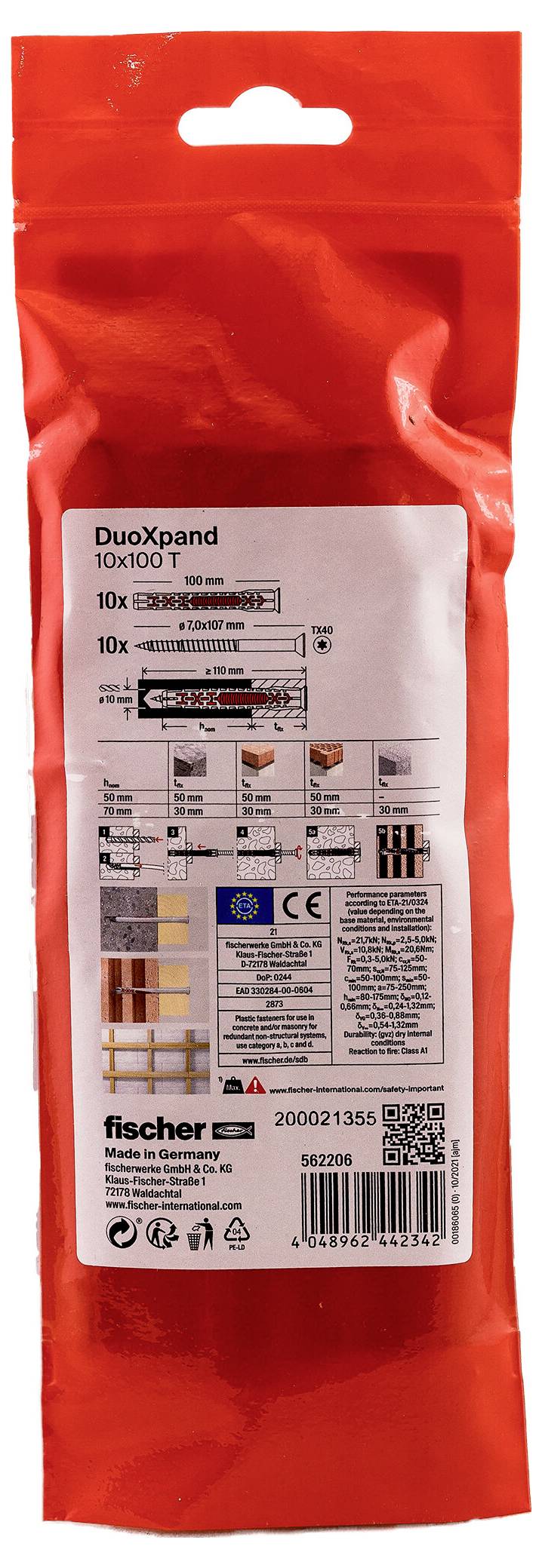

Red Fischer DuoXpand 10x100 wall plug package with product information and specifications printed on the front.

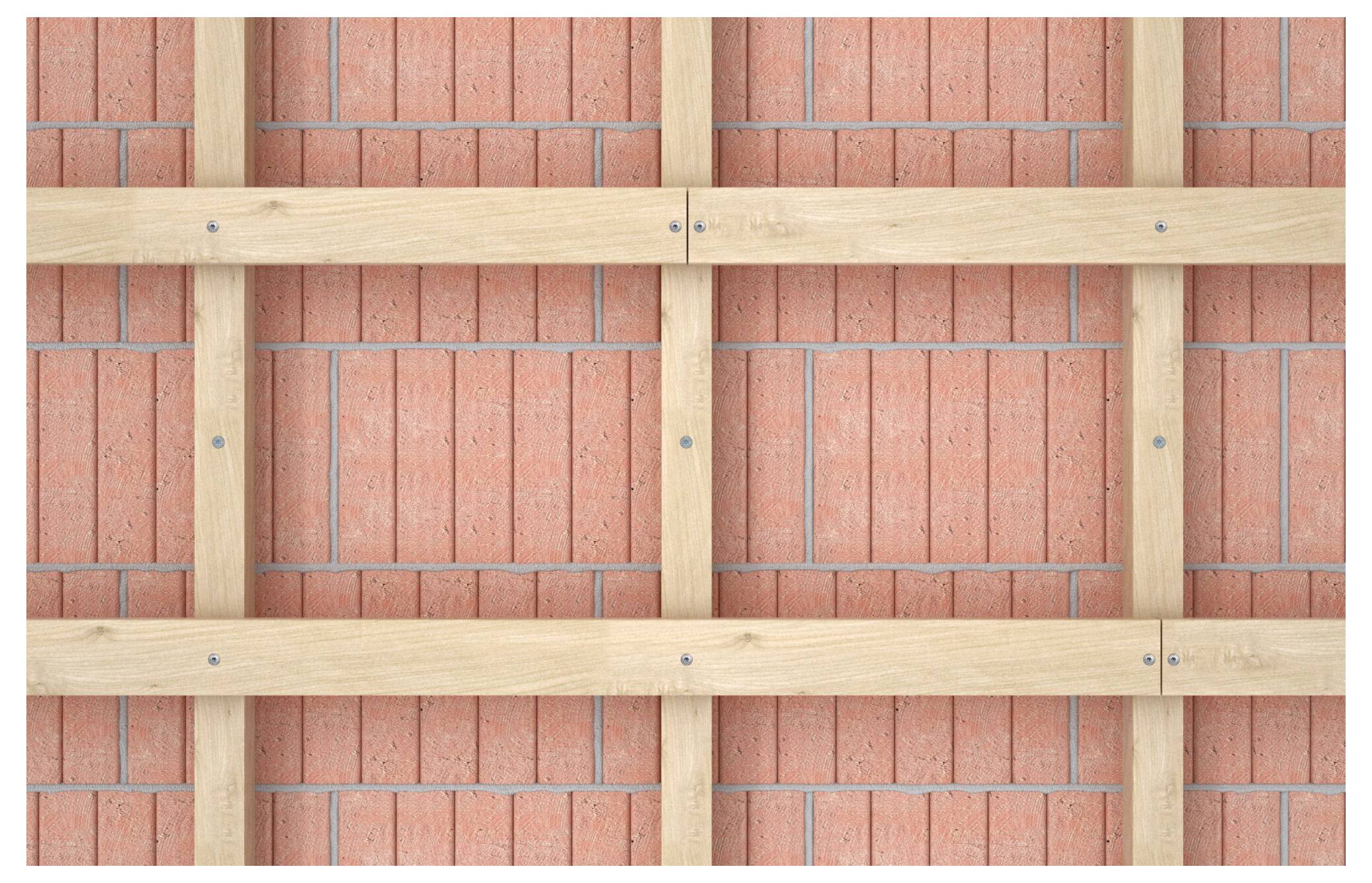

Wooden lattice frame over a red brick wall, showing a simple structural grid pattern.

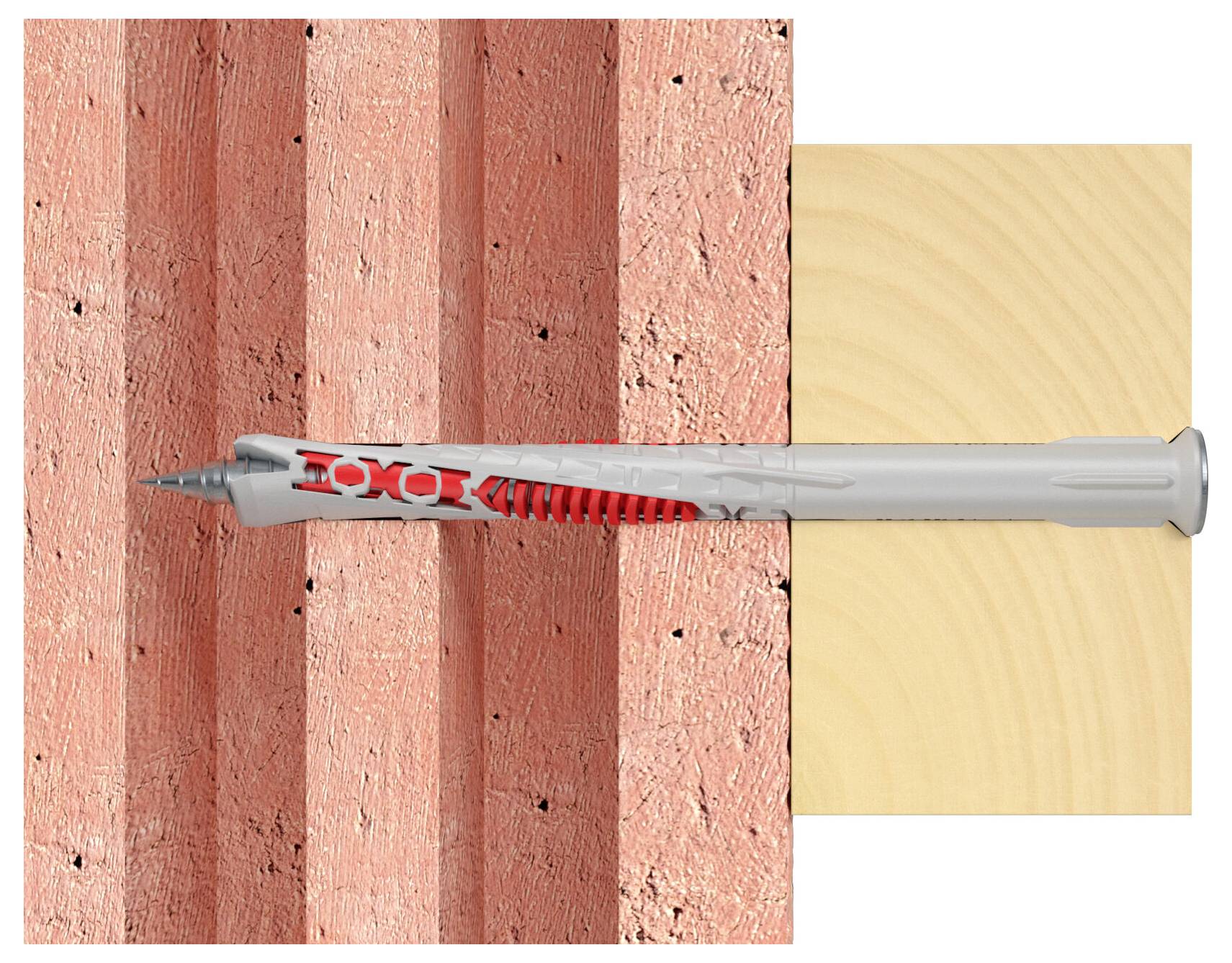

A screw anchor driven through a wooden board into a brick wall, showing how to fasten wood to masonry.<br>

1/4

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 12.99 / piece)

€ 12.99

incl. VAT

Only 3 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fischer DuoXpand long shaft plug 10 x 100 T countersunk screw

Clever combination of design and material for gentle bites on the building material
Expanding element with two anchoring depths for flexible use
Approved multi-mounting of non-supporting systems in concrete and masonry
Lateral ribs prevent rotation in the bore hole for functional mounting
Pre-assembled safety screw with countersunk head

Technical specifications

(Ø): 10 mm

Product type: Plug (long)

Length: 100 mm

Dim: (Ø x L) 10 mm x 100 mm

Content: 10 pc(s)

Quantity per pack: 10 Stück(e)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3835318 Fischer 562206 DuoXpand Plug (long) 100 mm 10 mm 10 pc(s)

Conformity certificate

Conformity certificate 3835318 Fischer 562206 DuoXpand Plug (long) 100 mm 10 mm 10 pc(s)

Description

The Fischer DuXpand long-shaft anchor bolt with two anchorage depths is approved with the Fischer countersunk screw for multi-mounting of non-load systems in concrete, masonry and porous concrete. The plug expands optimally and saves material in the relevant building material due to its special shear geometry and the material combination. The range includes diameters 8 and 10 and dowel lengths up to 230 mm. The DuXpand with the counter-sunk screw is particularly suitable for fixing wood construction.

This text is machine translated.
