Name: Fischer 562214 DuoXpand Plug (long) 160 mm 10 mm 10 pc(s)
Brand: Fischer
SKU: 3835326
Availability: InStock

Package of Fischer DuoXpand 10x160 FUS wall anchors, 10-pack, showing metal anchors in red blister packaging.

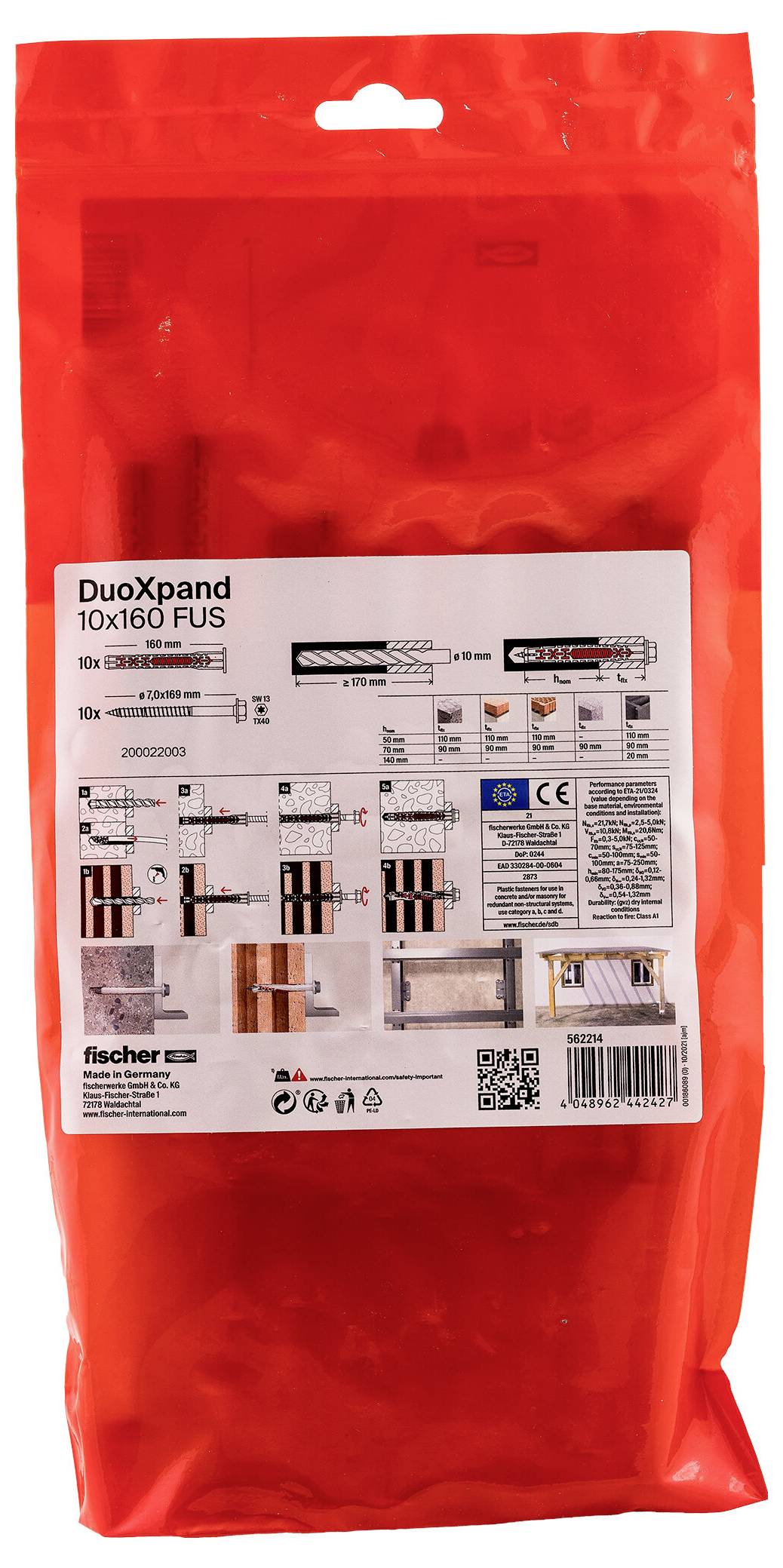

Red plastic bag of Fischer DuoXpand 10x160 FUS wall plugs, with product label and technical installation diagrams.

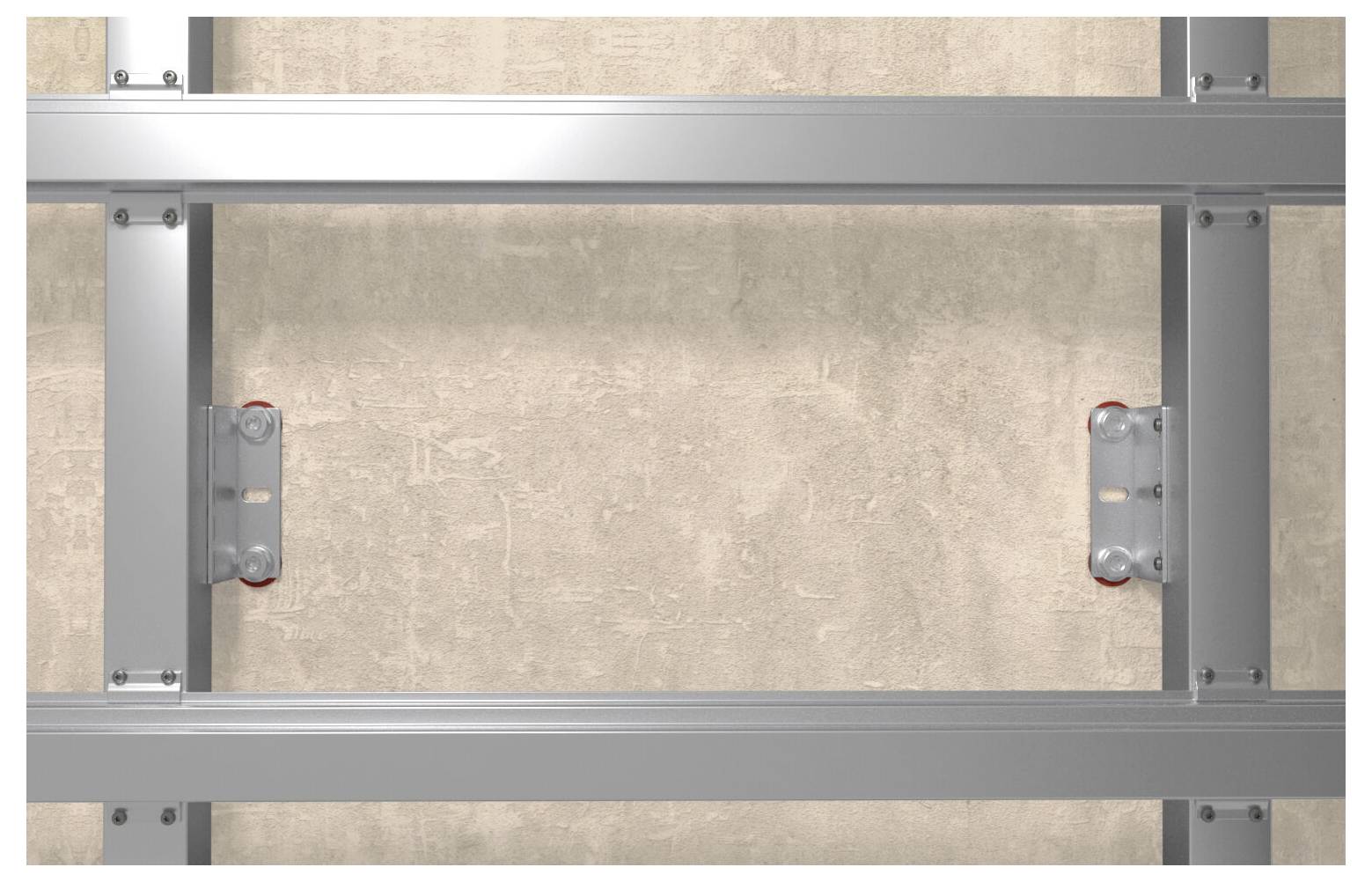

Metal wall framing with horizontal and vertical studs and mounting brackets against a beige wall surface.

Wall anchor fastener inserted through wood into a metal bracket, illustrating how a screw or plug secures a fixture to masonry or framing.

1/4

EAN:

Part number:

Item no:

Fast track dispatch on Wed 28 Oct

7 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

Only 7 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fischer long-shaft anchor bolt DuXpand 10 x 160 FUS hex screw with U-disc

Clever combination of design and material for gentle bites on the building material
Expanding element with two anchoring depths for flexible use
Approved multiple mounting of non-load-bearing systems in concrete and masonry
Lateral ribs prevent rotation in the bore hole for comfortable mounting
Pre-assembled safety screw with hex head and molded washer

Technical specifications

Drive: TX40/SW 13

(Ø): 10 mm

Product type: Plug (long)

Length: 160 mm

Dim: (Ø x L) 10 mm x 160 mm

Content: 10 pc(s)

Quantity per pack: 10 Stück(e)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3835326 Fischer 562214 DuoXpand Plug (long) 160 mm 10 mm 10 pc(s)

Conformity certificate

Conformity certificate 3835326 Fischer 562214 DuoXpand Plug (long) 160 mm 10 mm 10 pc(s)

Description

The Fischer DuXpand long-shaft anchor bolt with two anchorage depths is approved with the Fischer hexagonal safety screw for multi-fixing of non-load systems in concrete, masonry and porous concrete. The plug expands optimally and saves material in the relevant building material due to its special shear geometry and the material combination. The range includes diameters from 8 and 10 and dowel lengths up to 230 mm. The DuXpand with the hexagonal screw and molded washer is especially suitable for fixing metal constructions.

This text is machine translated.
