Name: Fischer 564173 Dowel 25 pc(s)
Brand: Fischer
SKU: 2689977
Availability: InStock

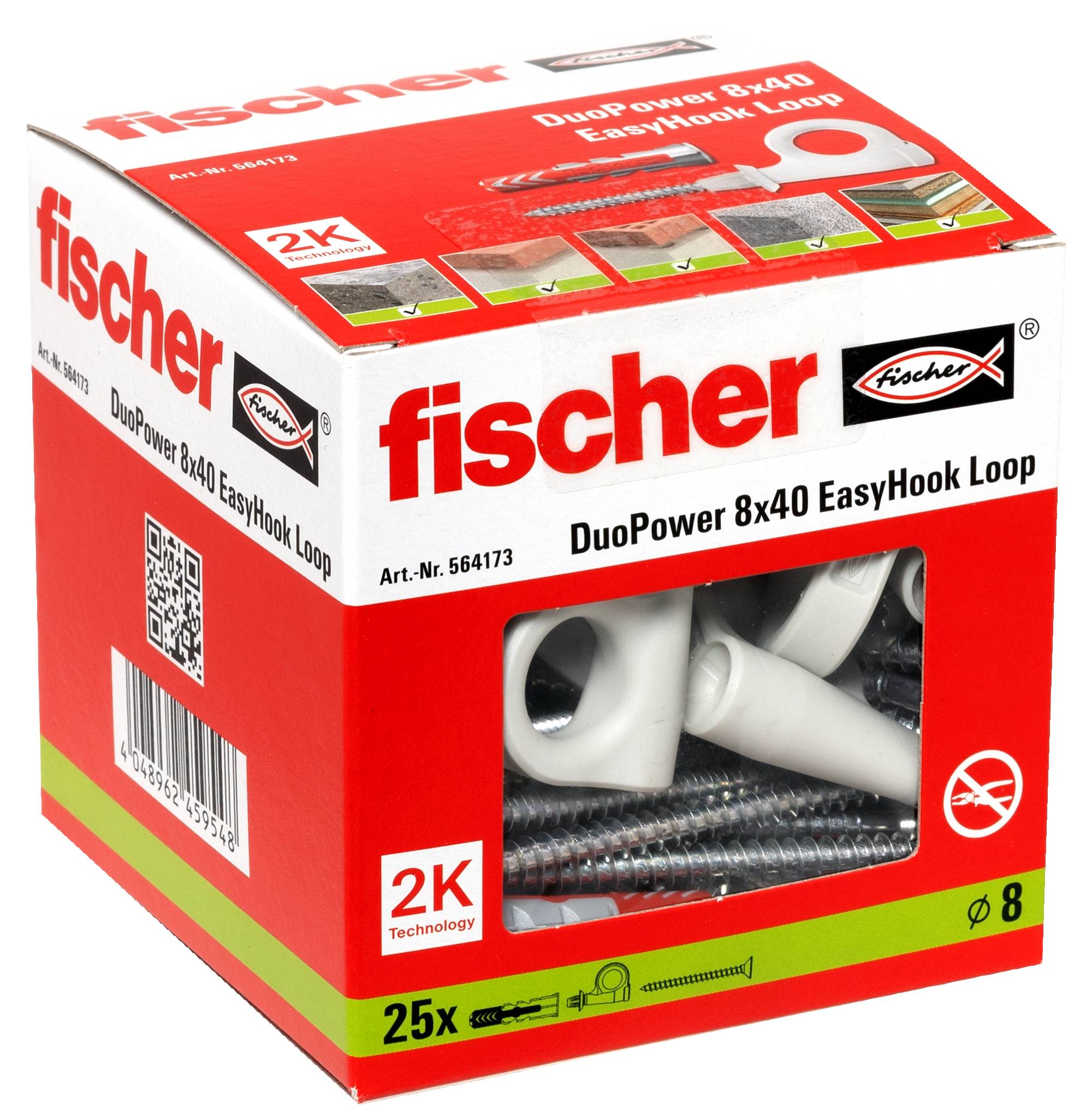

Box of Fischer DuoPower 8x40 EasyHook Loop wall anchors, 25-pack, with red-and-white packaging and visible plastic hooks and screws through a clear window.

White plastic wall anchor with a metal screw, shown on a plain background.

Plastic screw anchor with ring eyelet and a red Fischer wall plug shown separately on a white background.

Packaging instructions for an 8 mm wall anchor and screw, showing drill size, screw dimensions, insertion depth, and step-by-step installation diagrams.

Package of fischer DuoPower 8x40 EasyHook Loop wall anchors, showing 25 pieces, 2K technology, and size 8 mm.

Modern empty reception desk with a glass partition and computer monitor in a minimalist office or clinic lobby.

Red hanging plant pot with trailing green foliage suspended from the ceiling in a bright white room.

Minimal wall shelf with books on the left and decor on the right, including a red vase, reed diffuser, and small cactus.

Minimal dining room with a wooden table, mixed chairs, and a single red pendant light against white walls.

Two T-shirts, one red and one white, hang on a clothesline in a bare room with sunlight from a window.

Advertisement for 'DuoPower' by fischer: two red anchors on the right, product name on the left and list of product advantages for various building materials.

Infographic on 2K Technology: Application examples for fastenings; suitable substrates; step sequences for installation in solid/perforated building materials and panel building materials.

1/12

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

26 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 22.99 / piece)

€ 22.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer EasyHook Loop DuoPower 8x40

For use in different building materialsFast and easy installation with the help of cordless screwdriverVariable distance mounting possible to the wallPredetermined breaking point enables optimum positioning of the hookHigh load level due to the glass-fiber reinforced plastic

Technical specifications

Drill nominal diameter: 8 mmMin Drill depth 50 mmMin Plate thickness 12.5 mmMin Screw-in depth 46 mmDowel length 40 mmScrew dimensions 5.0 x 80 mmDrive: TX20Distance from the wall 30 to 35 mm

Product type: Dowel

Suitable for: Concrete
Solid brick
Flintlime bricks
Foamed concrete wall
Cored bricks
Flintlime hollow bricks
Plasterboard
Plasterboard
Natural stone

Content: 25 pc(s)

Features: incl. eye

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2689977 Fischer 564173 Dowel 25 pc(s)

Description

The innovative EasyHook loop converts screws of different sizes in angle hooks. The hook adapter and the optional cover ring are placed on the countersunk screw and mounted in the wall quickly and securely with the DuoPower or DuoBlade. Due to the glass-fiber reinforced plastic, the eye hook can accept high loads and provides a secure hold. The predetermined breaking point positions the hook optimum and can be mounted with variable wall distances. If necessary, the hook can be removed quickly and easily by means of cordless screwdriver.

This text is machine translated.

Features

The attachable EasyHook is installed quickly and easily using the cordless screwdriverThe predetermined breaking point allows the hook to be flexibly alignedDepending on the screw-in depth, the EasyHook can be mounted at different distances to the wallThe glass-fiber reinforced plastic provides for a high load level and a secure gripThe use of the cover ring and the cover cap in the EasyHook round and loop provides for a visually appealing designThe plastic hook can be used with the DuoPower or without wall plugs in wood, which covers a variety of building materials

Scope of delivery

25 items
