Name: Fischer 567829 SX Plus Spring toggle 60 mm 12 mm 3 pc(s)
Brand: Fischer
SKU: 2858421
Availability: InStock

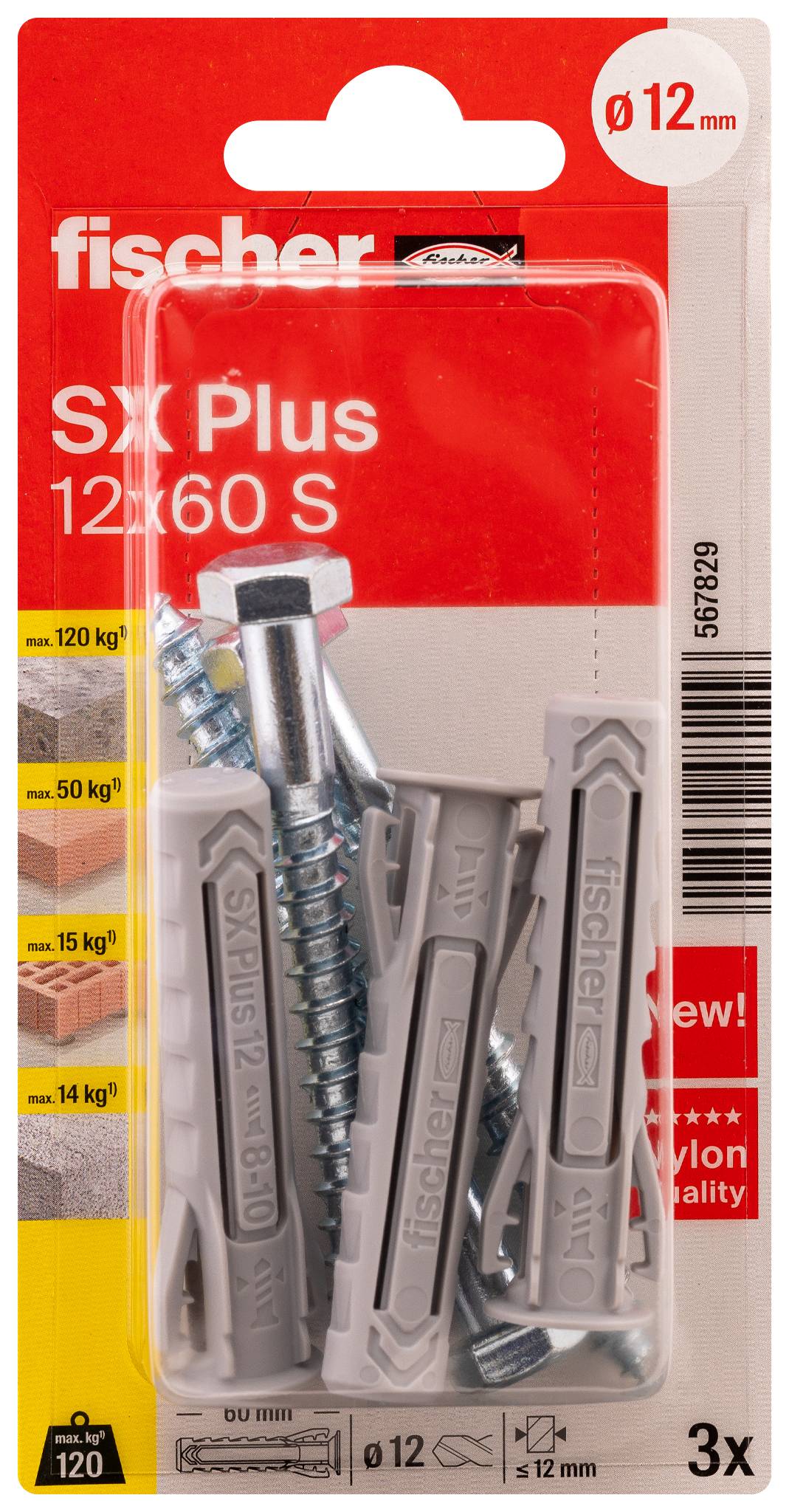

Package of Fischer SX Plus wall plugs and screws, 12 x 60 mm, 3-piece set for heavy-duty fixing, with load ratings shown on the front.

A plastic wall anchor with a screw beside it, shown separately on a white background.

Package label for Fischer SX Plus 12x60 S wall plug kit, showing QR code, installation diagrams, measurements, and included parts: 3 plugs and 3 screws.<br>

Wall shelves neatly lined with red, white, and gray ring binders in an office or archive setting.

Wall-mounted flat-screen monitor on an adjustable silver arm, viewed from the side against a light textured wall.

Cross-section of a wall anchor securing a screw into concrete and a wood panel, showing how the plug expands to hold the fastener in place.

Illustration of a concrete anchor bolt installed through wood into masonry, showing a screw expanding in the wall for secure fastening.<br>

Cross-section of a wall anchor with screw securing a metal bracket in concrete, showing the fastener embedded in the wall<br>

1/8

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

1 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 3 pc(s))

Set(s)

Total (€ 2.79 / piece)

€ 2.79

incl. VAT

Only 1 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fischer SX Plus 12 x 60 S expanding plug with screw

4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingWith suitable screw for maximum supportDowel border prevents deep sliding into the bore holeA noticeable tightening torque prevents the screw from being overturned.

Technical specifications

Min Drill depth 80 mm

(Ø): 12 mm

Product type: Spring toggle

Length: 60 mm

Dim: (Ø x L) 12 mm x 60 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 3 pc(s)

Features: incl. screw

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2858421 Fischer 567829 SX Plus Spring toggle 60 mm 12 mm 3 pc(s)

Description

The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The screws supplied are perfectly suitable for the Fischer SX Plus expanding plug. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.

This text is machine translated.

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.

Scope of delivery

3 x SX Plus 12 x 60 expanding plugs3 x Hexagon-wood screw 8.0 x 80
