Buy Fischer 567835 SX Plus Spring toggle 30 mm 6 mm 8 pc(s)

Package of Fischer SX Plus 6x30 wall plugs, 8-pack, for 6 mm screws, with load ratings and 'New!' label on red-and-white blister pack.

Fast track dispatch on Fri, 18 Sep

12 Set(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 8 pc(s))

Set(s)

Total (€ 1.92 / piece)

€ 1.92

plus VAT.

Report legal concerns

Highlights & Details

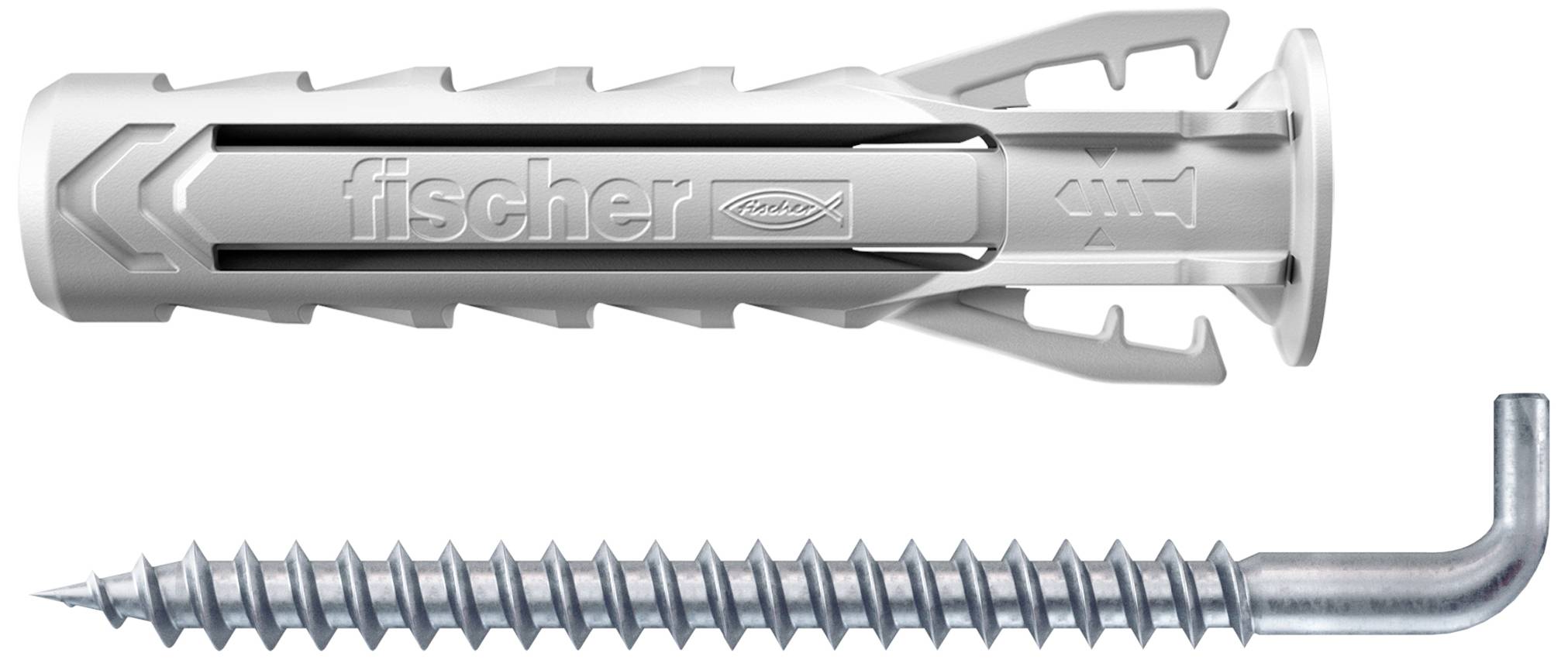

Fischer SX Plus 6 x 30 WH expanding plug with angular hooks

4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingWith suitable angle hook for maximum holdDowel border prevents deep sliding into the bore holeA noticeable tightening torque prevents the screw from being overturned.

Technical specifications

Min Drill depth 40 mm

(Ø): 6 mm

Product type: Spring toggle

Length: 30 mm

Dim: (Ø x L) 6 mm x 30 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 8 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2858424 Fischer 567835 SX Plus Spring toggle 30 mm 6 mm 8 pc(s)

Description

The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The supplied angle hooks are optimally tuned to the Fischer SX Plus expanding plug. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.

This text is machine translated.

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
