Name: Fischer 568014 SX Plus Spring toggle 70 mm 14 mm 20 pc(s)
Brand: Fischer
SKU: 2859280
Availability: InStock

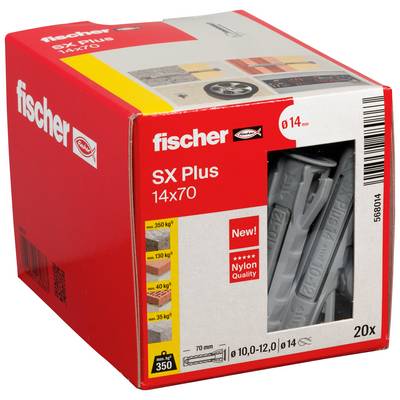

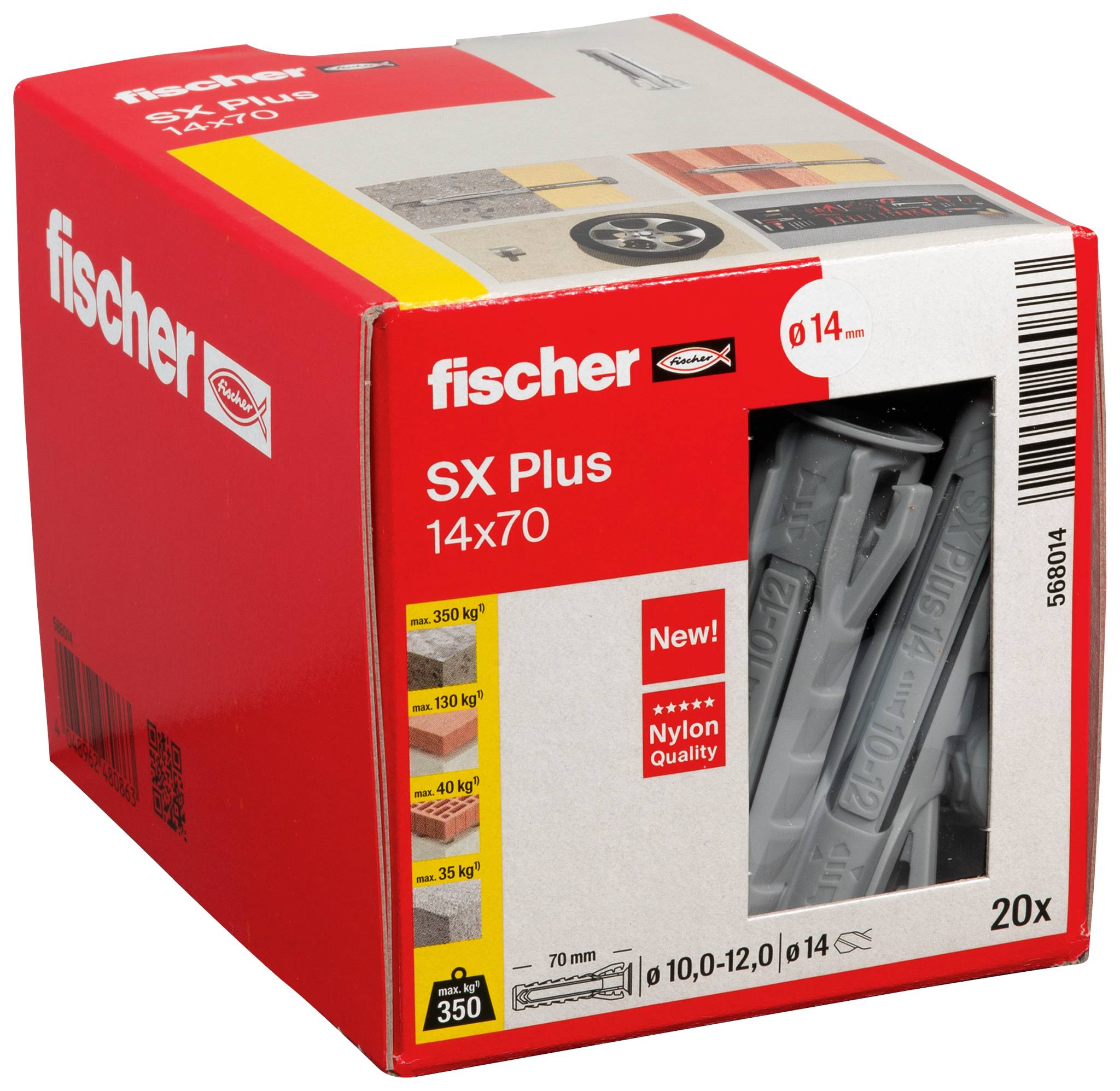

Package of Fischer SX Plus 14x70 wall anchors, box of 20, with product image and load ratings on the label.

A silver wall plug anchor labeled 'fischer'.

Fischer SX Plus 14x70 nylon wall plug pack, 20 pieces, for 14 mm drill holes and medium to heavy load mounting.<br>

Shelves with neatly arranged red, white, and gray binders in an office or archive setting.

Flat-screen monitor mounted on a wall with a metal articulating bracket, shown in side view.

Cross-section of a concrete anchor bolt fixed into a wall and wood panel, showing the metal screw and expansion sleeve inside the drilled hole.

Illustration of a lag shield anchor: a metal fastener inserted through wood and into a brick wall, showing how it secures a board to masonry.<br>

Illustration of a wall anchor screw securing a metal bracket to a concrete wall, showing the fastener’s installed position.<br>

1/9

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

33 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 20 pc(s))

Set(s)

Total (€ 9.99 / piece)

€ 9.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer SX Plus 14 x 70 expanding plug

4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingIt is possible to mount the plug with little forceDowel border prevents deep sliding into the bore holeA noticeable tightening torque prevents the screw from being overturned.

Technical specifications

Min Drill depth 90 mm

(Ø): 14 mm

Product type: Spring toggle

Material: Plastic

Length: 70 mm

Dim: (Ø x L) 14 mm x 70 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 20 pc(s)

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Length

Dim

(Ø)

Content

Fischer 568014 SX Plus Spring toggle 70 mm 14 mm 20 pc(s)

Item no:2859280

Fast track dispatch on Wed 4 Nov

33 Set(s)Conrad Electronic

This article

70 mm

(Ø x L) 14 mm x 70 mm

14 mm

20 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.99^*

Fischer 568004 SX Plus Spring toggle 20 mm 4 mm 200 pc(s)

Item no:2859274

Fast track dispatch on Wed 4 Nov

29 Set(s)Conrad Electronic

20 mm

(Ø x L) 4 mm x 20 mm

4 mm

200 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 8.49^*

Fischer 568005 SX Plus Spring toggle 25 mm 5 mm 100 pc(s)

Item no:2859275

Fast track dispatch on Wed 4 Nov

56 Set(s)Conrad Electronic

25 mm

(Ø x L) 5 mm x 25 mm

5 mm

100 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.49^*

Fischer 568008 SX Plus Spring toggle 40 mm 8 mm 100 pc(s)

Item no:2859277

Fast track dispatch on Wed 4 Nov

28 Set(s)Conrad Electronic

40 mm

(Ø x L) 8 mm x 40 mm

8 mm

100 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 8.99^*

Fischer 568010 SX Plus Spring toggle 50 mm 10 mm 50 pc(s)

Item no:2859278

Fast track dispatch on Wed 4 Nov

77 Set(s)Conrad Electronic

50 mm

(Ø x L) 10 mm x 50 mm

10 mm

50 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.49^*

Fischer 568012 SX Plus Spring toggle 60 mm 12 mm 25 pc(s)

Item no:2859279

Fast track dispatch on Wed 4 Nov

25 Set(s)Conrad Electronic

60 mm

(Ø x L) 12 mm x 60 mm

12 mm

25 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.49^*

Fischer 568106 SX Plus Spring toggle 50 mm 6 mm 100 pc(s)

Item no:2859281

Fast track dispatch on Wed 4 Nov

2 Set(s)Conrad Electronic

50 mm

(Ø x L) 6 mm x 50 mm

6 mm

100 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

Fischer 568108 SX Plus Spring toggle 65 mm 8 mm 50 pc(s)

Item no:2859282

Fast track dispatch on Wed 4 Nov

6 Set(s)Conrad Electronic

65 mm

(Ø x L) 8 mm x 65 mm

8 mm

50 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

Fischer 568110 SX Plus Spring toggle 80 mm 10 mm 25 pc(s)

Item no:2859283

Fast track dispatch on Wed 4 Nov

12 Set(s)Conrad Electronic

80 mm

(Ø x L) 10 mm x 80 mm

10 mm

25 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.49^*

Fischer 568006 SX Plus Spring toggle 30 mm 6 mm 100 pc(s)

Item no:2859276

Unavailable

Conrad Electronic

30 mm

(Ø x L) 6 mm x 30 mm

6 mm

100 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2859280 Fischer 568014 SX Plus Spring toggle 70 mm 14 mm 20 pc(s)

Description

The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.

This text is machine translated.

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.

Description

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
