Name: Fischer 572927 FixTainer DuoHM TX Cavity plug 55 mm 90 pc(s)
Brand: Fischer
SKU: 3204851
Availability: InStock

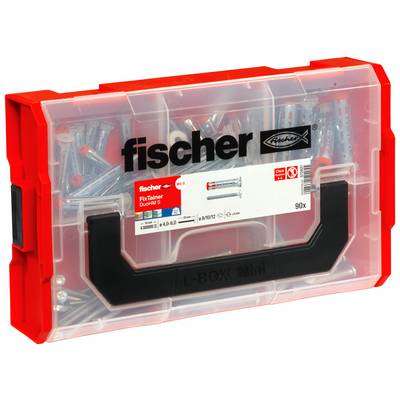

Red Fischer fischer FixTainer Duhm 5 hardware kit box with transparent lid showing assorted screws and wall plugs<br>

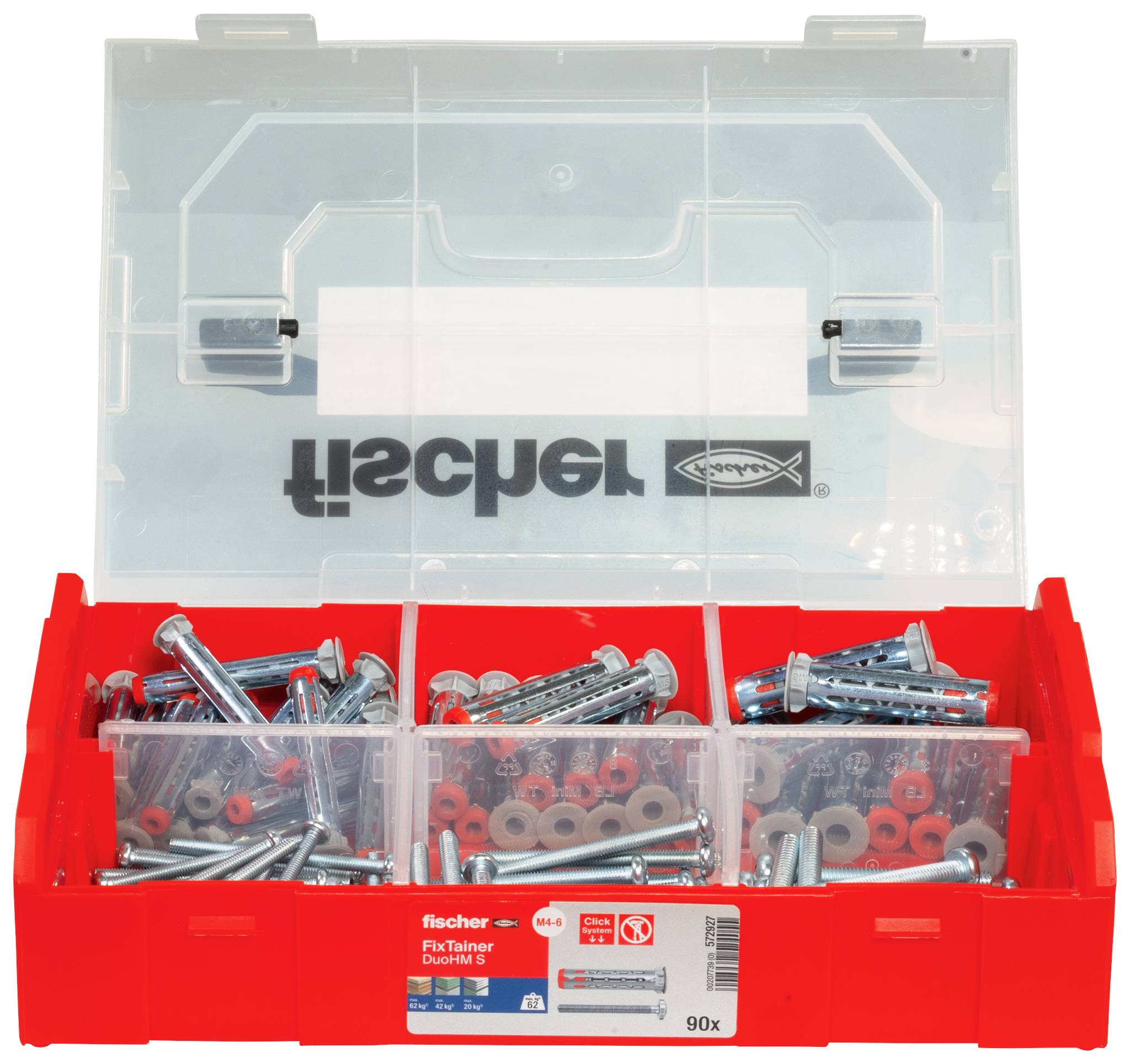

Red plastic organizer box with clear lid holding assorted Fischer wall anchors and screws in labeled compartments.<br>

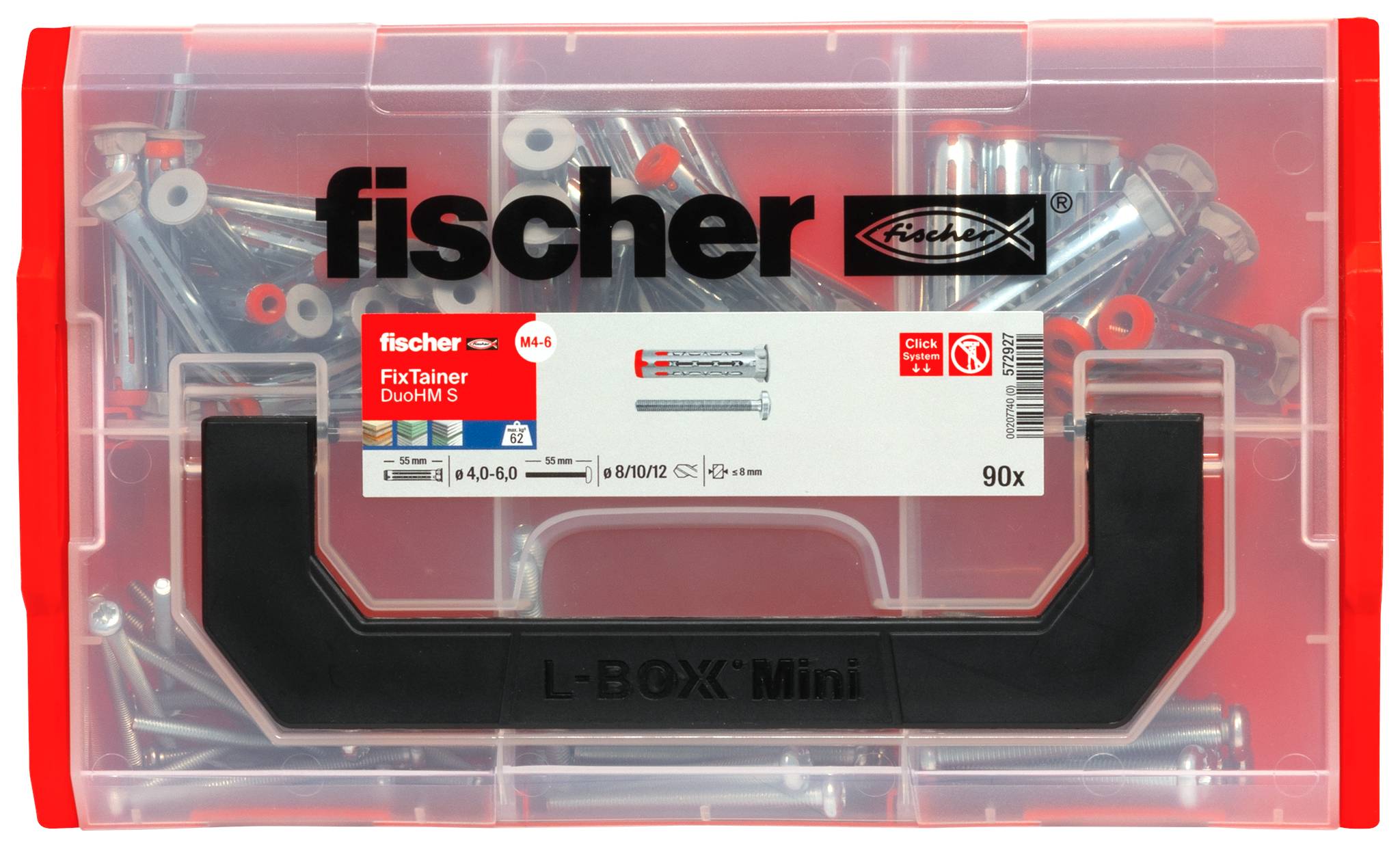

Fischer Duopower wall anchor assortment in a clear plastic L-Boxx Mini case, labeled 'fixTainer DuoHM S' and '90x'.<br>

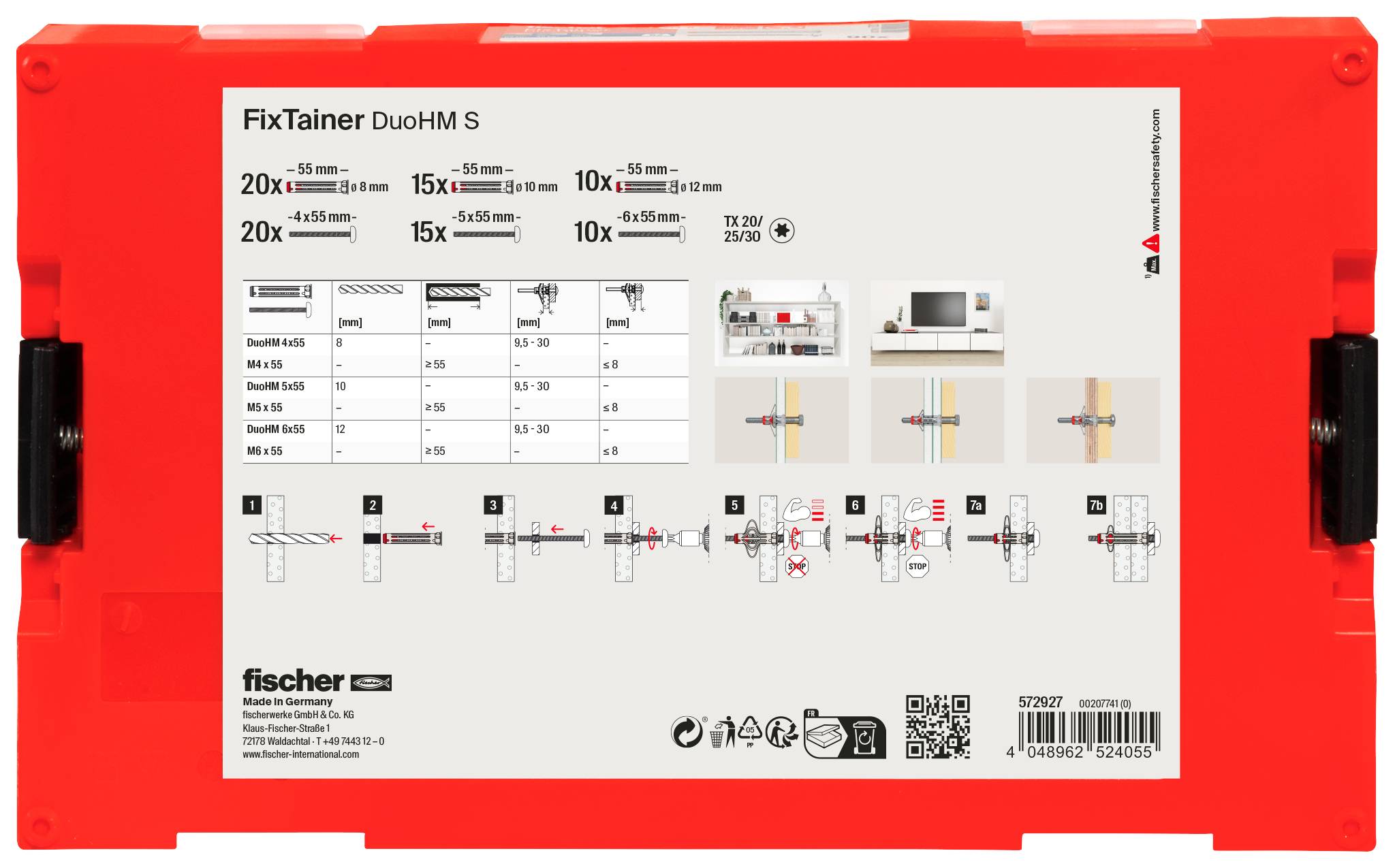

Red carrying case labeled 'FixTainer DuoHM S' with Fischer instructions, size chart, drill bit diagrams, and QR/barcode on the front label.

Advertisement for the Fischer DuoHM Plate Anchor for standard building material thicknesses with product images and benefits list; anchor on the right, application examples on the left.

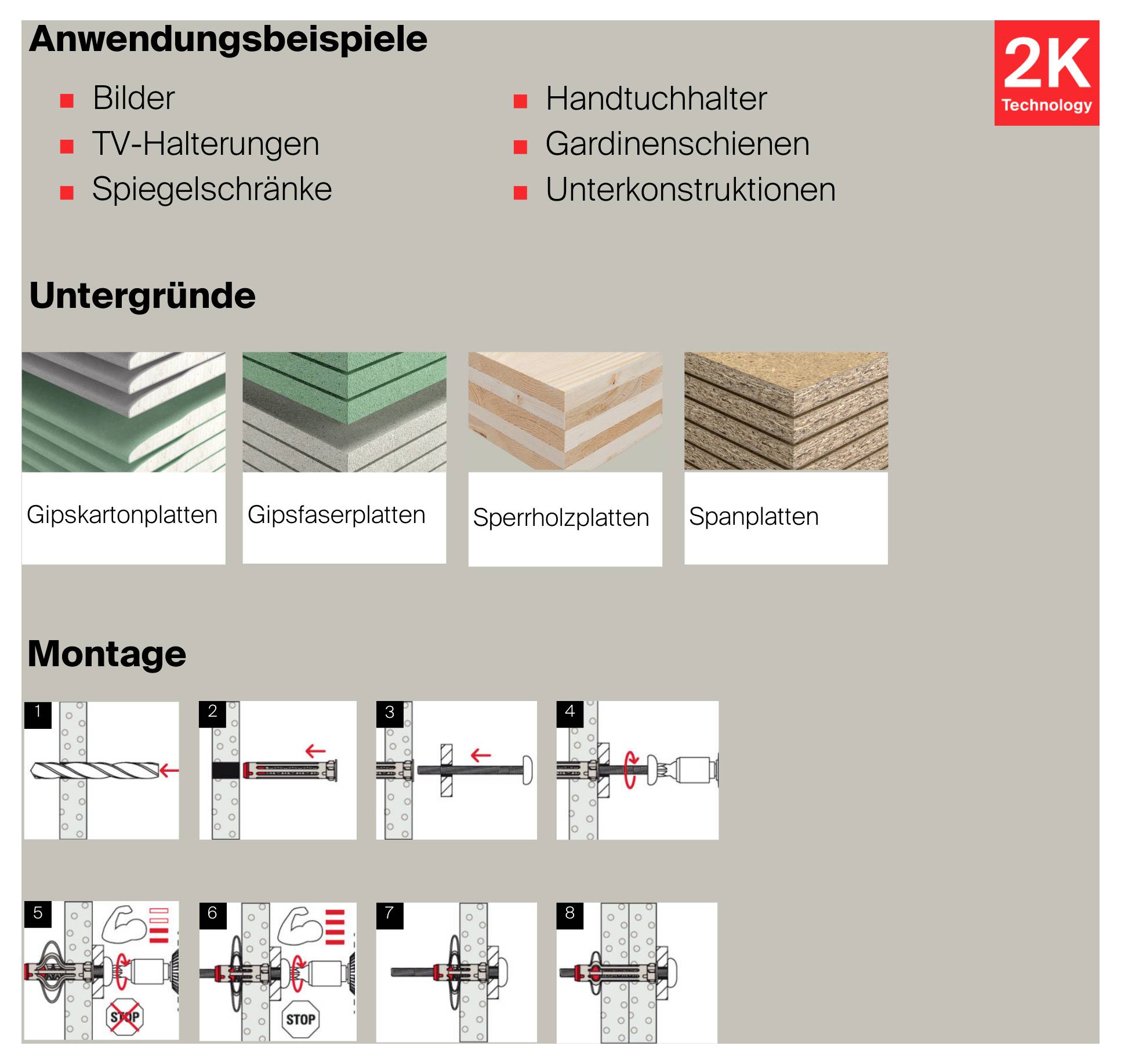

Infographic on application examples and installation of a fastening system: use for pictures, TV brackets, mirrors, towel rails, curtain rails and substructures; substrates: plasterboard, gypsum fibreboard, plywood and chipboard; installation in 8 steps.

1/6

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

14 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 90 pc(s))

Set(s)

Total (€ 41.99 / piece)

€ 41.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

FixContainer with space anchor DuobHM, Panhead-screw, TX-drive

Up to 50% faster installation than comparable plate dowels
Easy installation with cordless screwdriver without setting tool
One dowel length per diameter for all common building material thicknesses
High load using 2-component technology
Dowel border made from polyamide prevents damages to the building material surface

Technical specifications

Drill nominal diameter 8 - 12 mm
Min Drill hole depth 55 mm
Dowel length 55 mm
Screw dimensions M 4/M5/M6 x 55 mm
Plate thickness 9.5 - 30 mm
TX20/TX25/TX30 ACTUATOR
Max. Thickness of the mounting part 10 mm
Min Cavity depth 45 mm

Product type: Cavity plug

Material: Polyamide

Length: 55 mm

Suitable for: Plasterboard
Hollow ceiling panels
Chipboard
Plywood boards

Content: 90 pc(s)

Features: incl. screw

Variants(All information include VAT, plus shipping costs)

Content

Fischer 572927 FixTainer DuoHM TX Cavity plug 55 mm 90 pc(s)

Item no:3204851

Fast track dispatch on Thu 29 Oct

14 Set(s)Conrad Electronic

This article

90 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 41.99^*

Fischer 572911 DuoHM 4x55 S PH PZ Cavity plug 55 mm 4 pc(s)

Item no:3204838

Fast track dispatch on Thu 29 Oct

24 Set(s)Conrad Electronic

4 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Fischer 572912 DuoHM 5x55 S PH PZ Cavity plug 55 mm 4 pc(s)

Item no:3204839

Fast track dispatch on Thu 29 Oct

23 Set(s)Conrad Electronic

4 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Fischer 572913 DuoHM 6x55 S PH PZ Cavity plug 55 mm 4 pc(s)

Item no:3204840

Fast track dispatch on Thu 29 Oct

65 Set(s)Conrad Electronic

4 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Fischer 572914 DuoHM 4x55 S PH TX Cavity plug 55 mm 4 pc(s)

Item no:3204841

Fast track dispatch on Thu 29 Oct

6 Set(s)Conrad Electronic

4 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Fischer 572915 DuoHM 5x55 S PH TX Cavity plug 55 mm 4 pc(s)

Item no:3204842

Fast track dispatch on Thu 29 Oct

20 Set(s)Conrad Electronic

4 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Fischer 572916 DuoHM 6x55 S PH TX Cavity plug 55 mm 4 pc(s)

Item no:3204843

Fast track dispatch on Thu 29 Oct

40 Set(s)Conrad Electronic

4 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Fischer 572920 DuoHM 4x55 S PH PZ Cavity plug 55 mm 25 pc(s)

Item no:3204844

Fast track dispatch on Thu 29 Oct

30 Set(s)Conrad Electronic

25 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Fischer 572921 DuoHM 5x55 S PH PZ Cavity plug 55 mm 25 pc(s)

Item no:3204845

Fast track dispatch on Thu 29 Oct

8 Set(s)Conrad Electronic

25 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Fischer 572922 DuoHM 6x55 S PH PZ Cavity plug 55 mm 25 pc(s)

Item no:3204846

Fast track dispatch on Thu 29 Oct

12 Set(s)Conrad Electronic

25 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3204851 Fischer 572927 FixTainer DuoHM TX Cavity plug 55 mm 90 pc(s)

Information

Information 3204851 Fischer 572927 FixTainer DuoHM TX Cavity plug 55 mm 90 pc(s)

Description

The DuoHM cavity plug covers all current building material thicknesses of 9.5 - 30 mm, with just one length. Through the new and unique combination of polyamide and metal, the DuoHM enables high loads and maximum flexibility in board materials. The metal sleeve folds behind the building material and presses on the back side of the plate, the plastic plug expands in the plate. The DuoHM is assembled quickly and easily using the cordless screwdriver without the need for additional set tools. This reduces the assembly time up to 50% as compared to the conventional plate dowels. Due to the metric internal thread the mounting part can be screwed in several times and released again. Along with the accompanying screw, the DuoHM can also be used with other metric screws. The anti-rotation device made of polyamide protects the surface of the building material against damage. Due to the small edge of the dowel, the plug behind the mounting part is no longer visible.

Uses:
Pictures, TV brackets, lights, wall shelf, towel rack, Mirror cabinets, guard rails, sub-structures and much more.

Building materials:
Plasterboard and gypsum fiberboards, wood wool lightweight boards, chipboard, plywood panels

Function / assembly
The DuoHM is suitable for board thicknesses from 9.5 to 30mm.
The DuoHM is pre-mounted, i.e. the screw is mounted directly through the attachment.
The metal sleeve folds behind the building material and presses on the back side of the plate, the plastic dowel expands in the building material.
The assembly is only correct once the tightening torque is clearly noticeable and the metal sleeve has been fully pressed against the plate.
Due to the metric internal thread the mounting part can be fastened multiple times and released again.

This text is machine translated.

Features

DuoHM can be mounted quickly and easily using cordless screwdriver without the need for additional set tools. This reduces the assembly time by up to 50% as compared to the conventional plate dowels.
The unique 2 component technology meets high load requirements. The metal sleeve is pressed to the back of the plate and the polyamide base body expands in the building material.
One dowel length covers all common building material thicknesses of 9.5 - 30 mm AB for a flexible and cost-efficient use.
Due to the metric internal thread, the screw can be loosened and screwed back in several times.
The anti-rotation device made of polyamide provides for a correct mounting and at the same time prevents damages of the building material.
The attachment is not visible behind the attachment due to the small dowel edge.
