Name: Fischer Elektronik Pin strip (standard) No. of rows: 1 10050625 10 pc(s)
Brand: Fischer Elektronik
SKU: 3239201
Availability: BackOrder

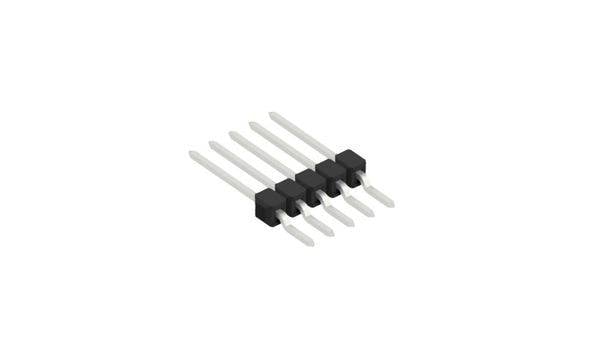

Fischer Elektronik Pin strip (standard) No. of rows: 1 10050625 10 pc(s)-0

Product type

Pin strip (standard)

No. of rows

Total number of pins

2.54 mm

Pin shape

Rectangular

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 4 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Minimum order quantity: 2

Total (€ 0.55 / piece)

€ 5.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PIN HEADER SL 12 SMD 109 5 Z

Content 10 pc(s)
No. of rows 1

Our service for you

Technical specifications

Number of poles occupied: 5
Connection type: Soldering
Mounting method push-pull
Locking layer (pin): Nickel
Layer thickness of plug area 4.0 - 6.0 µm
Layer thickness of soldering range 4.0 - 6.0 µm
Cover: Not sheathed
Flammability class UL 94 V-0

Product type: Pin strip (standard)

No. of rows: 1

Total number of pins: 5

CS: 2.54 mm

Connection: SMD

Factory colour: Black

Pin shape: Rectangular

Nominal voltage: 250 V AC

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Tin plated

Contact material: Bronze

Case material: PA 4.6, GF

Dim: (L x W x H) 12.7 x 2.5 x 18.9 mm

Manufacturer part #: 10050625

Content: 10 pc(s)

Width: 2.5 mm

Height: 18.9 mm

Length: 12.7 mm

RoHS-compliant: Yes

Max. temperature: 163 °C

Min. temperature: -40 °C

Type: SL 12 SMD 109 5 Z

Variants(All information include VAT, plus shipping costs)

Contact surface

Total number of pins

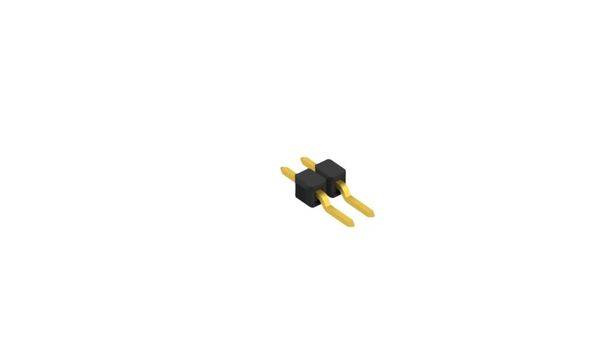

Fischer Elektronik Pin strip (standard) No. of rows: 1 10050055 10 pc(s)

Item no:3237541

Dispatches on Fri 4 Dec

Conrad Electronic

Gold plated

Piece(s)

Minimum order quantity: 3

Multiple: 1

€ 4.29^*

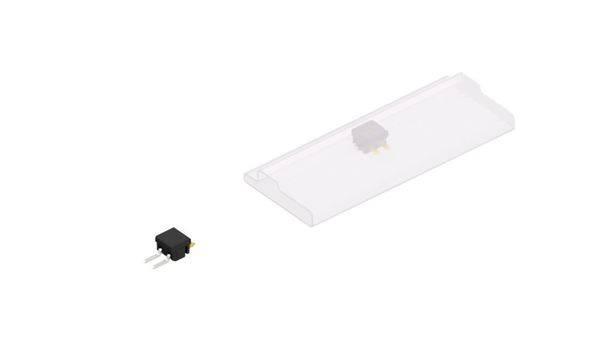

Fischer Elektronik Pin strip (standard) No. of rows: 1 10050056 10 pc(s)

Item no:3237545

Dispatches on Fri 4 Dec

Conrad Electronic

Gold plated

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 6.49^*

Fischer Elektronik Pin strip (standard) No. of rows: 1 10050058 10 pc(s)

Item no:3237547

Dispatches on Fri 4 Dec

Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 4

Multiple: 1

€ 2.79^*

Fischer Elektronik Pin strip (standard) No. of rows: 1 10050059 10 pc(s)

Item no:3237640

Dispatches on Fri 4 Dec

Conrad Electronic

Gold plated

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 5.99^*

Fischer Elektronik Pin strip (standard) No. of rows: 1 10050061 10 pc(s)

Item no:3237646

Dispatches on Fri 4 Dec

Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 3

Multiple: 1

€ 3.49^*

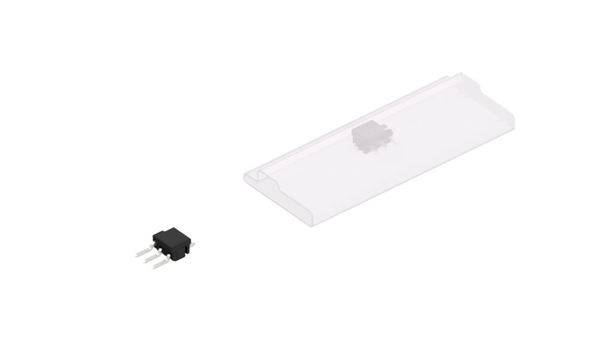

Fischer Elektronik Pin strip (standard) No. of rows: 1 10050062 10 pc(s)

Item no:3237647

Dispatches on Fri 4 Dec

Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 6.49^*

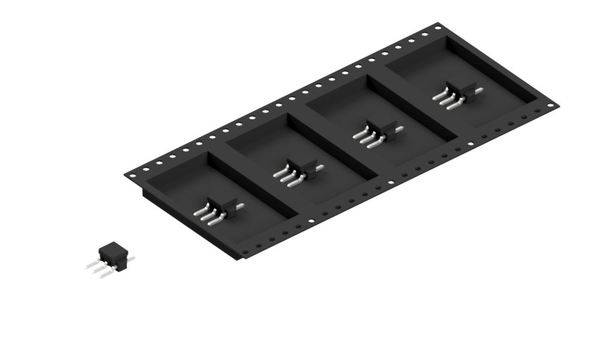

Fischer Elektronik Pin strip (standard) No. of rows: 1 10050063 500 pc(s)

Item no:3237648

Dispatches on Thu, 7 Jan 2027

Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 355.00^*

Fischer Elektronik Pin strip (standard) No. of rows: 1 10050065 10 pc(s)

Item no:3237712

Dispatches on Fri 4 Dec

Conrad Electronic

Gold plated

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 7.49^*

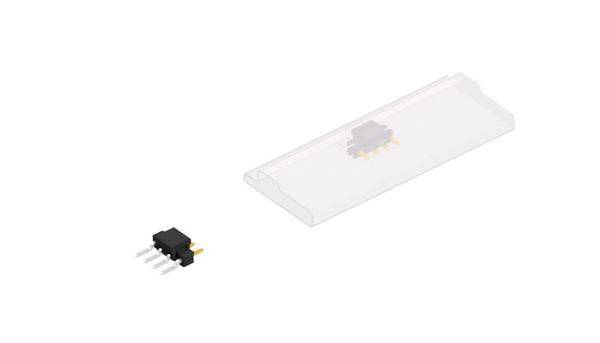

Fischer Elektronik Pin strip (standard) No. of rows: 1 10050067 10 pc(s)

Item no:3237716

Dispatches on Fri 4 Dec

Conrad Electronic

Gold plated

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 8.99^*

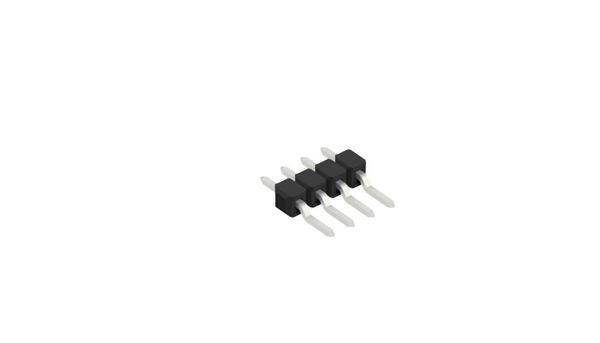

Fischer Elektronik Pin strip (standard) No. of rows: 1 10050068 10 pc(s)

Item no:3237718

Dispatches on Fri 4 Dec

Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 4.79^*

Documents & Downloads

Datasheet

Datasheet 3239201 Fischer Elektronik Pin strip (standard) No. of rows: 1 10050625 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3239201 Fischer Elektronik Pin strip (standard) No. of rows: 1 10050625 10 pc(s)
