Name: Fischer Elektronik Pin strip (standard) No. of rows: 1 10058842 10 pc(s)
Brand: Fischer Elektronik
SKU: 3253117
Availability: BackOrder

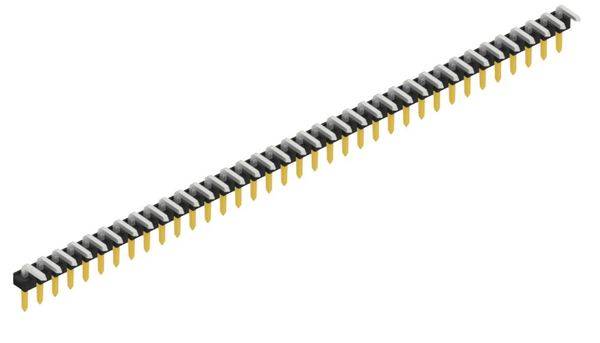

Fischer Elektronik Pin strip (standard) No. of rows: 1 10058842 10 pc(s)-0

Connector type

right angle

Product type

Pin strip (standard)

No. of rows

Total number of pins

2.54 mm

Datasheet (PDF)

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 35.99 / piece)

€ 35.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MULTI-PIN CONNECTOR SL LP 3 041 36 S

Content 10 pc(s)
No. of rows 1

Our service for you

Technical specifications

Number of poles occupied: 36
Connection type: Soldering
Mounting method push-pull
Locking layer (pin): Nickel
Surface soldering area: Tin-plated
Layer thickness of plug area 0.20 µm
Layer thickness of soldering range 4.0 - 6.0 µm
Cover: Not sheathed
Flammability class UL 94 V-0

Connector type: right angle

Product type: Pin strip (standard)

No. of rows: 1

Total number of pins: 36

CS: 2.54 mm

Connection: THT

Factory colour: Black

Pin shape: Rectangular

Nominal voltage: 250 V AC

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Bronze

Case material: PA 4.6, GF

Dim: (L x W x H) 91.44 x 5.5 x 7.6 mm

Manufacturer part #: 10058842

Content: 10 pc(s)

Width: 5.5 mm

Height: 7.6 mm

Length: 91.44 mm

RoHS-compliant: Yes

Max. temperature: 163 °C

Min. temperature: -40 °C

Type: SL LP 3 041 36 S

Variants(All information include VAT, plus shipping costs)

Contact surface

Total number of pins

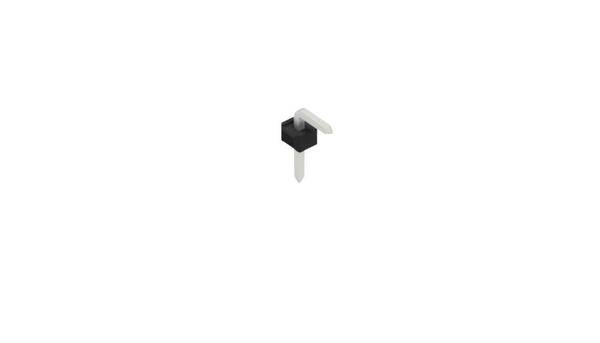

Fischer Elektronik Pin strip (standard) No. of rows: 1 10058796 10 pc(s)

Item no:3253031

Dispatches on Fri 13 Nov

Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 5

Multiple: 1

€ 1.29^*

Fischer Elektronik Pin strip (standard) No. of rows: 1 10058797 10 pc(s)

Item no:3253062

Dispatches on Fri 13 Nov

Conrad Electronic

Gold plated

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 5.49^*

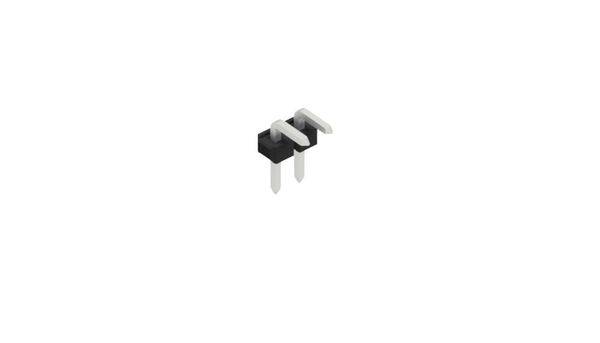

Fischer Elektronik Pin strip (standard) No. of rows: 1 10058798 10 pc(s)

Item no:3253064

Dispatches on Fri 13 Nov

Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 3

Multiple: 1

€ 2.99^*

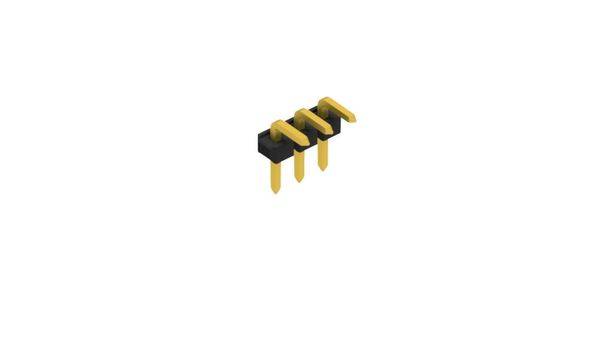

Fischer Elektronik Pin strip (standard) No. of rows: 1 10058799 10 pc(s)

Item no:3253095

Dispatches on Fri 13 Nov

Conrad Electronic

Gold plated

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 6.99^*

Fischer Elektronik Pin strip (standard) No. of rows: 1 10058800 10 pc(s)

Item no:3253097

Dispatches on Fri 13 Nov

Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 3

Multiple: 1

€ 4.29^*

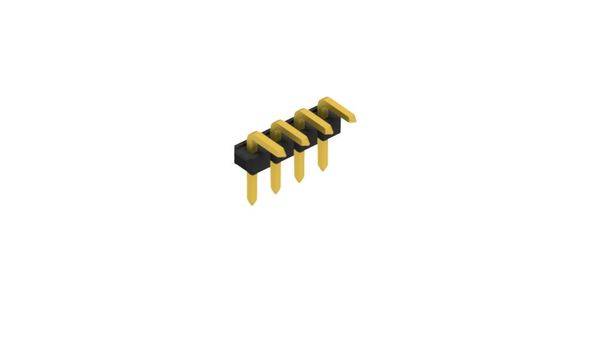

Fischer Elektronik Pin strip (standard) No. of rows: 1 10058802 10 pc(s)

Item no:3253119

Dispatches on Fri 13 Nov

Conrad Electronic

Gold plated

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 8.49^*

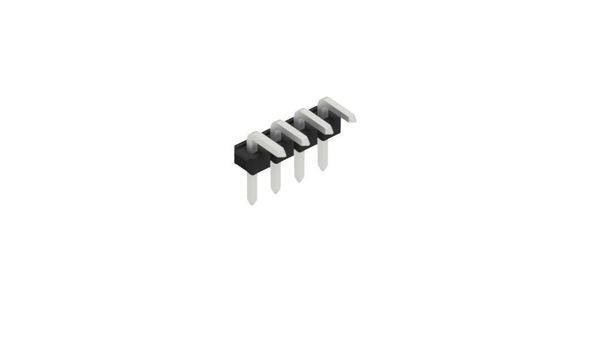

Fischer Elektronik Pin strip (standard) No. of rows: 1 10058803 10 pc(s)

Item no:3253121

Dispatches on Fri 13 Nov

Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 5.49^*

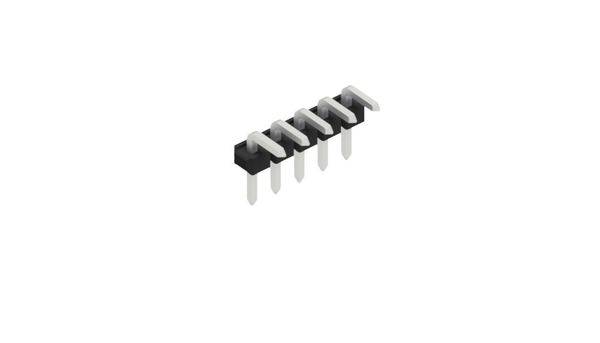

Fischer Elektronik Pin strip (standard) No. of rows: 1 10058805 10 pc(s)

Item no:3253124

Dispatches on Fri 13 Nov

Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 5.99^*

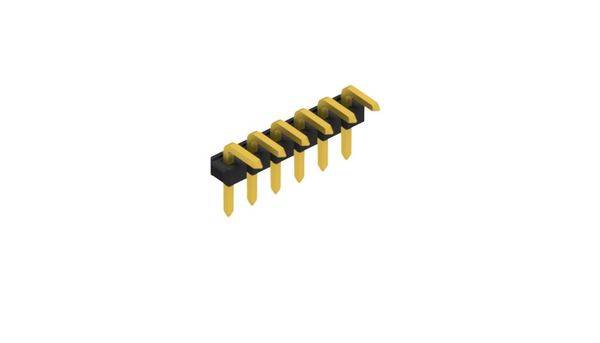

Fischer Elektronik Pin strip (standard) No. of rows: 1 10058806 10 pc(s)

Item no:3253125

Dispatches on Fri 13 Nov

Conrad Electronic

Gold plated

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

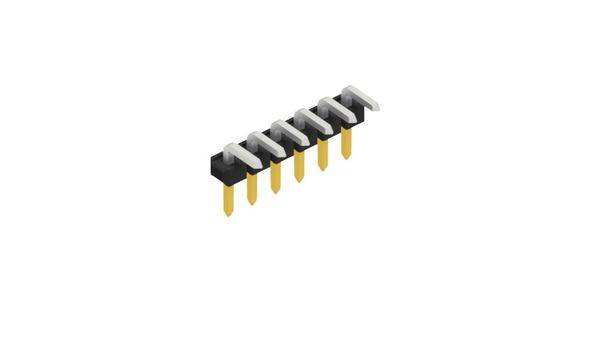

Fischer Elektronik Pin strip (standard) No. of rows: 1 10058807 10 pc(s)

Item no:3253126

Dispatches on Fri 13 Nov

Conrad Electronic

Gold plated

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

Documents & Downloads

Datasheet

Datasheet 3253117 Fischer Elektronik Pin strip (standard) No. of rows: 1 10058842 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3253117 Fischer Elektronik Pin strip (standard) No. of rows: 1 10058842 10 pc(s)
