Name: Fischer Elektronik Pin strip (standard) No. of rows: 2 10057764 10 pc(s)
Brand: Fischer Elektronik
SKU: 3250473
Availability: BackOrder

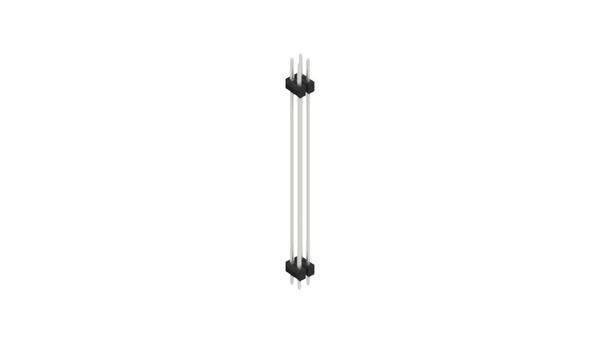

Fischer Elektronik Pin strip (standard) No. of rows: 2 10057764 10 pc(s)-0

Product type

Pin strip (standard)

No. of rows

Total number of pins

2.54 mm

Pin shape

Rectangular

Datasheet (PDF)

Dispatches on Wed 18 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 8.49 / piece)

€ 8.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pin header SL 6 525 4 Z

Content 10 pc(s)
No. of rows 2

Our service for you

Technical specifications

Number of poles occupied: 4
Series distance 2.54 mm
Connection type: Soldering
Mounting method push-pull
Locking layer (pin): Nickel
Surface soldering area: Tin-plated
Layer thickness of plug area 0.20 µm
Layer thickness of soldering range 4.0 - 6.0 µm
Cover: Not sheathed
Flammability class UL 94 V-0

Product type: Pin strip (standard)

No. of rows: 2

Total number of pins: 4

CS: 2.54 mm

Connection: THT

Factory colour: Black

Pin shape: Rectangular

Nominal voltage: 250 V AC

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Bronze

Case material: PA 4.6, GF

Dim: (L x W x H) 5.08 x 5 x 61.5 mm

Manufacturer part #: 10057764

Content: 10 pc(s)

Width: 5 mm

Height: 61.5 mm

Length: 5.08 mm

RoHS-compliant: Yes

Max. temperature: 163 °C

Min. temperature: -40 °C

Type: SL 6 525 4 Z
