Connectors & CablesConnectorsPCB ConnectorsPin Headers, Receptacles

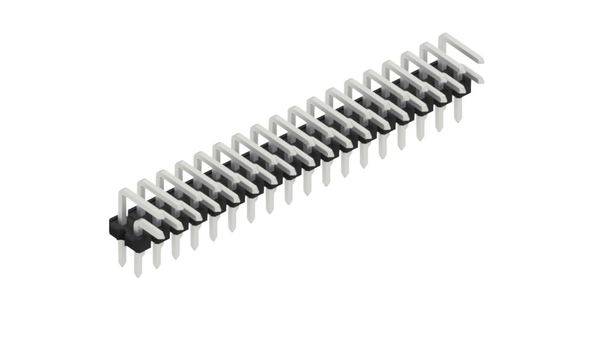

Fischer Elektronik Pin strip (standard) No. of rows: 2 SLLP404136Z 10 pc(s)

Fischer Elektronik Pin strip (standard) No. of rows: 2 SLLP404136Z 10 pc(s)-0
Connector type
right angle
Product type
Pin strip (standard)
No. of rows
2
Total number of pins
36
CS
2.54 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 4 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 10 pc(s))
Total (€ 3.30 / piece)
€ 32.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

PIN HEADER SL LP 4 041 36 Z

  • Content 10 pc(s)
  • No. of rows 2

Our service for you

Technical specifications

  • Number of poles occupied: 36
  • Series distance 2.54 mm
  • Connection type: Soldering
  • Mounting method push-pull
  • Locking layer (pin): Nickel
  • Surface soldering area: Tin-plated
  • Layer thickness of plug area 0.20 µm
  • Layer thickness of soldering range 4.0 - 6.0 µm
  • Cover: Not sheathed
  • Flammability class UL 94 V-0
Connector type

right angle

Product type

Pin strip (standard)

No. of rows

2

Total number of pins

36

CS

2.54 mm

Connection

THT

Factory colour

Black

Pin shape

Rectangular

Nominal voltage

250 V AC

Nominal current

3 A

Nominal current - rounded value

3 A

Contact surface

Gold plated

Contact material

Bronze

Case material

PA 4.6, GF

Dim

(L x W x H) 45.72 x 8 x 8.64 mm

Manufacturer part #

SLLP404136Z

Content

10 pc(s)

Width

8 mm

Height

8.64 mm

Length

45.72 mm

RoHS-compliant

Yes

Max. temperature

163 °C

Min. temperature

-40 °C

Type

SL LP 4 041 36 Z

Documents & Downloads

Datasheet

Datasheet 3253274 Fischer Elektronik Pin strip (standard) No. of rows: 2 SLLP404136Z 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3253274 Fischer Elektronik Pin strip (standard) No. of rows: 2 SLLP404136Z 10 pc(s)
