Buy fischertechnik Automatisiertes Hochregallager 24V Simulation model 24 V

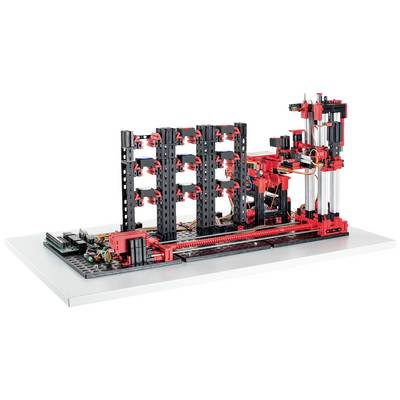

Complex mechanical model made of black and red building blocks, reminiscent of a vertical construction, set against a white background.

A group of four people are sitting at a table and working on a model robot. It is a technical project.

A group of young adults is attentively observing a technical model on a table, smiling and discussing it.

1/3

Fast track dispatch on Thu, 16 Jul

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,088.24 / piece)

€ 1,088.24

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Automated high-bay warehouse 24V

Ideal training, simulation and demonstration model for education and training, industrial automation and industry 4.0/digitization
Already built, stable training model
Mounted on stable wooden board, packaging of the model in stable carton

Technical specifications

Power consumption: I = about 1.2 A.
Digital inputs 6
Fast counting inputs: 2 or 4 (with direction detection).
Outputs 24V: 8.

Operating voltage: 24 V

Product type: Simulation model

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2861946 fischertechnik Automatisiertes Hochregallager 24V Simulation model 24 V

Description

Transfer station with conveyor belt, shelf control unit (RBG) for storage and storage of special workpiece carriers, 9 storage locations.Connection to PLC control: The model has a PCB with relay for reversing the direction of rotation of the motors. All inputs and outputs are lead through pin headers (26-pole, 2.54mm pitch) as well as on terminal blocks with plug-in connection (Push-In).

This text is machine translated.

Hints

Additional teaching material:The innovative fischertechnik teaching material helps you to convey practical technical understanding and to communicate it to your students or apprentices. The accompanying didactic manual with teacher and teaching material offers models and tasks for fast preparation of the teaching and contains problems and solutions, hand moves and templates.The teaching materials can be downloaded free of charge from the eLearning portal.

System requirements

PLC control
