Fluke FLUKE-289/IMSK Handheld multimeter Digital CAT III 1000 V Display (counts): 50000
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2,825.00 / piece)
€ 2,825.00
incl. VAT
14-day return policy included
Highlights & Details
FLUKE-289/IMSK
- CAT III 1000 V
Technical specifications
- Storage capacity: Up to 10,000 readings
- Operating temperature: -20°C to +55 °C
- Battery life: Minimum 100 hours (without backlight)
- Acoustic continuity test and diode test
- Voltage reading range DC (min.)
50 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
50 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
500 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
500 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
50 Ω - 500 MΩ
- Reading range - capacity
1 nF -100 mF
- Frequency reading range
99.99 Hz - 999,99 kHz
- Temperature
-200 °C to +1350 °C (sensor-dependent)
- DC resistance
10 MΩ
- AC resistance
10 MΩ (LoZ-Modus: ca. 3,2 kΩ)
- Basic accuracy
0.025 %
- Measurement type (details)
True RMS
- Frequency range
100 kHz
- Interfaces
USB
optical
- Power supply (details)
6x Mignon-Battery Type AA / LR6
- Height
222 mm
- Width
102 mm
- Length
60 mm
- Weight
871 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
FLUKE-289/IMSK
- Display
Digital
- Display (counts)
50000
- Dim
(L x W x H) 60 x 102 x 222 mm
- Calibration service
ISO / DAkkS optionally available
- Temperature reading range (max.)
1350 °C
- Temperature reading range (min.)
-200 °C
- Opening range of current clamps
32 mm
Documents & Downloads
Datasheet
Datasheet 3828196 Fluke FLUKE-289/IMSK Handheld multimeter Digital CAT III 1000 V Display (counts): 50000
User & Safety Instructions
User & Safety Instructions 3828196 Fluke FLUKE-289/IMSK Handheld multimeter Digital CAT III 1000 V Display (counts): 50000
Description

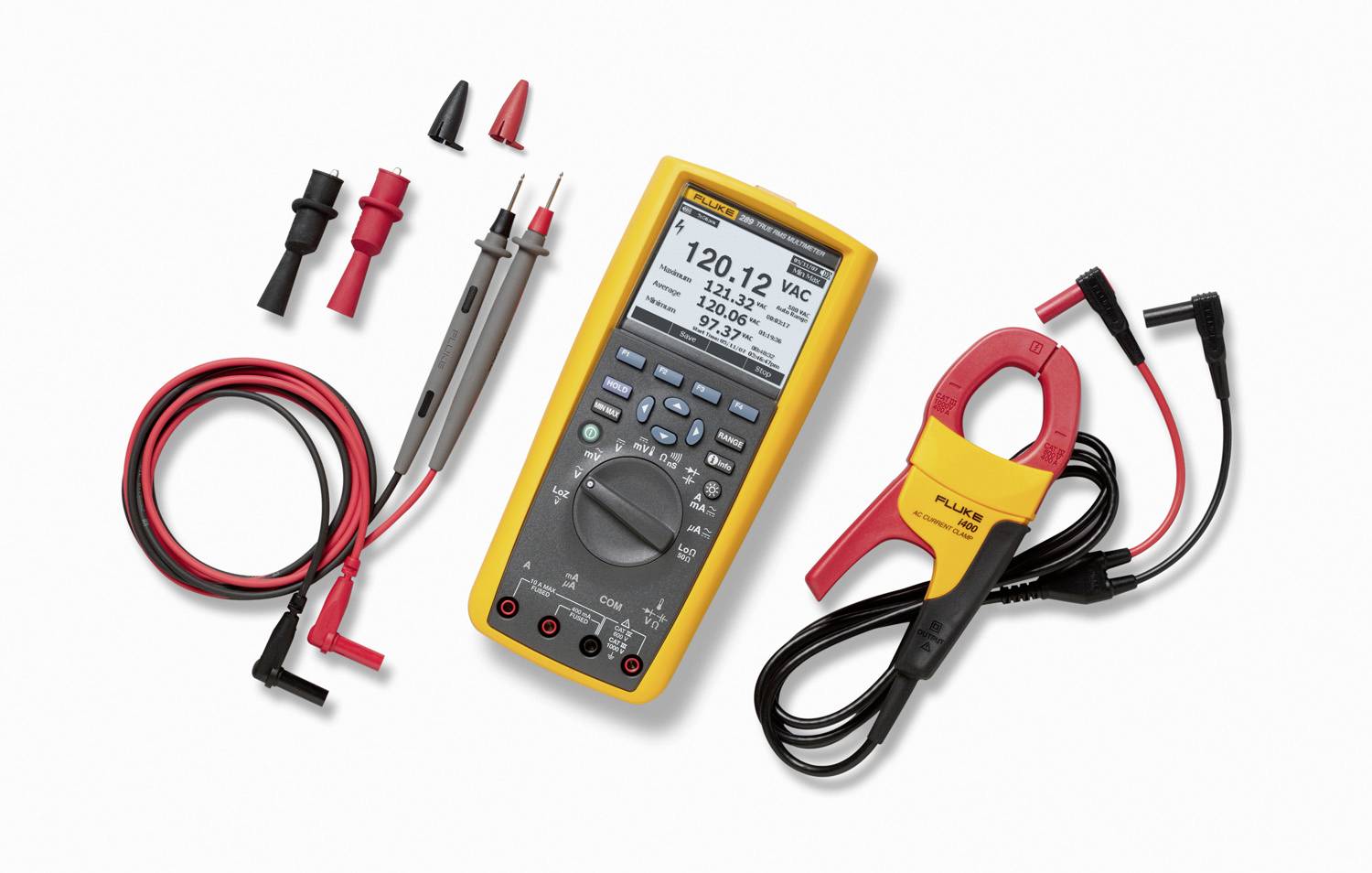

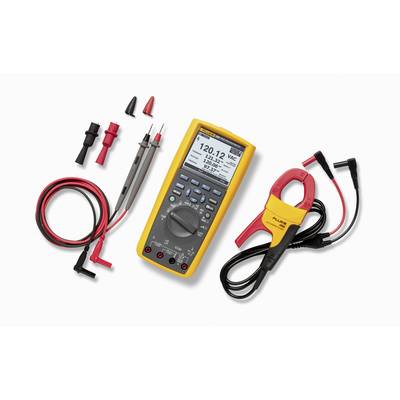

The Fluke 289, the powerful industrial multimeter with extended logging functions, is the heart of this combo kit in combination with the i400 AC clamp meter. This combination facilitates the solution of complex problems in the areas of electronics, plant automation, power distribution and electromechanical equipment. The kit includes special accessories that make you even more productive at work and save over 15% compared to single-purchase items. In addition, you work with a measuring device that is most familiar worldwide.
This text is machine translated.
This text is machine translated.
Features
- Large, high-resolution 1/4-VGA-display with white background lighting
- TrendCapture for quick visual evaluation of recordings
- LoZ-voltage function for avoiding phantom voltages through stray voltages
- Low pass filter for precise measurements of motor drives
- 50-ohm measurement range with 1-milliohm resolution for motor windings
- Relative value mode for removing the measuring lead resistance
- Data recording for unattended long-term monitoring
- Optical IR-USB interface for data transfer to PC
- Ergonomic case with integrated holster
Scope of delivery
- Fluke 289 real energy data logger multimeter
- Fluke i400 AC clip-on ammeter
- TL71 Silicone test lead set
- AC175 alligator clips
- 80BK-A Integrated DMM temperature sensor
- Amperemeter adapter TPAK for hands-free working
- 6 mignon batteries (type AA)
- Ammeter storage bag C280
- User manual/documentation
