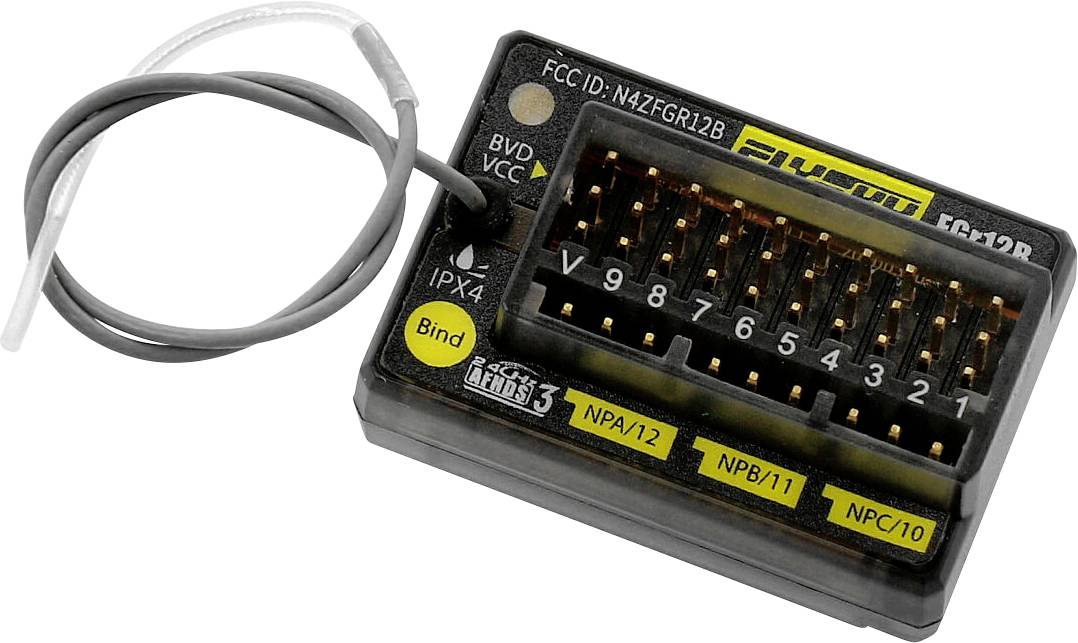

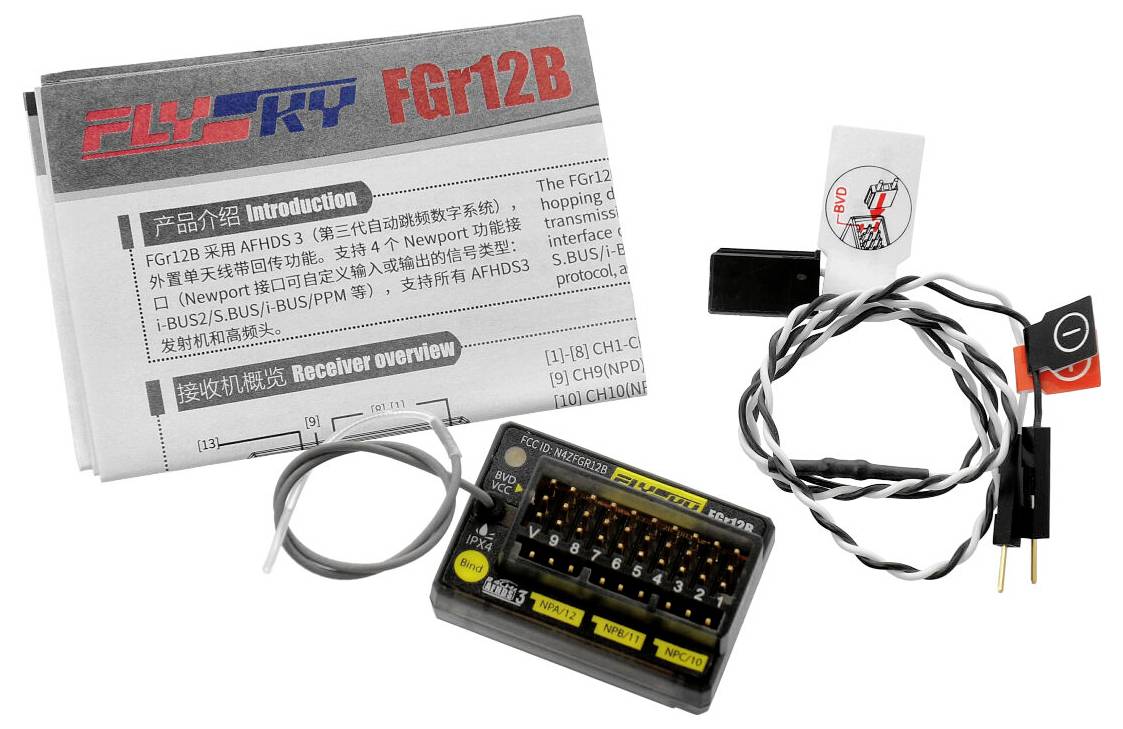

FlySky FGr12B AFHDS3 12-channel receiver 2,4 GHz
EAN:
Part number:
Item no:
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Technical specifications
- Protocol: AFHDS 3
- Output PWM/PPM/i-BUS IN
- Temperature range -10°C to +60°C.
- Max. Humidity 20%-95%
- Compatible transmitters: All AFHDS3 transmitters and RF modules (PL18, NB4, NB4 Lite, etc.)
- Dim
(L x W x H) 37 x 25 x 18 mm
- Weight
11.2 g
- No. of channels (details)
12
- Operating voltage
3.5 - 9 V
- Height
18 mm
- Length
37 mm
- Width
25 mm
- Manufacturer part #
FGr12B
- Frequency
2,4 GHz
- Min. operating voltage
3.5 V
- Max. operating voltage
9 V
- Product type
12-channel receiver
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400137 FlySky FGr12B AFHDS3 12-channel receiver 2,4 GHz
Description
The FGr12B-receiver is the ideal partner in the use of a Flysky remote control. Thereby, the receiver has a technology used by Flysky - the automatic frequency hopping digital system (AFHDS3). With a bi-directional transmission system via the antenna, this receiver is specially designed for installation and output of PWM/PPM/i-BUS signals. Supports all AFHDS3-enabled transmitters.
