Name: Gedore 7578-00 1427113 Torque wrench 1/2" (12.5 mm) 40 - 200 Nm
Brand: Gedore
SKU: 1908482
Availability: BackOrder

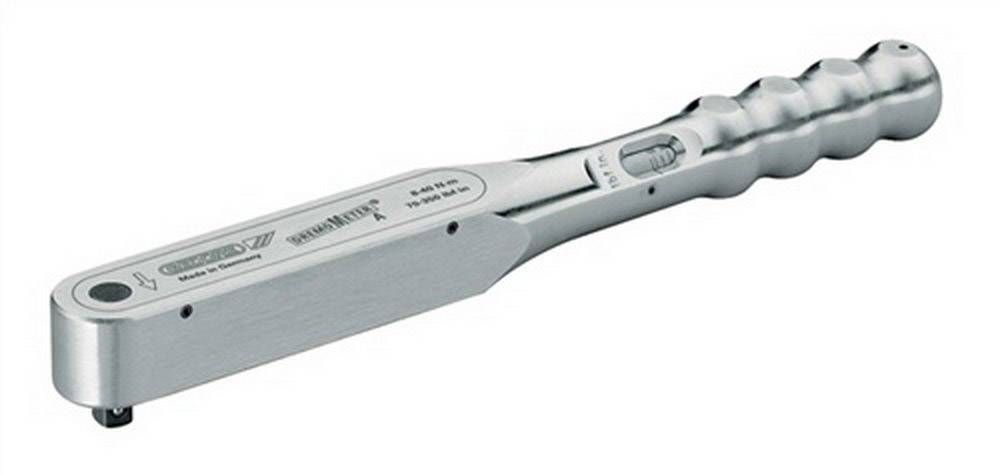

Metal torque wrench with a textured grip and markings. Used for precise torque measurement and application.

Dispatches on Fri 20 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 485.00 / piece)

€ 485.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

7578-00 - GEDORE - torque wrench DREMOMETER BCL AS 1/2" 40-200 Nm
Technical advantage/function:
Locking and securing (A+S) prevents accidental or manipulated adjustment, thus more process safety
for the user classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4 %) is easily exceeded for your safety
, but robust (since housing made of one piece of aluminum) and insensitive, very workshop-friendly
no value shifts and influence of the accuracy by working both-handed or operating outside the grip (as with conventional torque wrenches).
Both the drive square as a pivot point are in an axis thus highly reliable for use, Extendable to work load of the user reduce
extremely low wear by reducing the force of the lever mechanics
forged lever chain from the Group's own quality forge
highest precision even with strong continuous use
long life and long service life
simple operation - fast and safe torque tightening
simple and double square for controlled right or left-handed tightening
Use:
Controlled screw suit in the range of 6 - 3000 N
m
Use in almost all industrial production areas
Design:
With certificate according to DIN EN ISO 6789, traceable to the national standard via the company's own DAkkS laboratory
Automatic short-travel release with sensitive and audible signal
Double scale with corresponding scale division (see table)
Type B, BC, C
with push button release Fixed threshing meter for series production, Where the same value must be set If
factory default setting is required, please specify N
m value when ordering (price on request)

Product type: Torque wrench

Downforce: 1/2" (12.5 mm)

Torque (min.): 40 Nm

Torque (max.): 200 Nm

Graduation: 5 Nm

Length: 539 mm

Variants(All information include VAT, plus shipping costs)

Length

Torque (min.)

Torque (max.)

Gedore 7460-01 1427067 Torque wrench Calibrated to (DAkkS standards) For socket bits 8 - 40 Nm

Item no:1908453

Dispatches on Fri 20 Nov

Conrad Electronic

354 mm

8 Nm

40 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 499.00^*

Gedore 7461-01 1427075 Torque wrench Calibrated to (DAkkS standards) For socket bits 25 - 120 Nm

Item no:1908454

Dispatches on Thu 22 Oct

1 Piece(s)Conrad Electronic

477.5 mm

25 Nm

120 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Gedore 7462-01 1225669 Torque wrench Calibrated to (DAkkS standards) For socket bits 80 - 400 Nm

Item no:1908455

Dispatches on Fri 20 Nov

Conrad Electronic

633 mm

80 Nm

400 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 685.00^*

Gedore 7463-10 1427083 Torque wrench Calibrated to (DAkkS standards) For socket bits 140 - 620 Nm

Item no:1908456

Dispatches on Thu 22 Oct

5 Piece(s)Conrad Electronic

834.5 mm

140 Nm

620 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,245.00^*

Gedore 7471-01 1521977 Torque wrench Calibrated to (DAkkS standards) For socket bits 520 - 1000 Nm

Item no:1908457

Dispatches on Fri 20 Nov

Conrad Electronic

1319.00 mm

520 Nm

1000 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,765.00^*

Gedore 7480-01 1427059 Torque wrench 9 x 12 mm socket square 8 - 40 Nm

Item no:1908458

Dispatches on Thu 22 Oct

2 Piece(s)Conrad Electronic

350 mm

8 Nm

40 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

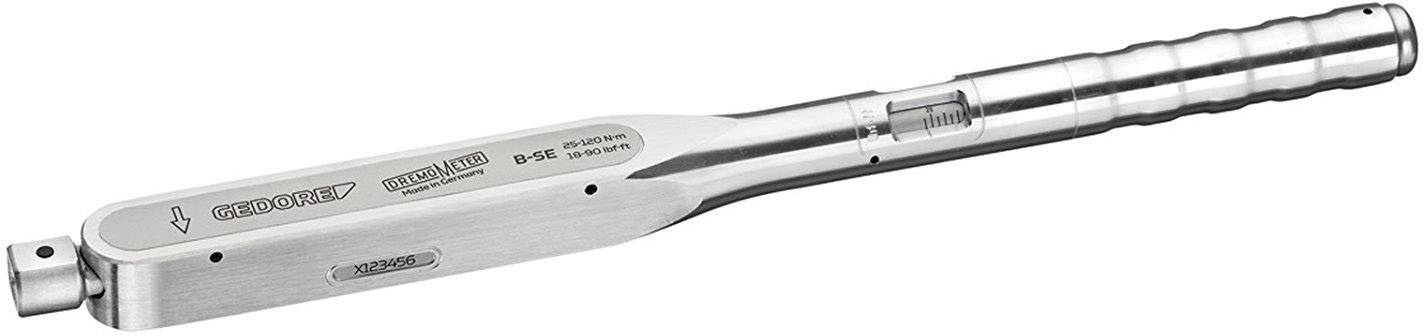

Gedore 7481-01 1427091 Torque wrench 9 x 12 mm socket square 25 - 120 Nm

Item no:1908459

Dispatches on Fri 20 Nov

Conrad Electronic

474 mm

25 Nm

120 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 585.00^*

Gedore 7482-01 1427105 Torque wrench 14 x 18 mm socket square 80 - 400 Nm

Item no:1908460

Dispatches on Thu 22 Oct

8 Piece(s)Conrad Electronic

642 mm

80 Nm

400 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 709.00^*

Gedore 7554-01 1210891 Torque wrench Calibrated to (ISO standards) 1/4" (6.3 mm) 6 - 30 Nm

Item no:1908461

Dispatches on Thu 22 Oct

6 Piece(s)Conrad Electronic

256 mm

6 Nm

30 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 425.00^*

Gedore 7559-01 1210904 Torque wrench Pre-set 1/4" (6.3 mm) 6 - 30 Nm

Item no:1908462

Dispatches on Thu 22 Oct

3 Piece(s)Conrad Electronic

256 mm

6 Nm

30 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 435.00^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1908482 Gedore 7578-00 1427113 Torque wrench 1/2" (12.5 mm) 40 - 200 Nm

Information

Information 1908482 Gedore 7578-00 1427113 Torque wrench 1/2" (12.5 mm) 40 - 200 Nm

Features

Technical advantage/function:
Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a unique lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Single- and double-square drive for controlled bi-directional tightening Use:
Controlled screw tightening in the range 6 - 3000 N
m
For use in almost all industrial manufacturing areas Features:
With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with corresponding scale graduation (see table)
Type B, BC, C with push-button release
Pre-set DREMOMETER for serial production wherever the same value always needs to be applied
The pre-setting can be made at the factory or by the user on suitable torque testers
If ordering, please specify the N
m value - if a fixed factory pre-setting is desired (price on request)

Description

Features

Technical advantage/function:
Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a unique lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Single- and double-square drive for controlled bi-directional tightening Use:
Controlled screw tightening in the range 6 - 3000 N
m
For use in almost all industrial manufacturing areas Features:
With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with corresponding scale graduation (see table)
Type B, BC, C with push-button release
Pre-set DREMOMETER for serial production wherever the same value always needs to be applied
The pre-setting can be made at the factory or by the user on suitable torque testers
If ordering, please specify the N
m value - if a fixed factory pre-setting is desired (price on request)
