Name: Gens ace Scale model battery charger 2.5 V DC, 18 V DC 5 A Battery recognition, Discharger function
Brand: Gens ace
SKU: 2891368
Availability: InStock

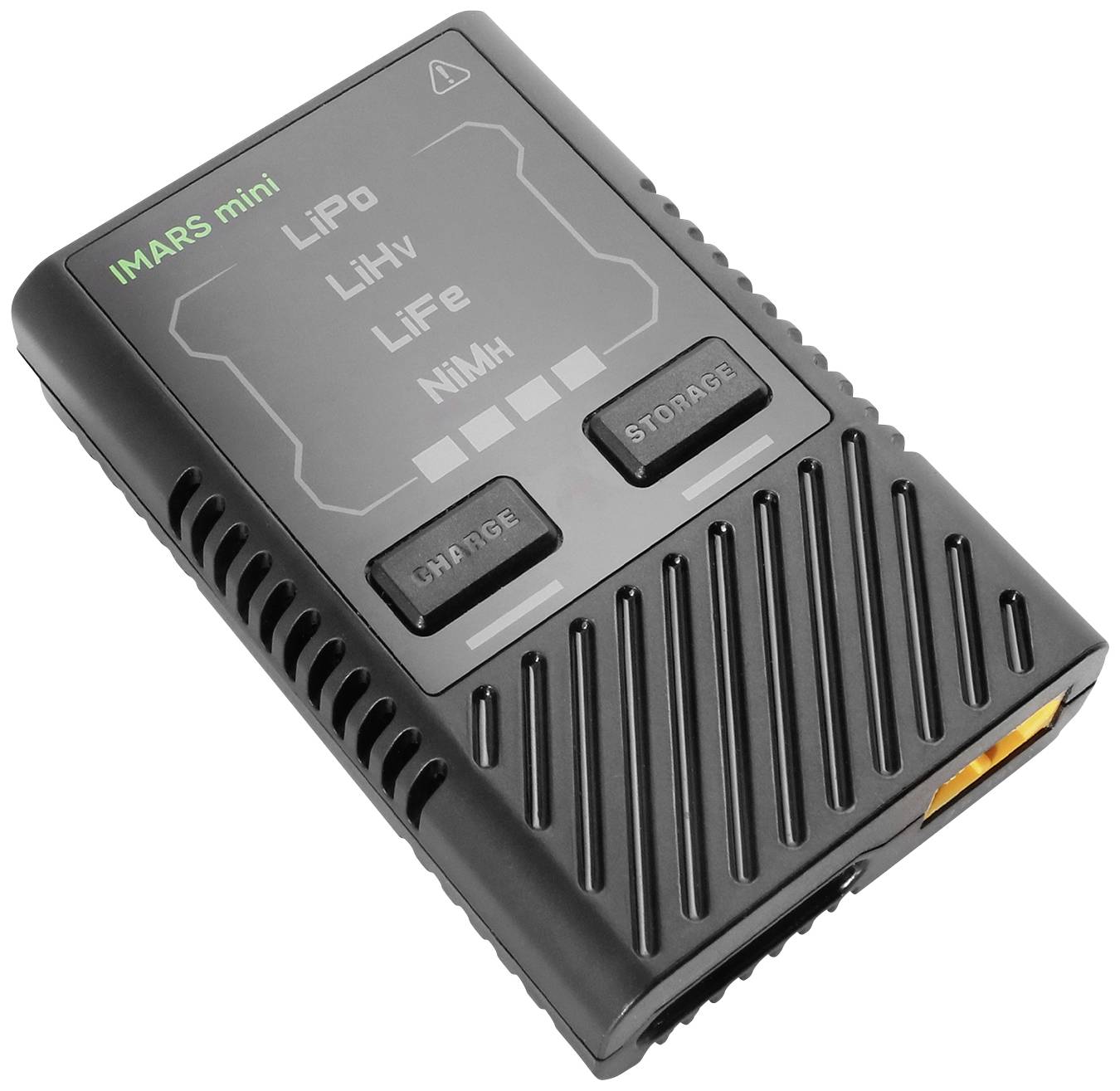

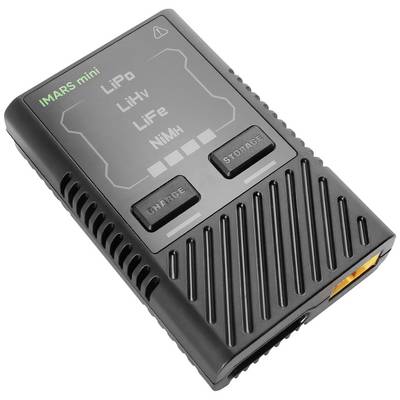

A black battery charger with multiple options for LiPo, LiHv, LiFe and NiMH batteries. Two buttons are labelled 'CHARGE' and 'STORAGE'.

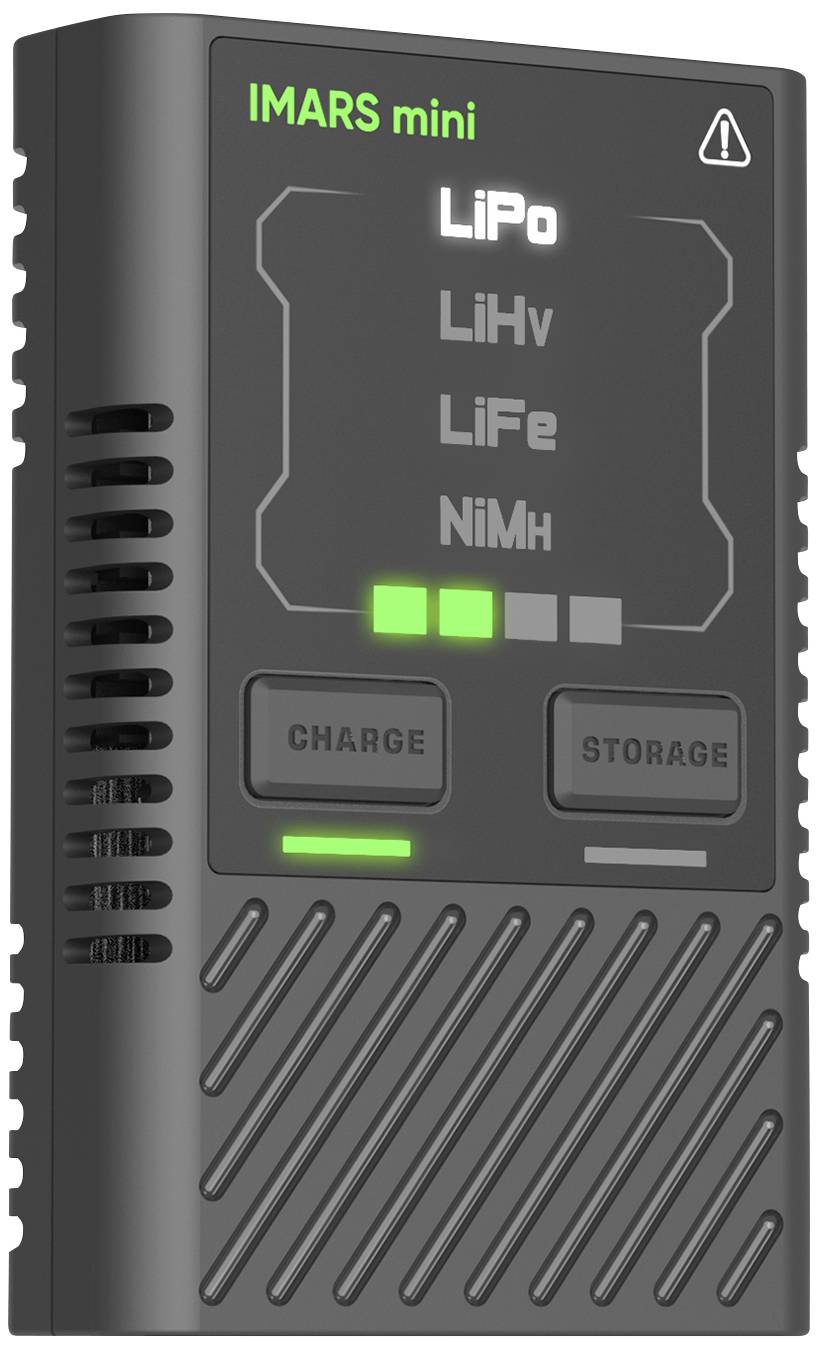

IMARS mini battery charger with options for LiPo, LiHv, LiFe and NiMH. Displays 'CHARGE', three green charging indicator lights.

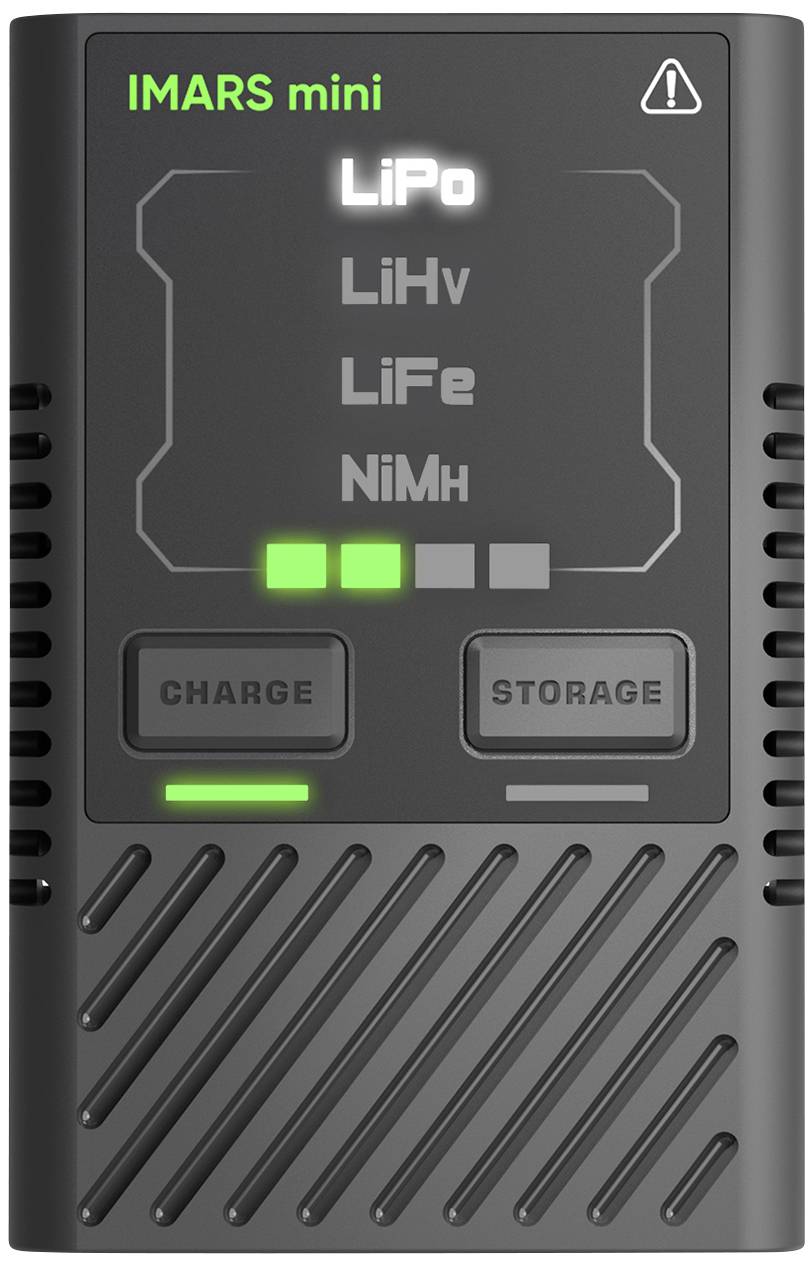

'IMARS mini charger, displays selection of battery types: LiPo, LiHv, LiFe, NiMh. Two buttons: 'Charge' and 'Storage' with charging indicator active.'

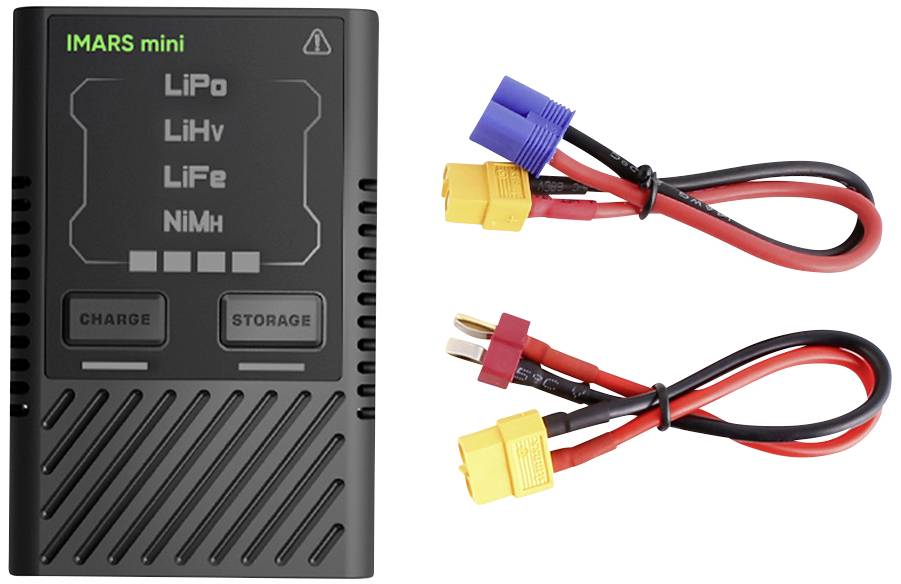

Battery charger with display of supported battery types: 'LiPo', 'LiHv', 'LiFe', 'NiMH'. Two charging cables with plug connectors.

1/4

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

38 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 27.99 / piece)

€ 27.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Gens ace Smart charger IMARS mini G-tech

Built-in G-tech, automatically detects G-Tech Smart battery
Compatible with non-intelligent batteries
Automatic memory and balancing charge function
Intelligent charging current regulation
Small and light, portable design

Technical specifications

Product type: Scale model battery charger

Operating voltage: 2.5 V DC
18 V DC

Max. charging capacity: 60 W

Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.): 4

Suitable for (no. of NiCd/NiMH batteries) (max.): 12

Charging current (max.): 5 A

Max. discharge power: 3 W

Charging slots: 1

Connector system: XT60H

Balancer plug-in: XH

Dim: (L x W x H) 85 x 55 x 21 mm

Suitable for (No. of LiPo/LiIon/LiFe batteries) (min.): 2

Suitable for (No. of NiCd/NiMH batteries) (min.): 2

Weight: 64 g

Manufacturer part #: GEA60WE2

Charger features: Battery recognition
Discharger function

Width: 55 mm

Height: 21 mm

Length: 85 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2891368 Gens ace Scale model battery charger 2.5 V DC, 18 V DC 5 A Battery recognition, Discharger function

Description

The smallest intelligent charger
The Gens ace Imar mini charger is an intelligent charger, which was developed for the Gens ace G-Tech Smart battery. Standard batteries, however, recharge this light easily and reliably.

Automatic memory and balancing charge function
When a Gens ace G-Tech battery is connected to the Imars mini, the charger automatically detects the battery type, the correct voltage and the charging current recommended by the battery manufacturer via the integrated IC chip. The charging process starts automatically within five seconds. The newly developed interface also increases the durability of the compensation connection.

Compatible and flexible
For non-intelligent batteries, only the battery type and operating mode must be selected in order to start the charging process. The Gens ace Imars mini charger can intelligently adjust the charging current to the charging current flow of the battery. Small and light, it is the ideal travel companion.

This text is machine translated.

Features

Intelligent detection of G-Tech Smart battery information by an IC chip for safe and easy charging
Smallest charger with automatic storage
New interface design and increased durability of the compensation connection
Supports 2-4S LiPo, LiHV, LiFe, and 2-12S NiMH batteries

Scope of delivery

Imars mini 60W Smart charger
XT60 socket to EC3 plug adapter
XT60 socket to T-plug adapter
Manual

Description

Features

Intelligent detection of G-Tech Smart battery information by an IC chip for safe and easy charging
Smallest charger with automatic storage
New interface design and increased durability of the compensation connection
Supports 2-4S LiPo, LiHV, LiFe, and 2-12S NiMH batteries
