SKYRC S100 Neo Scale model battery charger 12 A Lead, LiFePO, LiHV, Li-ion, LiPolymer, NiCd, NiMH
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Technical specifications

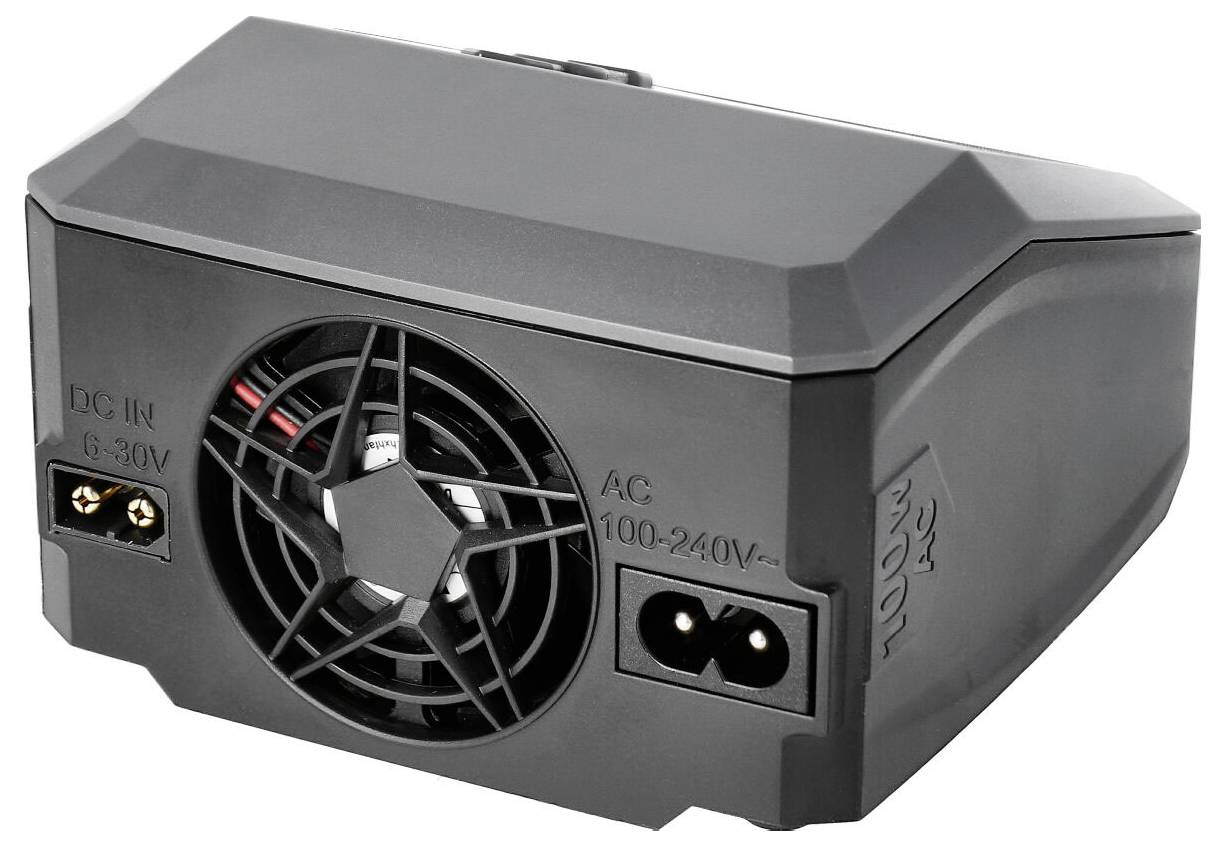

- Input voltage: DC 6V - 30V
- Charging power DC: Max. 200W (+- 10%)
- Charging power AC: Max. 100W (+- 10%)
- Discharge power: 5W (main connection) (+- 10%), max. 20W (balance port, LiPo/6S)
- Charging current: LiPo/LiIon/LiFe/LiHV/NiMH/NiCd/Pb: 0.1A~0.5A (±0.1A) | 0.6A~12A (+-10%)
- Discharge current: LiPo/LiIon/LiFe/LiHV/NiMH/NiCd/Pb: 0.1A-0.2A (±0.1A) | 0.3A-2A (+-10%)
- Balancer current: Max. 1.0A
- Maintenance current 50 ~ 300mA & OFF standard 60mA
- LiXX:1-6S, NiXX:1-15S, Pb: 3S / 6S / 12S
- Operating voltage
100 - 240 V
- Max. charging capacity
200 W
- Charging current (max.)
12 A
- Discharge current
2 A
- Dim
(L x W x H) 105 x 105 x 62 mm
- Height
62 mm
- Length
105 mm
- Width
105 mm
- Matching rechargeable battery
Lead
LiFePO
LiHV
Li-ion
LiPolymer
NiCd
NiMH
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.)
6
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (min.)
1
- Suitable for (no. of NiCd/NiMH batteries) (max.)
15
- Suitable for (No. of NiCd/NiMH batteries) (min.)
1
- Suitable for lead-type rechargeables (max.)
12 V
- Suitable for lead-type rechargeables (min.)
3 V
- Manufacturer part #
SK-100202-01
- Weight
340 g
- UKCA
yes
- Product type
Scale model battery charger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400270 SKYRC S100 Neo Scale model battery charger 12 A Lead, LiFePO, LiHV, Li-ion, LiPolymer, NiCd, NiMH

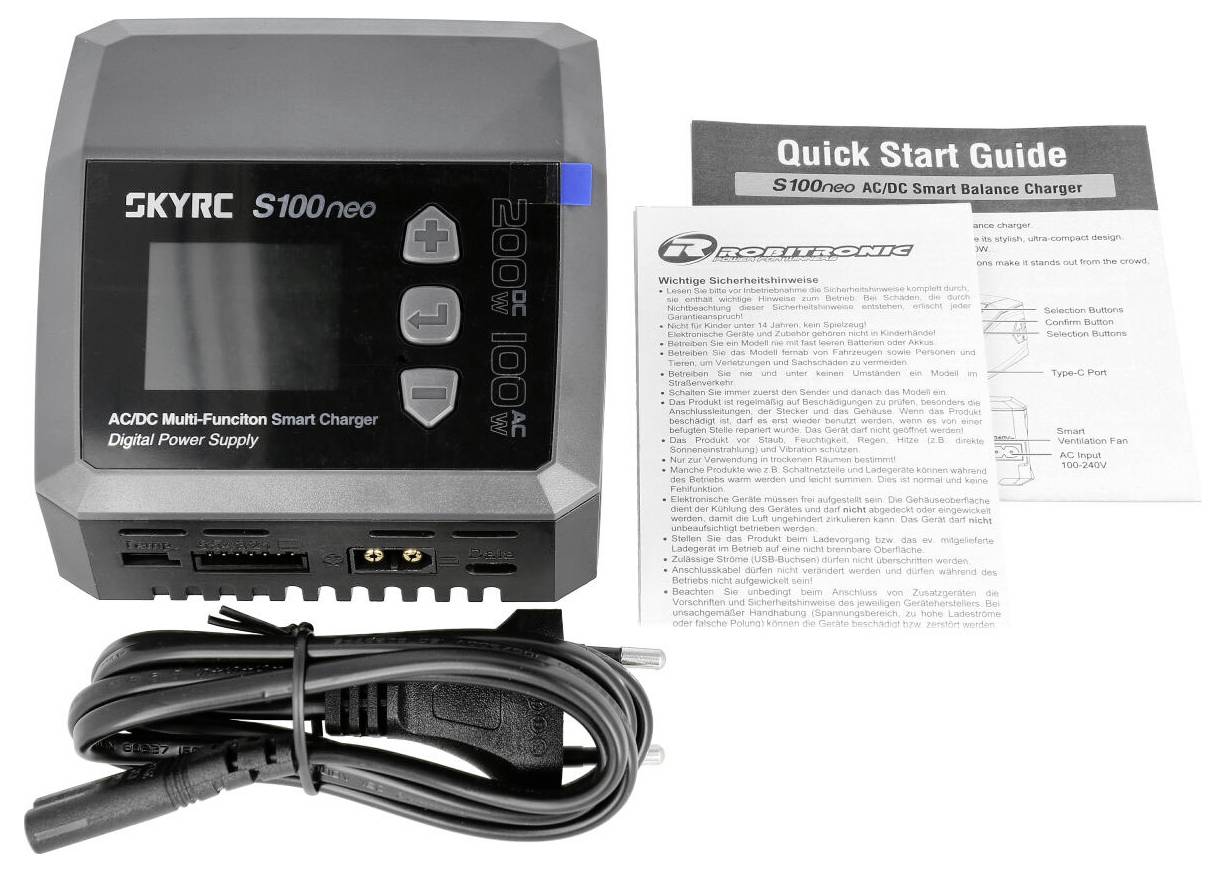

Description
The S100neo impresses with a stylish and ultra compact design and as a smart AC/DC charger offers a maximum power of 200W for different battery chemistry (LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb). In addition, it can be used as a power supply. Here, the adjustable voltage is up to 30V and the current strength up to 12A.
Based on the renowned E680 charger, the S100neo presents itself with impressive performance and combines versatility with powerful charging options. The lively color LCD screen improves the user experience with intuitive navigation and easy monitoring. The S100neo is also more than just a simple charger; it also functions as an advanced digital power supply and offers precise and efficient charging with unparalleled accuracy both in constant current (CC) and constant voltage (CV) mode. Furthermore, WAS makes it possible to measure the voltage without a power supply that is switched on, and of course simplifies the evaluation of the battery voltage considerably.
This text is machine translated.
Based on the renowned E680 charger, the S100neo presents itself with impressive performance and combines versatility with powerful charging options. The lively color LCD screen improves the user experience with intuitive navigation and easy monitoring. The S100neo is also more than just a simple charger; it also functions as an advanced digital power supply and offers precise and efficient charging with unparalleled accuracy both in constant current (CC) and constant voltage (CV) mode. Furthermore, WAS makes it possible to measure the voltage without a power supply that is switched on, and of course simplifies the evaluation of the battery voltage considerably.
This text is machine translated.
Features
- Efficient successor of the well-known E680 charger
- 2 inputs/1 output.
- Max. 100W AC charging output
- Max. 200W DC charging power
- Fast yet with up to 12A
- Simple 3-button control
- Simple and compact
- With PD/QC3.0-fast charging
- Compatible with Charger Master
