Gesipa 1434761 Rivet gun 260 mm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 75.99 / piece)
€ 75.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Rivet gun
- Length
260 mm
- Weight
600 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2919326 Gesipa 1434761 Rivet gun 260 mm 1 pc(s)
Description

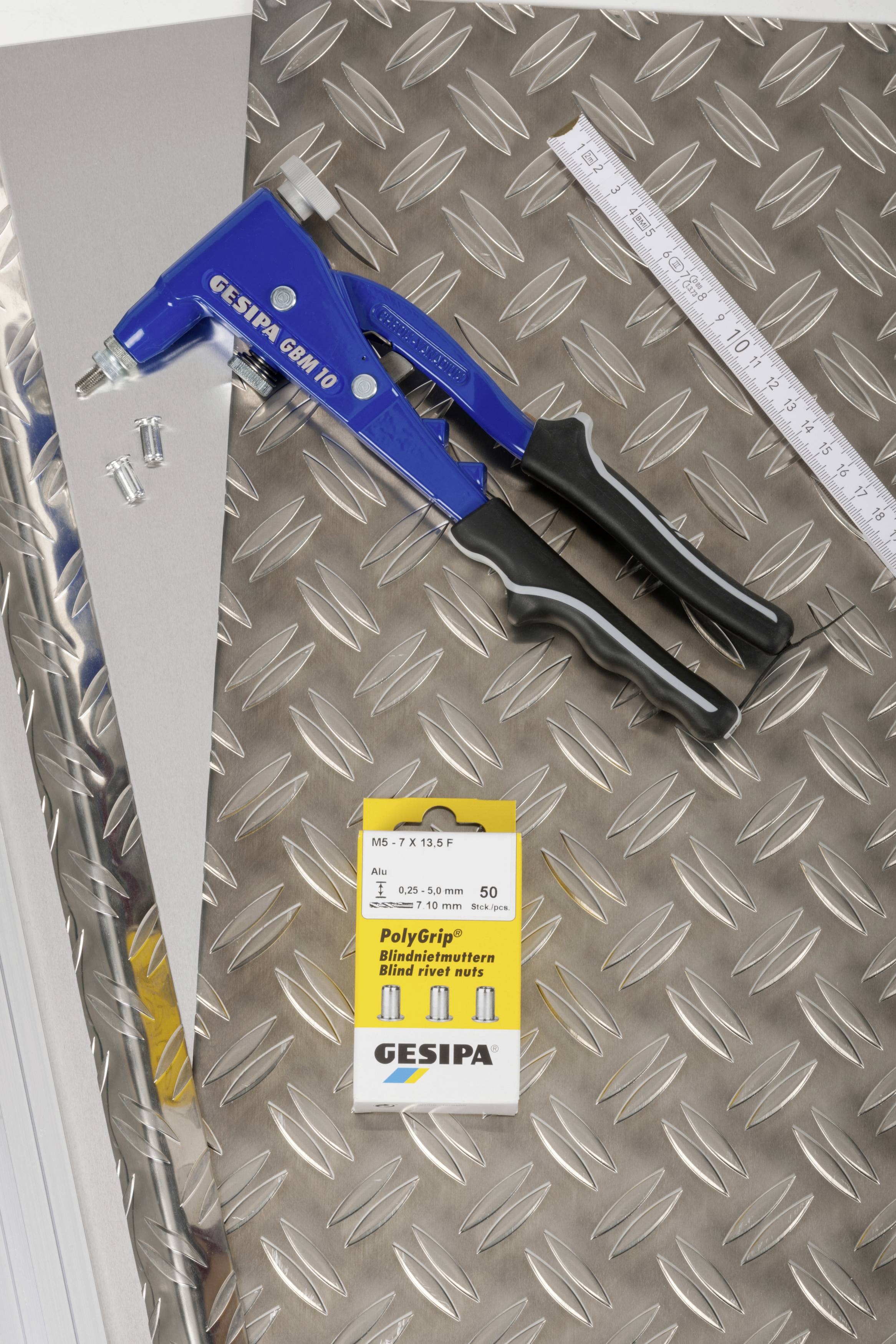

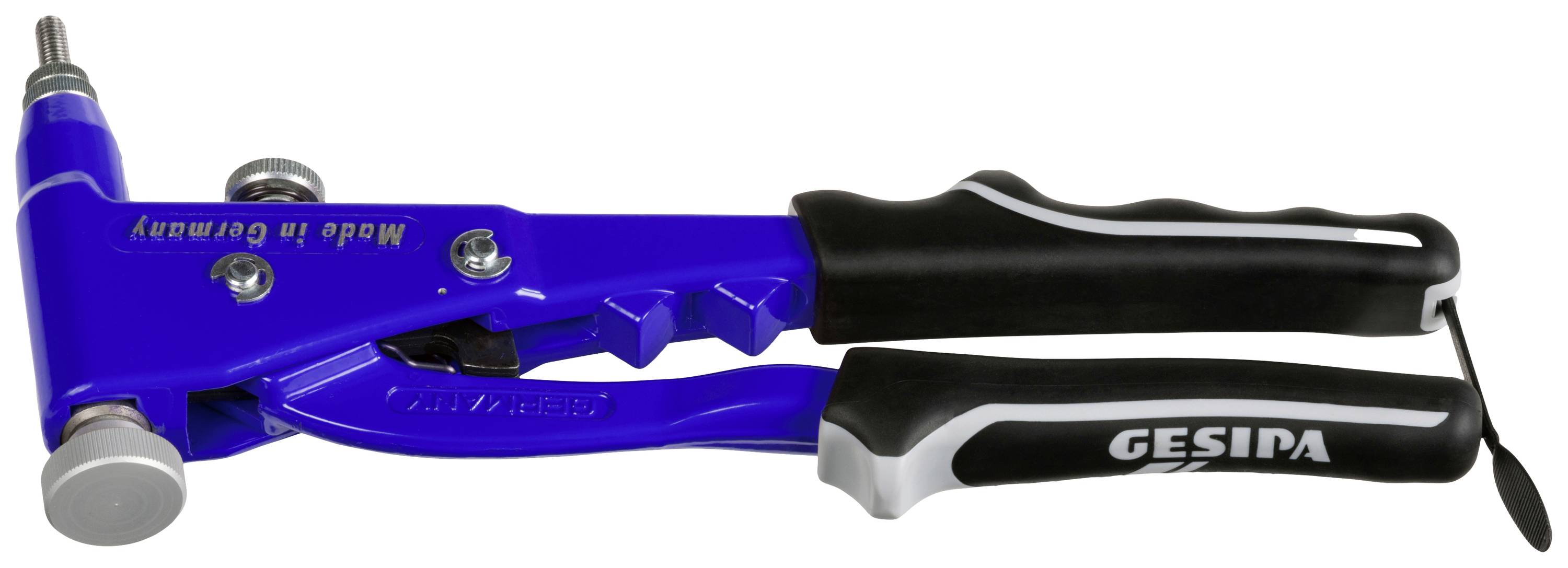

GBM 10 – Manual blind rivet nut setting device
Hand blind rivet nuts setting device with simple height setting
Working range
Sets blind rivet nuts from M3* to M6 aluminum and up to M5 steel, brass and stainless steel.
Technical data
Weight: 600 g
Total length: 260 mm.
Setting stroke 7 mm
equipment
Standard: Threaded pin and mouthpiece (optionally from M4 - M6)
Maintenance instructions and spare parts list
Stroke chart
Design features
- Simple lifting adjustment by knurled nut with stroke scale for safe and complete setting of blind rivet nut
- Threaded pin lock by spring ring for quick change of threaded punches without tools
- With opening spring for easy handling
- Pliers housing made of high-quality die-cast aluminum
- Forged chromium-vanadium steel pliers shaft
- Steel inserts at all high-stress bearing points
- Ergonomic cuffs
This text is machine translated.
Hand blind rivet nuts setting device with simple height setting
Working range
Sets blind rivet nuts from M3* to M6 aluminum and up to M5 steel, brass and stainless steel.
Technical data
Weight: 600 g
Total length: 260 mm.
Setting stroke 7 mm
equipment
Standard: Threaded pin and mouthpiece (optionally from M4 - M6)
Maintenance instructions and spare parts list
Stroke chart
Design features
- Simple lifting adjustment by knurled nut with stroke scale for safe and complete setting of blind rivet nut
- Threaded pin lock by spring ring for quick change of threaded punches without tools
- With opening spring for easy handling
- Pliers housing made of high-quality die-cast aluminum
- Forged chromium-vanadium steel pliers shaft
- Steel inserts at all high-stress bearing points
- Ergonomic cuffs
This text is machine translated.
Scope of delivery
- GBM 10, threaded pin and mouthpiece M5, maintenance instructions with spare parts list, lifting table, supplied in a carton
