Gesipa 1658767 Blind rivet nut M6 Steel (galvanized) Steel (galvanized) Steel (galvanized) LIGHT WEIGHT 250 pc(s)
EAN:
Part number:
Item no:
Product type
Blind rivet nut
Length
10.5 mm
Material (spike)
Steel (galvanized)
Material (sleeve)
Steel (galvanized)
Thread size
M6
Number (Package size 250 pc(s))
Total (€ 0.14 / piece)
€ 36.13
plus VAT.
14-day return policy included
Technical specifications
- Product type
Blind rivet nut
- Length
10.5 mm
- Content
250 pc(s)
- Material (spike)
Steel (galvanized)
- Material (sleeve)
Steel (galvanized)
- Thread size
M6
- Material
Steel (galvanized)
- Max. clamping range
3.5 mm
- Min. clamping range
0.5 mm
- Thread length
3 mm
- Thread tensile strength
18000 N
- Clamping range
0.5 - 3.5 mm
- Head Ø
10.1
- Hole diameter
9.1 mm
- Rivet mandrel diameter
2.63 mm
- Shaft length
10.5
- Shank Ø
9 mm
- Head shape
Small head
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2911150 Gesipa 1658767 Blind rivet nut M6 Steel (galvanized) Steel (galvanized) Steel (galvanized) LIGHT WEIGHT 250 pc(s)
Description

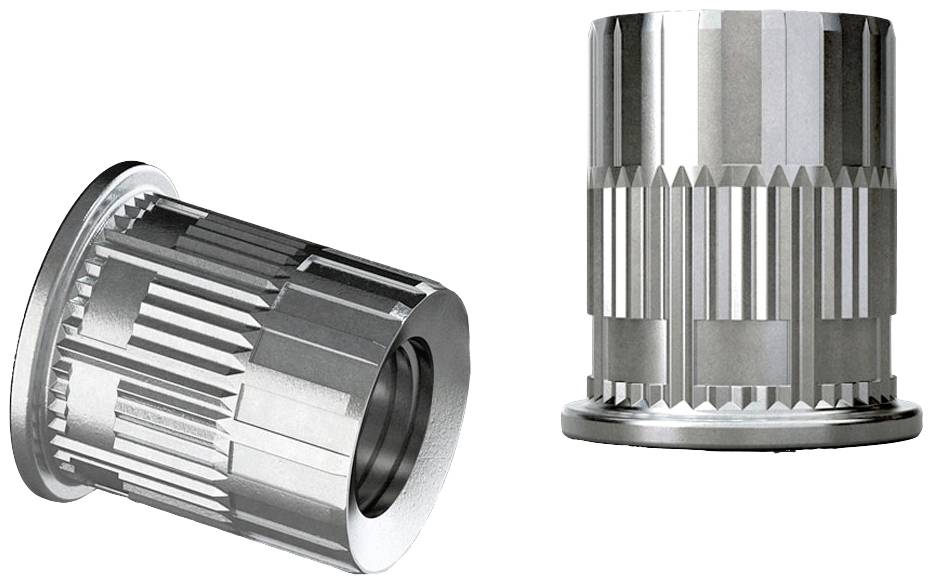

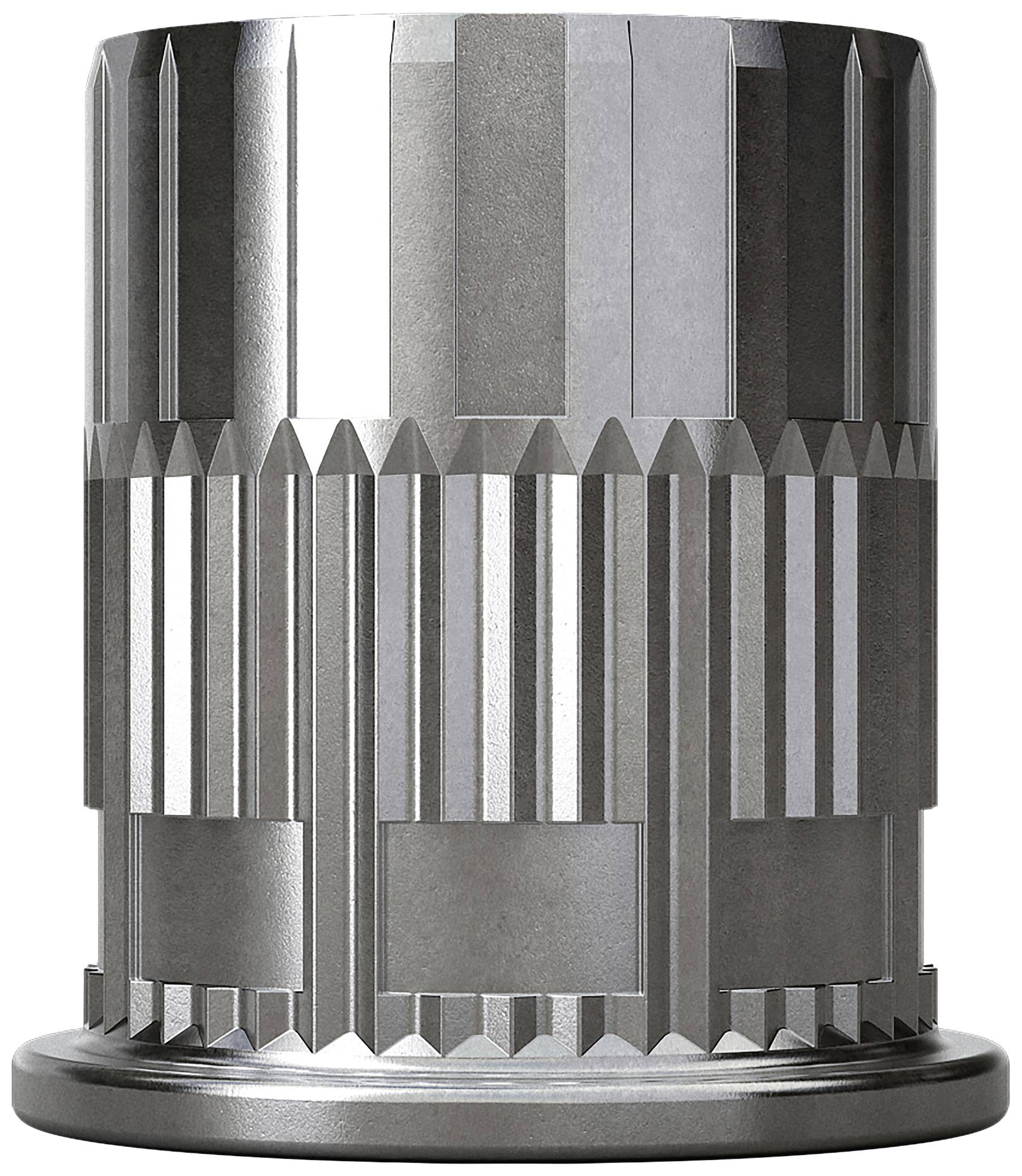

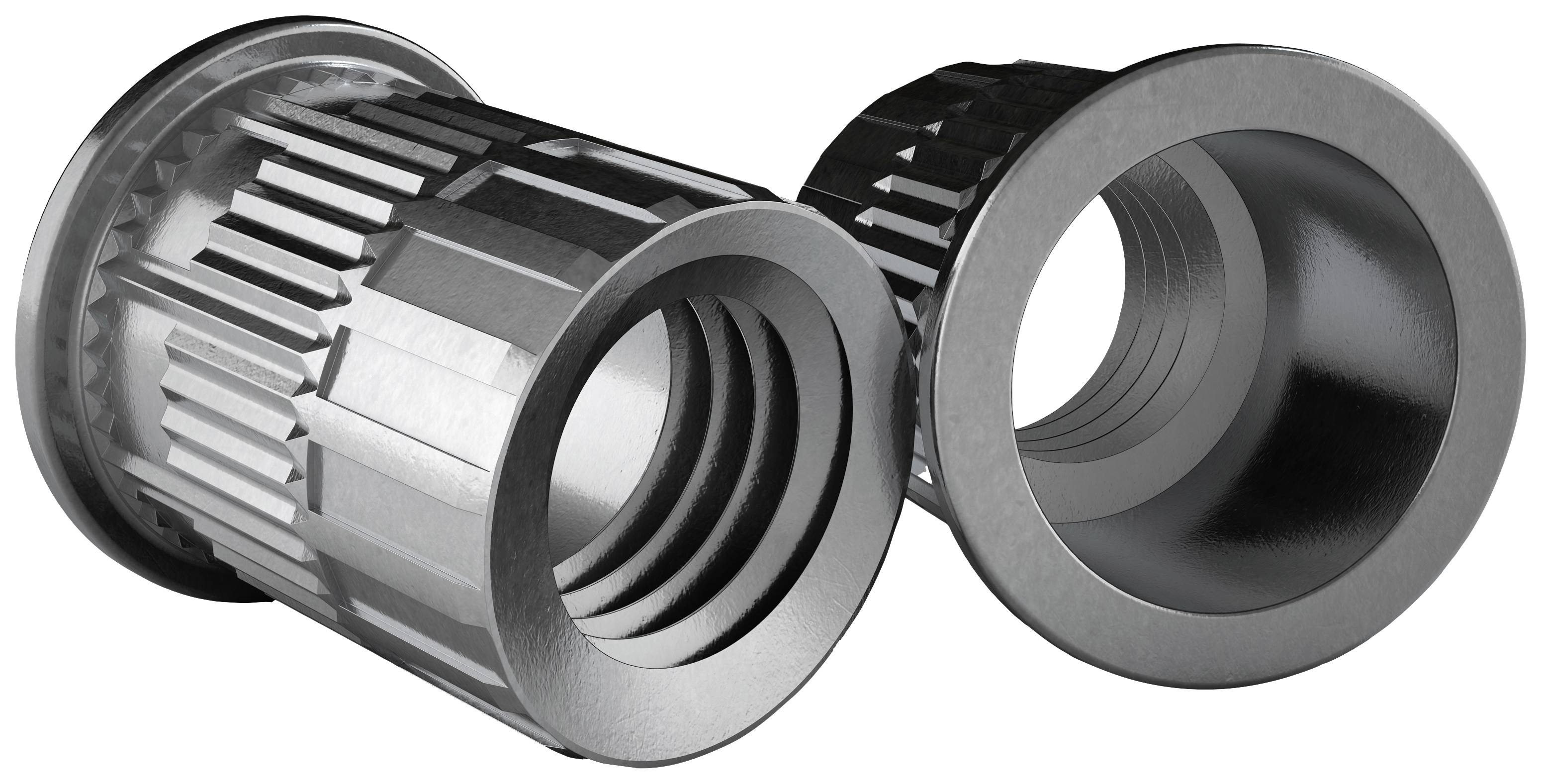

The Light Weight blind rivet nut
(Protected by the U.S. pat. 10,648,500)
Follows industry specifications for weight reduction and resource conservation, which are particularly in the automotive sector.
With advantages of up to 50% less weight, small space requirement on the closing head side and a larger clamping range than standard nuts,
They also offer the same to better strength characteristics as conventional blind rivet nuts.
The Light Weight blind rivet nuts are especially advantageous when there is only one-sided access to the application.
Process monitoring and control is possible for the setting process.
