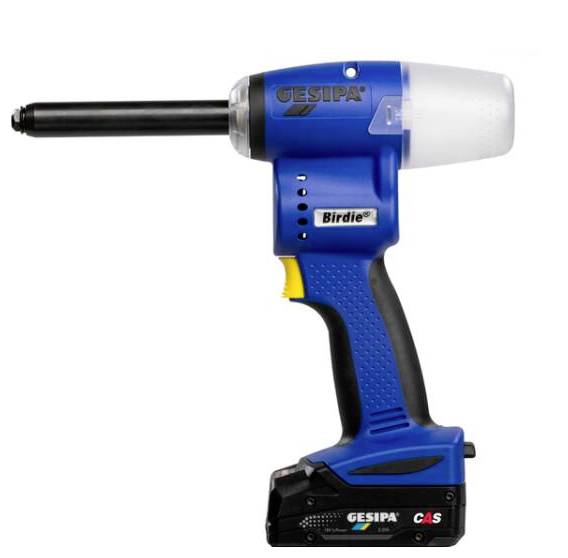

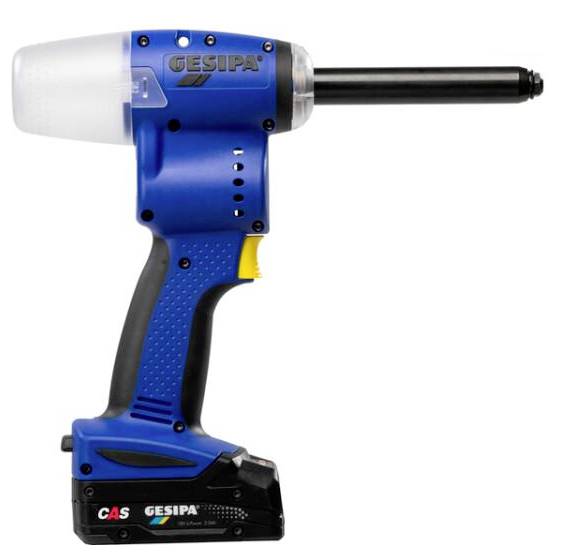

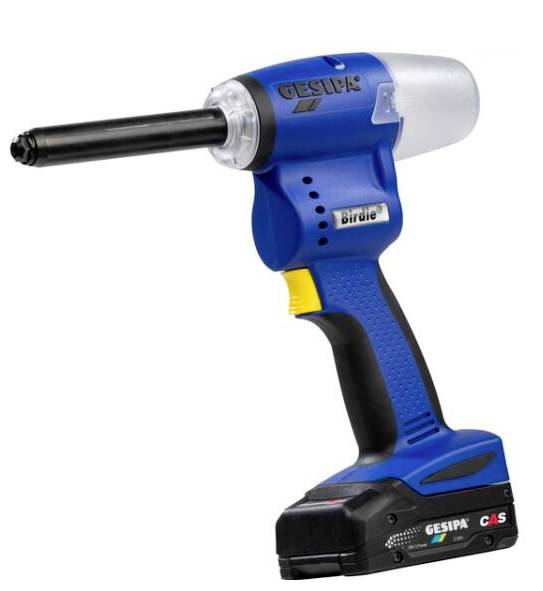

Gesipa 1830753 Rivet gun 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 1,069.00 / piece)
€ 1,069.00
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Birdie with extended set sleeve 1x battery 2.0 Ah and 1x charger in L-Boxx
- Small and light
- Tool-free mouthpiece change
- Coloured mouthpieces
- Tried and tested: Energy-saving
- Ergonomic working thanks to the optimum center of gravity
- Fault and battery status indicator
- BLDC-Motor: Almost wear-free
- State-of-the-art battery technology with the Cordless Alliance system
Technical specifications
- Battery power 2.00 Ah
- Battery voltage: 18 V
- Brushless motor drive (BLDC)
- Max. Working range in steel 5.00 mm
- Battery operating mode
- Equipment travel 25 mm
- Weight of carcass 0.90 kg
- Set force 10,000 N
- Max. Mandrel diameter 3.50 mm
- Description of the working range of blind rivet up to Ø 5 mm of all materials, aluminum up to 6 mm (max. Mandrel Ø 3.5 mm)
- Product type
Rivet gun
- Rivet diameter (max.)
6 mm
- Weight
1.49 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3411714 Gesipa 1830753 Rivet gun 1 pc(s)
User & Safety Instructions 3411714 Gesipa 1830753 Rivet gun 1 pc(s)
Description
BIRDIE Our new member of the CAS family.
It is small, it is light, it is fast!
And that's not all. With the new birdie GESIPA has the smallest and lightest
Battery-operated rivet device of its performance class developed.
In addition, the ergonomic design has a balanced center of gravity as well as an slip-proof, handy grip.
Fatigue-free working is pre-programmed here!
The rivet unit covers a large working area: The birdie processes with a setting force of 10,000 N and a device stroke of 25 mm,
Blind rivets up to a diameter of 5 mm of all materials.
Like the Bird Pro series, the Birdie works with the proven batteries of the manufacturer-independent CAS-platform.
The birdie is not only convincing due to its size and weight, but also equipped with the latest and most innovative technology.
The blind rivet offers flexibility while working as well as unique advantages.
The benefits of BIRDIE at a glance
Light weight: With a battery of only 900 g, the Birdie is the smallest and lightest battery in its class and guarantees fatigue-free working
Large working range: 10 kN setting force and 25 mm device stroke, also suitable for extra long rivets
Ergonomic design: Small and handy
Tool-free - fast change: Extremely simple and fast changing of the mouthpiece and maintenance of the feed jaws
Coloured mouthpieces: Coloured pieces make it easier to allocate the blind rivet
Tried and tested: Energy-saving through a shorter setting cycle
Latest rechargeable battery technology: Cordless Alliance System – 100% compatible
Almost wear-free: By BLDC-Motor
The transparent collecting tray enables the constant control of the remaining riveter level
The work light with exact position ensures a safe setting with all lighting conditions.
Working range: Blind rivets up to Ø 5 mm of all materials, aluminum up to Ø 6 mm (max. Mandrel Ø 3.5 mm)
Technical data
Weight without rechargeable battery 900 g
Weight incl. rechargeable battery 1.3 kg (rechargeable battery 2.0 Ah)
Device travel 25 mm
Setting force 10,000 N
Drive: DC motor (BLDC)
This text is machine translated.
Scope of delivery
- Birdie with extended set sleeve
- 1x 18V Li-Power 2.0 Ah CAS battery
- 1x charger for CAS batteries
- Mouthpieces 17/24 (blue), 17/27 (green), 17/29 (yellow), 17/32 (red)
- Operating instructions
- Delivery in L-Boxx
