Name: Gigabyte Barebone GA-APC002 Intel® Core™ i5 14600K 5.30 GHz Intel UHD graphics 770 GA-APC002
Brand: Gigabyte
SKU: 3338143
Availability: SoldOut

Highlights & Details

Gigabyte GA-APC002 Barebone

Intel® Core™ i5 14600K 14th Gen (Raptor Lake) 14 core(s) / max. 5.30 GHz
RAM: 0 GB DDR5 RAM
Intel UHD graphics 770
w/o OS

Technical specifications

Mainboard Gigabyte, Z790-UD
Onboard connections:
1 x 24 pin ATX main power connector
2 x 8-pin ATX 12V power connections
1 x CPU fan connection
1 x CPU fan connector for water cooling
3 x system fan connections
1 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB-LED strip header
3 x M.2-Socket-3-Connections
6 x SATA 6Gb/s connections
1 x front panel header
1 x front panel audio header
1 x S/PDIF output port
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 connections
2 x USB 2.0/1.1 header
1 x serial connection strip
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Reset button
1 x Q-FLASH PLUS-button
1 x Reset-Jumper
1 x clear CMOS jumper

Product type: Barebone

Model: GA-APC002

based on the following CTO model: GA-APC002

CPU series: Intel® Core™ i5

CPU: Intel® Core™ i5-14600K (24 MB cache, up to 5.30 GHz)

Processor/type: 14600K

Processor generation: 14th Gen (Raptor Lake)

Processor cores (No.): 14 x

CPU speed: 3.50 GHz

CPU turbo clock speed (max.): 5.30 GHz

No. of processor E cores: 8

No. of processor P cores: 6

CPU efficiency core base clock speed: 2.6 GHz

CPU efficiency core boost clock: 4 GHz

CPU performance core base clock speed: 3.5 GHz

CPU performance core boost clock: 5.3 GHz

CPU cache: 24 MB

: 0 GB

RAM type: DDR5 RAM

No. of memory slots: 4

RAM / Max. upgrade: 256 GB

Onboard graphics card: Yes

Onboard graphics card (GPU manufacturer): Intel

Onboard graphics card (version): UHD graphics 770

Dedicated graphics card: No

SSD size (total): 0 GB

SSD: 0 GB

SSD connection: M.2 PCIe NVMe 4.0 x4

SSD 2: 0 GB

SSD 2 port: M.2 PCIe NVMe 4.0 x4

HDD capacity (total): 0 GB

Hard drive: 0 GB

Drive: w/o hard drive

Keyboard layout: Keyboard not included

No. of DisplayPort: 1 x

No. of Gigabit LANs: 1 x

No. of HDMI ports: 1 x

No. of serial ports: 1 x

No. of Thunderbolt IFs: 2 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 4 x

No of. USB type A 3.1 /3.2 2nd gen: 1 x

No. of USB 3.0 ports: 2 x

No. of USB type A 3.0 ports: 2 x

Interfaces: Audio 7.1 (3.5 mm jack)

Factory colour: Black

Width: 220 mm

Height: 486 mm

Depth: 473 mm

Weight: 8300 g

PSU power: 850 W

Features: Housing with window

Operating system (Version): w/o OS

Documents & Downloads

Datasheet

Datasheet 3338143 Gigabyte Barebone GA-APC002 Intel® Core™ i5 14600K 5.30 GHz Intel UHD graphics 770 GA-APC002

User & Safety Instructions

User & Safety Instructions 3338143 Gigabyte Barebone GA-APC002 Intel® Core™ i5 14600K 5.30 GHz Intel UHD graphics 770 GA-APC002

Description

This Gigabyte PC-Barebone system is your ideal basis for a powerful work or gaming PC.

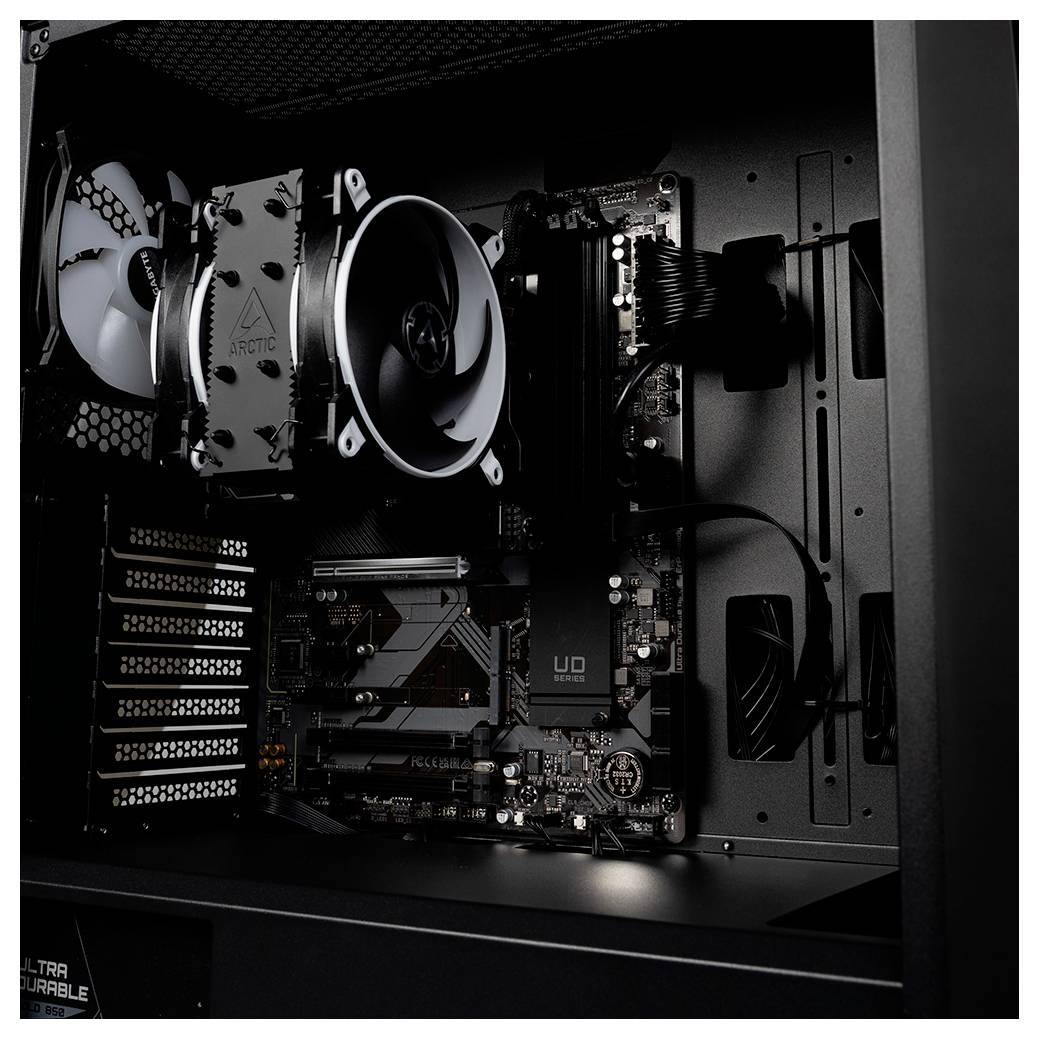

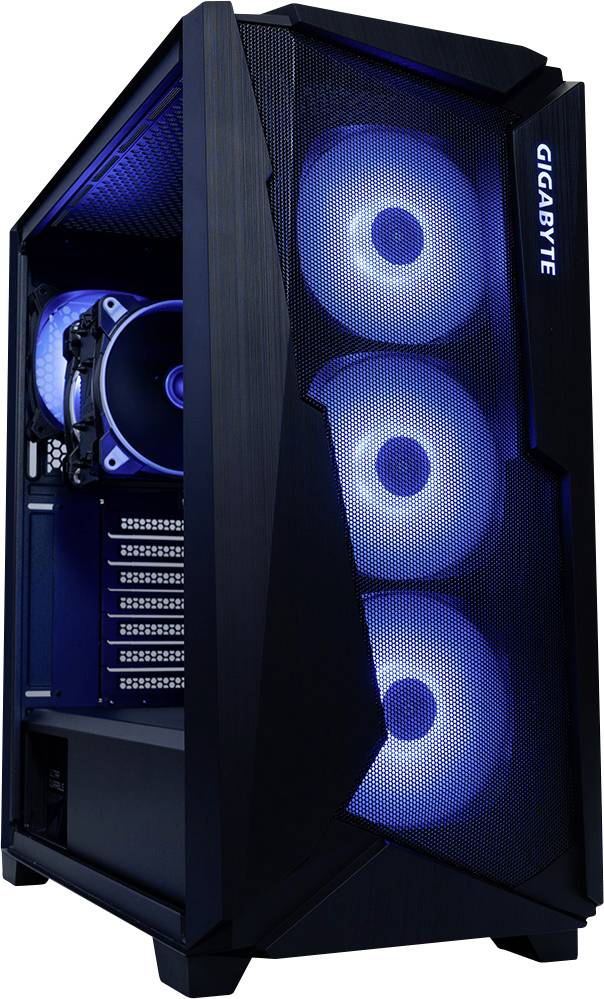

In the noble C301-Glass Design Tower, the high-performance and luxuriously equipped GA-Z790-UD motherboard is completely mounted and wired.
The clock is a Intel i5-14600K CPU, which is clocked at up to 14x 5.3GHz and is easily supplied by the 850 watt power supply.

There are hardly any limits with the completion of the Barebone. You can integrate up to 256GB DDR5 RAM and powerful graphics cards.
The power supply is designed for this purpose.

Furthermore, up to 6 SATA hard disks and 4 M.2 SSD can be installed.

This text is machine translated.

Scope of delivery

Barebone
Power Cables

Hints

HDMI® is a registered trademark of HDMI Licensing LLC

Image may differ from actual product.
