Buy Gigahertz Solutions MK20 HF EM radiation tester

Measurement equipment for capturing electromagnetic fields, including transport case and accessories, set up against a white background.

'Gigahertz Solutions' Measuring Device Set with Black Carry Case. Includes two digital readers and an antenna. Manufactured in Germany.

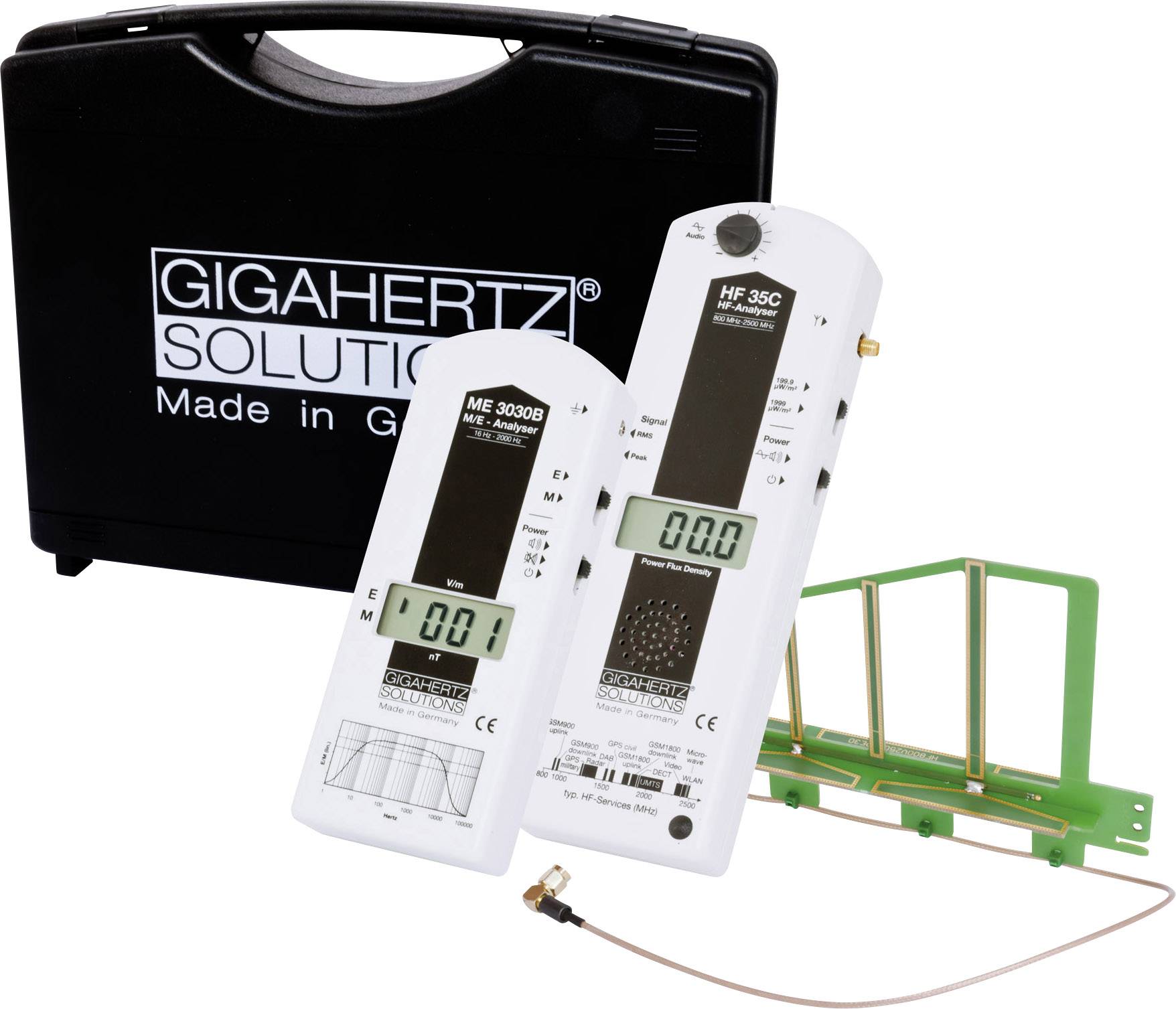

Suitcase labelled 'Gigahertz Solutions', containing two measuring devices and a green antenna for measuring electromagnetic fields.

Portable HF and LF Analysis Device Set with Two Measuring Instruments and Antenna, for Measuring Electromagnetic Fields.

Digital measurement device set by Gigahertz Solutions with two digital metres and accessories. Suitable for measuring electromagnetic fields.

Two radio measuring devices and a green antenna in front of a black case with the inscription 'GigaHertz Solutions Made in Germany'.

1/6

Fast track dispatch on Fri, 11 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 693.28 / piece)

€ 693.28

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Electromagnetic measurement case MK20

Trustable measurement technology for at home use

Technical specifications

Product type: HF EM radiation tester

Display: LCD

Frequency range: 16 Hz - 100 kHz
800 MHz - 2.5 GHz

Reading type: Radiant flux

Power flux density reading range: 1999 µW/m² (max)

Magnetic flux density reading range: 1 - 1999 nT

: Manufacturer's standards (no certificate)

Signal output: -

Power supply (details): 9 V block alkaline battery

Length: 33 cm

Width: 27.5 cm

Height: 8.2 cm

Weight: 1.24 kg

Dim: (L x W x H) 33 x 27.5 x 8.2 cm

Max. frequency: 100 kHz
2.5 GHz

Min. frequency: 16 Hz
800 MHz

AC field reading range (max.): 1999 V/m

AC field reading range (min.): 1 V/m

Power flux density reading range (max.): 1999 µW/m²

Magnetic flux density reading range (max.): 1999 nT

Magnetic flux density reading range (min.): 1 nT

Display (details): 3.5 digit liquid crystal display, audible signal proportional to field strength (like a Geiger counter)

Frequency response: 5 Hz - 100 kHz, 2dB (in accordance with the standard of the ecological measuring technique) · 800 - 2500 MHz (2.5 GHz) includes the pulsed GSM mobile radio of D1, D2 and E-Plus, UMTS, DECT, WLAN (Bluetooth) airport radar (as far as in the frequency range), microwave oven

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 100591 Gigahertz Solutions MK20 HF EM radiation tester

Conformity certificate

Conformity certificate 100591 Gigahertz Solutions MK20 HF EM radiation tester

Description

Ideal combination for the private sector: High-quality measuring technique with full SBM frequency response (NF) and helpful audio analysis (HF), nevertheless simply to serve with layman-understandable measuring guidance and valuable tips for the reduction of the load.

Features

Measured value display for all field types directly in the units used for environmentally sound construction
Geiger counter effect for fast detection of local Maxima in the HF and LF range
Built-in sensors for electrical and magnetic alternating fields of low frequency
Electric fields can policy-compliant-" against ground potential" or potential-free can be measured
True Logarithmic periodic antenna for reproducible, reliable high-frequency measurements
Advantage to MK 10: HF: audio analysis for the identification of the polluter-pays, measuring range by a factor of 10 sensitive-NF: frequency response in accordance with the SBM
Robust plastic case.
Detailed operating instructions for the individual devices.

Scope of delivery

RF Analyzer HF35C, Order No. 10 06 19
NF-Meter ME3830B, Order No. 10 03 02 materials
Plastic Cases
Manuals.

Hints

More information can be found in the individual devices.
