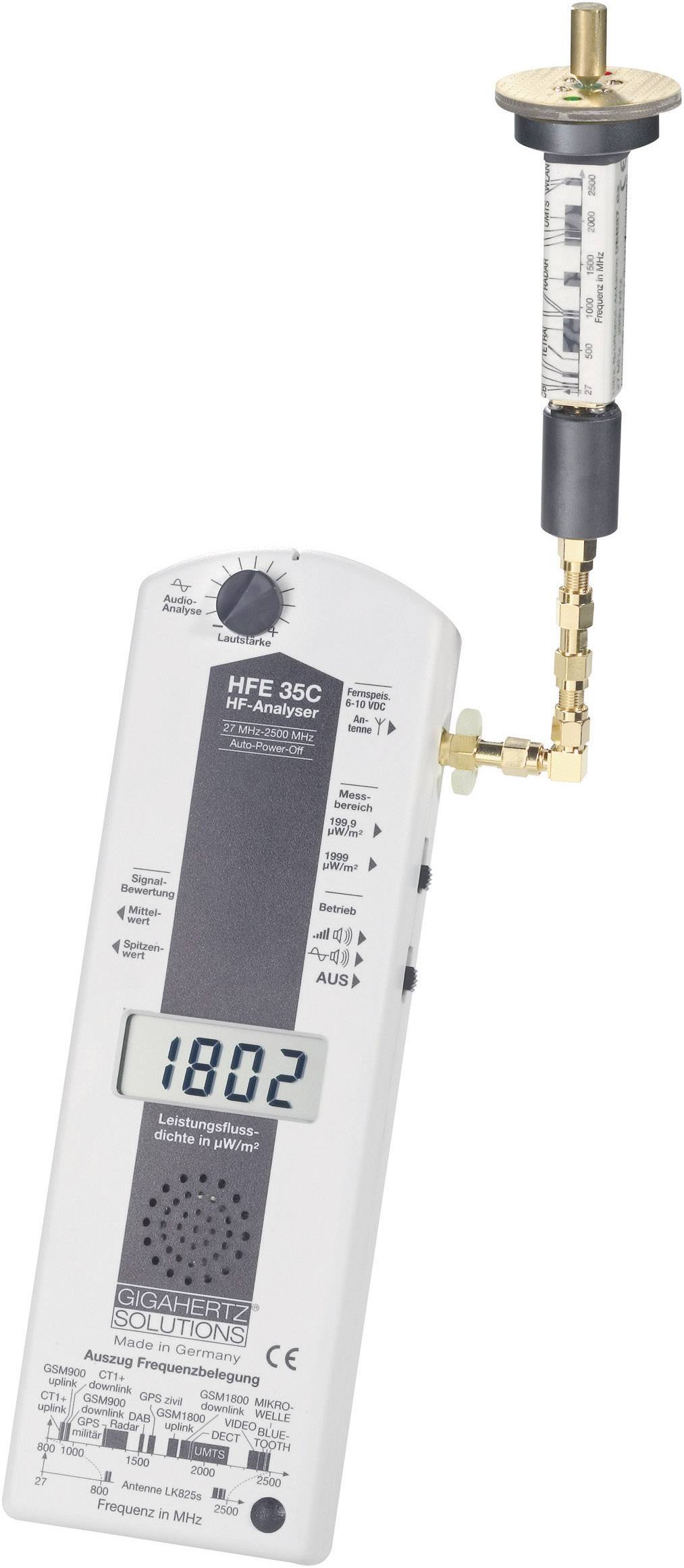

Gigahertz Solutions HFE 35C HF EM radiation tester
EAN:
Part number:
Item no:
Number
Total (€ 827.73 / piece)
€ 827.73
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Ultrawide band HF analyzer HFE35C
- 27MHz - 3.3GHz
- Extra wide frequency response.
- Also for TV, Radio, TETRA, CB radio
Technical specifications
- Display: 3.5 digit LCD, acoustical analysis function
- Power flux density accuracy: ±6 dB
- Abmessnungen (antenna): 230 x 30 120 mm
- Product type
HF EM radiation tester
- Display
LCD
- Frequency range
27 MHz - 2.7 GHz
- Reading type
Radiant flux
- Power flux density reading range
0.1 - 1999 µW/m²
Manufacturer's standards (no certificate)
- Signal output
-
- Power supply (details)
9 V battery pack
- Length
32 mm
- Width
74 mm
- Height
225 mm
- Weight
490 g
- Dim
(L x W x H) 32 x 74 x 225 mm
- Max. frequency
2.7 GHz
- Min. frequency
27 MHz
- Power flux density reading range (max.)
1999 µW/m²
- Power flux density reading range (min.)
0.1 µW/m²
- Display (details)
3.5-digit LCD, acoustical analysis function
- Frequency response
27 MHz - 3.3 GHz (in addition include TV, radio, TETRA, CB radio)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 100639 Gigahertz Solutions HFE 35C HF EM radiation tester
Description
The ultrawide band HF analyzer from Gigahertz Solutions sets a new standard for this product range. Together with the newly-developed isotropic antenna UBB27, this device can take reliable measurements of mobile radio frequencies, WLAN, etc., but also high-frequency radiation up to 27 MHz, which till now has not been included in quantitative analyses. For simple evaluations from 27 MHz to 2.5 GHz. Specifications as for HF35C (Part No.10 06 19-99) but with extended frequency range. Supplied in case with compensated LogPer antenna and UBB27 antenna.
Features
- Measuring range includes GSM-mobile radio, UMTS, LTE, DECT, Bluetooth ®, radar and microwave oven and in addition include TV, Radio, TETRA, CB radio.
Scope of delivery
- Compensated LogPer antenna
- Ultrawide band antenna UBB27
- Case
- Detailed operating instructions.
Hints
Frequency range includes the pulsed GSM cellular radio frequencies of the D1, D2 and E-Plus, UMTS, LTE, DECT, WLAN (Bluetooth) airport radar (where this is in the frequency range), microwave ovens.
