Gigahertz Solutions HFE 59B HF EM radiation tester
EAN:
Part number:
Item no:
Number
Total (€ 3,135.00 / piece)
€ 3,135.00
incl. VAT
14-day return policy included
Highlights & Details

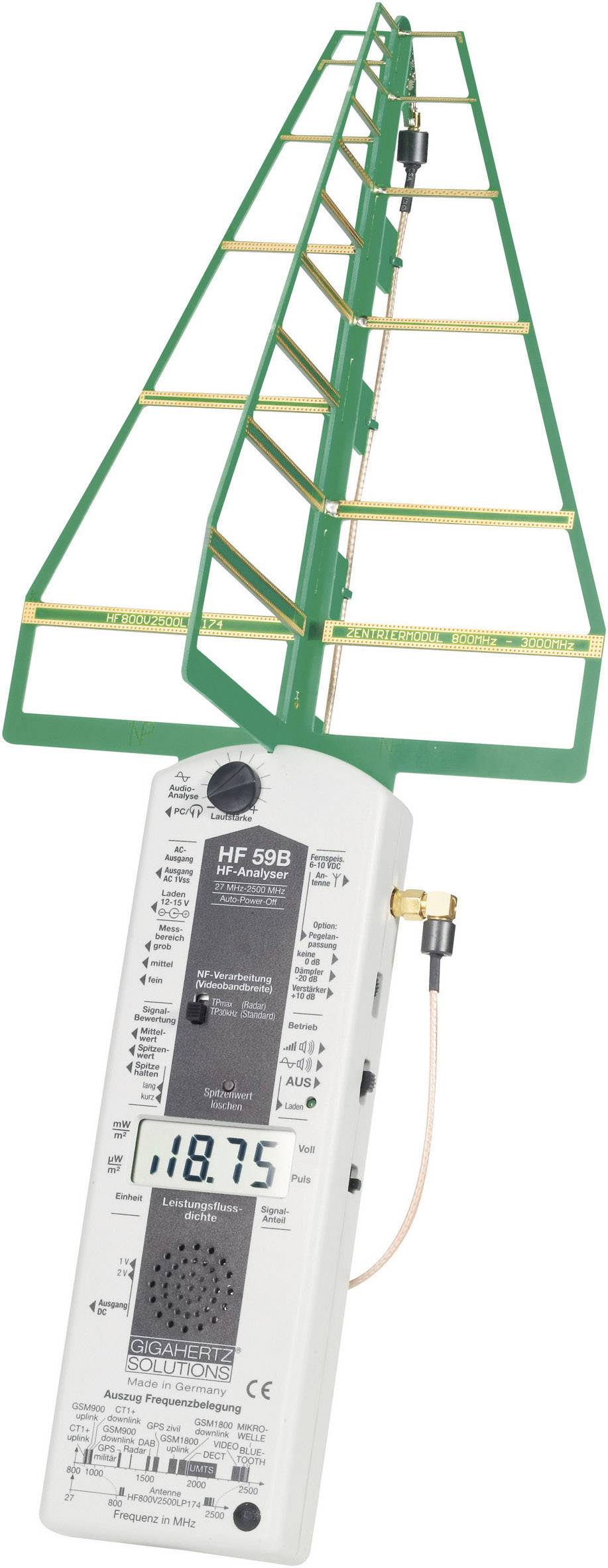

Ultrawide band HF analyzer HFE59B
- Professional Class
- 2 antennas
- 27 - 3300 MHz
- 93 dB dynamic
- UMTS and radar-optimised
Technical specifications
- Frequency range: (In addition, TV, radio, TETRA, CB radio) 27 MHz - 3.3 GHz
- Measuring accuracy power flux density: ± 3 dB
- Display: 3.5 digit LCD, acoustic analysis function
- Dimensions (antenna) 250 x 30 120 mm
- Product type
HF EM radiation tester
- Display
LCD
- Frequency range
27 MHz - 3.3 GHz
- Reading type
Radiant flux
- Power flux density reading range
0.001 - 1999900 µW/m²
Manufacturer's standards (no certificate)
- Signal output
-
- Power supply (details)
9 V battery pack
- Length
32 mm
- Width
74 mm
- Height
225 mm
- Weight
490 g
- Dim
(L x W x H) 32 x 74 x 225 mm
- Max. frequency
3.3 GHz
- Min. frequency
27 MHz
- Power flux density reading range (max.)
1999900 µW/m²
- Power flux density reading range (min.)
0.001 µW/m²
- Display (details)
3.5-digit LCD, acoustical analysis function
- Frequency response
27 MHz - 3.3 GHz (in addition include TV, radio, TETRA, CB radio)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 100640 Gigahertz Solutions HFE 59B HF EM radiation tester
Description
The top of the range HF analyzer from the Gigahertz Solutions range of products. It includes all professional analysis features, plus an extended frequency and measurement range (27 MHz - 3.3 GHz/0.001 -1,999,000 µW/m²) The unbeatable video bandwidth of up to 2 MHz means that this analyzer is ideally suited for critical measurements of UMTS and aviation radar systems. The additional quasi-isotropic ultrawide band antenna, included in the set, is ideally suitable for immission measurements. The device and antennas can be calibrated.
Scope of delivery
- LogPer antenna

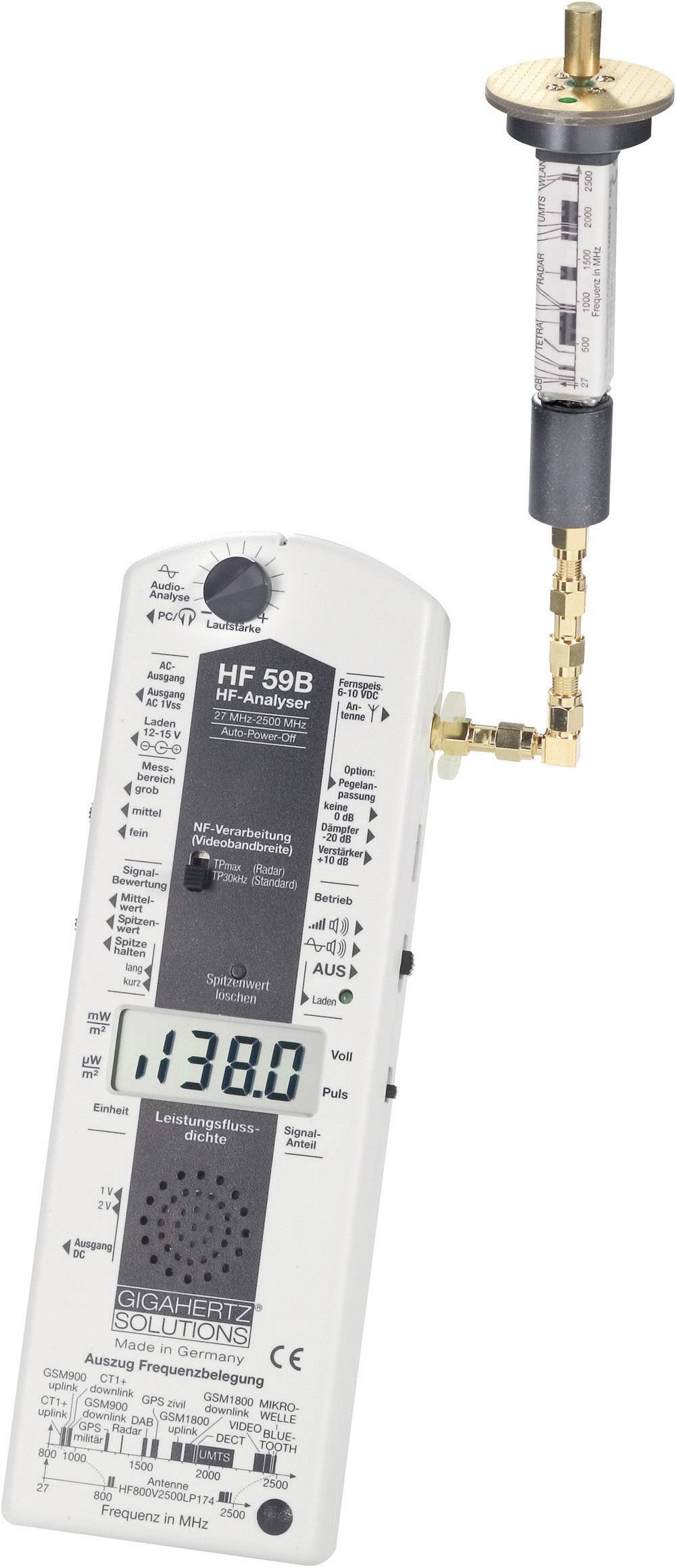

- Isotropic UBB antenna
- External 800 MHz HP filter
- 10 dB amplifier
- 20 dB attenuator
- Case
- 1 NiMH battery pack
- Charger
- Various adapters
- Operating instructions
