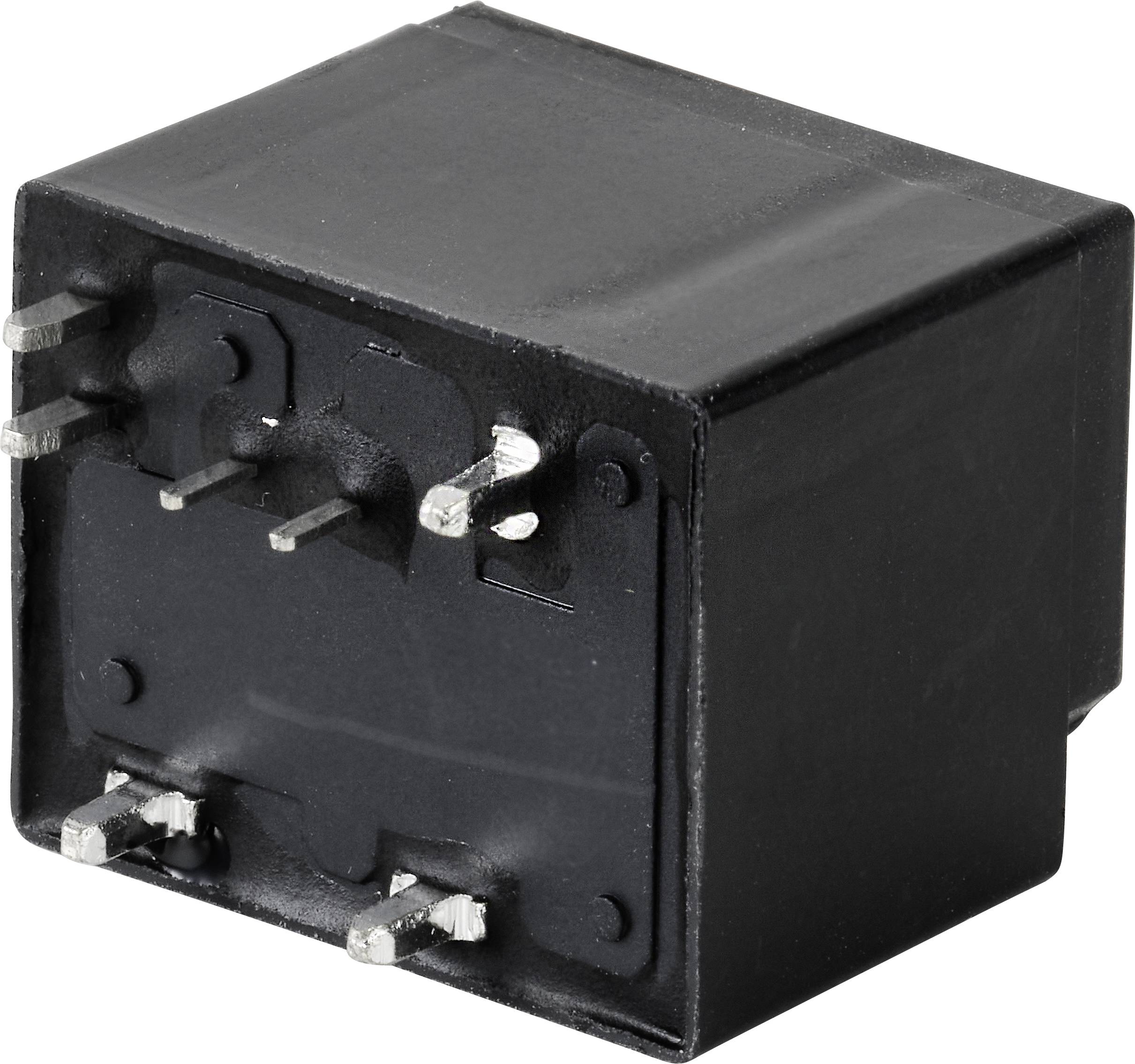

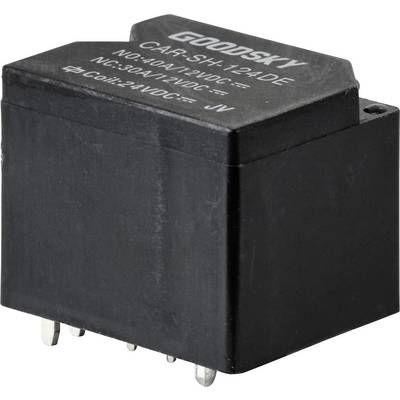

GoodSky CAR-SH-124DE Automotive relay 24 V DC 40 A 1 change-over Tray
EAN:
Part number:
Item no:
Packaging type
Tray
Product type
Automotive relay
Coil nominal voltage
24 V DC
Contact type
1 change-over
Connection
Solder pins
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
25
11% = € 0.31
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
Technical specifications
- SPDT
- Packaging type
Tray
- Product type
Automotive relay
- Type
CAR-SH-124DE
- Features
Washable (RT III)
- Coil nominal voltage
24 V DC
- Min. pick-up voltage
1.2 V DC
- Max. pick-up voltage
16.8 V DC
- Contact type
1 change-over
- Contact material
Ag-alloy
- Connection
Solder pins
- Switching voltage (max.)
60 V DC
- Switching current (max.)
40 A
- NO switching current (max.)
40 A
- NC switching current (max.)
30 A
- Max. switching capacity
480 W
- Resistance (coil)
362 Ω
- Durability
1 x 10⁷ switching operations
- Electrical lifespan
1 x 10⁵ cycles
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Width
21.1 mm
- Height
20.5 mm
- Length
26.2 mm
- Dim
(L x W x H) 26.2 x 21.1 x 20.5 mm
Documents & Downloads
Datasheet
Datasheet 2331541 GoodSky CAR-SH-124DE Automotive relay 24 V DC 40 A 1 change-over Tray
User & Safety Instructions
User & Safety Instructions 2331541 GoodSky CAR-SH-124DE Automotive relay 24 V DC 40 A 1 change-over Tray
Description
Hints
Switch current information refers to peak current. Full details free to download from our comprehensive product documents library.
