Name: Gossen Metrawatt Profipaket PRIME AC VDE tester, Electrical tester Calibrated to (DAkkS standards) VDE standard 0100, 01
Brand: Gossen Metrawatt
SKU: 3203908
Availability: BackOrder

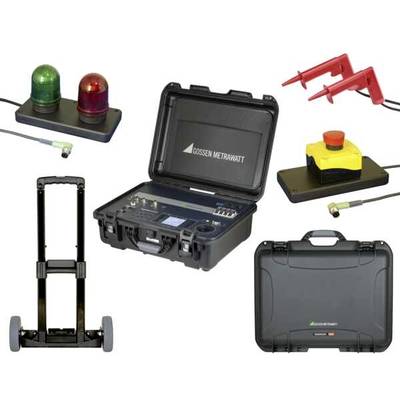

A portable case with measuring instruments by Gossen Metrawatt, traffic light caps, red safety clips, and an emergency button.

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 24 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 8,535.00 / piece)

€ 8,535.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

AC HV testing up to 2.5 kV (optional accessories required)

Product type: VDE tester

: DAkkS standards

Reading category: CAT II 300 V

Interfaces: 1x USB host
1x RS 232

Dim: (L x W x H) 500 x 210 x 410 mm

Weight: 15100 g

Reading range (VDE): Earth fault loop impedance
Frequency
Insulation resistance
PRCD testing (2-pin, 3-pin, PRCDS, PRCDS+, PRCDK)
RCD testing (AC, A, F, B, B+)
RCD testing (AC, A, F, B, B+, EV)
Loop impedance
Earth leakage current
Earth leakage resistance
Voltage
Current
Temperature
Resistance
Show more

DIN standard: DIN EN 50191

Display type: Digital (LCD)

Width: 210 mm

Height: 410 mm

Length: 500 mm

Test procedure: automated
manual

Voltage supply: 230 V/AC
Rechargeable

Memory: Yes

Type: Profipaket PRIME AC

VDE standard: 0100
0100-600
0105
0105-100
0113
0122
0126
0413
0660

Features: incl. case
incl. software
RCD/FI testing
PV testing

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3203908 Gossen Metrawatt Profipaket PRIME AC VDE tester, Electrical tester Calibrated to (DAkkS standards) VDE standard 0100, 01

User & Safety Instructions

User & Safety Instructions 3203908 Gossen Metrawatt Profipaket PRIME AC VDE tester, Electrical tester Calibrated to (DAkkS standards) VDE standard 0100, 01

Description

The PROFITEST PRIME AC makes the investment decision easy for you. The perfectly tailored accessories allow the electrical system to meet the requirements to be tested according to DIN VDE 0100-600, machinery and equipment to VDE 0113-1, low-voltage switchgear combinations according to VDE 0126-23-600-1, PV systems according to VDE 0660 and E charging stations according to VDE 0122-1 standard.

Innovative and comprehensive operating concept
Quick access to measurement and test functions using rotary switches and softkeys

User-friendly
No complex replugging of measuring lines required, no swapping of measuring lines due to coded plugs

Modern data management
Extensive data management concept together with the user software including customer and measurement value management, test sequences, logging

Unique storage concept
Creation of plant structures – customer, plant, machine, distributor, RCD, IMD, RCM, circuits, earthing, equipotential bonding, Equipment and individual measurement points

PUSH-PRINT function
Transmission of the measured value via Bluetooth / USB after the measurement has been completed

Test sequences
Creation of individual test sequences for a quick and safe inspection of machines and systems

Universal interface
Bidirectional data exchange (USB), connection of barcode scanner as well as temperature and humidity sensor (RS232), Bluetooth/USB: Push-print function

Versatile use
Measuring and testing made easy with comprehensive accessories and integrated battery

Robust housing
Compact and shock-proof measurement case with trolley holder for easy transport

This text is machine translated.

Features

Measurement in AC-/DC-mains
Measurement of the network internal and error loop impedance with Hohem test current up to 690 V AC / 800 V DC without tripping RCD type A and type B.
Low ohm measurement for protection and potential equalizing conductors with 200 mA and automatic polarity reversal and 25 A
RCD TESTING TYPE A, AC, F, B, B+, EV, F-EV, F AUDIO, MI, G/R, SRCDs, PRCDs
E-Mobility: Check RDC-DD and RCMB
Combined RCD-test with constantly increasing ramp, tripping time, tripping current
Insulation measurement up to 1000 V with increasing ramp
Check RCMS and IMDS
Measurement of leakage and differential currents
Measuring of temperature and humidity
VOLTAGE MEASUREMENT 1,000 V AC / DC
High voltage testing 2.5 kV AC, 500 VA, standard process, ramp function and pulse-burning operation
Occupational health and safety test according to DIN EN 50191 and EN 61557-14 with signal lamp, emergency stop switch & key switch
Power and battery operation (with limited functionality)
Bluetooth and USB interface
Push-print function – sends the measured value after the measurement has been completed

Scope of delivery

PROFITEST PRIME AC (M516C)
PRIME case with inside pocket and trolley holder (Z506A)
Trolley for case system (Z506F)
SIGNAL PROFITEST PRIME AC (Z506B)
STOP PROFITEST PRIME AC (Z506D)
2x HV-P high voltage test gun with integrated test trigger (Z506V)
Izytroniq BUS PRO set (S103S)
