Name: Gossen Metrawatt PROFiTEST MF TECH EVSE-Set VDE tester kit, Electrical tester set Calibrated to (DAkkS standards) VDE st
Brand: Gossen Metrawatt
SKU: 2730562
Availability: BackOrder

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 27 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5,139.00 / piece)

€ 5,139.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

EVSE measuring and test set for testing the effectiveness of protective measures on stationary electrical installations, especially for EV charging points.

Context-sensitive color graphic displayMeasurement and test procedure - simple creation of the plant structure / measuring & saving / generating logs Pre-configured and self-programmable test sequences for quick testing of electrical systems Memory concept for up to 50,000 recordsTesting all current all-current sensitive RCDs, RDC-DD, RCMBProtection of the operator by PE detection when used by finger contactFuture-oriented connectivity

Technical specifications

DisplayContext-sensitive color graphic display Soft key buttons Allows you to conveniently select sub-functions And parameters. Unavailable subfunctions and Parameters are automatically hidden.Special measurementsSelective earth resistance RE (mains operation)With 2-pin adapter, probe, earthing and clip-on current sensor(3-pole measurement method)Measurement potential equalizationCurrent measurement with pliers Field directionEarth leakage resistance RE(ISO)Voltage dropLocation isolation ZSTCounter start (kWh test)Testing of E-loading columns andElectric vehicles on E-loading pillars (IEC 61851-1)Inclusive IZYTRONIQ database software for managing equipment, machinery, equipment and medical devices in combination with locations across a double tree structure and for managing auditors, test equipment, catalogs and sequences.

Product type: VDE tester kit

: DAkkS standards

Reading category: CAT III 600 V
CAT IV 600 V

Interfaces: USB

Dim: (L x W x H) 330 cm x 260 mm x 90 mm

Weight: 2.7 kg

: IP40

Reading range (VDE): Loop impedance
RCD testing (AC, A, F, B, B+, EV)
PRCD testing (2-pin, 3-pin, PRCDS, PRCDS+, PRCDK)
Insulation resistance
Earth resistance
Earth fault loop impedance
Earth leakage resistance
Earth leakage current
Voltage
Current
Frequency
Resistance
Show more

DIN standard: DIN VDE 0100
DIN VDE 0105
DIN VDE 0413
DIN EN 61010-1
DIN EN 61557

Display type: Digital

Width: 260 mm

Height: 90 mm

Length: 330 cm

Test procedure: automated
manual

Voltage supply: Rechargeable
Battery

Memory (space): 50000

Memory: Yes

Type: PROFiTEST MF TECH EVSE-Set

VDE standard: 0100
0100-600
0105
0411
0413

Features: incl. case
incl. software
incl. electric vehicle charging station adapter

Documents & Downloads

Datasheet

Datasheet 2730562 Gossen Metrawatt PROFiTEST MF TECH EVSE-Set VDE tester kit, Electrical tester set Calibrated to (DAkkS standards) VDE st

User & Safety Instructions

User & Safety Instructions 2730562 Gossen Metrawatt PROFiTEST MF TECH EVSE-Set VDE tester kit, Electrical tester set Calibrated to (DAkkS standards) VDE st

Description

With the PROFITEST MF TECH EVSE-Set you are best equipped for testing the function and electrical safety of AC charging points.

This text is machine translated.

Features

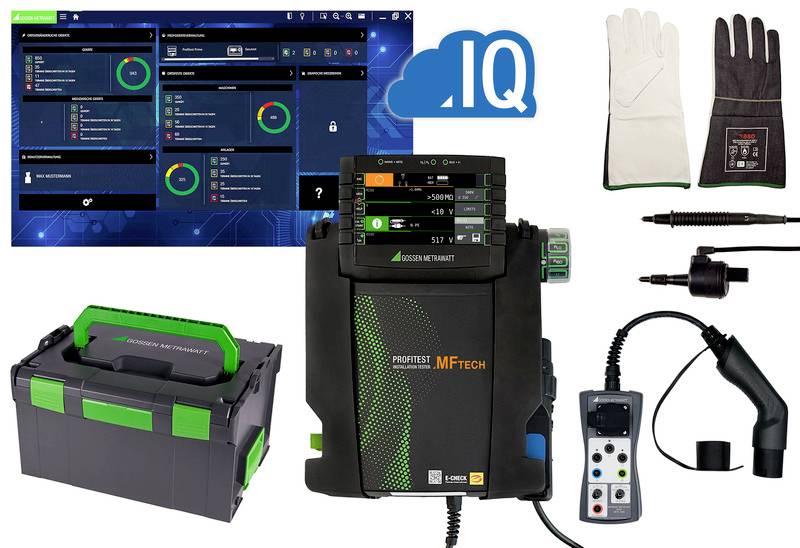

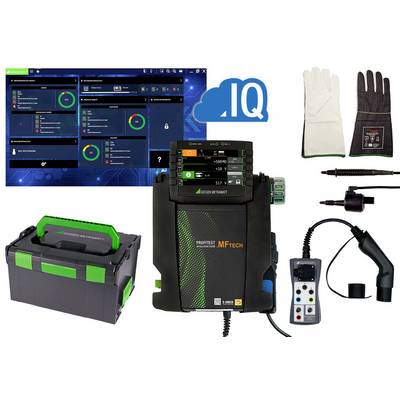

PROFITEST MF TECH Installation testerMETALLINE PRO TYPE EM II - 1/3-phase test adapter for E charging pointsPRO-RLO 20 - Compensated measuring adapter with 20 m cable for PE measurementsProtective gloves - protective gloves with arc protectionSortimo L-BOXX – system case with inner division for PROFITEST and accessoriesIZYTRON BUSINESS PROFESSIONAL - Database software + Cloud voucherDisplayContext-sensitive color graphic display Soft key buttons Allows you to conveniently select sub-functions And parameters. Unavailable subfunctions and Parameters are automatically hidden.Special measurementsSelective earth resistance RE (mains operation)With 2-pin adapter, probe, earthing and clip-on current sensor(3-pole measurement method)Measurement potential equalizationCurrent measurement with pliers Field directionEarth leakage resistance RE(ISO)Voltage dropLocation isolation ZSTCounter start (kWh test)Testing of E-loading columns andElectric vehicles on E-loading pillars (IEC 61851-1)Inclusive IZYTRONIQ database software for managing equipment, machinery, equipment and medical devices in combination with locations across a double tree structure and for managing auditors, test equipment, catalogs and sequences.

Description

With the PROFITEST MF TECH EVSE-Set you are best equipped for testing the function and electrical safety of AC charging points.

This text is machine translated.

Features

PROFITEST MF TECH Installation testerMETALLINE PRO TYPE EM II - 1/3-phase test adapter for E charging pointsPRO-RLO 20 - Compensated measuring adapter with 20 m cable for PE measurementsProtective gloves - protective gloves with arc protectionSortimo L-BOXX – system case with inner division for PROFITEST and accessoriesIZYTRON BUSINESS PROFESSIONAL - Database software + Cloud voucherDisplayContext-sensitive color graphic display Soft key buttons Allows you to conveniently select sub-functions And parameters. Unavailable subfunctions and Parameters are automatically hidden.Special measurementsSelective earth resistance RE (mains operation)With 2-pin adapter, probe, earthing and clip-on current sensor(3-pole measurement method)Measurement potential equalizationCurrent measurement with pliers Field directionEarth leakage resistance RE(ISO)Voltage dropLocation isolation ZSTCounter start (kWh test)Testing of E-loading columns andElectric vehicles on E-loading pillars (IEC 61851-1)Inclusive IZYTRONIQ database software for managing equipment, machinery, equipment and medical devices in combination with locations across a double tree structure and for managing auditors, test equipment, catalogs and sequences.
