Gossen Metrawatt Starterpaket PROFiTEST PRIME VDE tester, Electrical tester Calibrated to (DAkkS standards) VDE standard
EAN:
Part number:
Item no:
Number
Total (€ 5,360.50 / piece)
€ 5,360.50
plus VAT.
Technical specifications
- Product type
VDE tester
DAkkS standards
- Reading category
CAT II 300 V
- Interfaces
1x USB host
1x RS 232
- Dim
(L x W x H) 500 x 210 x 410 mm
- Weight
10150 g
- Reading range (VDE)
Earth fault loop impedance
Frequency
Insulation resistance
PRCD testing (2-pin, 3-pin, PRCDS, PRCDS+, PRCDK)
RCD testing (AC, A, F, B, B+)
RCD testing (AC, A, F, B, B+, EV)
Loop impedance
Earth leakage current
Earth leakage resistance
Voltage
Show more
- Display type
Digital (LCD)
- Width
210 mm
- Height
410 mm
- Length
500 mm
- Test procedure
manual
automated
- Voltage supply
230 V/AC
Rechargeable
- Type
Starterpaket PROFiTEST PRIME
- VDE standard
0100
0100-600
0105
0105-100
0113
0122
0126
0413
0660
- Features
incl. case
incl. software
RCD/FI testing
PV testing
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3209014 Gossen Metrawatt Starterpaket PROFiTEST PRIME VDE tester, Electrical tester Calibrated to (DAkkS standards) VDE standard
Description
The PROFITEST PRIME makes the investment decision easy for you. The perfectly tailor-made accessories can be used to test electrical systems according to DIN VDE 0100-600, machinery and equipment according to VDE 0113-1, PV systems according to VDE 0126-23 and E charging stations according to VDE 0122-1 standard conform.
PROFITEST PRIME – versatile and future-proof
Intuitive operation
Work efficiently
Check in accordance with the standard
Right-handed logging
PROFITEST PRIME - saves time and money
Only one test device for a wide range of applications
All measurements without annoying replugging of the test leads
Exchangeable measuring tips on the measuring leads
Internationally applicable thanks to language selection
PROFITEST PRIME – even in 10 years
Future-proof through firmware updates
Service for the next 10 years
DAkkS certificate with its own calibration center
User support and support for examination questions
PROFITEST PRIME – quick and easy to log
Cascadable future-proof software concept
Modern data management through customer and measurement data management
Creation of plant structures from the plant to the measuring points
Quick and easy to access right-handed protocol as per ZVEH
PROFITEST PRIME - safe measurement and testing
Easy to operate thanks to rotary switch
Pre-defined test sequences for a structured test
Coded plugs provide for error-free tests
Help on site with help function and connection diagrams
Measurement category 600 V CAT III / 300 V CAT IV.
Four-wire measuring technology - no compensation of the measurement leads required
This text is machine translated.
PROFITEST PRIME – versatile and future-proof
Intuitive operation
Work efficiently
Check in accordance with the standard
Right-handed logging
PROFITEST PRIME - saves time and money
Only one test device for a wide range of applications
All measurements without annoying replugging of the test leads
Exchangeable measuring tips on the measuring leads
Internationally applicable thanks to language selection
PROFITEST PRIME – even in 10 years
Future-proof through firmware updates
Service for the next 10 years
DAkkS certificate with its own calibration center
User support and support for examination questions
PROFITEST PRIME – quick and easy to log
Cascadable future-proof software concept
Modern data management through customer and measurement data management
Creation of plant structures from the plant to the measuring points
Quick and easy to access right-handed protocol as per ZVEH
PROFITEST PRIME - safe measurement and testing
Easy to operate thanks to rotary switch
Pre-defined test sequences for a structured test
Coded plugs provide for error-free tests
Help on site with help function and connection diagrams
Measurement category 600 V CAT III / 300 V CAT IV.
Four-wire measuring technology - no compensation of the measurement leads required
This text is machine translated.
Features
- Measurement in AC-/DC-mains
- Measurement of the network internal and error loop impedance with Hohem test current up to 690 V AC / 800 V DC without tripping RCD type A and type B.
- Low ohm measurement for protection and potential equalizing conductors with 200 mA and automatic polarity reversal and 25 A
- RCD TESTING TYPE A, AC, F, B, B+, EV,F-EV,F-audio, mi, G/R, SRCDs, PRCDs
- E-Mobility: Check RDC-DD and RCMB
- Combined RCD-test with constantly increasing ramp, tripping time, tripping current
- Insulation measurement up to 1000 V with increasing ramp
- Check RCMS and IMDS
- Measurement of leakage and differential currents
- Measuring of temperature and humidity
- VOLTAGE MEASUREMENT 1,000 V AC / DC
- Power and battery operation (with limited functionality)
- Bluetooth and USB interface
- Push-print function – sends the measured value after the measurement has been completed
Scope of delivery

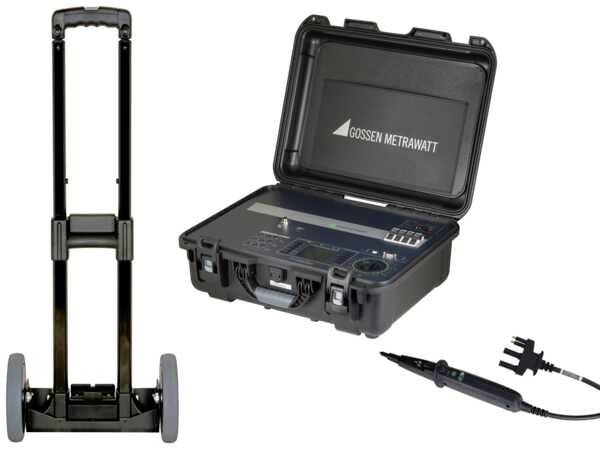

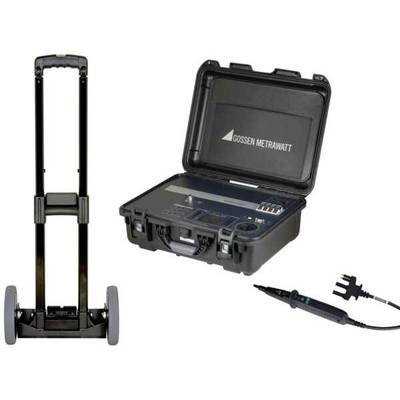

- Starter pack PRIME consisting of: PROFITEST PRIME (M516A); Trolley for case system (Z506F); I-SK4 intelligent probe 4 m (Z516T); Izytroniq BUS ST set
