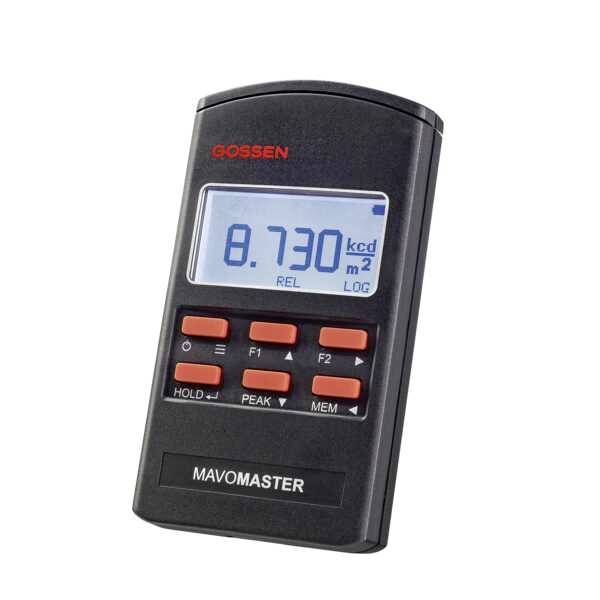

Gossen Photo M525V MAVOMASTER Lux meter
EAN:
Part number:
Item no:
Number
Total (€ 436.13 / piece)
€ 436.13
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Compact measurement and display device for MAVOPROBE
- Raster measurement for the evaluation of work places and interior lighting
- Extensive measurement functions, relative, integral, deviation, ratio measurement
- Acquisition of minimum value, maximum value and average value calculation
- Data logger with adjustable log interval
- Large 4 GB measurement memory, readable via USB, like an external drive on the PC
- Continuous operation via USB with power bank, plug-in power supply or at your PC
- EXCEL macros for logging and data logging
Technical specifications
- Compact measurement and display device for MAVOPROBE
- Dim
(L x W x H) 120 x 65 x 19 mm
- Height
19 mm
- Length
120 mm
- Width
65 mm
Manufacturer's standards (no certificate)
- Display
Digital
LCD
- Interfaces
1x USB 2.0 (device)
- Features
Data logger
- Reading type
Light intensity
- Weight
100 g
- UKCA
not relevant
- Product type
Lux meter
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3025508 Gossen Photo M525V MAVOMASTER Lux meter
Description
The integrated measurement functions evaluate the measurement results and provide evaluation on site with storage possibility in CSV format. They can be assigned to the two function keys F1 and F2 as required and consist of a data logger, a relative measurement, a grid measurement for the evaluation of workplace lighting with calculation of the Emin/EMAX/Eavg/U0/UD values, a ratio measurement B/A to the contrast measurement, a deviation measurement B-A, a deviation measurement %A and an integral measurement to determine the radiation dose. Measured values can be stored in the CSV format in 4 GB memory and be read via the USB interface.
This text is machine translated.
This text is machine translated.
Scope of delivery
- MAVOMASTER
- 1.5V AA alkali-manganese battery (IEC LR 6)

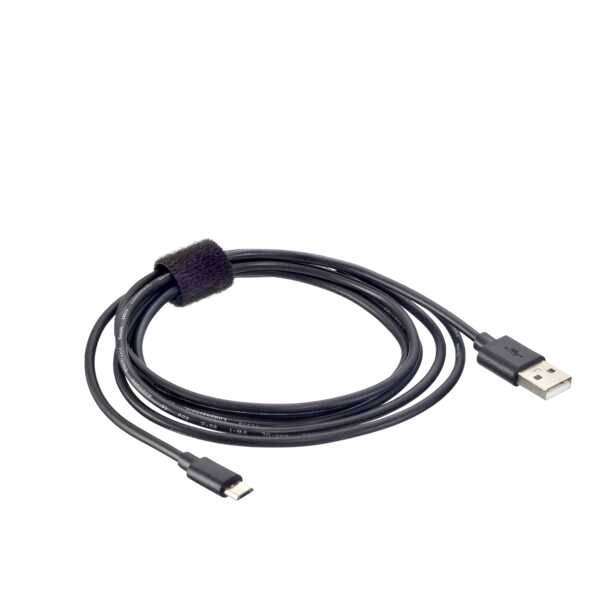

- USB 2.0 cable connector A to Micro B connector, length 1.0 m
- EXCEL evaluation/data logger (download)
- Operating instructions GB/GB
