Greisinger GMH 3161-07 - WPD5 Pressure gauge Air pressure -10 - 350 mbar
EAN:
Part number:
Item no:
Number
Total (€ 441.18 / piece)
€ 441.18
plus VAT.
Only 2 Piece(s) available
Highlights & Details

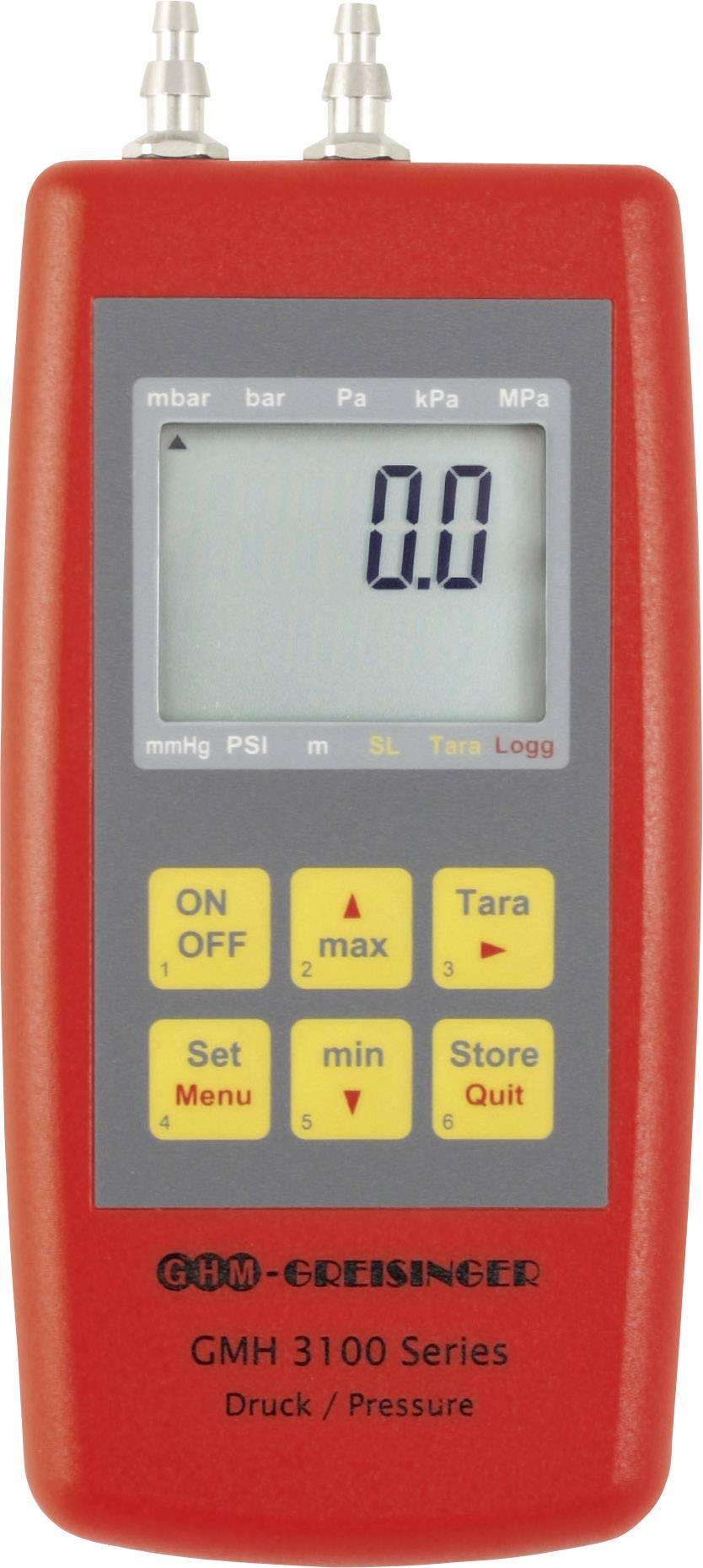

Greisinger pressure gauge with integrated Sensor GMH 3161-07-WPD5
- Integrated pressure sensor
- Sturdy metal connectors
- Tare function/zero adjustment
Technical specifications
- Handheld pressure meter with integrated. Sensor
- Measuring range:-10,0... 350.0 mbar
- Resolution: 0.1 mbar
- Working temperature: -25..+50°C
- Output: Serial Interface
- Power supply: 9 V battery
- Power supply (details)
9 V DC
- Pneumatic connection
2 Universal Pressure socket for plastic hose 6 x 1 mm (4 mm inner diameter) or 8 x 1 mm (6 mm inner diameter)
- Display range
2 x 4.5-digit LCD
- Print resolution
0.1 mbar
- Nominal temperature
25 °C
- Sensor
Internal piezo-resistive differential pressure sensor. Suitable for air and non-aggressive gases.
- Accuracy
0.3 %
- Excess pressure resistance
Mx. 1 bar
- Dim
(L x W x H) 26 x 71 x 142 mm
- Weight
1.115 kg
- Height
142 mm
- Length
26 mm
- Width
71 mm
- Reading range
-10 - 350 mbar
Manufacturer's standards (with certificate)
- Unit of measurement
Air pressure
- Reading range (max.)
350 mbar
- Reading range (min.)
-10 mbar
- Product type
Pressure gauge
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1592133 Greisinger GMH 3161-07 - WPD5 Pressure gauge Air pressure -10 - 350 mbar
Description
Complete Offer Digital Pressure Meter Greisinger GMH 3161, incl. calibration certificate and case
This text is machine translated.
This text is machine translated.
Scope of delivery
- Device, battery, plant calibration certificate, case, Operating Instructions
