Digital pressure measuring device shows '870 Pa' on the display for precision pressure measurement. Two setting buttons at the bottom.

Digital pressure measuring device shows '870 Pa' on the display for precision pressure measurement. Two setting buttons at the bottom.

A hand is holding a small digital measuring device displaying '3.0 m/s' on the screen. The device has several buttons for operation.

A hand is holding a digital manometer displaying '870 Pa'. The device is evidently being used to measure pressure.

Digital measuring device with display reading '870'; two connections at the top. Beside it a black case and two transparent holders.

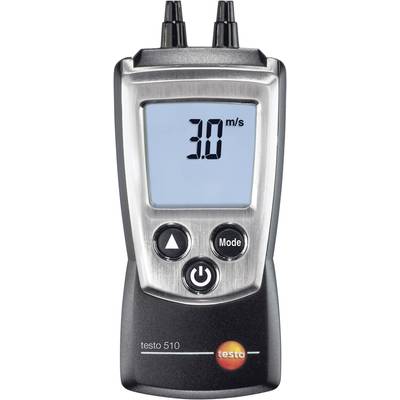

Measuring instrument 'testo 510' for air velocity, displays value '3.0 m/s' on the display. Settings buttons underneath.

1/5

testo

Datasheet (PDF)

Deutsch (Deutschland)

Fast track dispatch on Fri, 17 Jul

119 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 168.06 / piece)

€ 168.06

plus VAT.

Report legal concerns

Highlights & Details

testo 510 Pressure gauge Air pressure 0 - 100 hPa Magnetic rear panel

Display is possible in Pascal over entire measuring range
Temperature compensation
Magnetic back for free-hand working
Air density compensation

Technical specifications

Power supply (details): 2 batteries (AAA)

Pneumatic connection: Nipple

Reading range: 0 - 100 hPa/0 - 40.15 inH2O

Pick-up time (details): 0.5 s

Print resolution: 0.01 hPa

Basic accuracy: ± 0.03 hPa

Nominal temperature: 22 °C

Sensor: Differential pressure sensor

Temp.: 0 - 50 °C

: IP40

Type: Testo 510

Dim: (L x W x H) 119 x 46 x 25 mm

Weight: 90 g

Height: 25 mm

Length: 119 mm

Width: 46 mm

Reading range: 0 - 100 hPa

: Manufacturer's standards (no certificate)

Features: Magnetic rear panel

Unit of measurement: Air pressure

Accuracy: 0.03 hPa

Reading range (max.): 100 hPa

Reading range (min.): 0 hPa

Display (details): LCD

Product type: Pressure gauge

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 101407 testo 510 Pressure gauge Air pressure 0 - 100 hPa Magnetic rear panel

User & Safety Instructions

User & Safety Instructions 101407 testo 510 Pressure gauge Air pressure 0 - 100 hPa Magnetic rear panel

Conformity certificate

European union

Conformity certificate 101407 testo 510 Pressure gauge Air pressure 0 - 100 hPa Magnetic rear panel

Description

The differential pressure meter is ideally suitable for pressure measurements in the range 0 to 100 hPa. testo 510's differential pressure measurement is temperature-compensated for accurate readings. Readings can be displayed in Pascal over the whole measurement range. Magnets at the back of the instrument enable hands-free operation, for instance, while adjusting gas heaters.

Features

Display lighting
Hold Function and Max/Min value
measured variable: Pa, hPa, mbar, mmH2O, mmHg, psi, INH2O, psi, m/s, fpm.

Scope of delivery

Protective cap
Leather-belt pouch
2 batteries
Supporting loop
Calibration protocol
Instructions for use.
