Greisinger GMH 3161-01 Pressure gauge Air pressure, Non-corrosive gas, Corrosive gas -0.001 - 0.025 bar
EAN:
Part number:
Item no:
Number
Total (€ 368.91 / piece)
€
Only 2 Piece(s) available
Highlights & Details

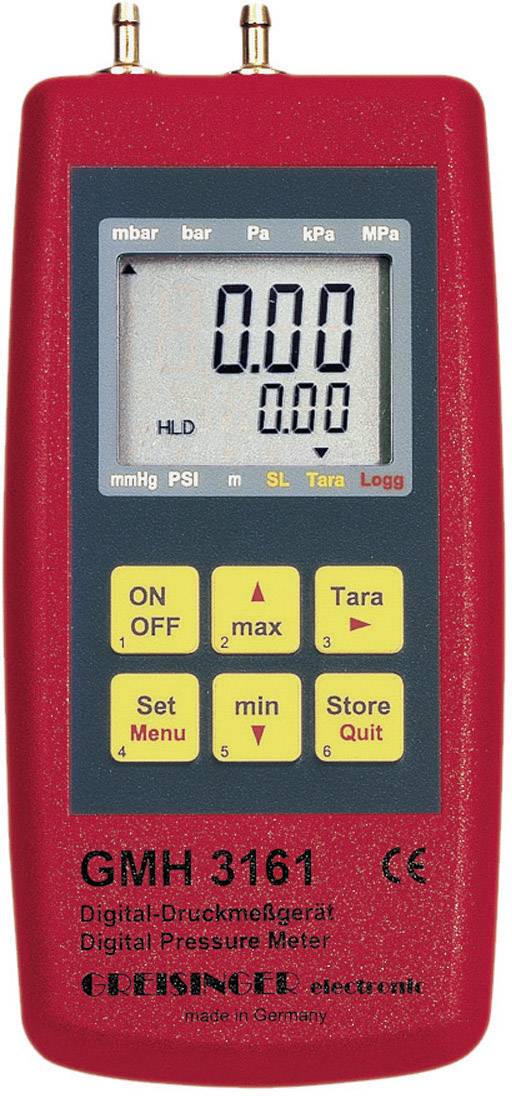

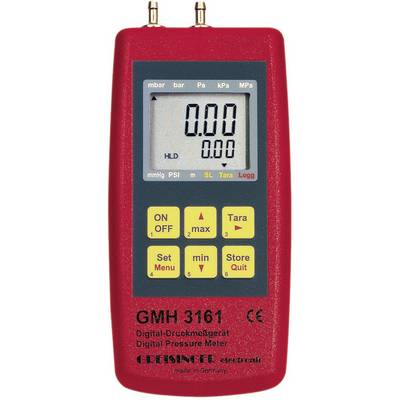

Greisinger GMH 3161-01 Pressure gauge Air pressure, Non-corrosive gas, Corrosive gas -0.001 - 0.025 bar
- Measuring range: -100 to 2500 Pa (-1.00 to 25.00 mbar)
- Relative pressure sensor for over, under or differential pressure
- Suitable for air or non-corrosive or non-ionising gases
Technical specifications
- Power supply (details)
9V battery, d.c. connector
- Power consumption
approx 0.6 mA
- Pneumatic connection
2 solid metal connection pin, nickel-plated brass, for connection of pressure tubes 6x1 mm (4 mm inside diameter)
- Reading range - air pressure
-100 to +2500 Pa or ( ± 2500 Pa)
- Display range
bar, kPa, PSI, mmHg
- Print resolution
0.00001 bar
- Sensor
Piezoresistive pressure sensor, internal
- Temp.
-25 To +50 ° C, 0 to +95% r.h. (non-condensing)
- Excess pressure resistance
100 mbar rel.
IP65
- Dim
(L x W x H) 142 x 71 x 26 mm
- Weight
165 g
- Height
26 mm
- Length
142 mm
- Width
71 mm
- Reading range
-0.001 - 0.025 bar
Manufacturer's standards (no certificate)
- Unit of measurement
Air pressure
Non-corrosive gas
Corrosive gas
- Accuracy
0.3 %
- Reading range (max.)
0.025 bar
- Reading range (min.)
-0.001 bar
- Product type
Pressure gauge
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 125859 Greisinger GMH 3161-01 Pressure gauge Air pressure, Non-corrosive gas, Corrosive gas -0.001 - 0.025 bar
Description
Handy and strong pressure-hand measuring device with built-in relative pressure sensor and 4mm pressure connections.
This text is machine translated.
This text is machine translated.
Features
- Auto-Off, BAT, Min-/Max-Value, Hold, Tare, Scale, Offset
- Mains Adaptor Socket, Serial Interface
- 2 Pressure Connection Ports Ø4mm, Piezoresistive Sensor
Scope of delivery
- Pressure Device with Internal Sensor
- Manual
- Battery
