Buy Senseca ECO 210-3-UT Pressure gauge Pressure 200 hPa (max)

Handheld manometer device with a digital screen displaying '20'. It features two connectors at the top and buttons for navigation.

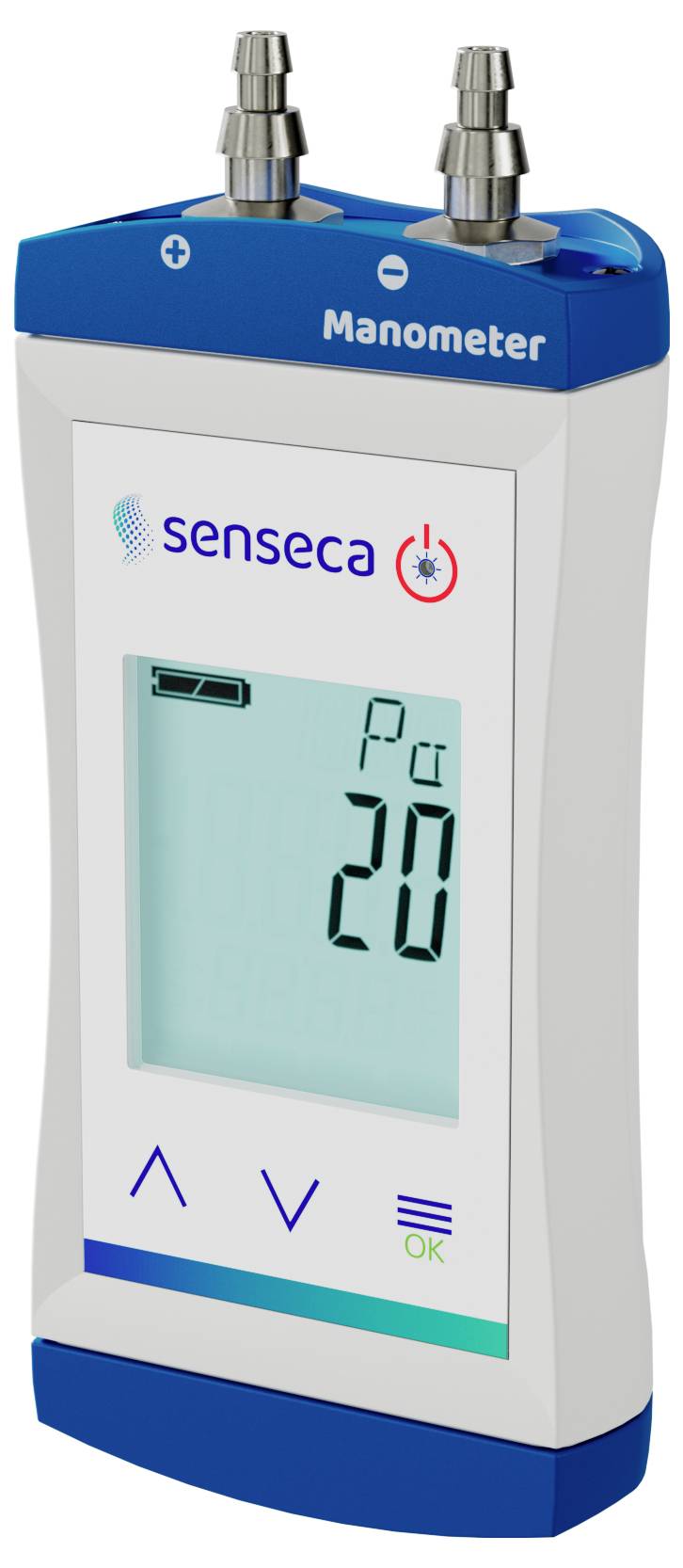

Digital manometer with a display showing '20 Pa'. The device has two nozzles at the top, buttons below the screen, and 'senseca' branding.

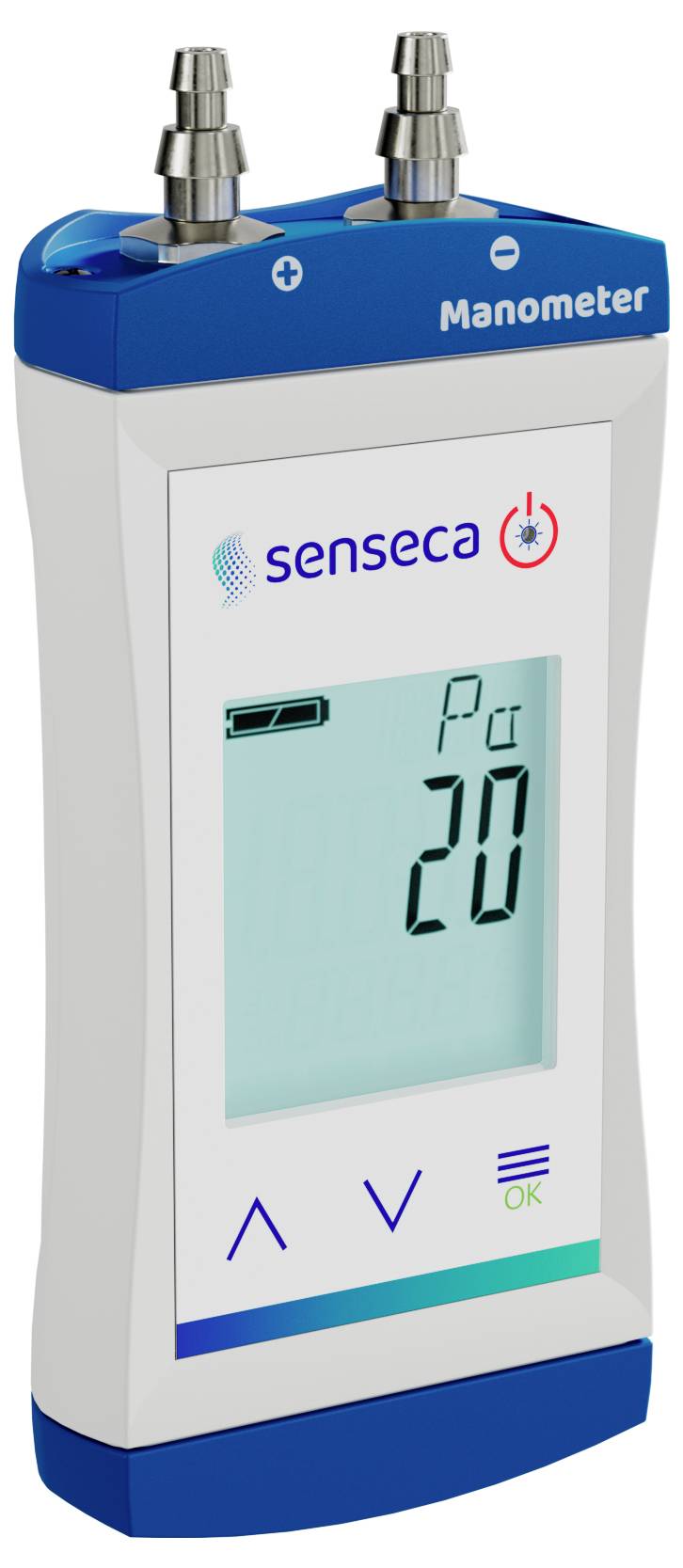

A portable digital manometer by Senseca, displaying a pressure reading of 20 with '+', '-', and 'OK' buttons beneath the screen.

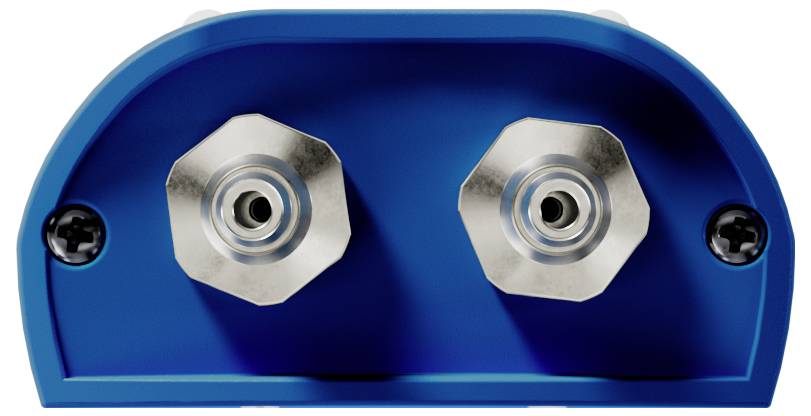

'Close-up of a blue object with two hexagonal, metallic fixtures resembling screws or connectors on a flat surface.'

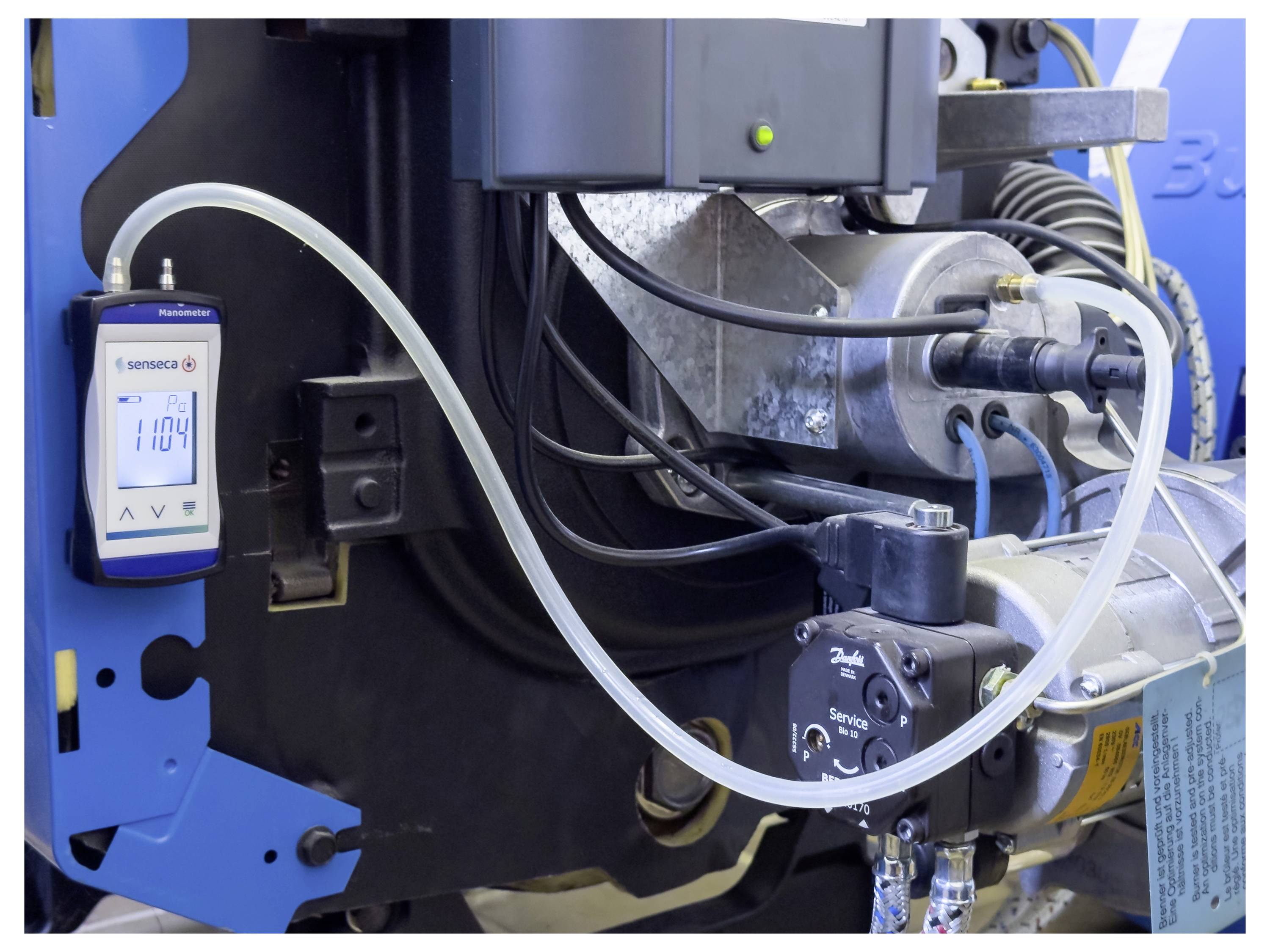

A technical setup showing a pressure gauge reading '1104', connected to machinery with wires and tubes, possibly part of an industrial system.

1/5

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 197.47 / piece)

€ 197.47

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

ECO 210-3 Fine manometer

Technical specifications

Display units Pa, hPa, mbar, PSI, mmHg
Measuring frequency: Slow 2.5 measurements/s; fast 25 measurements/s.
Overload max.: +/- 1700 hPa
Working temperature: -20°C to +50 °C

Power supply (details): 2 x AA battery

Power consumption: 1 mA

Pneumatic connection: 2 hose connections, changeable through G1/8 universal ports

Reading range: Selectable from -2000..+2000 Pa to -200.0..+200.0 hPa (FINE: -200.0..+200.0 Pa)

Display range: Pa, hPa, mbar, PSI, mmHg (Torr)

: IP67

Dim: (L x W x H) 54 x 28 x 108 mm

Weight: 150 g

Height: 108 mm

Length: 54 mm

Width: 28 mm

Reading range: 200 hPa (max)

: Manufacturer's standards (no certificate)

Unit of measurement: Pressure

Accuracy: 0.1 %

Reading range (max.): 200 hPa

Product type: Pressure gauge

Documents & Downloads

Datasheet

Datasheet 3046630 Senseca ECO 210-3-UT Pressure gauge Pressure 200 hPa (max)

User & Safety Instructions

User & Safety Instructions 3046630 Senseca ECO 210-3-UT Pressure gauge Pressure 200 hPa (max)

Description

While developing the new ECO-line the main focus was placed on the essential functions of the measurement technology. The heart of the device - the sensor - is a high-quality component - which is characterized in this device class. The high reliability, speed and precision of the ECO-line versions, packed in a compact and water-protected casing makes the devices an ideal partner for industry and trade, Made in Germany. ECO 210-3 Fine pressure manometer for use in heating, ventilation and air conditioning systems (HVAC). The measurement range up to 200 hPa (mbar) / 20 kPa and the high resolution up to 0.1 Pascal in optimized fine pressure mode cover the main applications for gas pressure 150 hPa (mbar) and burner setting with a single device. The high precision makes it easier, for example, to set compressed air or draft air measurements. The measurement is independent of the orientation of the device - better than with many, also far more expensive, competitors.

Display
3-line segment LCD
Additional symbols
Illuminated (white, light-on time adjustable)
Overhead display at the touch of a button

Standard functions
Min/Max/Hold
Auto power-off function / If activated, the product switches off automatically

Reconciliation
Zero point and slope setting

Housings
Unbreakable ABS casing
Protection type IP67 (pressure connections must be protected against contamination and moisture)

This text is machine translated.
