Buy Sauter Sound level meter Data logger SU 130 30 - 130 dB 20 Hz - 12500 Hz RS232

A sound level meter with a grey casing shows the value '42.0 dB' on the screen. Several buttons are visible underneath.

The back panel of an electronic device with connections: DC 6V, Output, RS-232, and Calibrate (CAL).

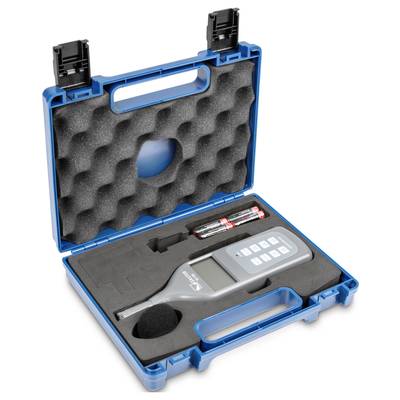

An open blue case with a foam interior displays a sound level meter, batteries, and a microphone cover (windscreen).

1/3

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 121.84 / piece)

€ 121.84

plus VAT.

Report legal concerns

Highlights & Details

Sound level meter SU130

Multi-measuring functions:
Lp: standard sound level measurement function
Leq: energy equivalent noise level measuring mode (type A)
Ln: shows the deviation to a predefined limit in %
Selectable Recording modes:
A: sensitivity as the human ear
C: sensitivity for louder ambient conditions such as, machinery, equipment, motors, etc.
Q: For consistent sound strong

Technical specifications

Product type: Sound level meter

Reading type: SPL

SPL resolution: 0.1 dB

dB (A) SPL reading range (max.): 130 dB

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 63 x 250 x 26 mm

Display: Digital

Max. frequency: 12500 Hz

Min. frequency: 20 Hz

Frequency range: 20 Hz - 12500 Hz

dB (A) accuracy: 1 dB

dB (C) accuracy: 1 dB

Weight: 200 g

dB SPL (A) reading range: 30 - 130 dB

dB (A) SPL reading range (min.): 30 dB

dB (C) SPL reading range (max.): 35 - 130 dB

dB (C) SPL reading range (max.): 130 dB

dB SPL (C) reading range (min.): 35 dB

Width: 250 mm

Height: 26 mm

Length: 63 mm

Features: Data logger

Interfaces: RS232

Documents & Downloads

Datasheet

Datasheet 1676540 Sauter Sound level meter Data logger SU 130 30 - 130 dB 20 Hz - 12500 Hz RS232

User & Safety Instructions

User & Safety Instructions 1676540 Sauter Sound level meter Data logger SU 130 30 - 130 dB 20 Hz - 12500 Hz RS232

Information

Information 1676540 Sauter Sound level meter Data logger SU 130 30 - 130 dB 20 Hz - 12500 Hz RS232

Description

Ideal for measurements on job creation, in outdoor areas, e.g. at airports, construction sites, road transport, etc. with a wide frequency access thanks to the high-precision 24-Bit-AD-converter.

This text is machine translated.

Features

Helps with the distinction between normal sound influences and excessive noise loads, e.g. in a production hall
Data Interface RS-232, including
Supplied in a robust carrying case
Limit function: programmable setpoint for go/no-go-test values
TRACK function for continuous recording varying ambient conditions
Peak Hold function for capturing the peak value
Internal measured value memory for 30 measurements. Can be displayed on the PC

Scope of delivery

Batteries
Carrying case
Foam windscreen.
