Buy VOLTCRAFT SL-80 Sound level meter 30 - 130 dB 31.5 Hz - 8 kHz

A sound level metre shows a reading of 53.1 decibels on a digital display. The device has control buttons underneath.

Sound level meter with removed battery compartment cover, showing two empty AA battery compartments. Upper part with microphone.

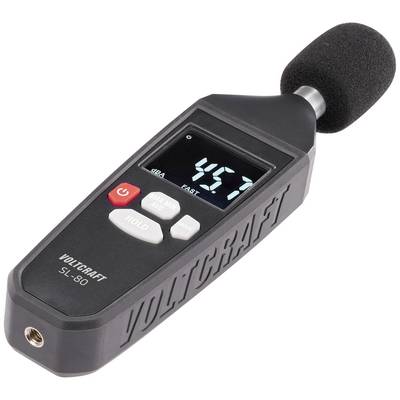

Sound level meter displays a measured value of 45.7 dB. Device has buttons for On/Off and Hold function.

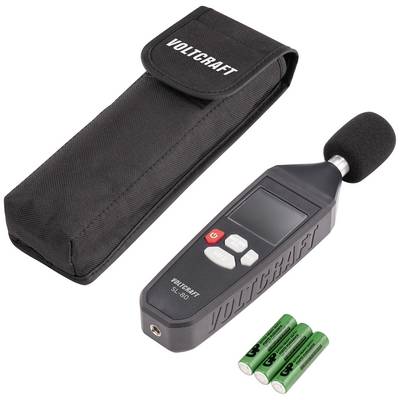

Sound level meter with display, alongside a black case and three batteries. Suitable for measuring noise levels.

A black device with a foam attachment, housed in a black case, possibly a measuring instrument or microphone accessory.

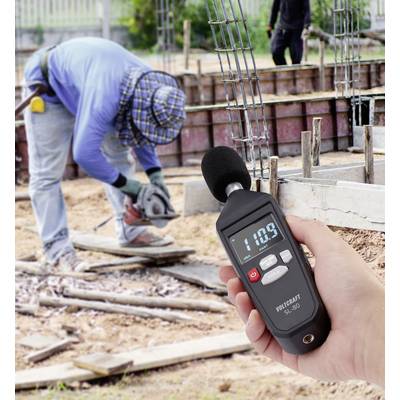

A decibel metre is showing '110.9', while in the background a person is working with a saw on a building site.

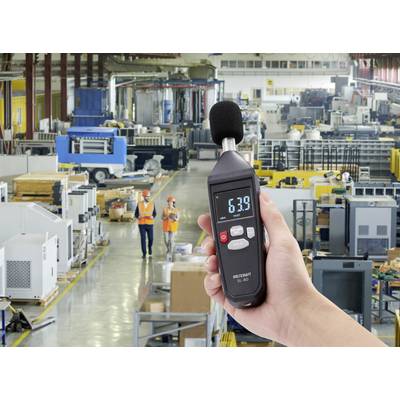

A person is holding a decibel meter showing 63.9 dB in a large factory environment with machinery and workers in the background.

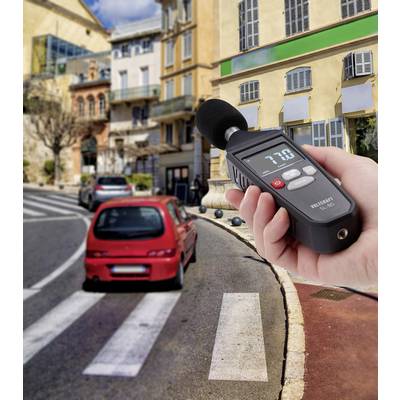

A person is measuring noise levels with a sound level metre beside a busy road with a red car passing by.

1/8

Our service for you

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

901 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 35.29 / piece)

€ 35.29

plus VAT.

Report legal concerns

Highlights & Details

SL-80 Sound level meter

Measuring range: 30 - 130 dB A/C
Accuracy: ±1.5 dB (1 kHz)
Meets IEC 61672-1:2013 class 2 standards

Technical specifications

Product type: Sound level meter

Reading type: SPL

SPL resolution: 0.1 dB

dB (A) SPL reading range (max.): 130 dB

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 48.5 x 27 x 204 mm

Display: LCD

Max. frequency: 8 kHz

Min. frequency: 31.5 Hz

Frequency range: 31.5 Hz - 8 kHz

dB (A) accuracy: 1.5 dB

dB (C) accuracy: 1.5 dB

Weight: 136 g

dB SPL (A) reading range: 30 - 130 dB

dB (A) SPL reading range (min.): 30 dB

dB (C) SPL reading range (max.): 30 - 130 dB

dB (C) SPL reading range (max.): 130 dB

dB SPL (C) reading range (min.): 30 dB

Width: 27 mm

Height: 204 mm

Length: 48.5 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2620273 VOLTCRAFT SL-80 Sound level meter 30 - 130 dB 31.5 Hz - 8 kHz

User & Safety Instructions

User & Safety Instructions 2620273 VOLTCRAFT SL-80 Sound level meter 30 - 130 dB 31.5 Hz - 8 kHz

Warranty Terms

Warranty Terms 2620273 VOLTCRAFT SL-80 Sound level meter 30 - 130 dB 31.5 Hz - 8 kHz

Description

The Voltcraft SL-80 sound level meter allows you to quickly and easily measure sound level with linear frequency evaluation (dBA) using the preset parameters. Ideally to the simple measurement of ambient noises or other acoustic sources.

This text is machine translated.

Features

A/C evaluation curves
Time evaluation modes (fast/slow)
Low battery indicator
Over range indicator
Auto power-off (15 min) function

Scope of delivery

Sound level meter
Carrying bag
3x AAA batteries
User manual
