Grothe 43386 Wireless door chime Relay box
EAN:
Part number:
Item no:
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Funkrelais-Set 230V/10A
- Set Relay box & Radio Transmitter
- Max. Range 500 m
- Compatible with Mistral Series
Technical specifications
- Power supply: 1 x 3 V lithium battery (CR123A) or 8-12 V AC/DC
- Product type
Wireless door chime
- Component
Relay box
500 m
- Tunes
17
- Factory colour
Grey
- Frequency
868 MHz
- Dim
(W x H x D) 110 x 110 x 70 mm
- Width
110 mm
- Height
110 mm
- Depth
70 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1560094 Grothe 43386 Wireless door chime Relay box
Description
This device is a relay box with the sender of the Mistral series a potential-free contact switches.
The voltage is supplied with a 3V lithium battery, or alternatively with a power supply from 8 to 12 V=/~.
After activation of the corresponding transmitter switches the relay of the box for the set time.
There can be multiple transmitter and receiver are combined.
The receiver can be up to 16 transmitters can be programd. Timer Function 1 to 1000 seconds. External power supply is possible.
This text is machine translated.
The voltage is supplied with a 3V lithium battery, or alternatively with a power supply from 8 to 12 V=/~.
After activation of the corresponding transmitter switches the relay of the box for the set time.
There can be multiple transmitter and receiver are combined.
The receiver can be up to 16 transmitters can be programd. Timer Function 1 to 1000 seconds. External power supply is possible.
This text is machine translated.
Features
- Protection class IP65 (relay box)
- Protection class IP54 (wireless transmitter).
Scope of delivery
- Relay box

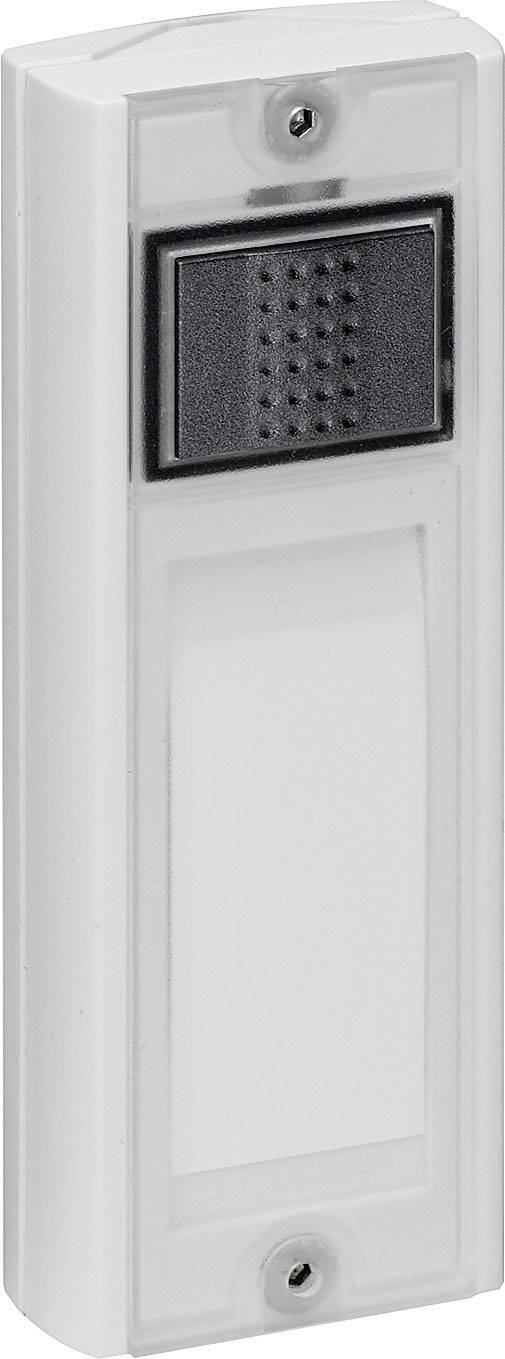

- Radio transmitter SE 03.1
- 2x LR03 batteries
- User manual.
Hints
The quoted range refers to open space conditions, means no solid objects between transmitter and receiver. Any wall, ceiling or other structure between transmitter and receiver results in a decrease in range.
