Name: GW Instek Battery tester GBM-3100H Reading range (battery testers) <1000 V Battery 01BM310H00GS
Brand: GW Instek
SKU: 3206847
Availability: BackOrder

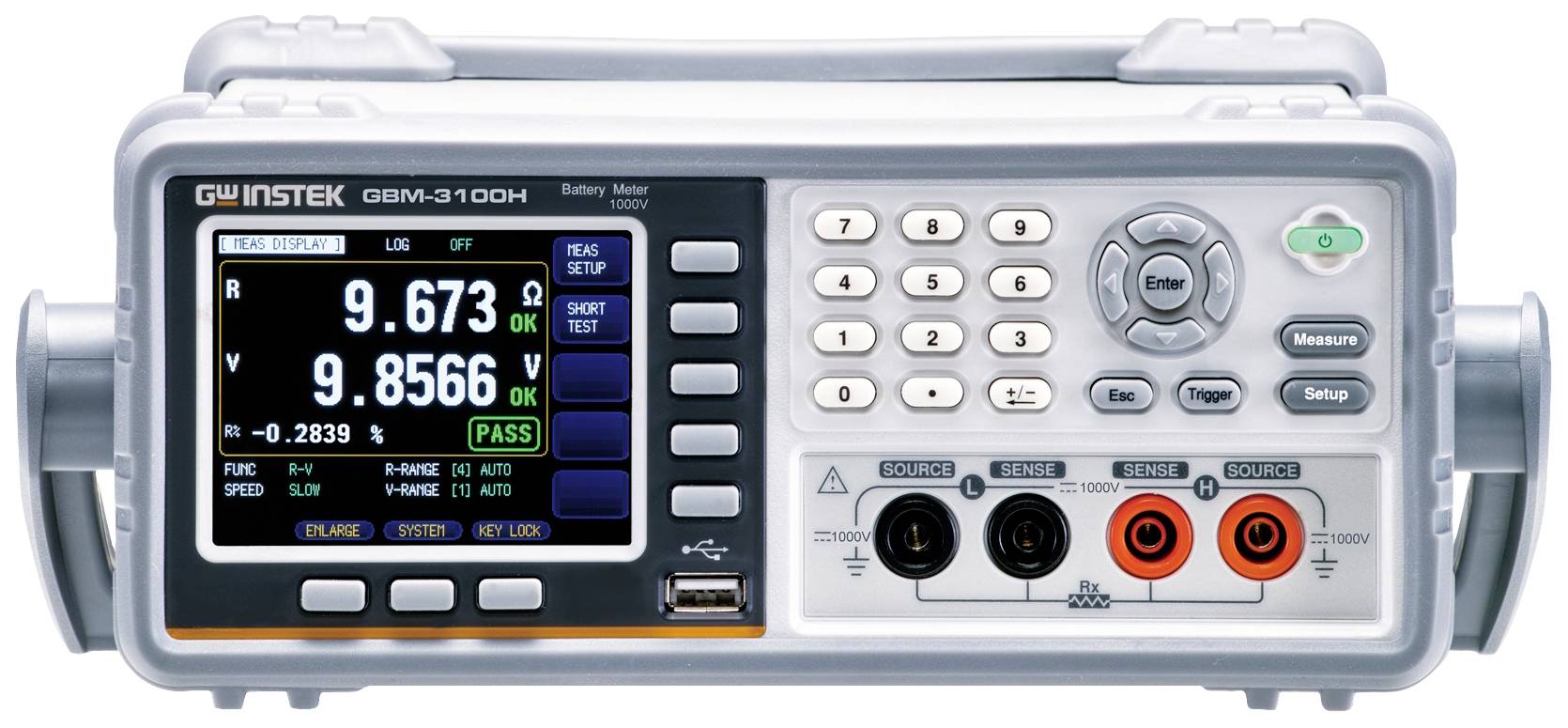

A digital multimetre with display shows voltage readings of 9.673 V and 9.8556 V. Buttons and measurement terminals are visible.

A digital multimeter for measuring electrical quantities with a display, keypad and measurement terminals, showing values for voltage and resistance.

1/2

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 5,115.00 / piece)

€ 5,115.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Display 3.5" TFT LCD
Max. Voltage measurement 1000 V
Max. Resistance measurement 3.2 kΩ

Display: LCD

Product type: Battery tester

Reading range: <1000 V

Cell type: Battery

Power supply: 230 V / AC

Width: 264 mm

Height: 107 mm

Depth: 309 mm

Weight: 2.8 kg

Interfaces: RS232C
USB device
USB host

Dim: (W x H x D) 264 x 107 x 309 mm

Type: GBM-3100H

Documents & Downloads

Datasheet

Datasheet 3206847 GW Instek Battery tester GBM-3100H Reading range (battery testers) <1000 V Battery 01BM310H00GS

User & Safety Instructions

User & Safety Instructions 3206847 GW Instek Battery tester GBM-3100H Reading range (battery testers) <1000 V Battery 01BM310H00GS

Description

GW Instek desktop battery tester, the GBM-3000-series, which uses AC 1kHz as test signal and measures battery voltage and internal resistance up to 1000 V. The series features a 3.5" TFT LCD, 4-wire measurement (method, high resolution (6-digit voltage / 5-digit resistance) measurement indicator and independent GO/NOGO determination of voltage and resistance, various communication interfaces, etc. to meet different types of battery measurements, from the single cell to the battery cell to the final product (battery), etc. so that users can get accurate measurements at all stages of production.

This text is machine translated.
