GYS GYSMI E163 Multi-process welder
EAN:
Part number:
Item no:
Number
Total (€ 269.00 / piece)
€ 269.00
incl. VAT
14-day return policy included
Highlights & Details

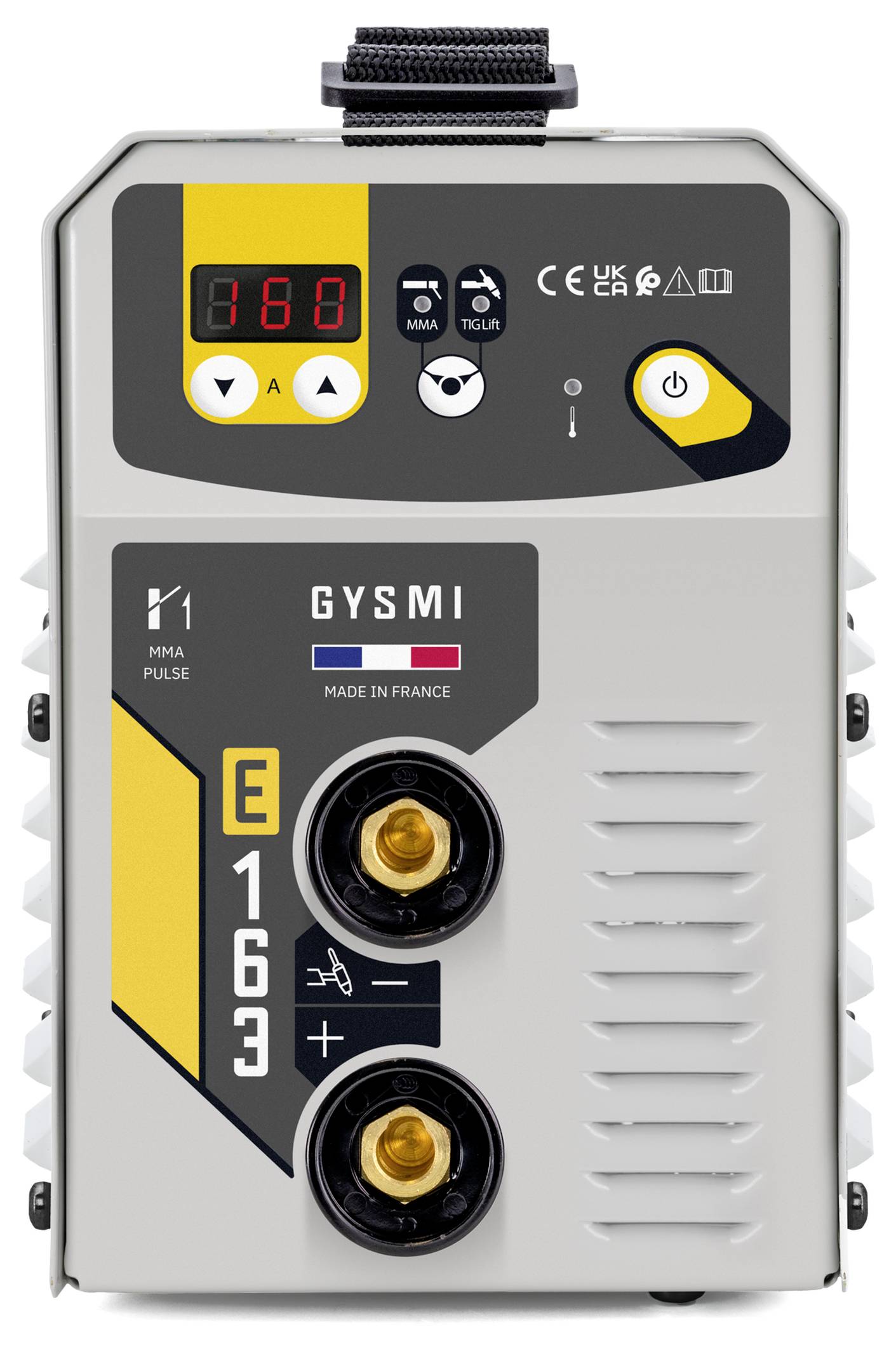

Electrode and TIG welding inverter GYSMI E163
- Hot Start
- Arc Force
- Anti-Sticking
Technical specifications
- Product type
Multi-process welder
- Open circuit voltage (OCV)
72 V
- Operating voltage
230 V
- Length
250 mm
- Width
190 mm
- Height
134 mm
- Dim
(L x W x H) 250 x 190 x 134 mm
- Weight
3.7 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2246538 GYS GYSMI E163 Multi-process welder
Information
Information 2246538 GYS GYSMI E163 Multi-process welder
Information 2246538 GYS GYSMI E163 Multi-process welder
Description
Microprocessor-controlled electrode and TIG welding inverters with a 230 V mains connection - 50/60 Hz single-phase. Constant welding power of 10 - 160 A.
The pulsed MMA welding mode is particularly suitable for climbing seams (PF). The pulse mode reduces the energy input or the heat development of the welding bath and stabilizes the weld seam.
PROTEC400-Tec
Hnology for protection against over/under voltage as well as mains voltage fluctuations (+/- 15 %).
Suitable for all common rod electrodes (steel, stainless steel, cast iron, etc.) to be welded onto direct current from 1.6 to 4.0 mm.
This text is machine translated.
The pulsed MMA welding mode is particularly suitable for climbing seams (PF). The pulse mode reduces the energy input or the heat development of the welding bath and stabilizes the weld seam.
PROTEC400-Tec
Hnology for protection against over/under voltage as well as mains voltage fluctuations (+/- 15 %).
Suitable for all common rod electrodes (steel, stainless steel, cast iron, etc.) to be welded onto direct current from 1.6 to 4.0 mm.
This text is machine translated.
Features
- HOT START: Improves ignition properties by temporarily increasing the welding current. The arc fires reliably immediately
- ARC FORCE: Stabilizes the arc by correcting the voltage when the electrode gap to the weld changes
- ANTI-STICKING: Helps to reduce the tendency of the electrode to stick in the welding bath
Scope of delivery
- Incl. Ground terminal with cable (1.6m, Ø16mm²)
- Electrode holder with cable (2m, Ø16mm²)

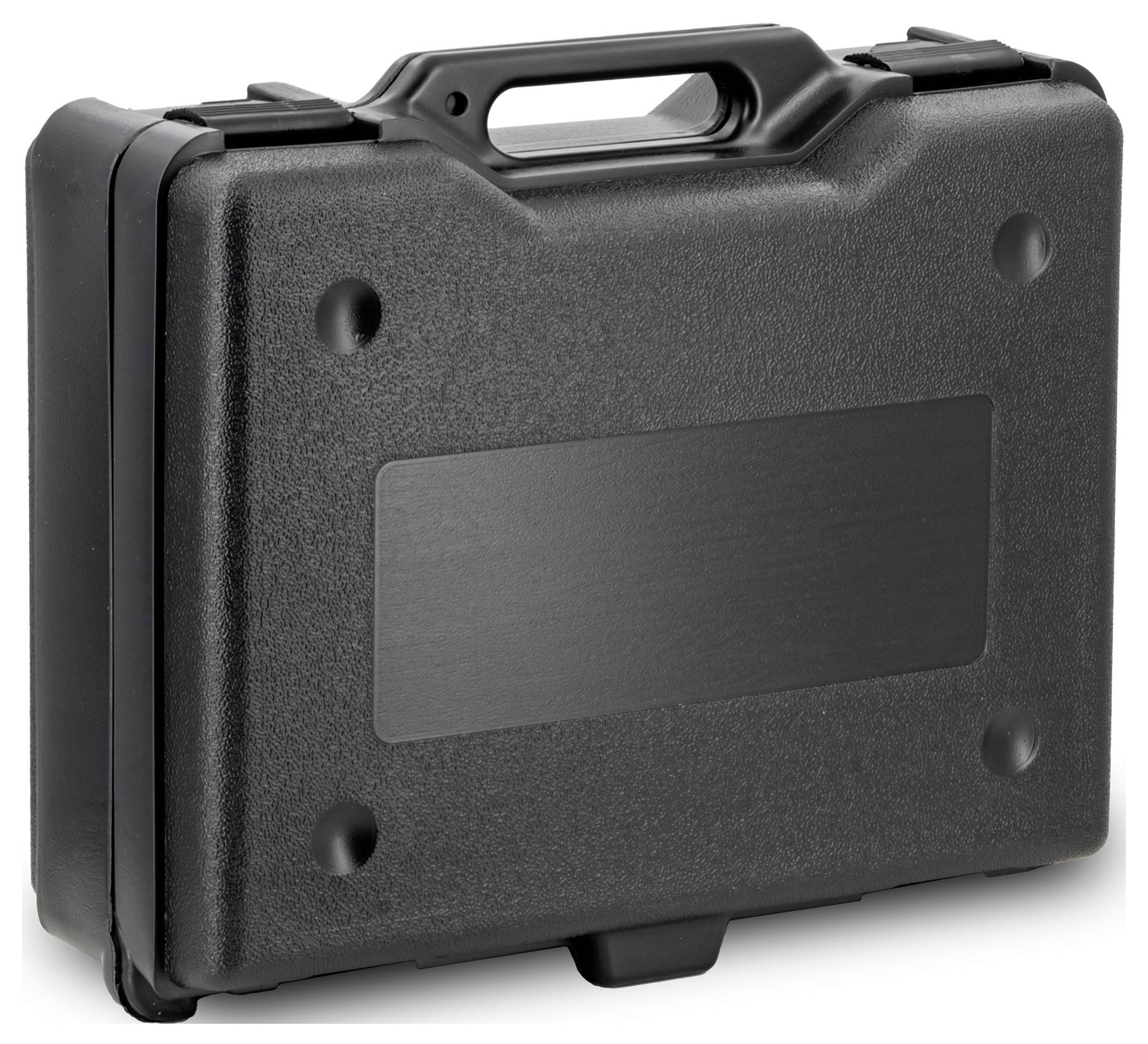

- Hard case
