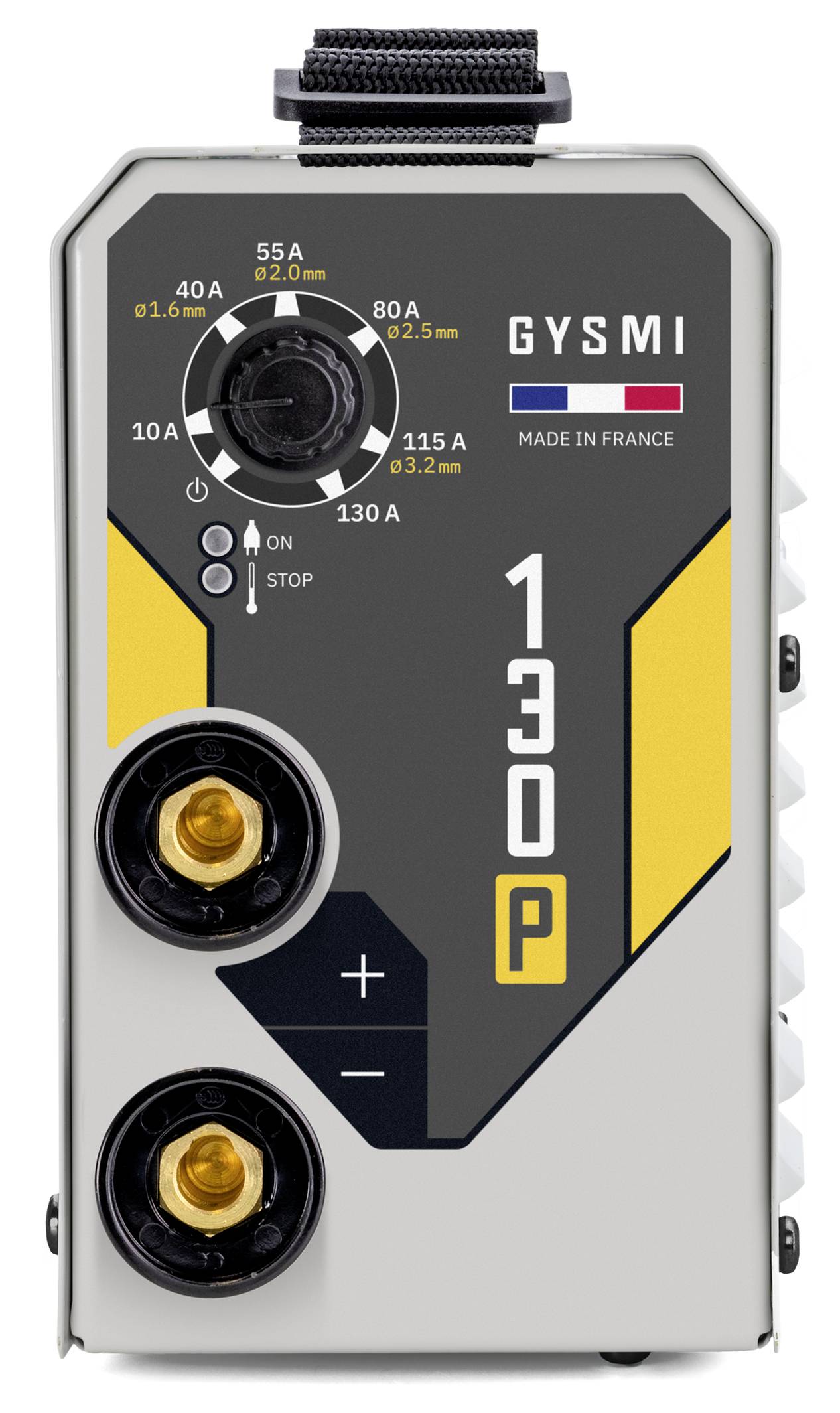

Name: GYS I 130P Inverter welder 10 - 130 A
Brand: GYS
SKU: 819333
Availability: SoldOut

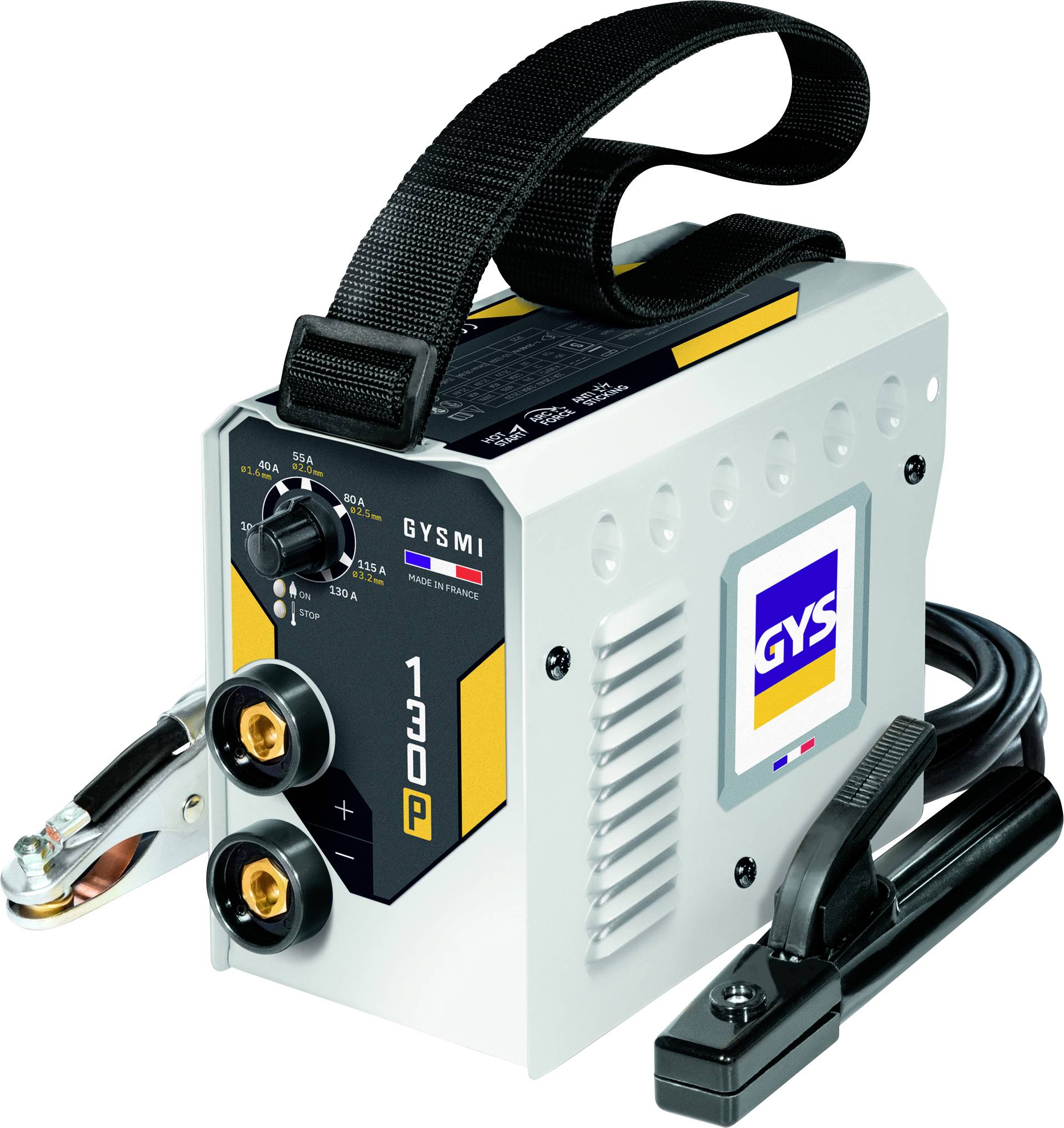

Portable GYS MIG welding machine with carrying strap and attached cable clamps, shown on a white background.

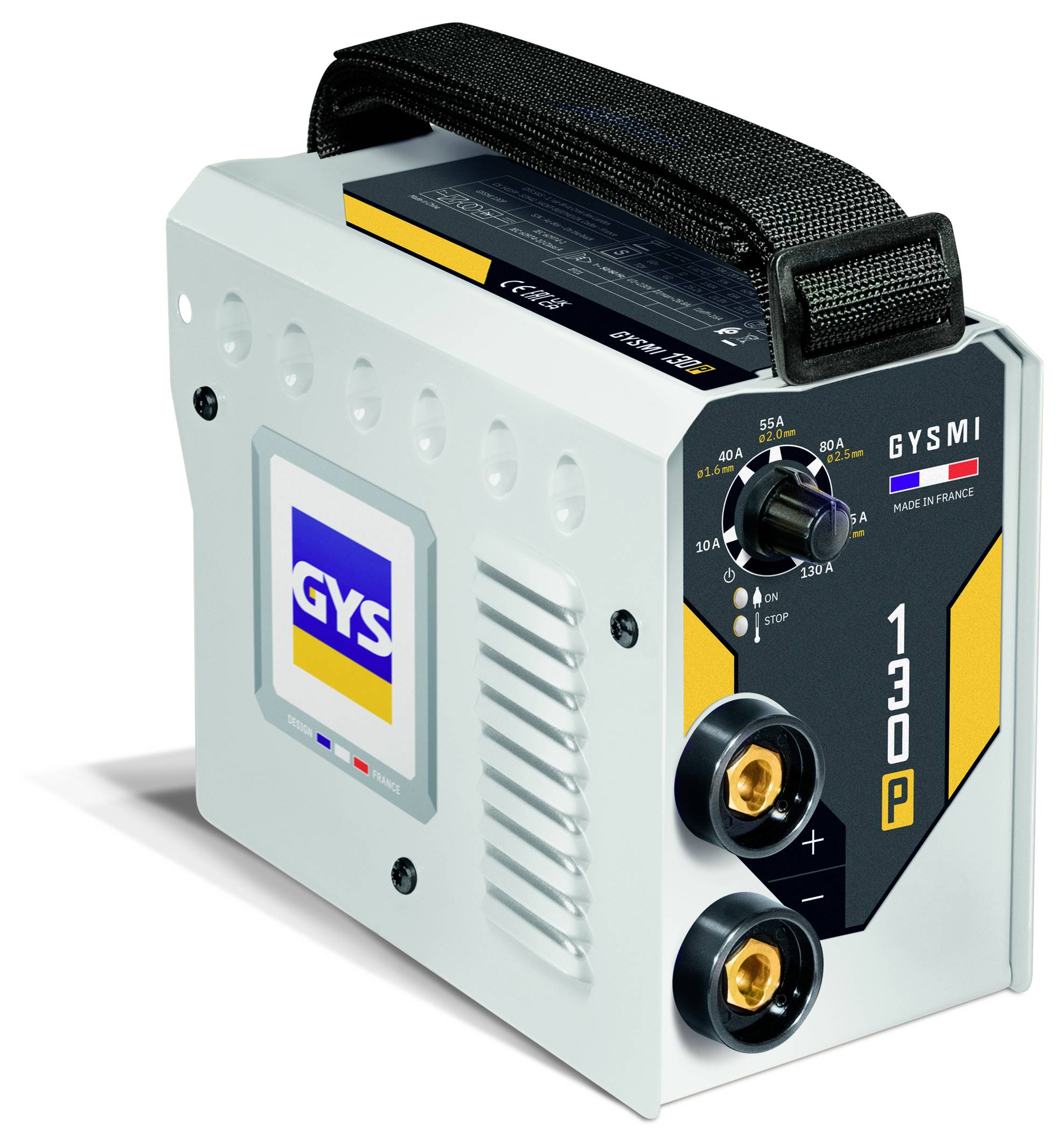

Portable GYS MI 130P battery charger with carry handle, front control knobs, and power connection terminals.

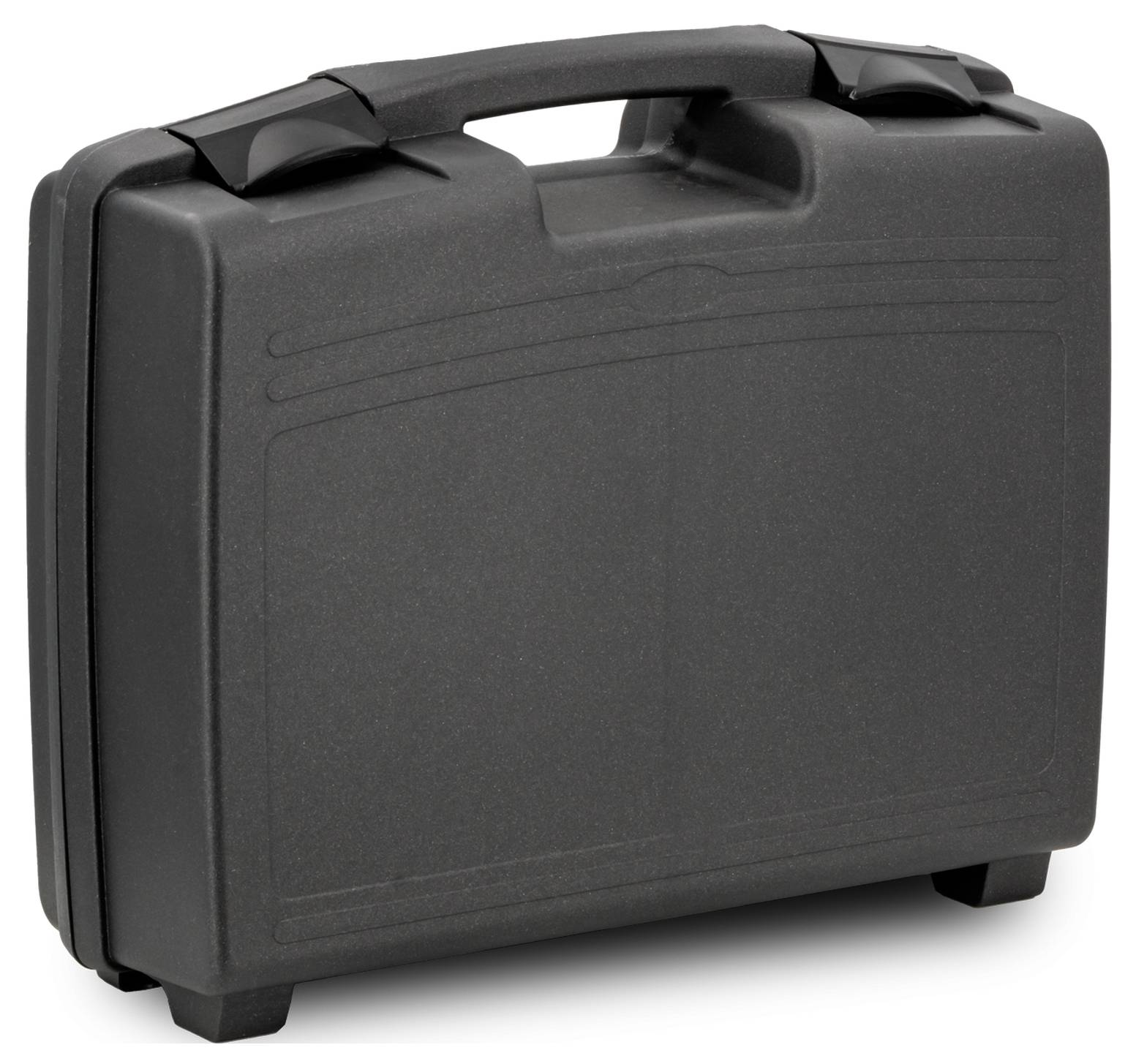

Black hard-shell carrying case with handle and latches, shown closed on a white background.

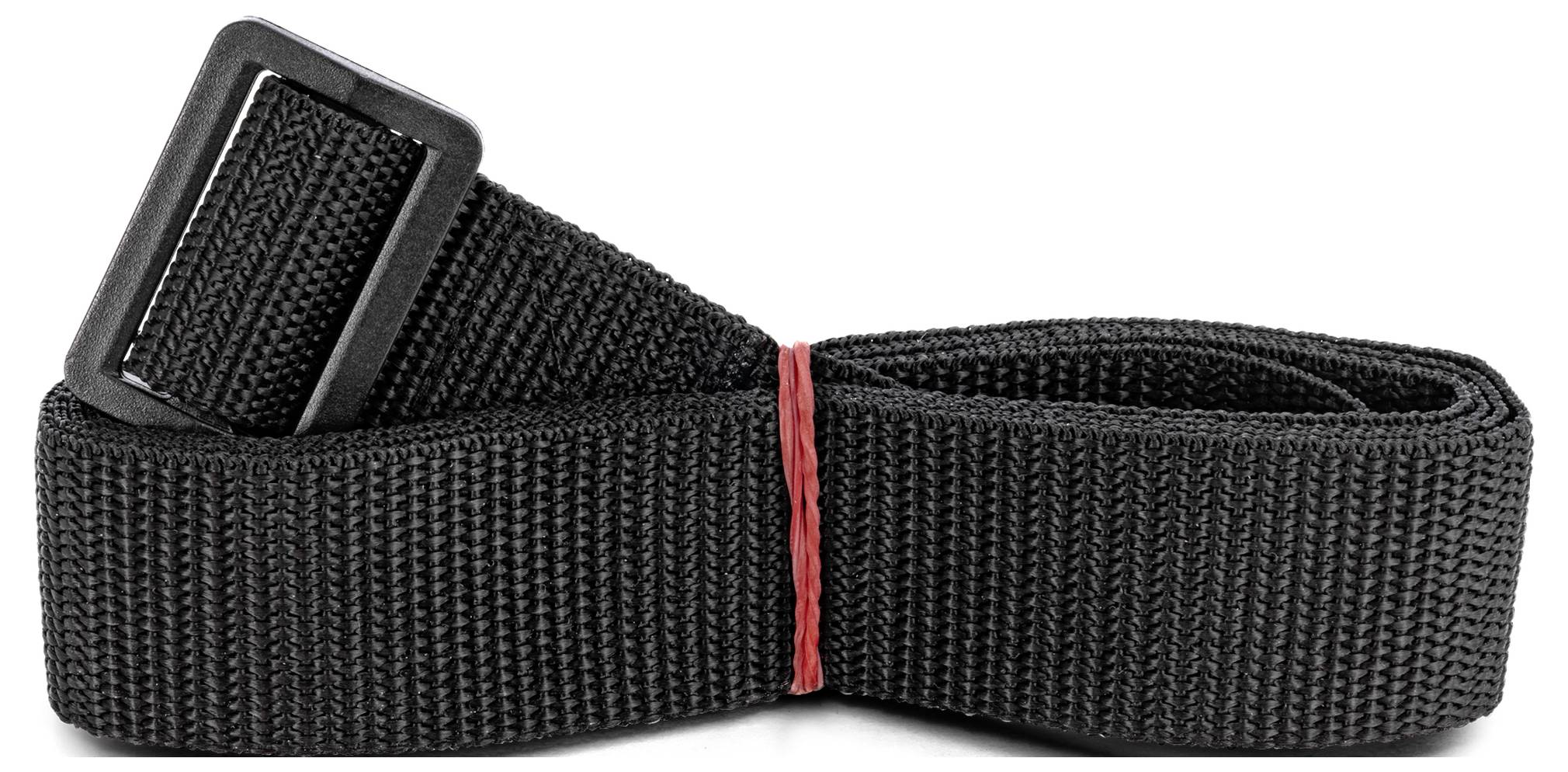

Black woven nylon strap with a rectangular plastic buckle, neatly rolled and held by a red band.

Product box for GYS 'Gysmi 130 P' MMA/SMAW welding equipment, showing a 130 A welder with electrode holder and ground clamp.<br>

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 244.99 / piece)

€ 244.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Elektroden-Schwei ssinverter GYSMI 130 P

Hard case

Technical specifications

Generator Enabled: +/- 15%
Protection class IP 21

Product type: Inverter welder

Welding current (min.): 10 A

Welding current (max.): 130 A

Welding current (range): 10 - 130 A

Electrode diameter: 1,6 - 3,2 mm

Fused: 13 A

Open circuit voltage (OCV): 80 V

Operating voltage: 230 V

Length: 250 mm

Width: 170 mm

Height: 100 mm

Dim: (L x W x H) 250 x 170 x 100 mm

Weight: 2.9 kg

Idle voltage: 80 V

Documents & Downloads

Datasheet

Datasheet 819333 GYS I 130P Inverter welder 10 - 130 A

User & Safety Instructions

User & Safety Instructions 819333 GYS I 130P Inverter welder 10 - 130 A

Description

Elektroden-Schwei ssinverter 230 V, 10 - 130 A for repair and maintenance work. Weld all common Rutil, stainless steel, cast iron and basic stick electrodes. PROTEC 400 technology for protection against voltage surges up to 400 V. protection function against over/under voltage as well as mains voltage fluctuations.

Features

HOT START: improve the ignition properties
ARC FORCE: stabilizes the arc
anti-sticking: avoids quick hard gluing the electrode
Micro-processor controlled welding inverter
practical and comfortable thanks to low weight
(2.9 kg), greatly reduced volume and very low power consumption (13A socket with the fuse)
Good ignition properties thanks to increased idle voltage
Constant welding current
uniform deposition rate through direct current
Resistant to current and arc fluctuations
Very good mount edge and stable arc
GENERATOR FIT AND AGAINST over/under voltage AS WELL AS MAINS FLUCTUATIONS (+/- 15%) are protected.

Scope of delivery

Practical carrying strap
Earth terminal with cable and connector type TEXAS 10/25
Electrode holder with cable and connector type TEXAS 10/25
Mounting case.

Hints

This text is machine translated.

Description

Features

HOT START: improve the ignition properties
ARC FORCE: stabilizes the arc
anti-sticking: avoids quick hard gluing the electrode
Micro-processor controlled welding inverter
practical and comfortable thanks to low weight
(2.9 kg), greatly reduced volume and very low power consumption (13A socket with the fuse)
Good ignition properties thanks to increased idle voltage
Constant welding current
uniform deposition rate through direct current
Resistant to current and arc fluctuations
Very good mount edge and stable arc
GENERATOR FIT AND AGAINST over/under voltage AS WELL AS MAINS FLUCTUATIONS (+/- 15%) are protected.
