Name: GYS E1 MIG/MAG welder 10 - 200 A incl. accessories
Brand: GYS
SKU: 2853025
Availability: BackOrder

Mobile welding machine with wheels, two cables, and digital display. Suitable for workshops for connecting metal parts.

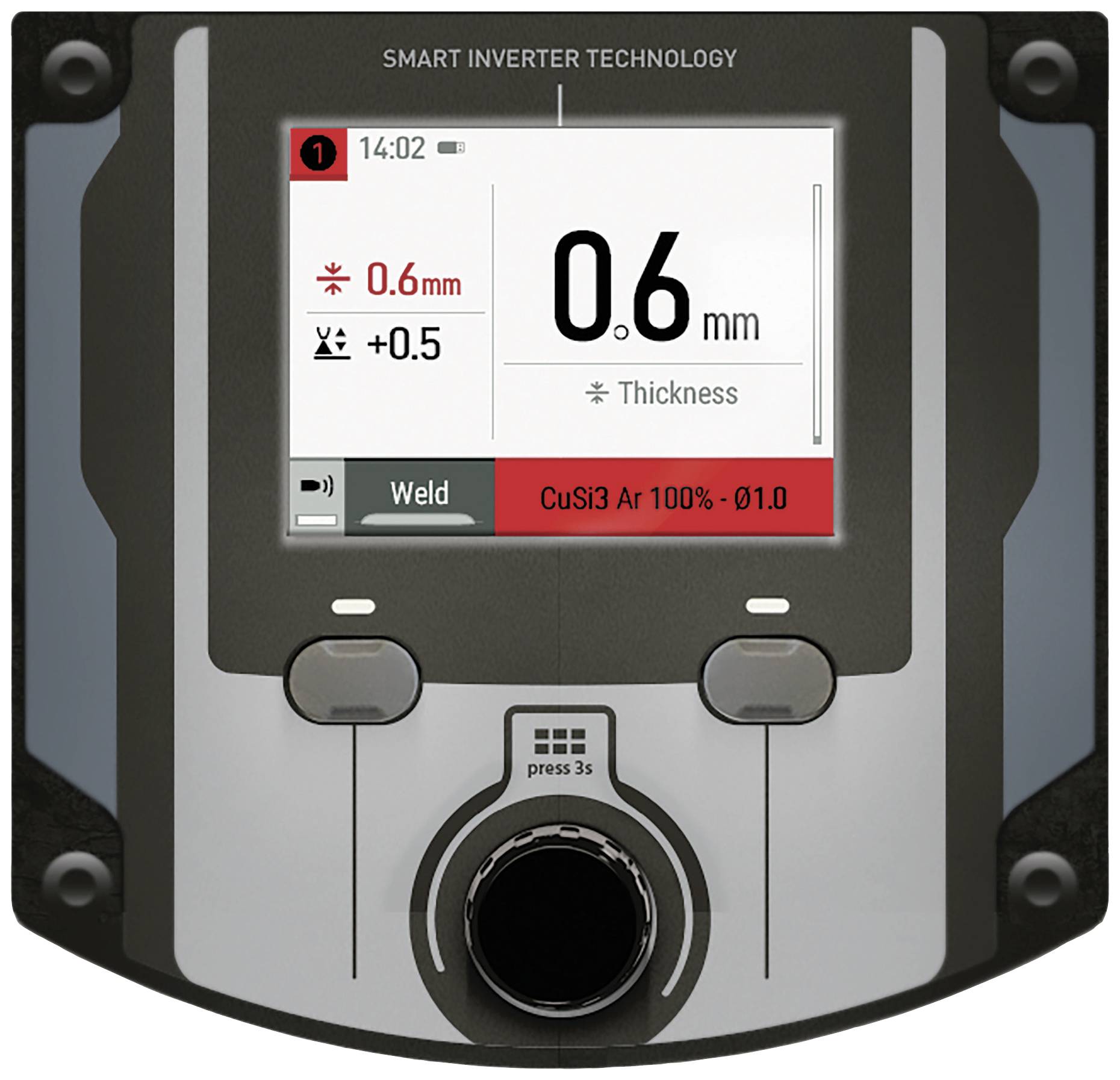

A welding machine display shows a thickness of 0.6 mm. The display contains parameters such as gas 'CuSi3 Ar 100%'.

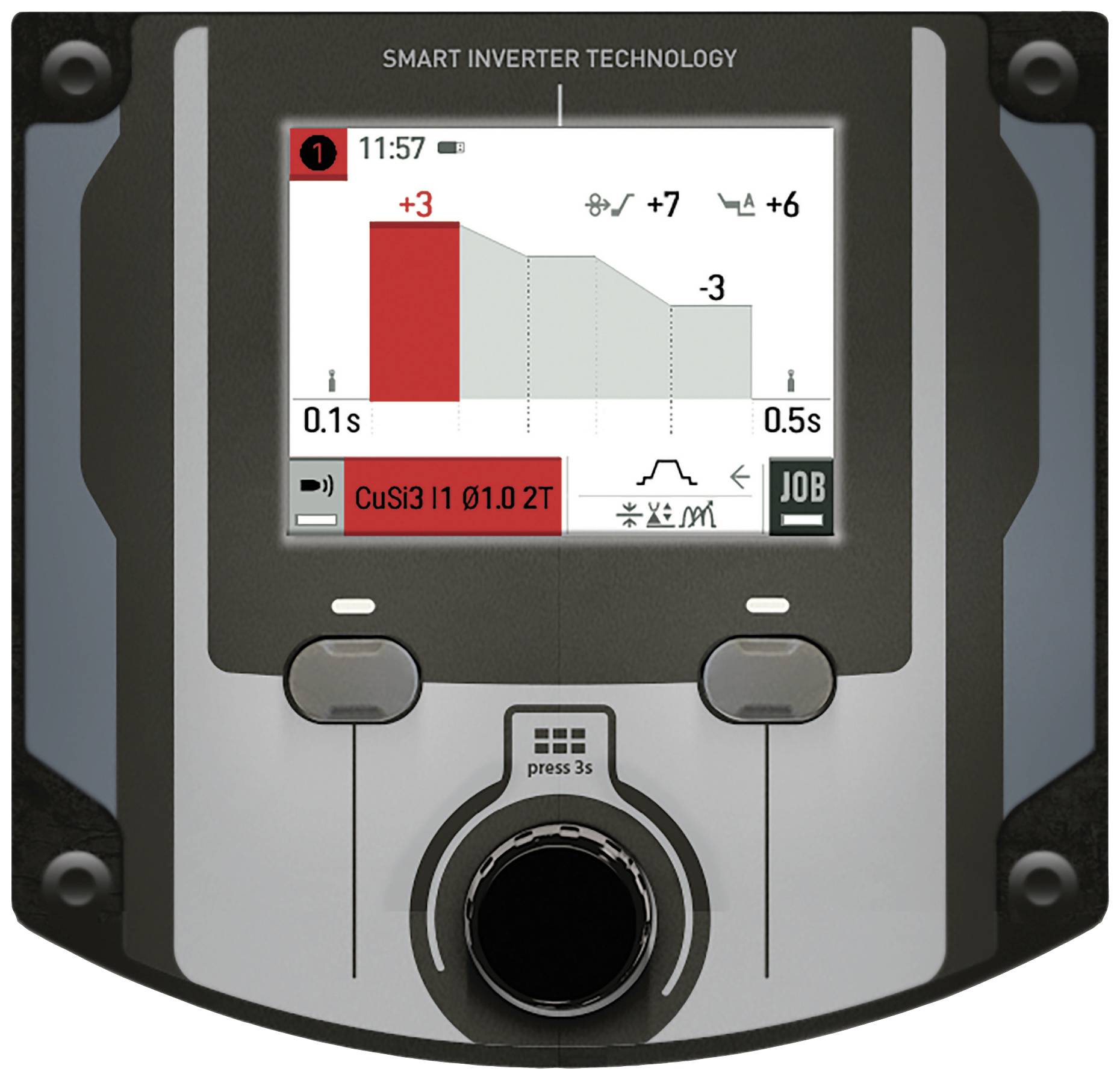

A control panel with a display shows a graphic. On the left: a time-progressing bar. On the right: symbols and numbers for setting and monitoring.

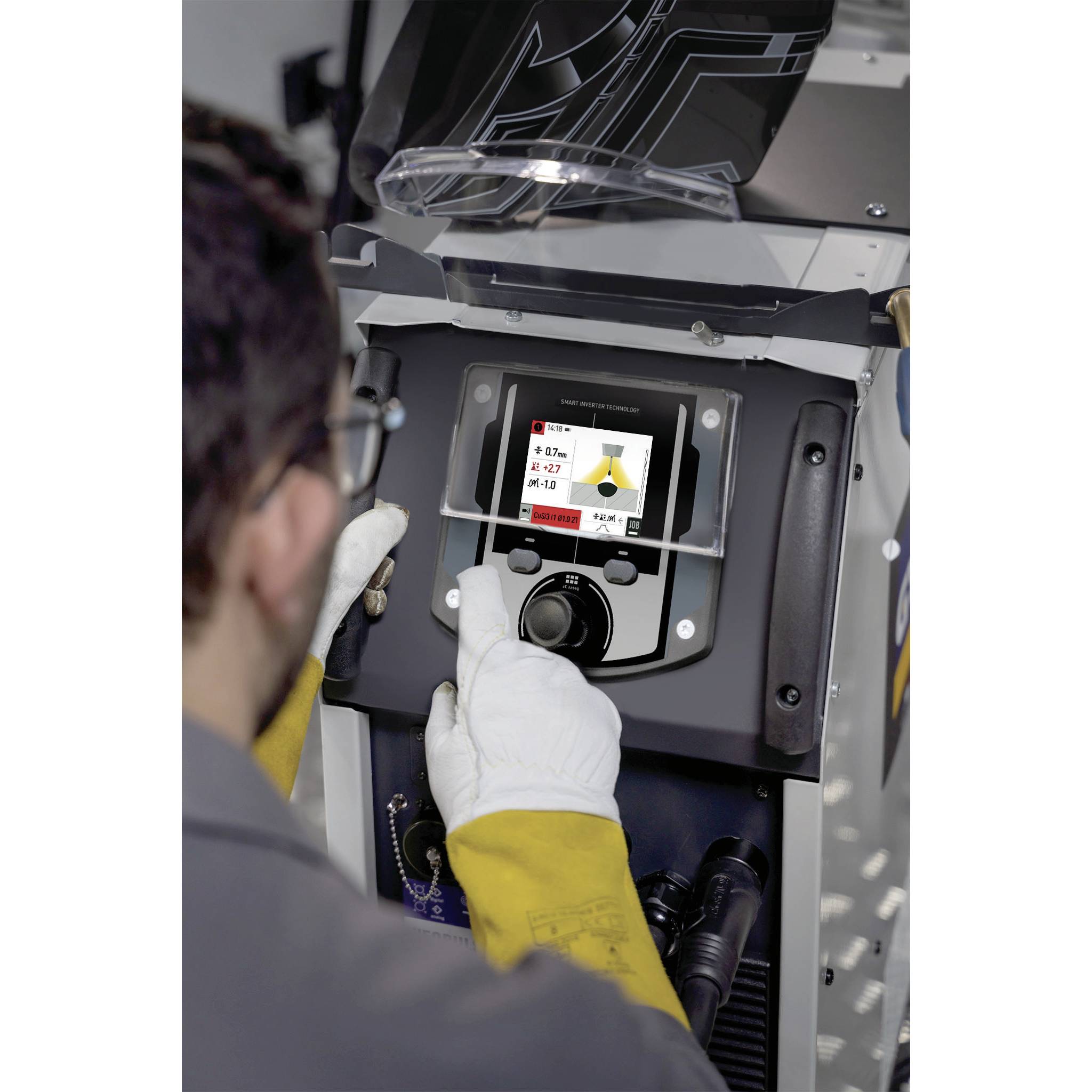

A man is operating a welding machine, looking at a display with various settings. He is wearing protective gloves and safety glasses.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,039.00 / piece)

€ 2,039.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Single phase MIG/MAG welder with 200 A.

The E1 GYS AUTO has been designed specifically for the high demands of the Car body repair.

Technical specifications

Product type: MIG/MAG welder

Feature: incl. accessories

Welding current (min.): 10 A

Welding current (max.): 200 A

Welding current (range): 10 - 200 A

Welding wire Ø: 0,6 -1,0 mm

Length: 490 mm

Width: 780 mm

Height: 740 mm

Dim: (L x W x H) 490 x 780 x 740 mm

Weight: 40.5 kg

Documents & Downloads

Datasheet

Datasheet 2853025 GYS E1 MIG/MAG welder 10 - 200 A incl. accessories

User & Safety Instructions

User & Safety Instructions 2853025 GYS E1 MIG/MAG welder 10 - 200 A incl. accessories

Description

E1 GYS AUTO is a synergistic, single-phase MIG/MAG welder with 200 A, which was specially developed for the body maker. It is equipped with a very intuitive color control panel and welds steel and aluminum perfectly even with low thicknesses. Its synergies also include welding with CuSi3 and CuAl8 wires.

This text is machine translated.

Features

Specific synergies steel, AlSi, AlMg, CuSi3, CuAl8, CrNi After entering 3 data (Easy mode): Wire diameter, material/gas pair and the material thickness to be welded. The product automatically determines the optimum welding parametersNew, simplified 3.5’ HMIdesigned for bodybuildersComplete update of the device and the synergies via USB stickStorage of up to 200 welding programs (Job) for recurring tasksPortability function, option to load/save/transport THE OPERATOR'S JOBS and the device configuration from a USB stickWire feed unit with 4 rollersEuro-central burner connectionRobust wheels for stability and maneuverabilityBracket for 1 gas bottle 4 m3 (20 L)Special compartment for accessories

Scope of delivery

Steel burner 3 m
Ground cable 3.5 m
