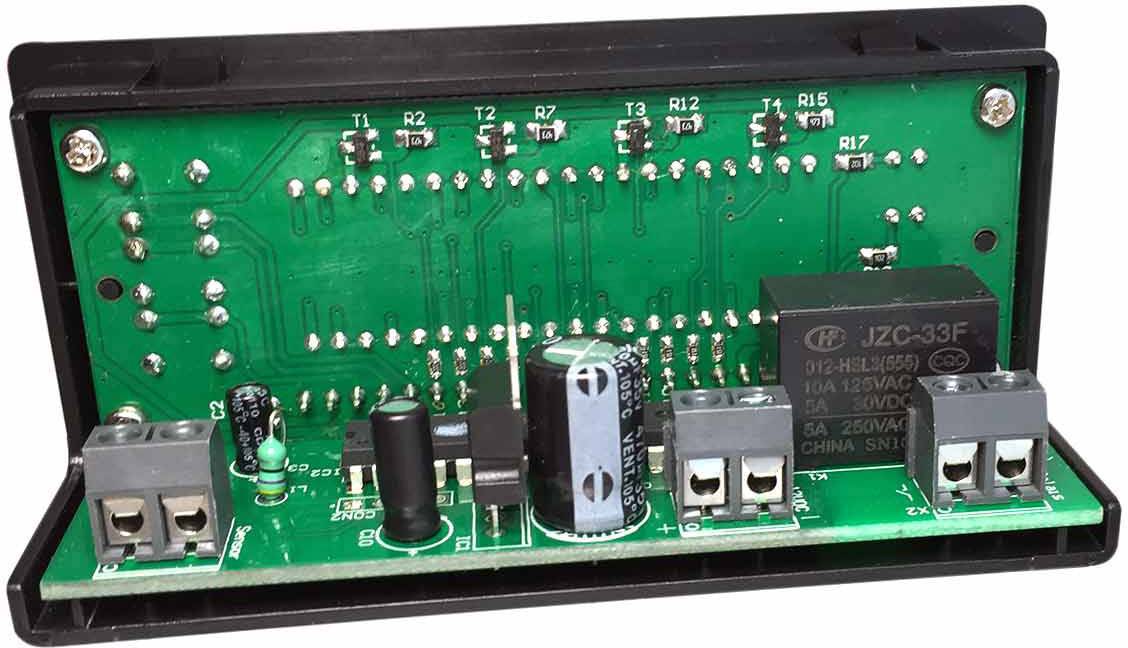

H-Tronic 1114470 TSM 1000 Temperature switch Component 12 V DC -99 - 850 °C
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
Highlights & Details
Temperature controller TSM 1000
- Serial interface for reading the measured data (optional)
- Operating and monitoring-free operation
- Sensor short circuit and sensor circuit can be recognized immediately
- Adjustable for heating or cooling
- No data lost in the event of a power failure
Technical specifications
- Output: potential-free relay contact 230VAC/5A or 30VDC/5A
- Power consumption: approx. 2 VA
- Max. switching capacity 1000 W
- Measuring input: Pt1000 (2-wire)
- Accuracy< 0.5% FS ± 0.1 °C
- Resolution: 0.1°C
- Protection class IP 20
- Ambient temperature: -15°C to +50°C
- Cut-out for front frame: 97/43 mm
- Switching cabinet assembly.
- Current consumption
60 mA
- Version
Component
- Dim
(L x W x H) 35 x 48 x 101 mm
- Height
101 mm
- Length
35 mm
- Width
48 mm
- Output current
5 A
- Operating voltage
12 V DC
- Max. temperature
850 °C
- Min. temperature
-99 °C
- Product type
Temperature switch
Documents & Downloads
Datasheet
Datasheet 1364840 H-Tronic 1114470 TSM 1000 Temperature switch Component 12 V DC -99 - 850 °C
User & Safety Instructions
User & Safety Instructions 1364840 H-Tronic 1114470 TSM 1000 Temperature switch Component 12 V DC -99 - 850 °C
Description
The temperature controller TSM 1000 in matching mounting frame is suitable for space-saving installation in control cabinets. It can also be integrated into an existing circuit.
It is well suited all areas of application, in which a temperature control in heating or cooling operation is required. An external temperature sensor (Pt 1000) measuring ranges from - 99 to +850 °C. The device can be used independently, for example, as a frost protection, Central Heating, Air Conditioning, incubator, etc., but can also be used as a replacement for faulty mechanical thermostats or for digital thermometer.
Easy to use
Clear and easy to use and safe to use: Sensor short circuit and sensor circuit are recognized immediately. The relay switches in case of sensor failure. The set switch-on and switch-off temperature remains available even after a power failure.
Switching temperature
The switching temperature is adjusted in 1° C-switching temperature steps.
Large measurement range | Pt1000
For the new devices, the standardized, external temperature sensor Pt1000 measuring ranges from - 99 to +850 °C
- For even more applications.
This text is machine translated.
It is well suited all areas of application, in which a temperature control in heating or cooling operation is required. An external temperature sensor (Pt 1000) measuring ranges from - 99 to +850 °C. The device can be used independently, for example, as a frost protection, Central Heating, Air Conditioning, incubator, etc., but can also be used as a replacement for faulty mechanical thermostats or for digital thermometer.
Easy to use
Clear and easy to use and safe to use: Sensor short circuit and sensor circuit are recognized immediately. The relay switches in case of sensor failure. The set switch-on and switch-off temperature remains available even after a power failure.
Switching temperature
The switching temperature is adjusted in 1° C-switching temperature steps.
Large measurement range | Pt1000
For the new devices, the standardized, external temperature sensor Pt1000 measuring ranges from - 99 to +850 °C
- For even more applications.
This text is machine translated.
Hints
Temperature sensor PT1000 are not included in the delivery.
