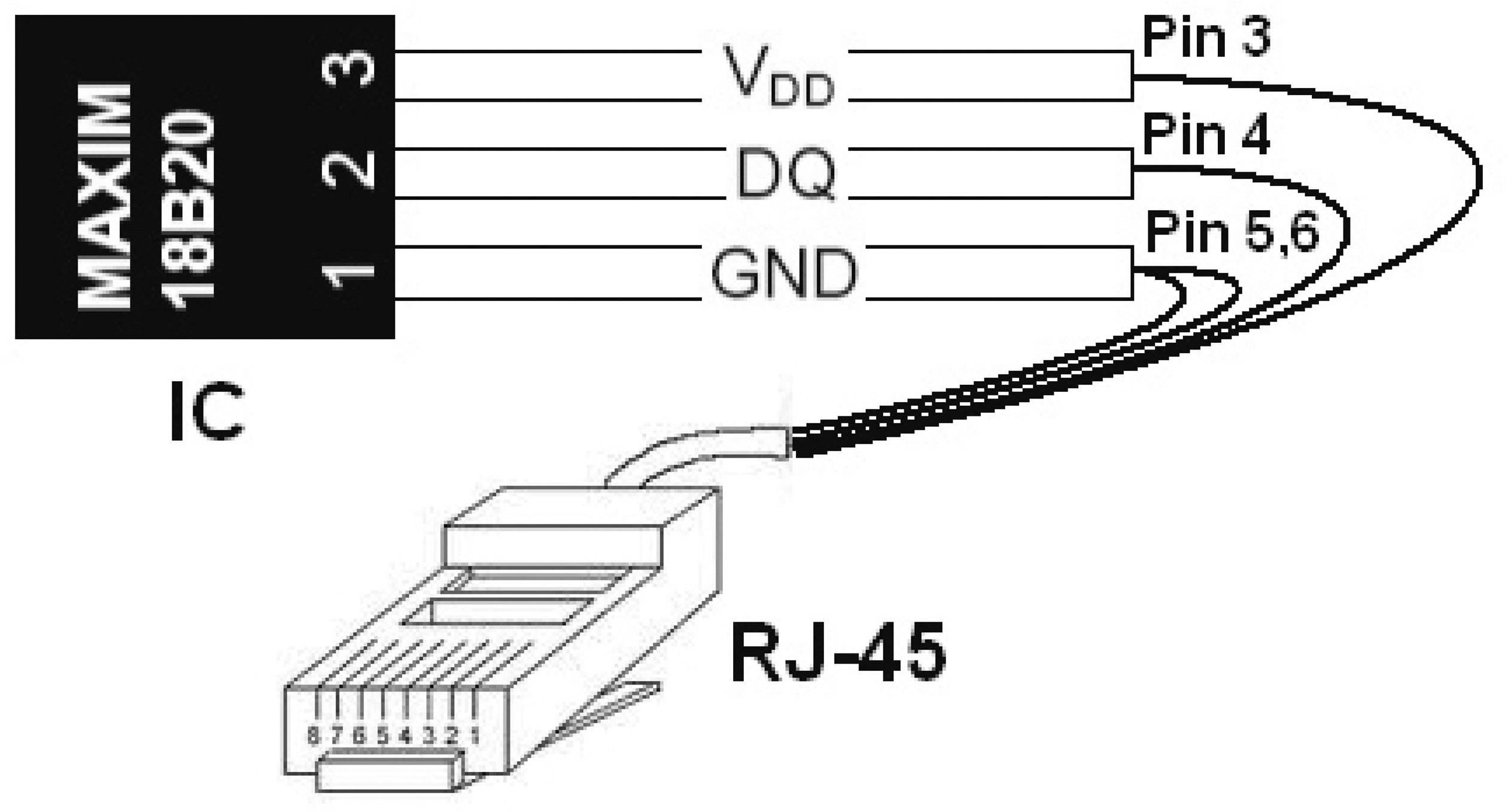

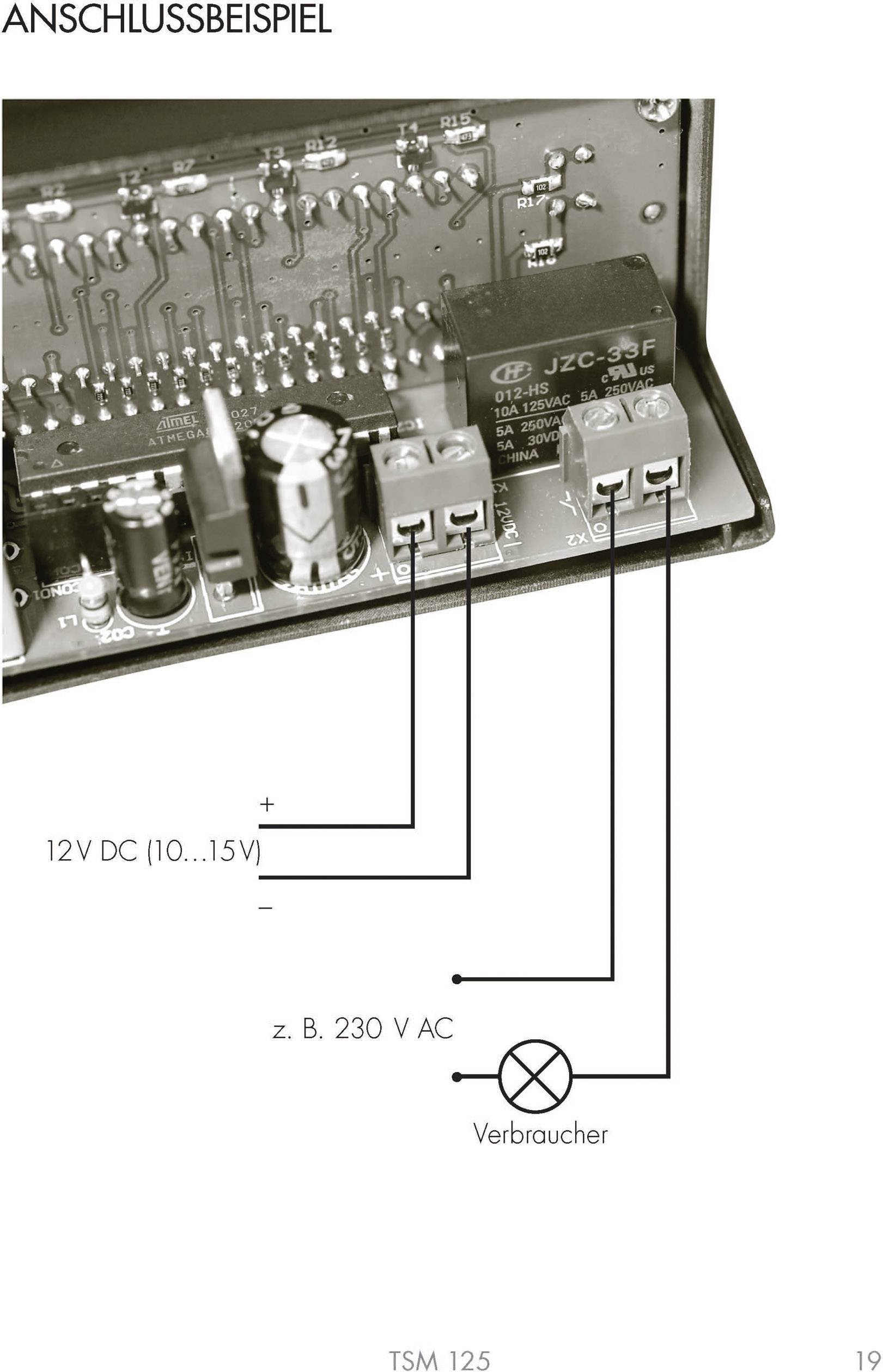

Diagram showing the wiring of a MAXIM 18B20 sensor with an RJ-45 plug. Indicates pin configuration: VDD, DQ, GND.

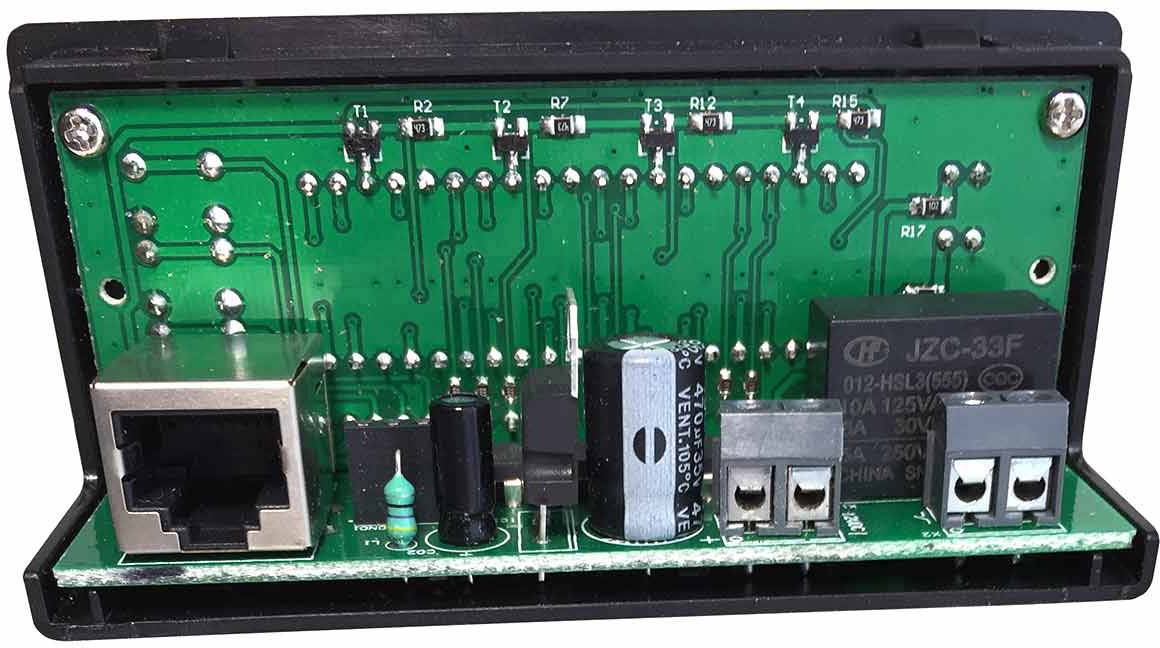

'Close-up of a green electronic circuit with multiple components, including a relay, an RJ45 port, and capacitors.'

A black cable with an RJ12 plug and a metal sensor, suitable for temperature measurements in electronic devices.

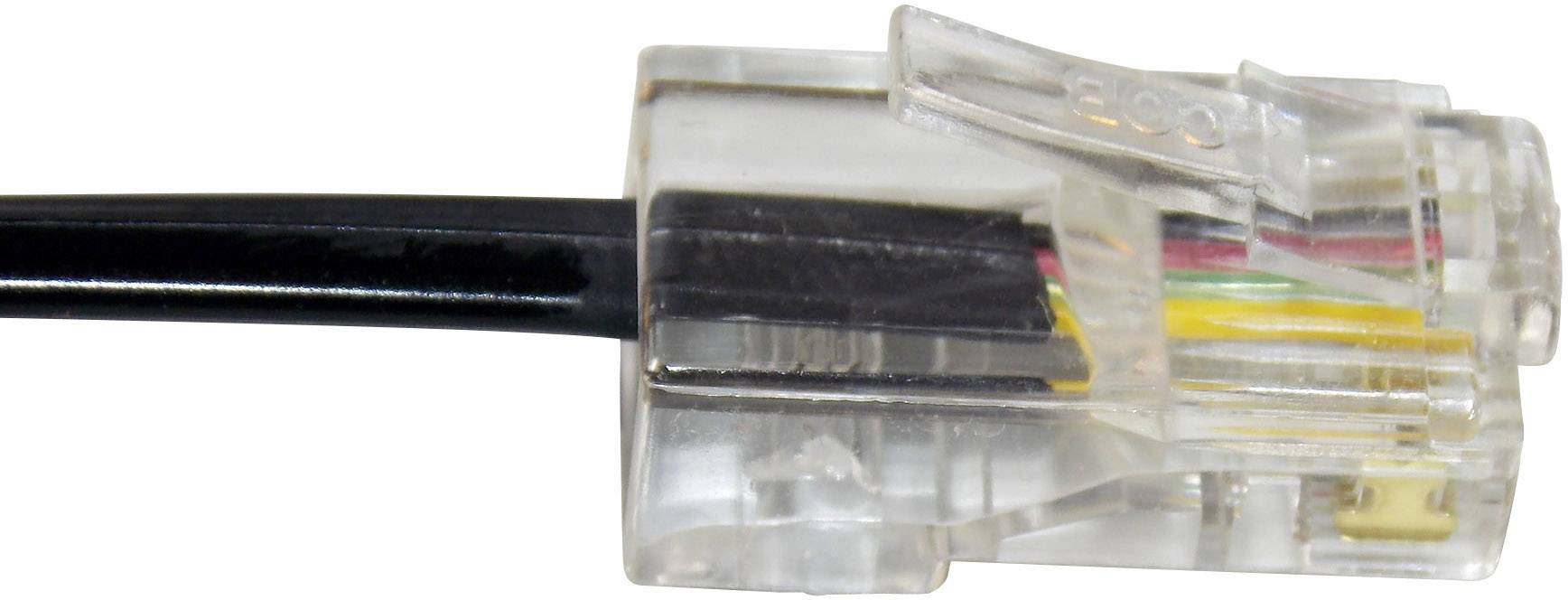

A transparent Ethernet plug with black and coloured cables is attached to a black cable.

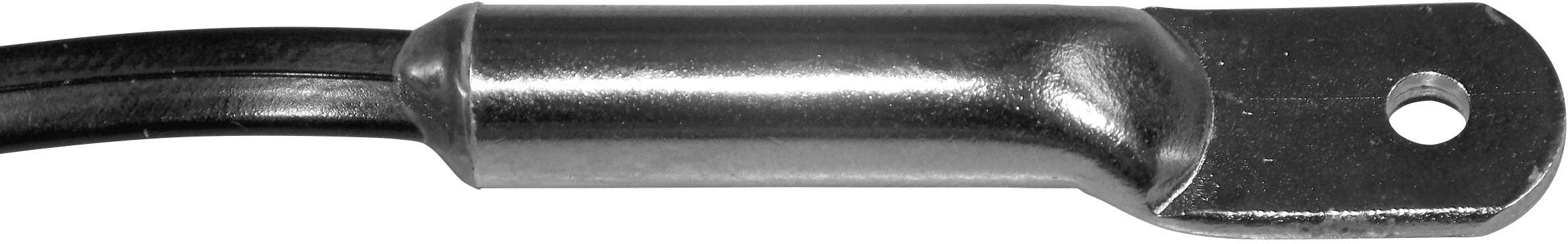

Metallic cable end with ring terminal, suitable for electrical connections or connections.

1/11

Fast track dispatch on Fri, 11 Sep

53 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 41.17 / piece)

€ 41.17

plus VAT.

Report legal concerns

Highlights & Details

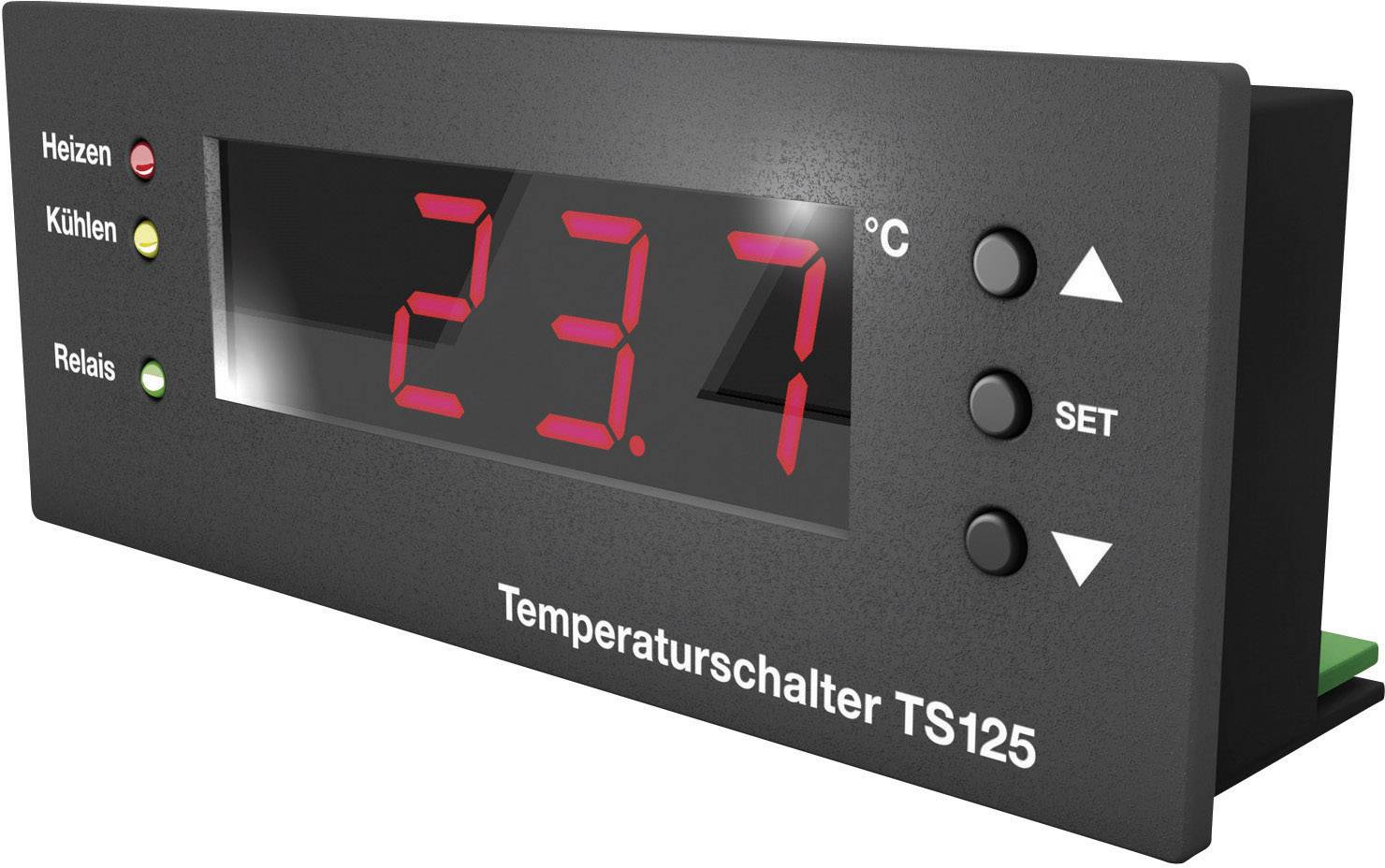

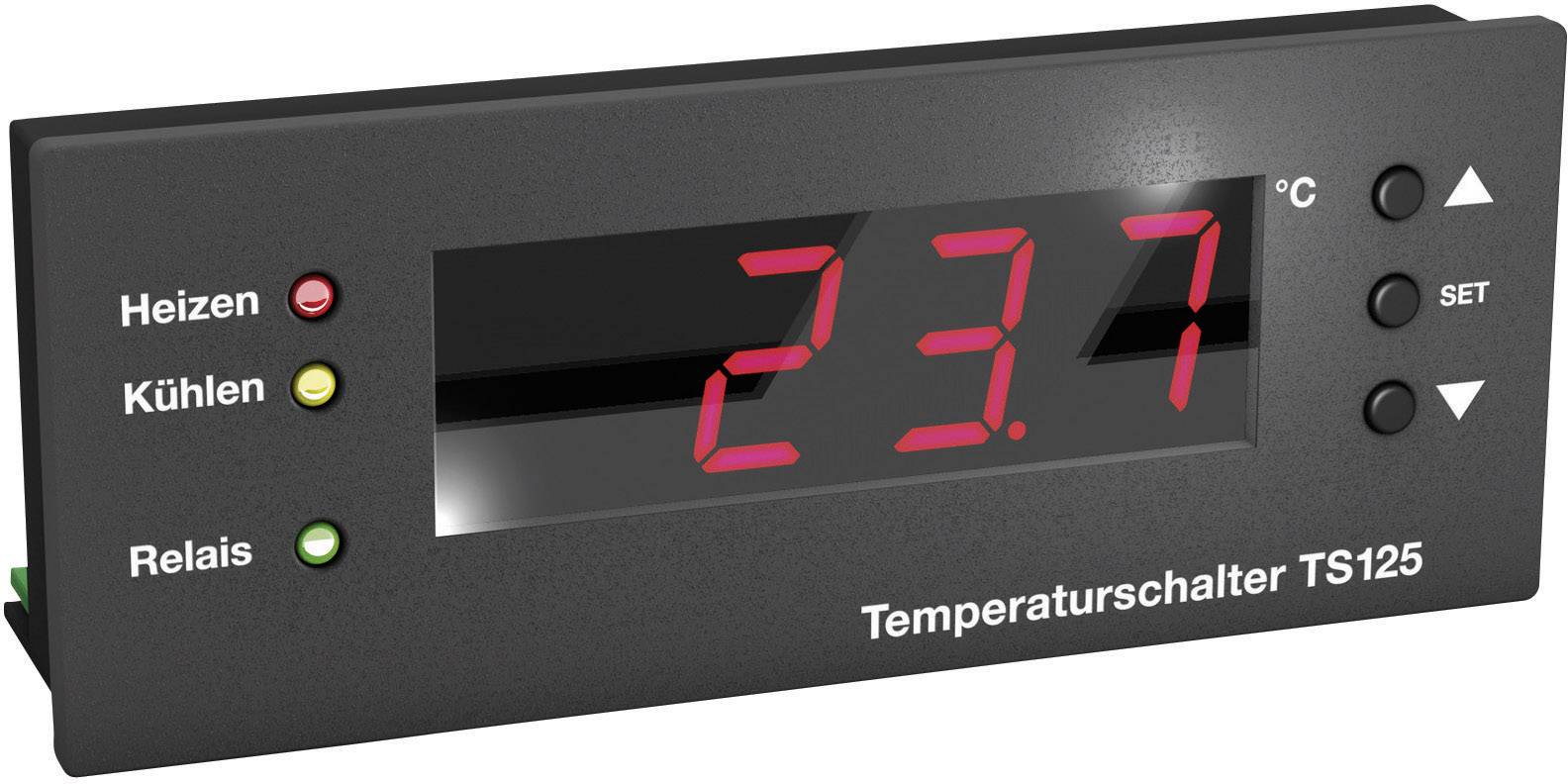

H-Tronic 1114525 TSM 125 Temperature switch Component 12 V DC -55 - 125 °C

Switching temperature can be selected freely
Powerful and clear
Adjustable for heating or cooling

Technical specifications

Resolution: 0.1°C
Cut-out for front plate: 97 x 43 mm.

Current consumption: 60 mA

Output rating: 5 A/250 V/AC (potential free relay contact)

Version: Component

Dim: (L x W x H) 35 x 101 x 47 mm

Height: 47 mm

Length: 35 mm

Width: 101 mm

Output current: 5 A

Operating voltage: 12 V DC

Max. temperature: 125 °C

Min. temperature: -55 °C

Product type: Temperature switch

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 190768 H-Tronic 1114525 TSM 125 Temperature switch Component 12 V DC -55 - 125 °C

Information

Information 190768 H-Tronic 1114525 TSM 125 Temperature switch Component 12 V DC -55 - 125 °C

Description

The new temperature switch module TSM125 is ideally suited for all areas of applications, in which a temperature control in heating or cooling operation is required. Its external, pluggable temperature sensor captures measuring ranges from -55 to +125° degrees Celsius. The switching temperature is adjusted in 0.1 degree increments. A 12.7 mm large 7-segment display shows the on and off old temperature or the current temperature also. A red LED indicates also "heating", a yellow "cooling", another is lit when the relay. The electronic thermostat is not only clear and easy to use, but also safe to use. Sensor short circuit and sensor circuit are recognized immediately. The device can be used independently, but can also be used as a replacement for faulty mechanical thermostats or for digital thermometer.

This text is machine translated.

Features

Switching temperature can be set freely
Min./Max display
Remote measurement up to 50 m
Serial Interface
Sensor monitoring for short circuit
Sensor monitoring for interruption
The relay switches in case of sensor failure.
Operating and monitoring-free operation
Adjustable for heating or cooling
LED indicators for relay on, sensor failure, heating, cooling.

Scope of delivery

Temperature switch

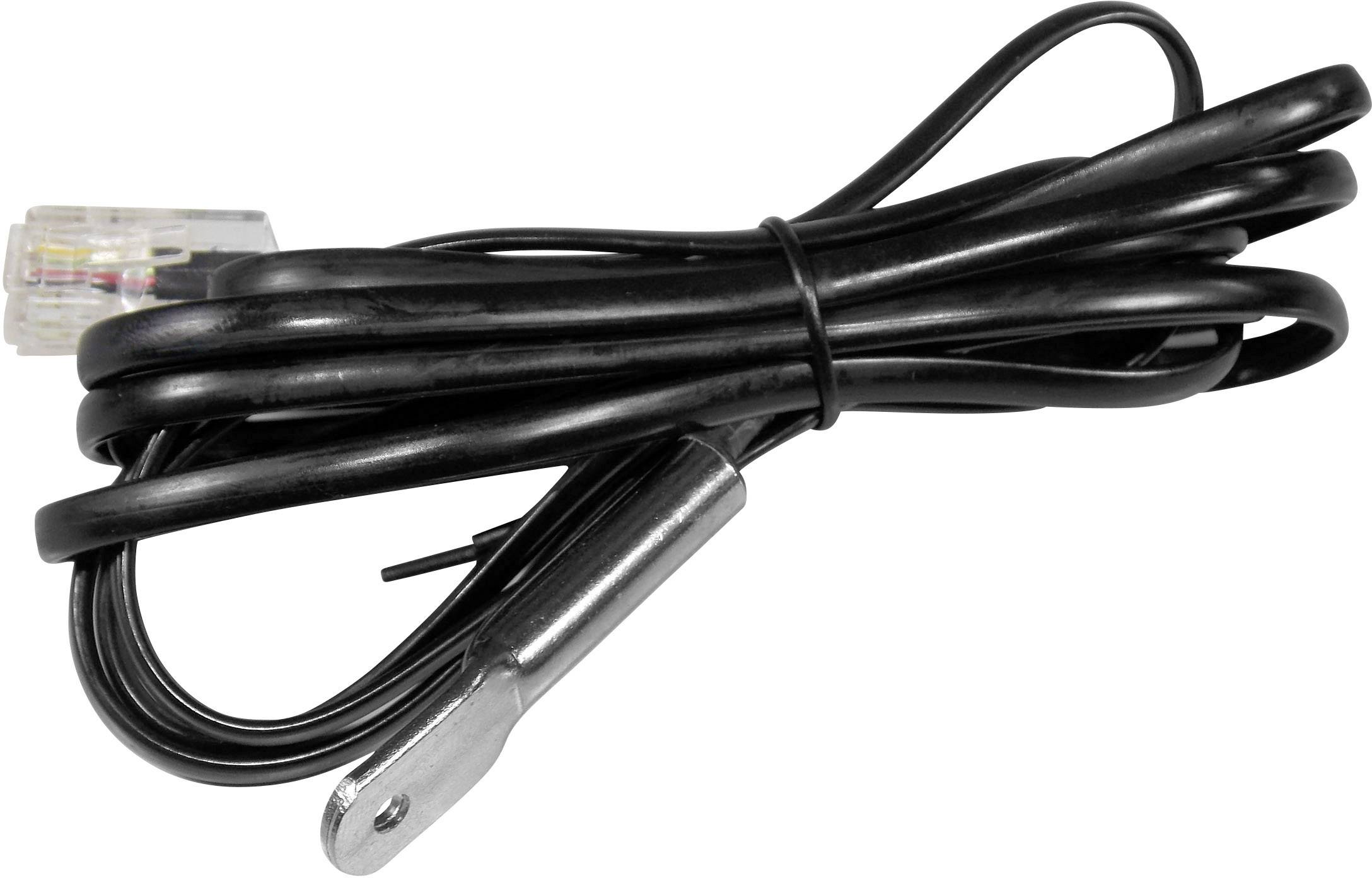

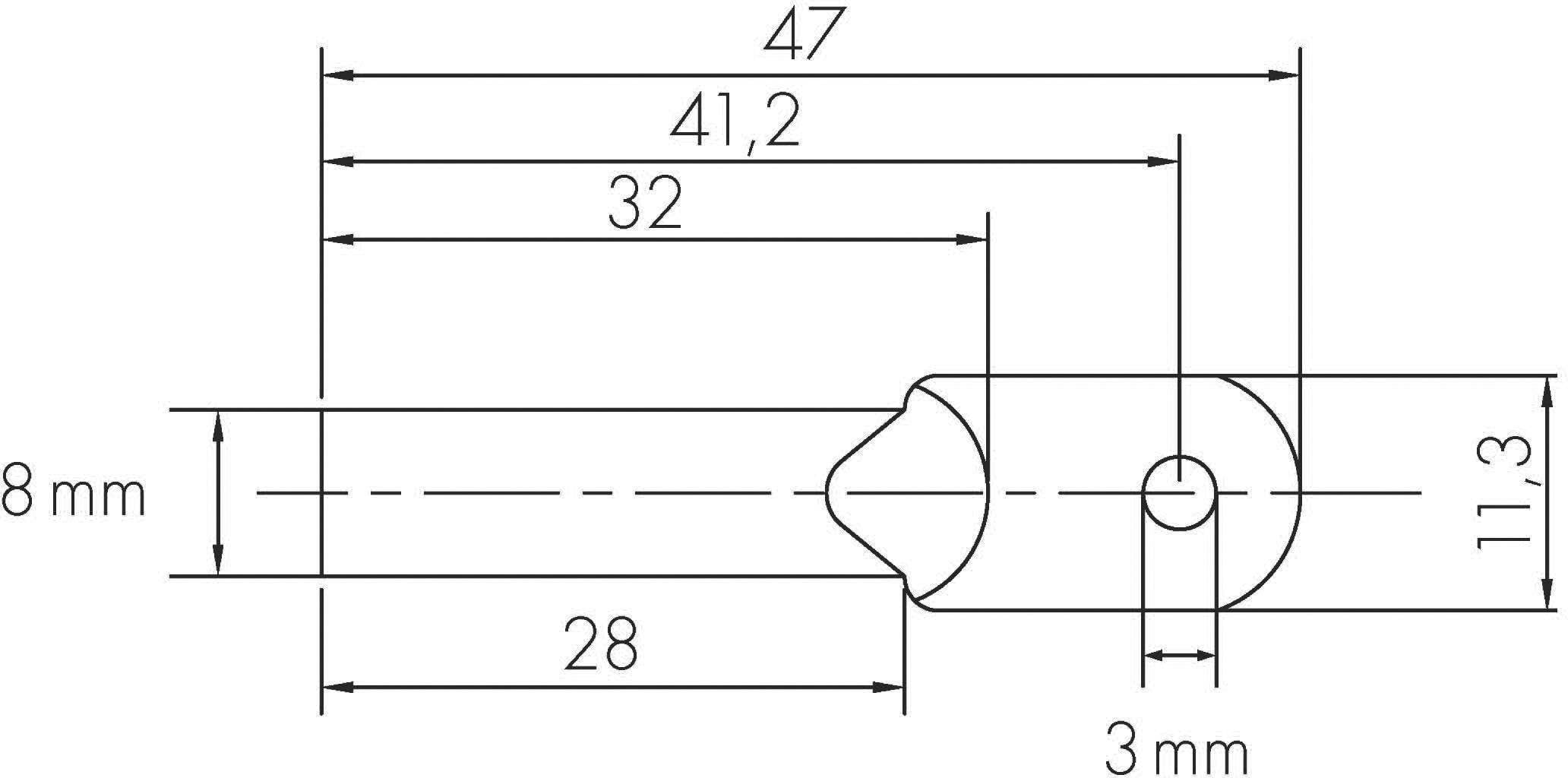

Temperature sensor with 2 m pluggable connection cable.
