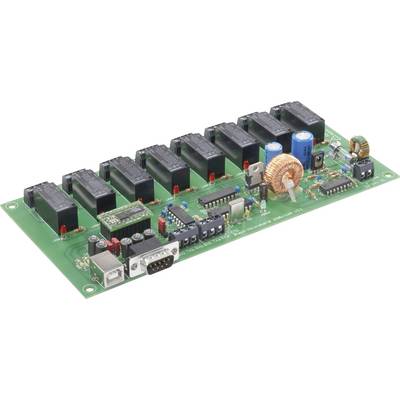

Conrad Components 197730 Relay card Component 12 V DC
EAN:
Part number:
Item no:
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Highlights & Details
8-fold relay card 230 V/AC 16A
- Cascading of up to 255 cards
Technical specifications
- Operating voltage
12 - 24 V DC
- Current consumption
max. 300 mA
- Output rating
Contact load carrying capacity 16 A / 230 V/AC
- Version
Component
- Dim
(L x W x H) 212 x 100 x 29 mm
- Height
29 mm
- Length
212 mm
- Width
100 mm
- Inputs / outputs
8 relay outputs
- No. of relay outputs
8
- Relay current
16 A
- Operating voltage
12 V DC
- Product type
Relay card
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 197730 Conrad Components 197730 Relay card Component 12 V DC
Information
Information 197730 Conrad Components 197730 Relay card Component 12 V DC
Conformity certificate
Conformity certificate 197730 Conrad Components 197730 Relay card Component 12 V DC
Download
Download 197730 Conrad Components 197730 Relay card Component 12 V DC
Download 197730 Conrad Components 197730 Relay card Component 12 V DC
Download 197730 Conrad Components 197730 Relay card Component 12 V DC
Description
Relay card for switching loads via RS232 or with optional adapter board (order No. 197257) with the USB-connection of a computer. For extending the relay switching outputs up to 255 relay cards can be operated at only one interface.
Scope of delivery
- 8-fold relay card
- Software with source code
- Instructions for use.
Hints
Required accessories: null modem cable or USB-cable type A-B.
