H-Tronic TLF 1000 Thermostat -25 - 70 °C 1 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 9 Piece(s) available
Highlights & Details

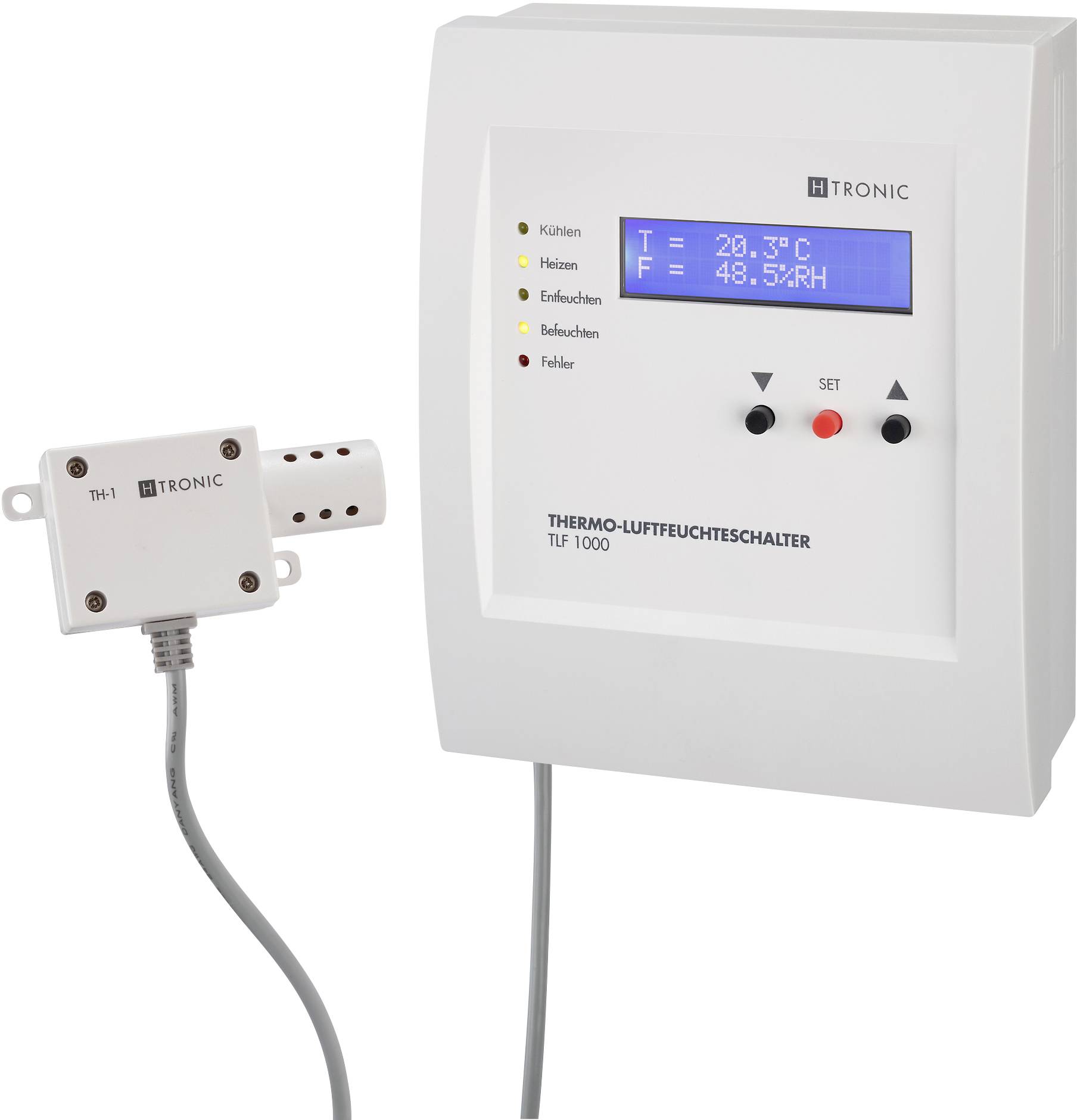

Temperature air humidity switch TLF 1000
- Heating, air conditioning, air humidity, greenhouse control
- Remote measurement up to 50 m possible
- Incl. Long-term stable sensor
Technical specifications
- Operating voltage: 230 V/AC /50 Hz.
- Power consumption (standby) max. approx. 1 W
- Output/max. Switching capacity: 4 potential-free relays
- Max. Switching capacity (total): Approx. 2700 VA
- Temperature measurement range -25 to +70 ºC
- Humidity measurement range 0 to 100 % RH
- Sensor cable 10 m (extendable up to 50 m)
- Dim. (TLF1000) 170 x 140 x 68 mm
- Dim. Sensor TH-1 76 x 36 x 21 mm
- Protection class IP20 (TLF1000); IP64 (Sensor TH-1)
- Operating voltage
230 V
1 W
- Max. temperature
70 °C
- Min. temperature
-25 °C
IP20
- Weight
1030 g
- UKCA
yes
- Product type
Thermostat
Documents & Downloads
Datasheet
Datasheet 2265690 H-Tronic TLF 1000 Thermostat -25 - 70 °C 1 W
User & Safety Instructions
User & Safety Instructions 2265690 H-Tronic TLF 1000 Thermostat -25 - 70 °C 1 W
User & Safety Instructions 2265690 H-Tronic TLF 1000 Thermostat -25 - 70 °C 1 W
Description
With the TLF 1000 you can intelligently operate your fan heater, an air conditioner, a humidifier or your greenhouse!
Do you want to use your fan heater, an air conditioner or an air humidifier intelligently? Do you want your greenhouse to be heated or ventilated at the right moment? With the temperature air humidity switch TLF1000 you get the optimal solution!
The connected consumers are only switched on if the current values for temperature and air humidity deviate from the previously set setpoints. In this way, you can ensure a pleasant indoor climate, in which a mold formation that is hazardous to health is avoided or a certain air humidity is created in your greenhouse.
The TLF1000 is operated with a temperature air humidity sensor. It is particularly suitable for a temperature and ventilation control, in which the current indoor climate can be controlled actively (e.g. via heaters, ventilation flaps or humidifiers connected to the control) and independantly of the current outdoor temperature and humidity.
This text is machine translated.
Do you want to use your fan heater, an air conditioner or an air humidifier intelligently? Do you want your greenhouse to be heated or ventilated at the right moment? With the temperature air humidity switch TLF1000 you get the optimal solution!
The connected consumers are only switched on if the current values for temperature and air humidity deviate from the previously set setpoints. In this way, you can ensure a pleasant indoor climate, in which a mold formation that is hazardous to health is avoided or a certain air humidity is created in your greenhouse.
The TLF1000 is operated with a temperature air humidity sensor. It is particularly suitable for a temperature and ventilation control, in which the current indoor climate can be controlled actively (e.g. via heaters, ventilation flaps or humidifiers connected to the control) and independantly of the current outdoor temperature and humidity.
This text is machine translated.
Features
- Automatic control of "cooling - heating" or "dehumidifying - humidifying", automatic humidity control for bathrooms, sanitary rooms, cellars, wine cellars, kitchens, etc.
- direct control of e.g. Room fans via 4 potential-free relays
- Setting via set value adjustable in 0.1 steps
- Sensor monitoring on interruption
- Illuminated LC-display

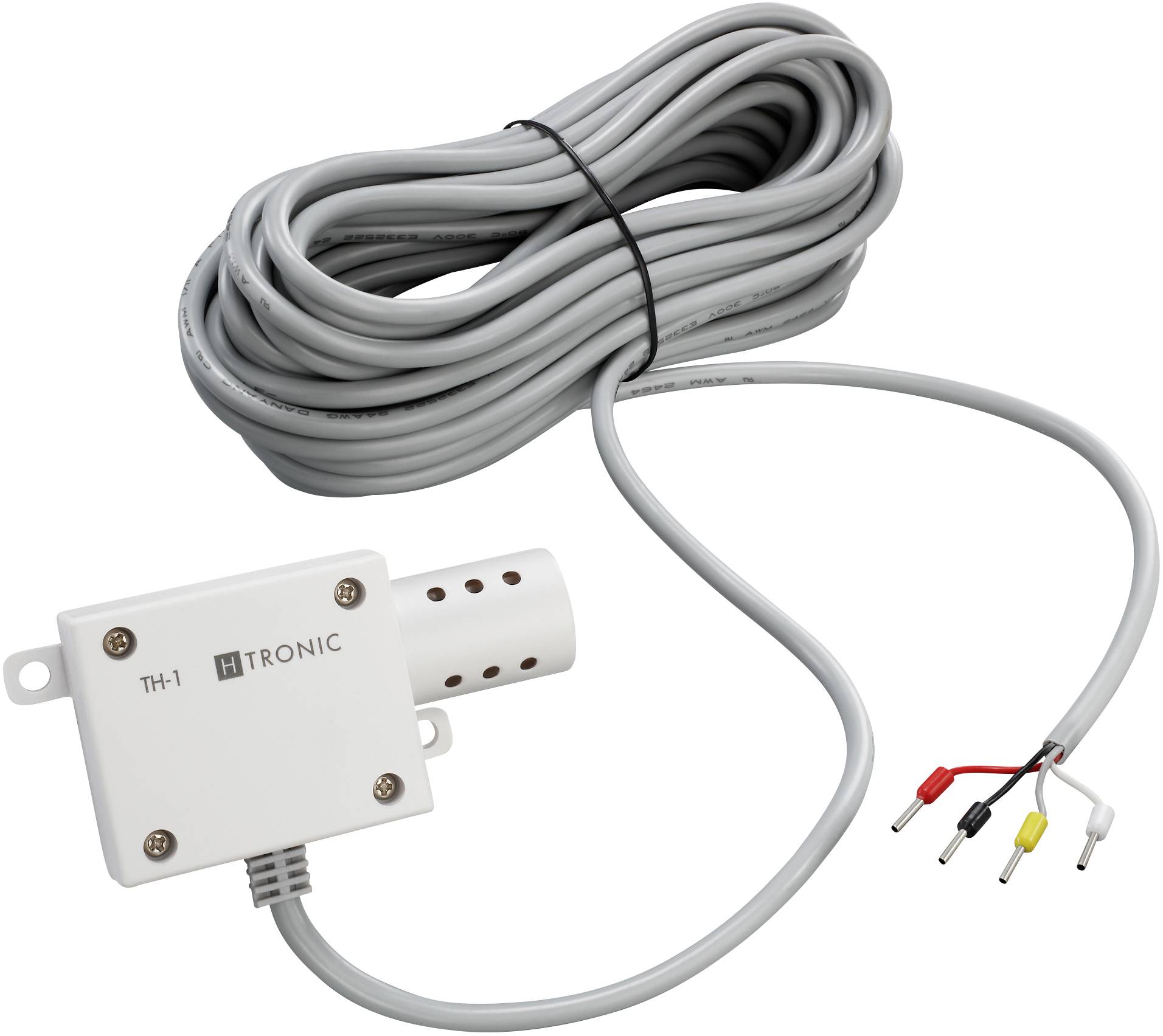

- High-quality, long-term stable TH-1 sensor (included in delivery).
