H-Tronic UTS 125 Thermostat -55 - 127 °C
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Highlights & Details
Universal temperature switch UTS 125
- Heating or cooling operation - such as central heating, air conditioning, incubator, etc.

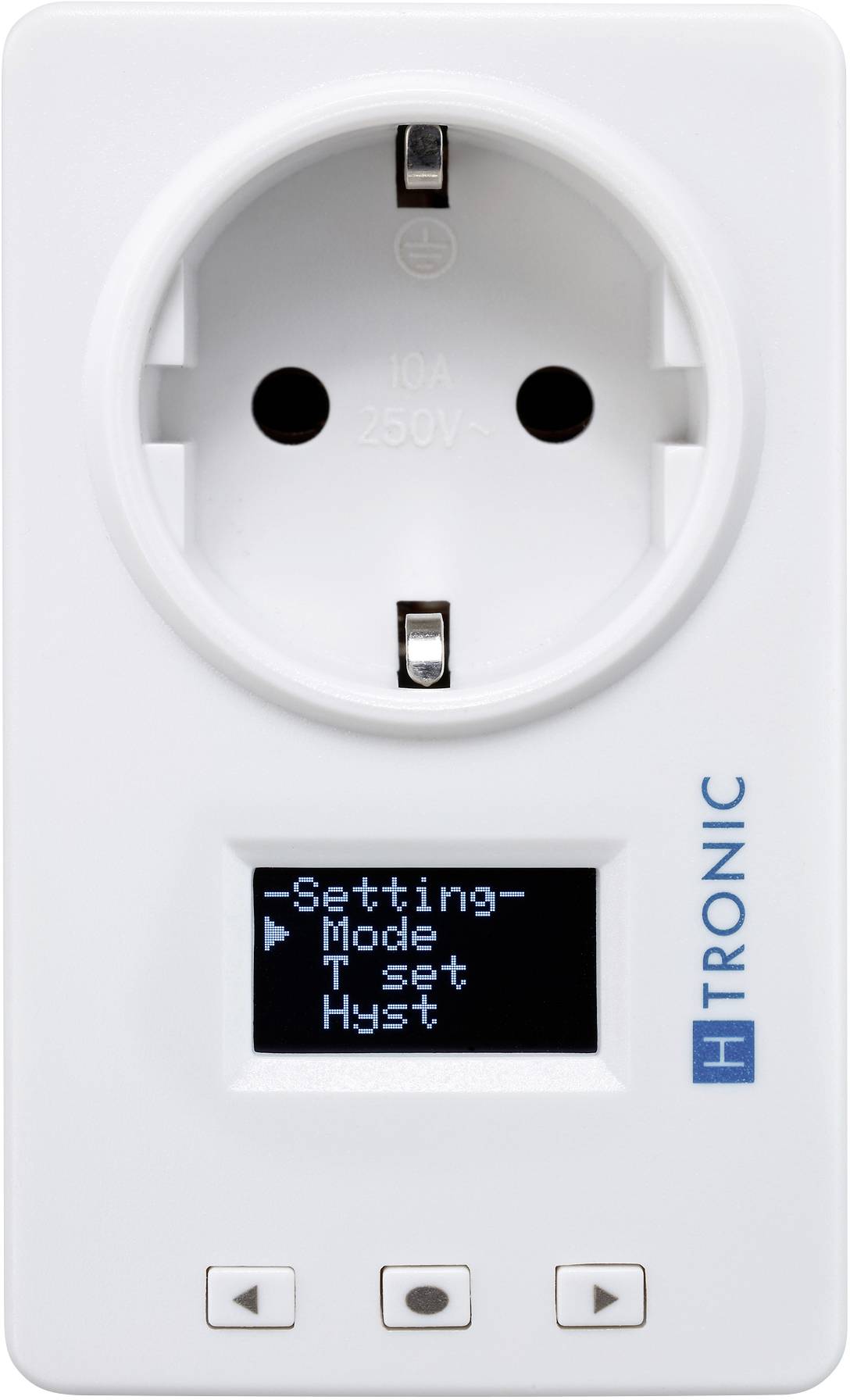

- Display can be rotated by 180 degrees via menu
- Data retention even in case of power failure
Technical specifications
- Operating voltage 230 VAC/50 - 60 Hz
- Output voltage 230 V/50 Hz/10 A (for 230 V socket)
- Power consumption: Approx. 0.3 VA (standby)
- Maximum connection load 230 VAC / 2300 VA / 10 A.
- Sensor measuring range: -55 to +127.0 °C.
- Accuracy:
- In the range –55 °C …–10 °C: +/–2 °C.
- In the range –10 °C …+85 °C: +/–0.5 °C.
- In the range + 85 °C …+127 °C: +/–2 °C.
- Resolution: 0.1 °C
- Device ambient temperature: -10 to +40 °C.
- Silicone cable Temperature range: -55 to +200 °C.
- Dim. Without plug (W x H x D): 60 x 98 x 40 mm
- Temperature sensor sealed in waterproof housing: (Dim. 30 x 9 mm)
- Display: Can be rotated by 180 ° using the keys

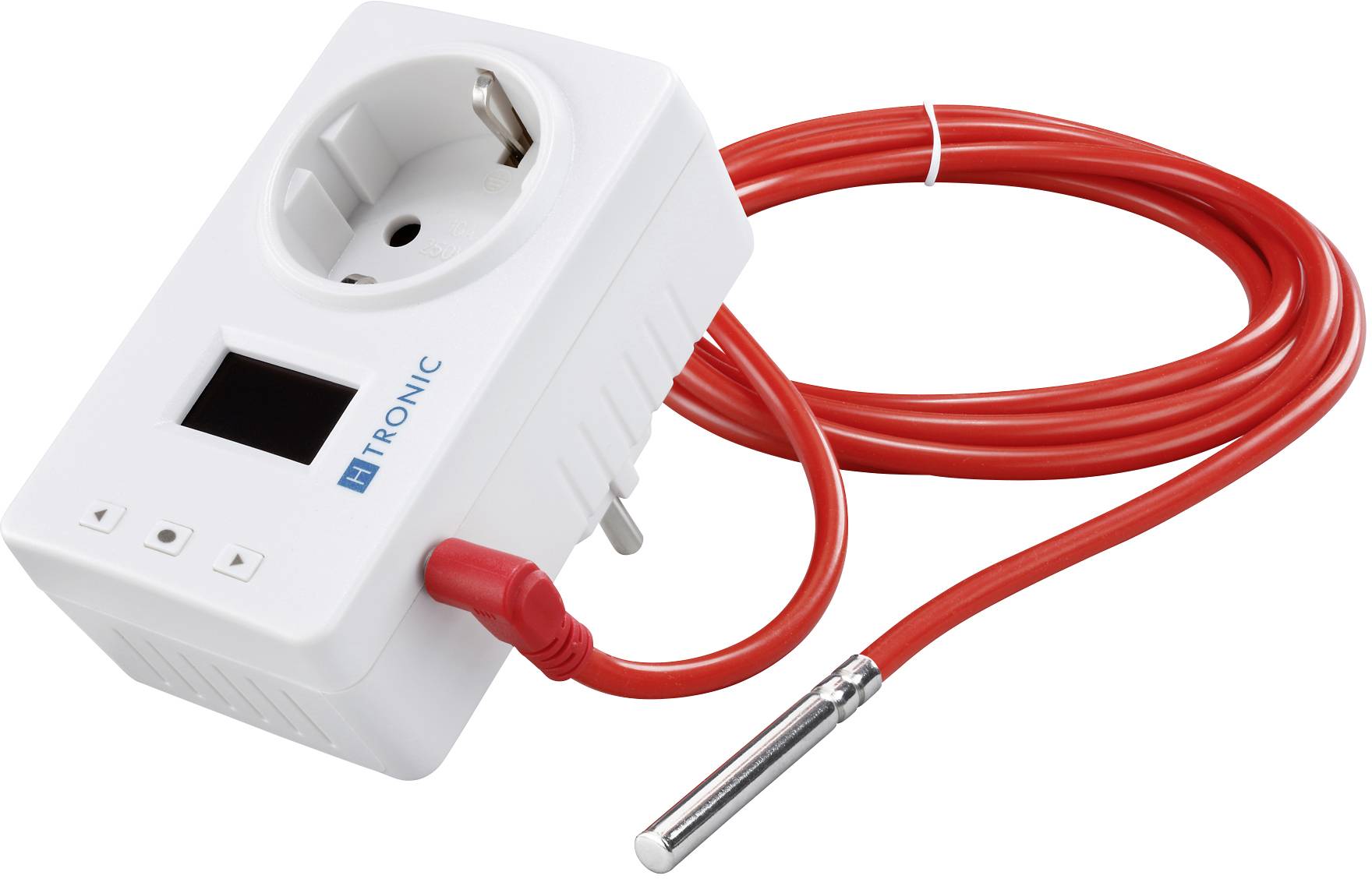

- Temperature sensor type: Maxim DS 18B20 (with 2.0 m cable included)

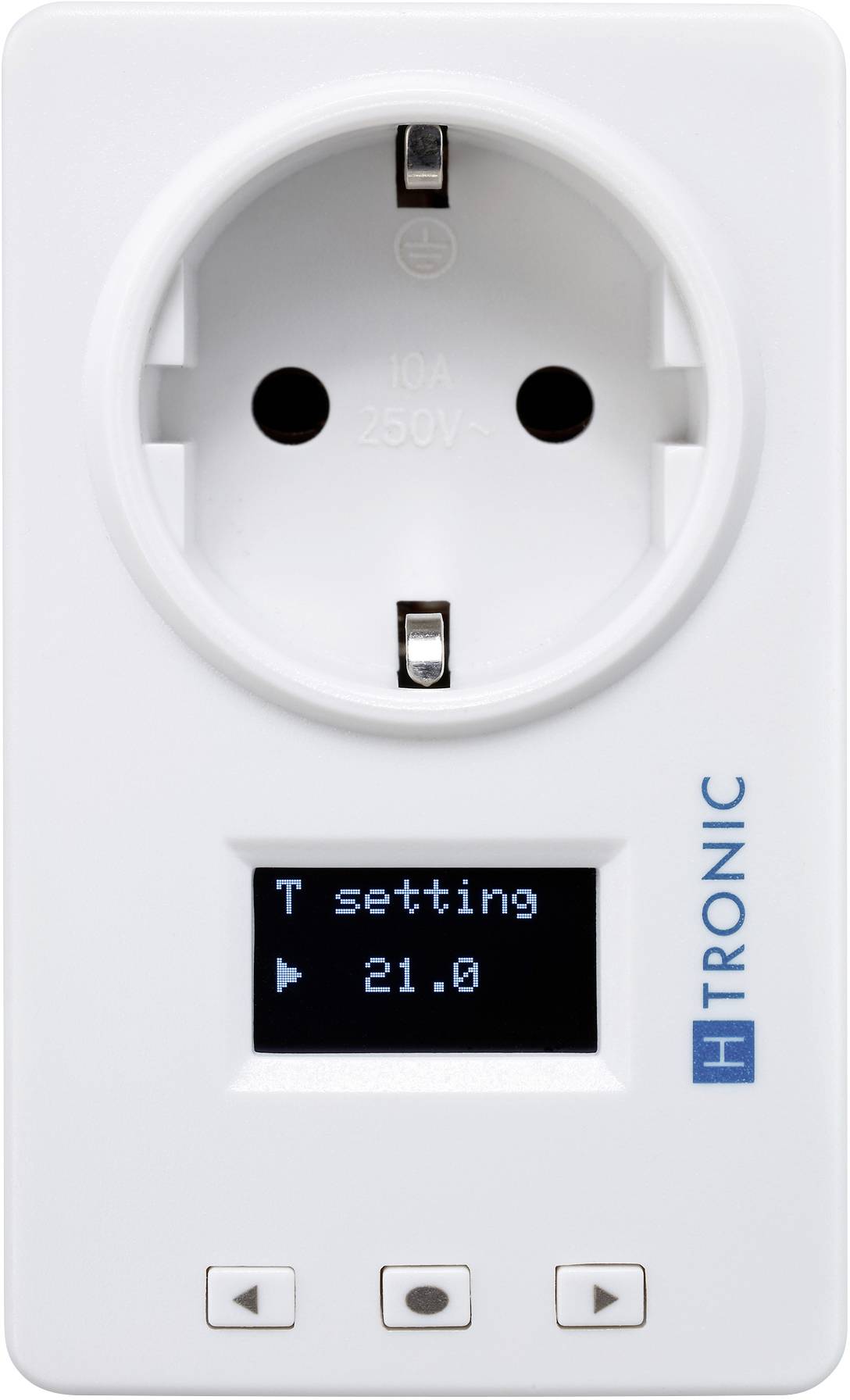

- Switching temperature of –55…+127 °C can be set freely in 0.1°C increments
- Hysteresis (switching accuracy): Freely adjustable (0.1 °C … 10 °C )
- Remote measurement: Up to 50 m.
- Operating voltage
230 V
- Max. temperature
127 °C
- Min. temperature
-55 °C
IP20
- UKCA
yes
- Product type
Thermostat
Documents & Downloads
Datasheet
Datasheet 2265689 H-Tronic UTS 125 Thermostat -55 - 127 °C
User & Safety Instructions
User & Safety Instructions 2265689 H-Tronic UTS 125 Thermostat -55 - 127 °C
User & Safety Instructions 2265689 H-Tronic UTS 125 Thermostat -55 - 127 °C
Conformity certificate
Conformity certificate 2265689 H-Tronic UTS 125 Thermostat -55 - 127 °C
Description
The TS 125 records the current ambient temperature and automatically switches a connected device on and off again when the current temperature has reached the previously set values.
You want to keep the temperature in your aquarium at a certain level? Your greenhouse should be ventilated depending on the indoor temperature? Or just replace a defective thermostat in your refrigerator? Here's the solution! The temperature switch UTS125 records the current ambient temperature and automatically switches a connected device on and off again when the current temperature has reached the previously set values. If, for example, the room temperature falls below 20 °C, a connected fan heater is activated automatically and heats up to the set temperature. Then the device switches off automatically.
The UTS125 can be used wherever you want to keep control of the room temperature: Whether in the greenhouse when wintering plants, in the hobby room, in the cellar, for electric outdoor saunas, in the turtle terrarium, etc.
The UTS125 is suitable for all applications where temperature control is required in heating or cooling mode, such as central heating, air conditioning, incubator, etc.
The device can be used independantly, e.g. as frost protection, but also as a replacement for defective mechanical thermostats or digital thermometers.
This text is machine translated.
You want to keep the temperature in your aquarium at a certain level? Your greenhouse should be ventilated depending on the indoor temperature? Or just replace a defective thermostat in your refrigerator? Here's the solution! The temperature switch UTS125 records the current ambient temperature and automatically switches a connected device on and off again when the current temperature has reached the previously set values. If, for example, the room temperature falls below 20 °C, a connected fan heater is activated automatically and heats up to the set temperature. Then the device switches off automatically.
The UTS125 can be used wherever you want to keep control of the room temperature: Whether in the greenhouse when wintering plants, in the hobby room, in the cellar, for electric outdoor saunas, in the turtle terrarium, etc.
The UTS125 is suitable for all applications where temperature control is required in heating or cooling mode, such as central heating, air conditioning, incubator, etc.
The device can be used independantly, e.g. as frost protection, but also as a replacement for defective mechanical thermostats or digital thermometers.
This text is machine translated.
Features

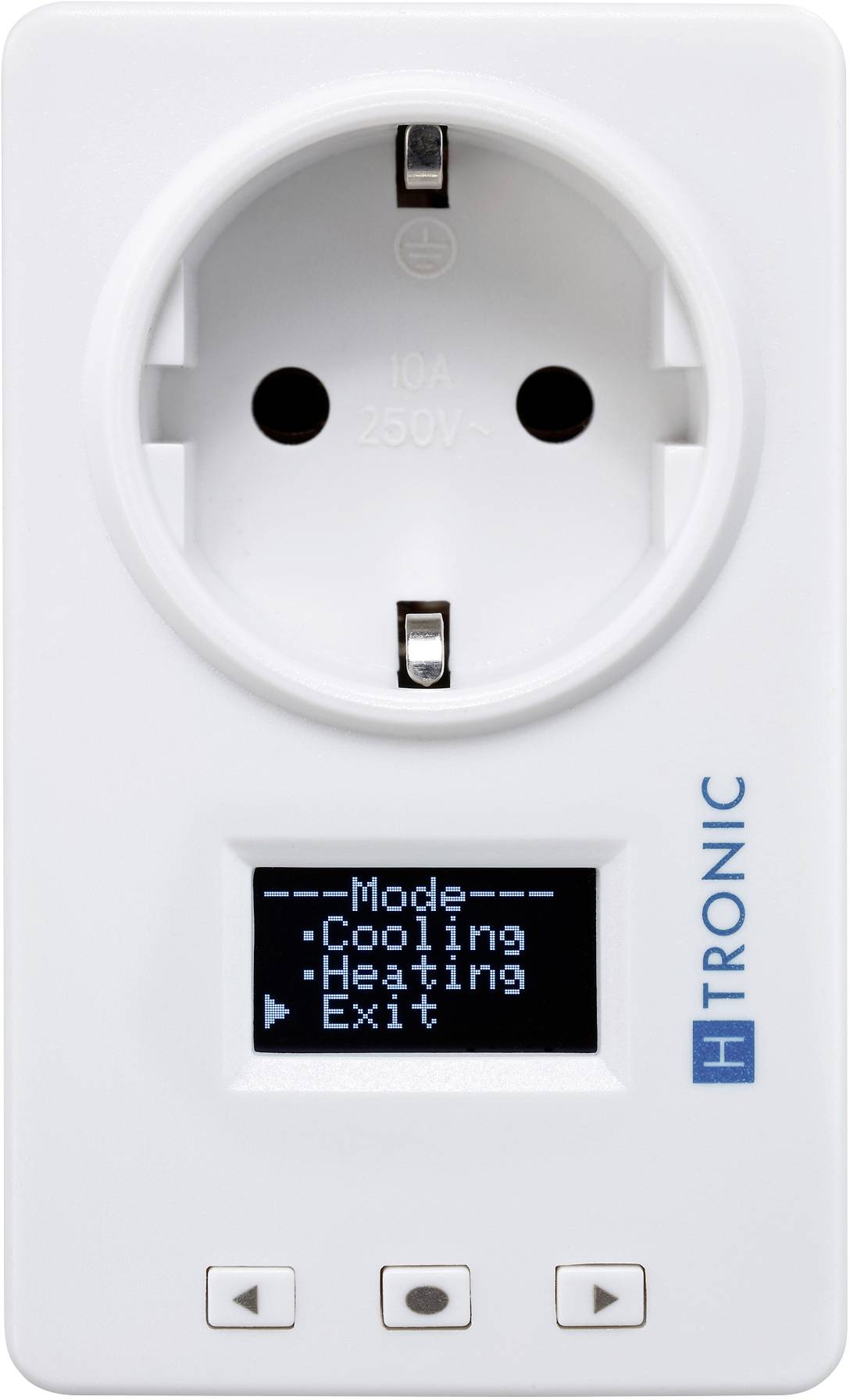

- Adjustable for heating or cooling
- Sensor monitoring on short circuit and interruption
- Socket switches off in case of sensor error

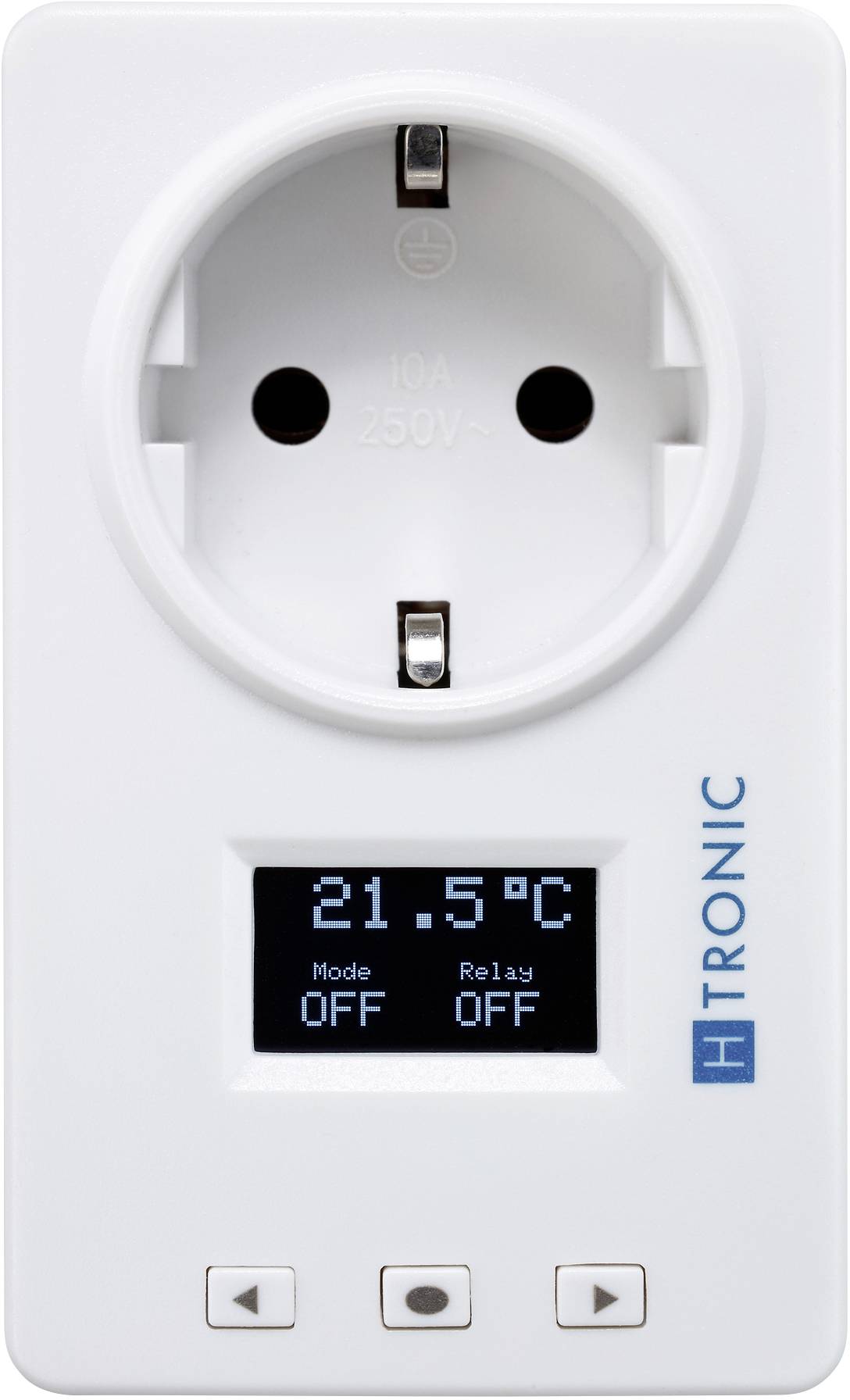

- Display: Temperature, selected mode, state socket (on/off)
- Min./max. Display
- Sensor cable can be extended up to 50 m
- LC-display for temperature setting, socket on, sensor error, heating, cooling
- Automatic start after voltage failure
- Simple operation.
